Profile Design

WING/10a Base Bar

WING/10a Base Bar

Regular price $117.00 CAD
Regular price Sale price $117.00 CAD
Sale Sold out
Shipping calculated at checkout.
Width

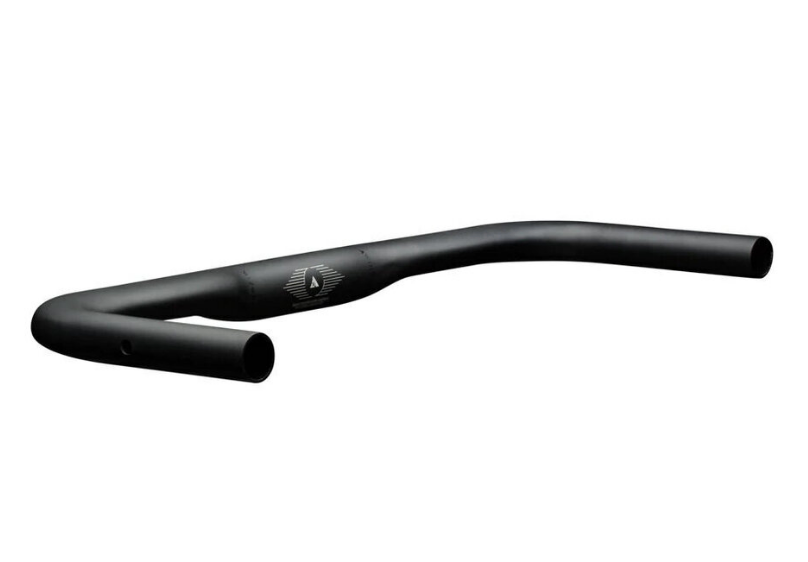

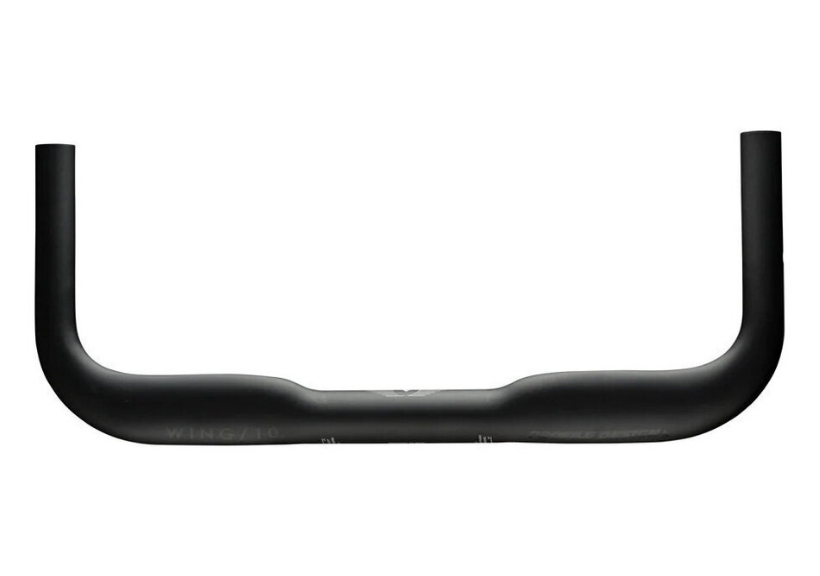

The WING/10a offers great fit versatility - allowing the rider to fine-tune the grip height for their riding style and comfort preferences. The straight hand grips are part of the flippable design that allows the grip height to be modified by 10mm. The grip length can also be trimmed by up to 30mm. The truncated design of the wing helps improve hand comfort when sitting up on the bar tops.

The WING/10a offers the greatest fit versatility of any previous Profile Design alloy base bar, allowing the rider to fine tune for their riding style and comfort preferences.

The WING/10a can be used with any Profile Design clip-on aerobar, brake lever and stem option.

Specifications

  • Material: 6061-T6 AL
  • Finish: Matte Black
  • Width: 36, 38, 40, 42, 44cm (center to center)
  • Center Clamp Diameter: 31.8mm
  • Clamp Width: 100mm (on all bar sizes)
  • Pursuit Reach: 160mm (center to tip)
  • Pursuit OD/ID: 23.7 / 20.3mm
  • Drop Outsweep: No
  • Clip Compatible: Yes
  • Stem Clamp: 6Nm
  • Aerobar Clamp: 6Nm
  • Grip Offset: ± 5mm
