Frame

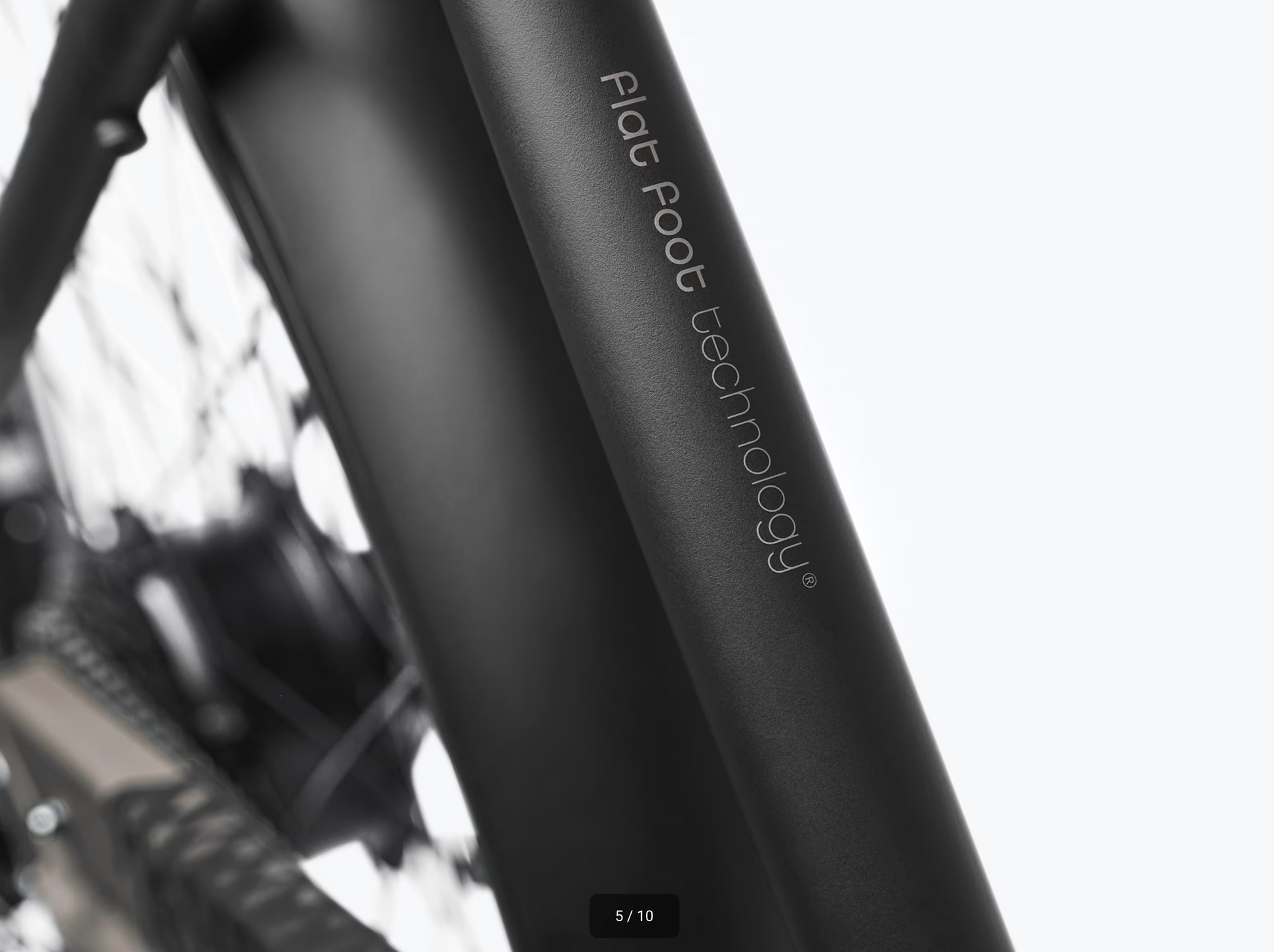

6061-T6 aluminum with patented Flat Foot Technology®
Fork
Hi-ten steel unicrown, straight/tapered leg
Wheels
Hub front
Alloy low-flange w/6-bolt disc, 36h, w/QR
Skewer front
100x5mm QR
Hub rear
Hyena hub drive motor, 250W
Rim
Alloy double wall, 36h
Tire
27x2.35" balloon
Max tire size
2.35"
E-system
Battery
250Wh, integrated in down tube

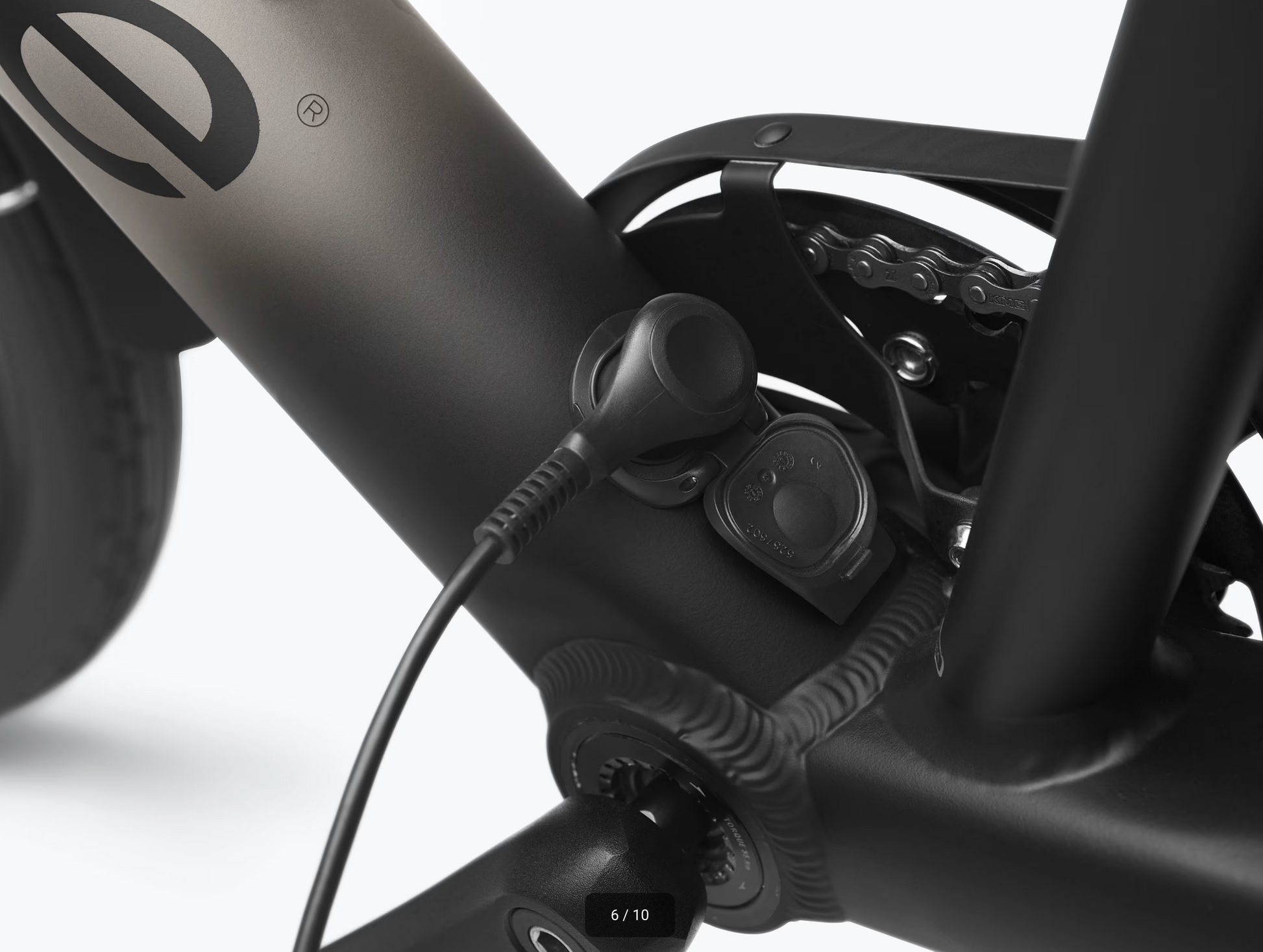

Charger
2A, 42V output, 100V-240V AC input
Computer

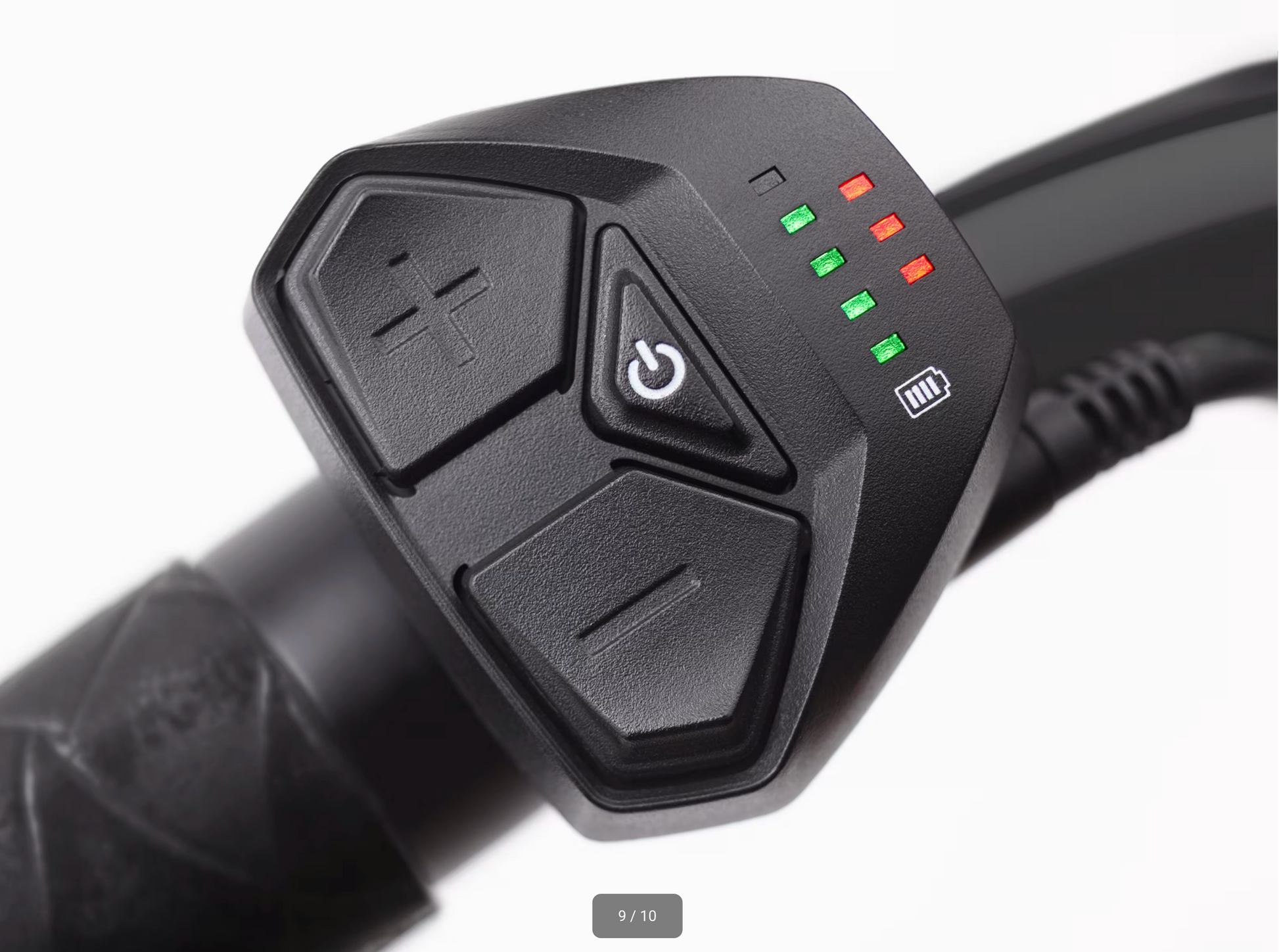

LED display
E-bike Classification
Class 1
Drivetrain
Shifter

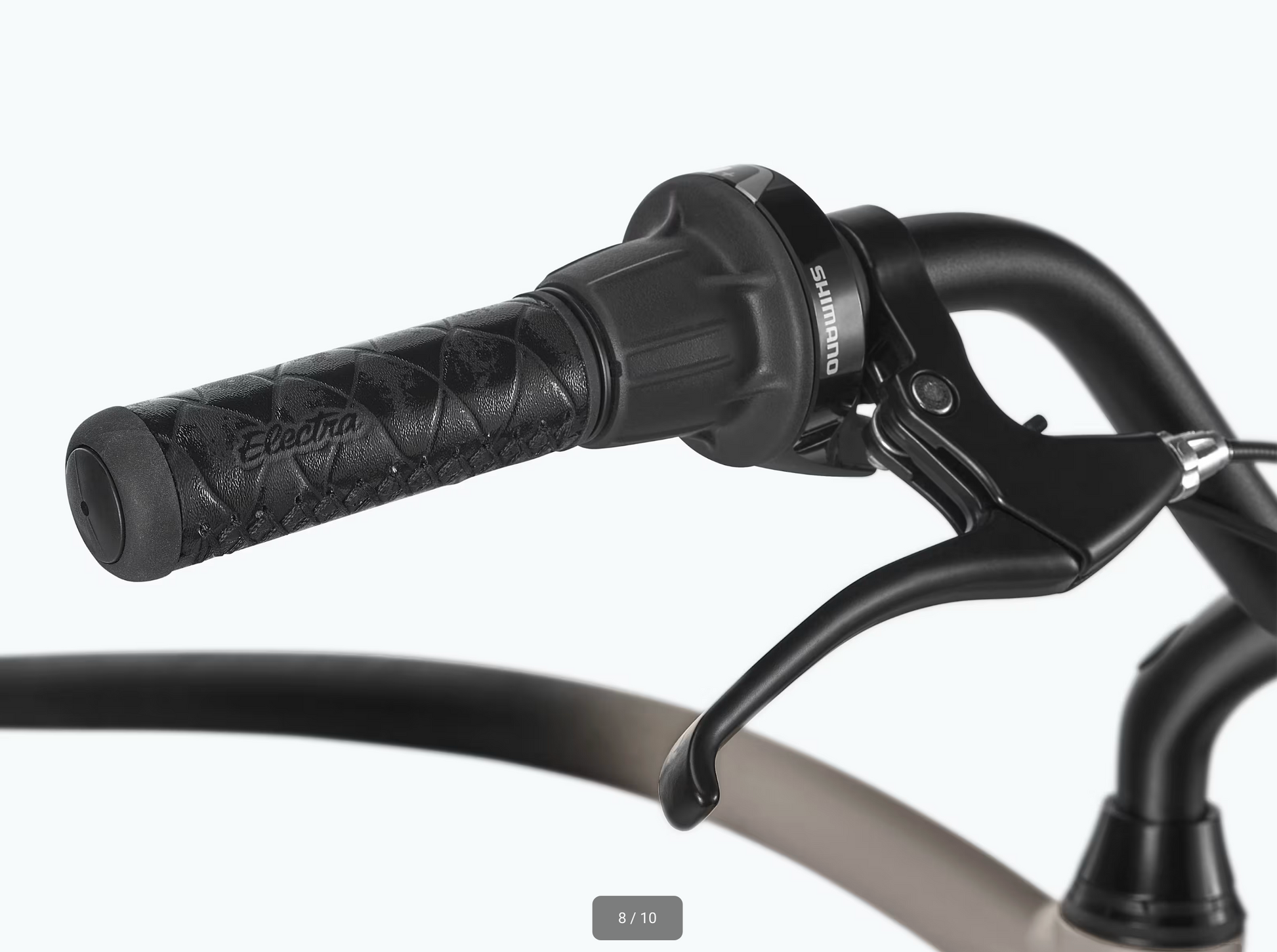

Shimano Tourney Revo 7-speed twist with optical gear display
Rear derailleur
Shimano Tourney TY300

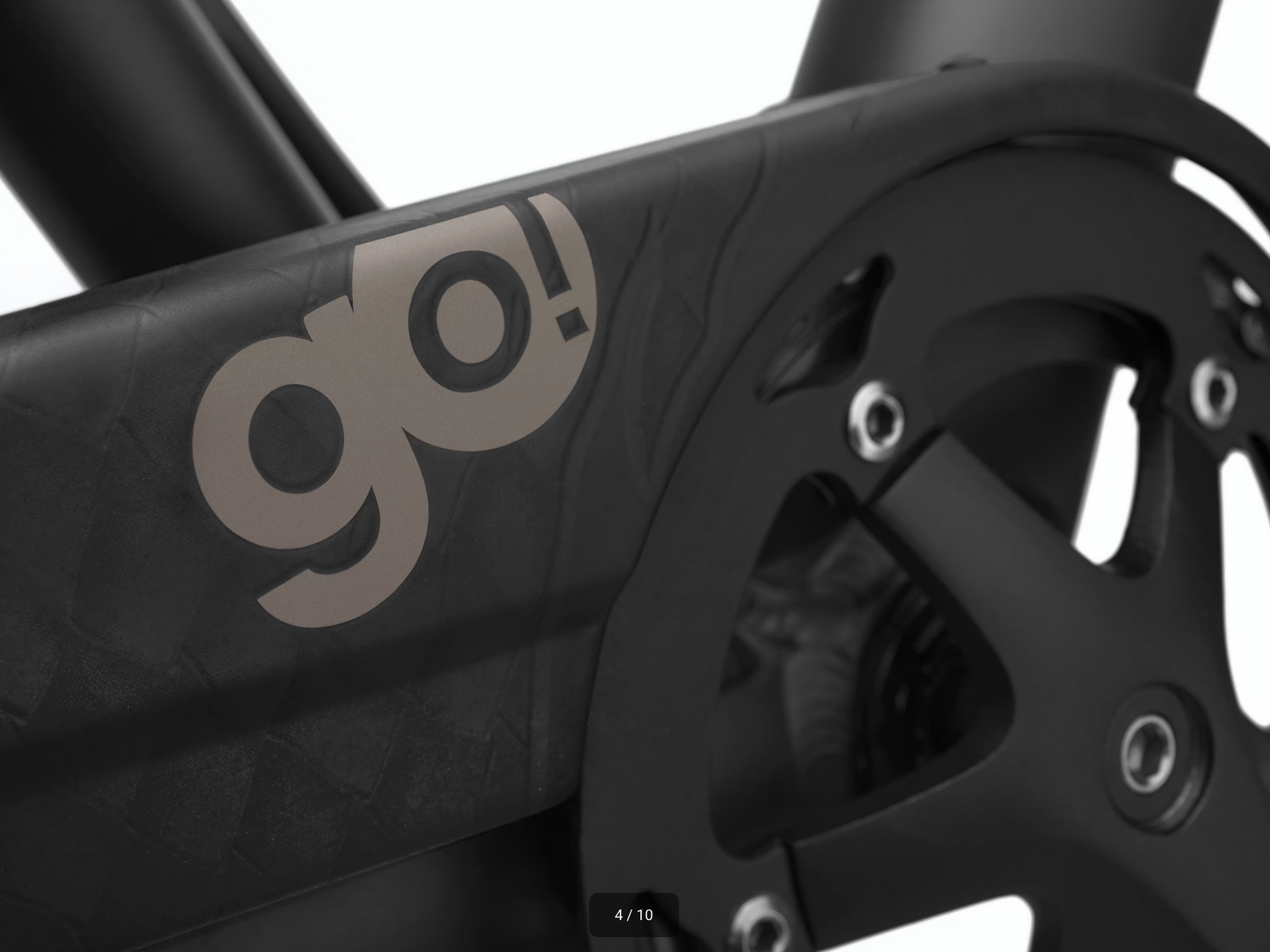

Chain ring
Forged alloy 170mm, 42t chainring
Bottom bracket
Torque sensor, threaded, 122.5mm spindle
Cassette
14-34, 7 speed freewheel
Chain
KMC Z7, 7 speed
Pedal
Resin platform w/non-slip tread
Max chainring size
1x: 44T
Components
Saddle
Ergonomic w/shock-absorbing elastomers
Seatpost
Alloy 27.2x400mm
Handlebar
Alloy custom bend 25.9'' width/4'' rise
Grips
Comfort Kraton
Stem
Forged alloy 25.4mm quill, 80mm extension
Headset
1 1/8'' steel threaded/semi-integrated

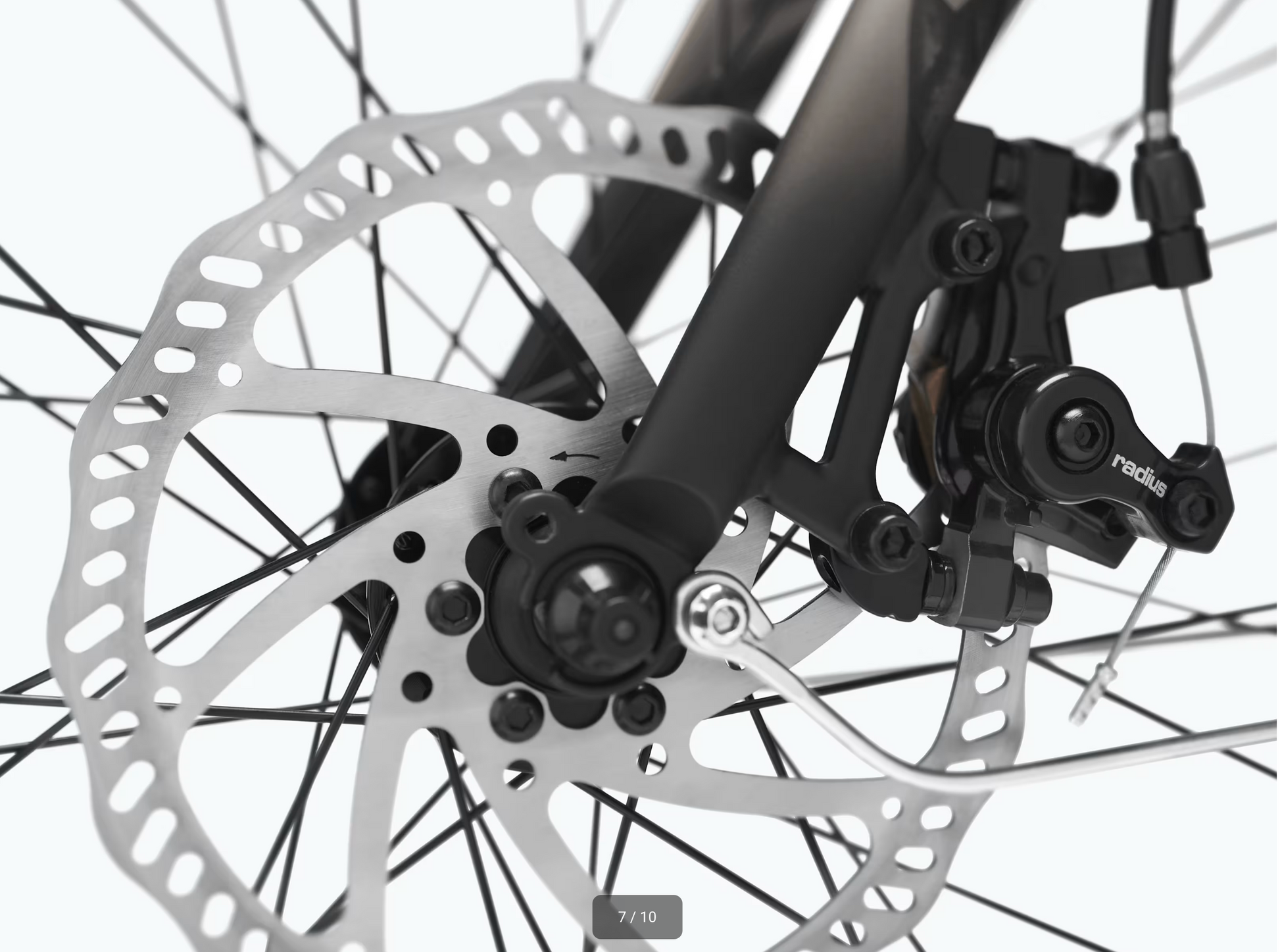

Brake
Mechanical disc, 180mm rotor
Brake lever
Alloy, 3-finger
Rotor size
Max brake rotor sizes: 180mm front & rear
Accessories
*Light
Size: M
Spanninga Pixeo, LED, taillight
Size: M
Spanninga, Kendo XE, LED, headlight
Kickstand
Alloy, rear mount
Weight
Weight
20.91 kg / 46.1 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
