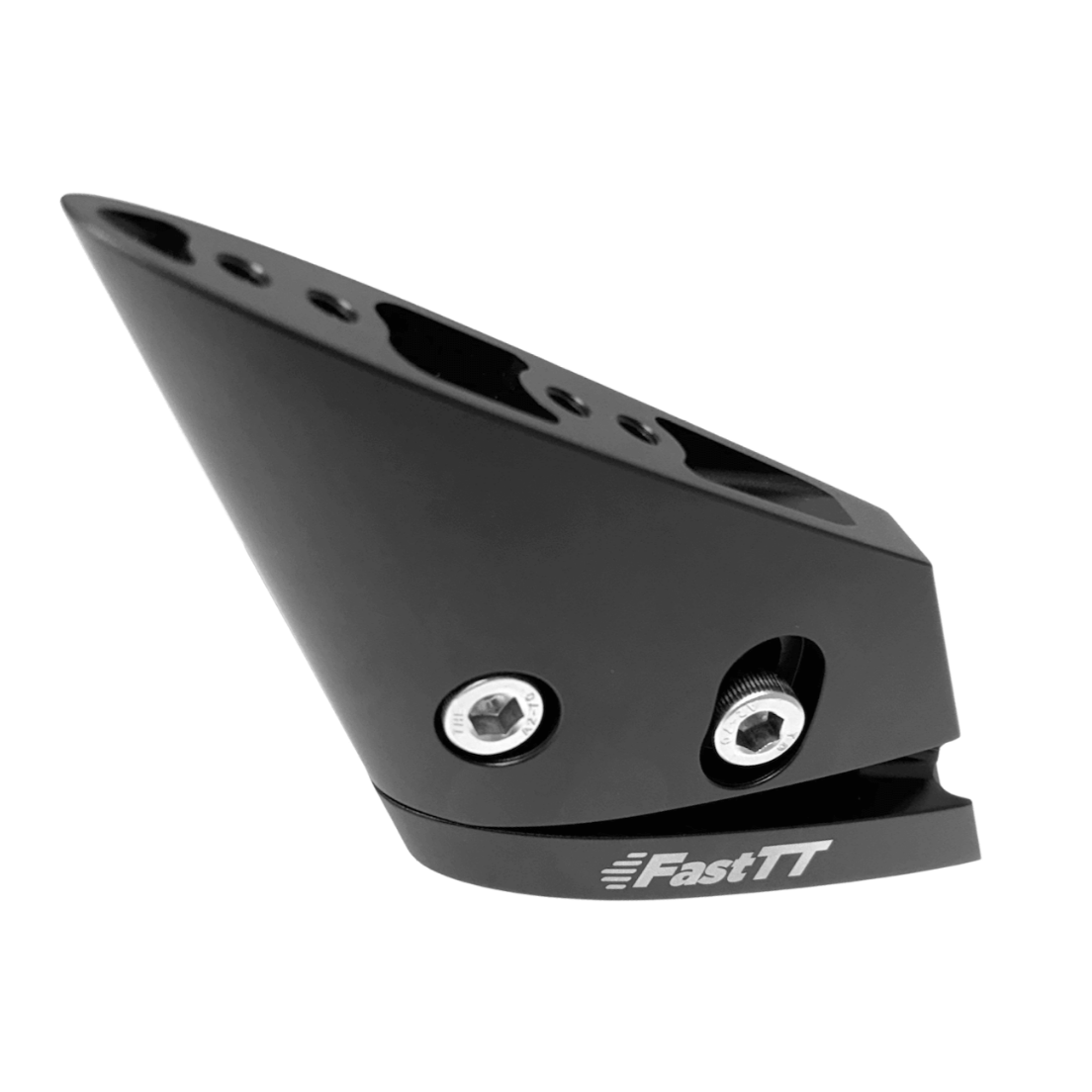

Tilt Adapter (for Canyon Speedmax mono riser)

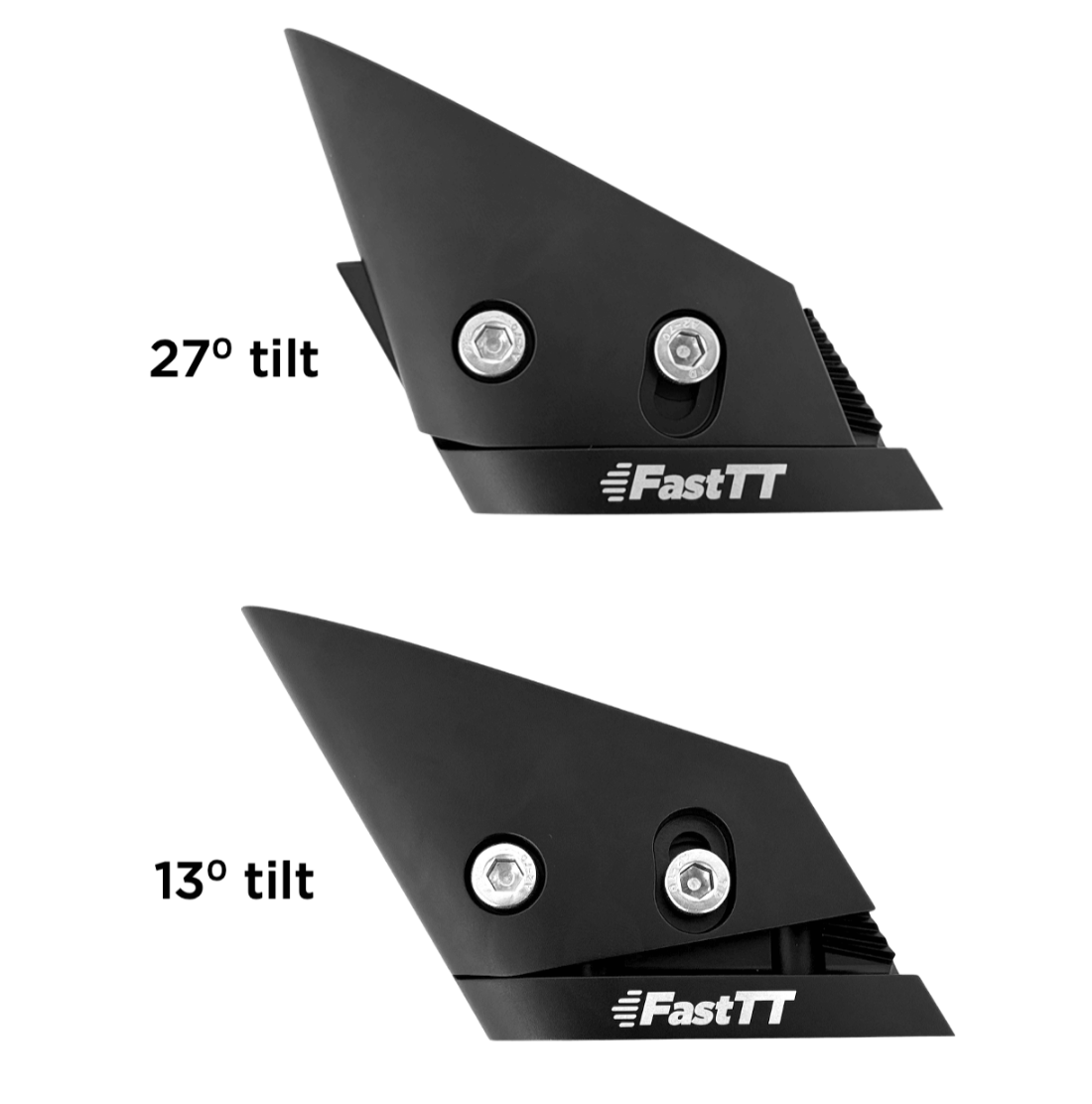

Our Canyon Speedmax tilt adapter provides 13-27 degrees of bar angle adjustment in 2 degree increments. Plus it offers two FWD reach settings – 45mm and 35mm.

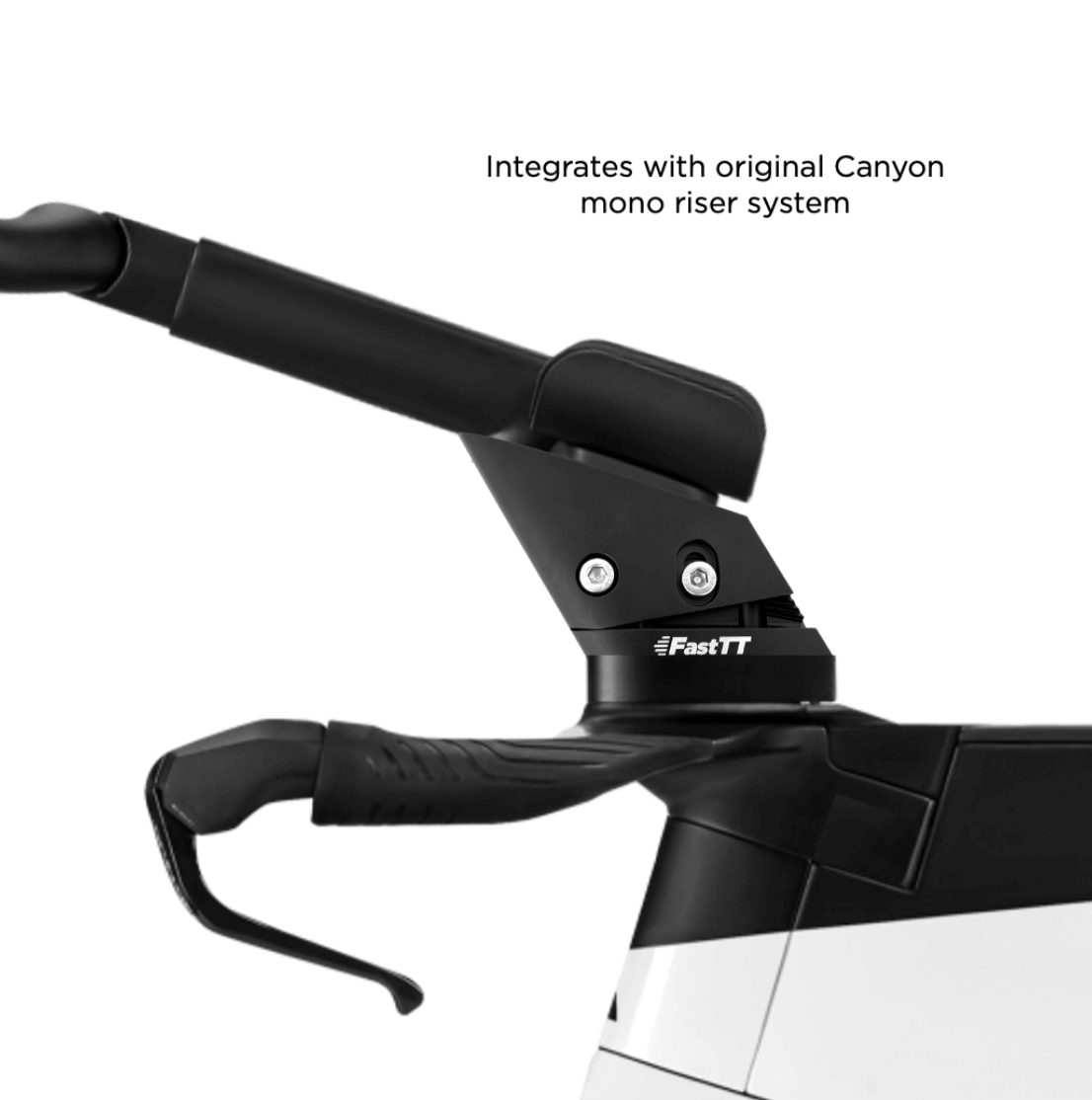

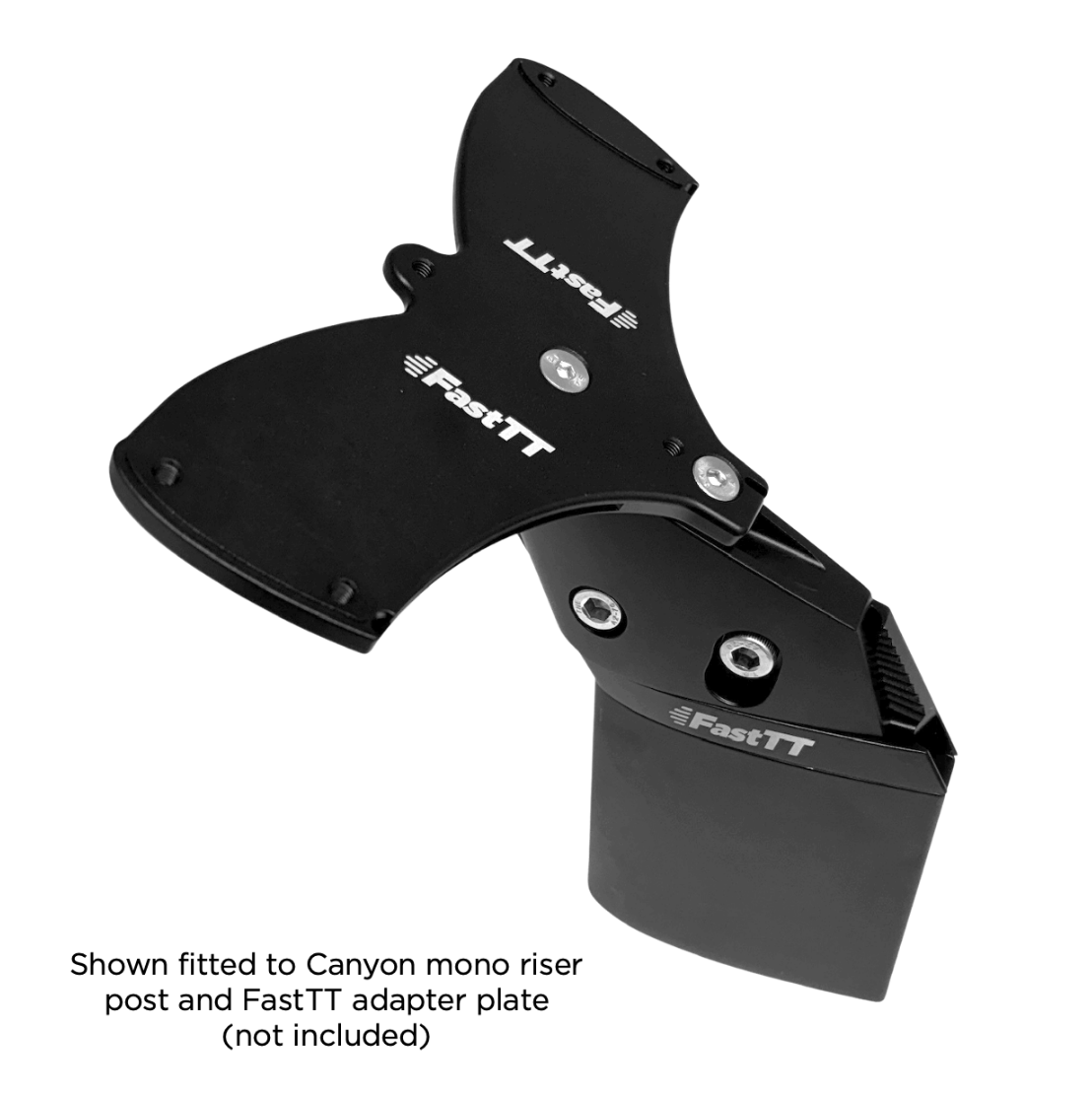

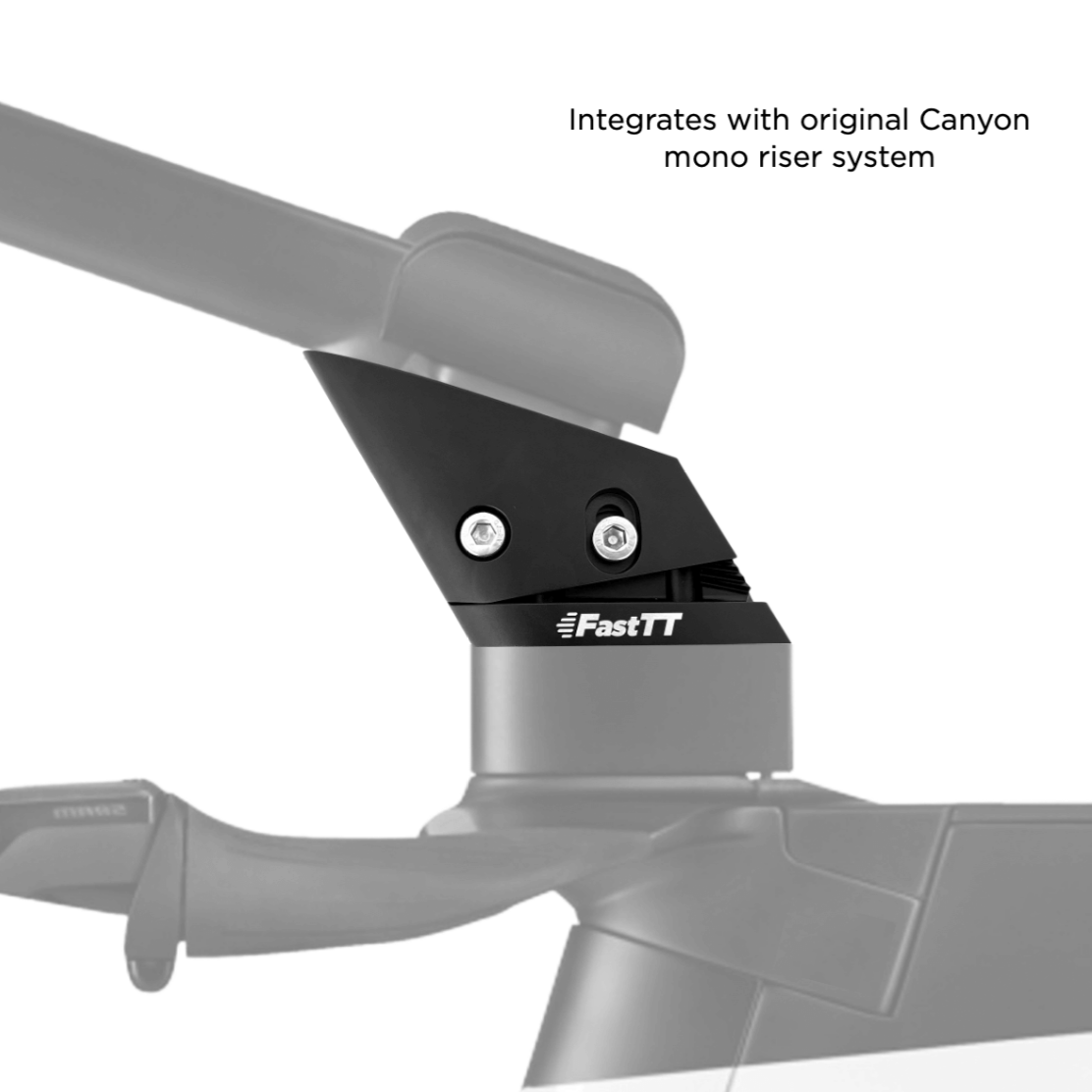

It’s a direct bolt-on kit and is compatible with the original Canyon cockpit as well as our FastTT system.

Bar angle can be adjusted quickly and easily without needing to remove the aerobar system! Just loosen the two M8 bolts, reset the angle, and retorque. Save valuable (and expensive) time during testing and fitting.

• CNC precision machined in aluminium for maximum strength
• A high quality product with a superb anodised finish
• Mounting bolts included (two M6x20 cap screws)*

*NOTE: The supplied mounting bolts are the correct length to bolt directly to the Canyon threaded base spacer. If you add non-threaded spacers between the threaded base spacer and tilt adapter, you will need to source longer bolts (add the new spacer height to the length of the supplied bolts e.g. if you add a 20mm spacer then you need to source two M6x40 cap screws).
