1 5

Orbea

2027

Terra M30TEAM

Terra M30TEAM

$4,200.00 CAD
$4,200.00 CAD
Sale Sold out
Shipping calculated at checkout.
Colour
Size

Pick up could take a few days.

Not all our bikes are assembled and ready to ride, we may need a few days to get your bike ready for you.

Please contact the store for more information on estimated pick up ETA.

Curated to embody our style and innovation, we offer you a distinctive line of signature designs to define the character of your ride.

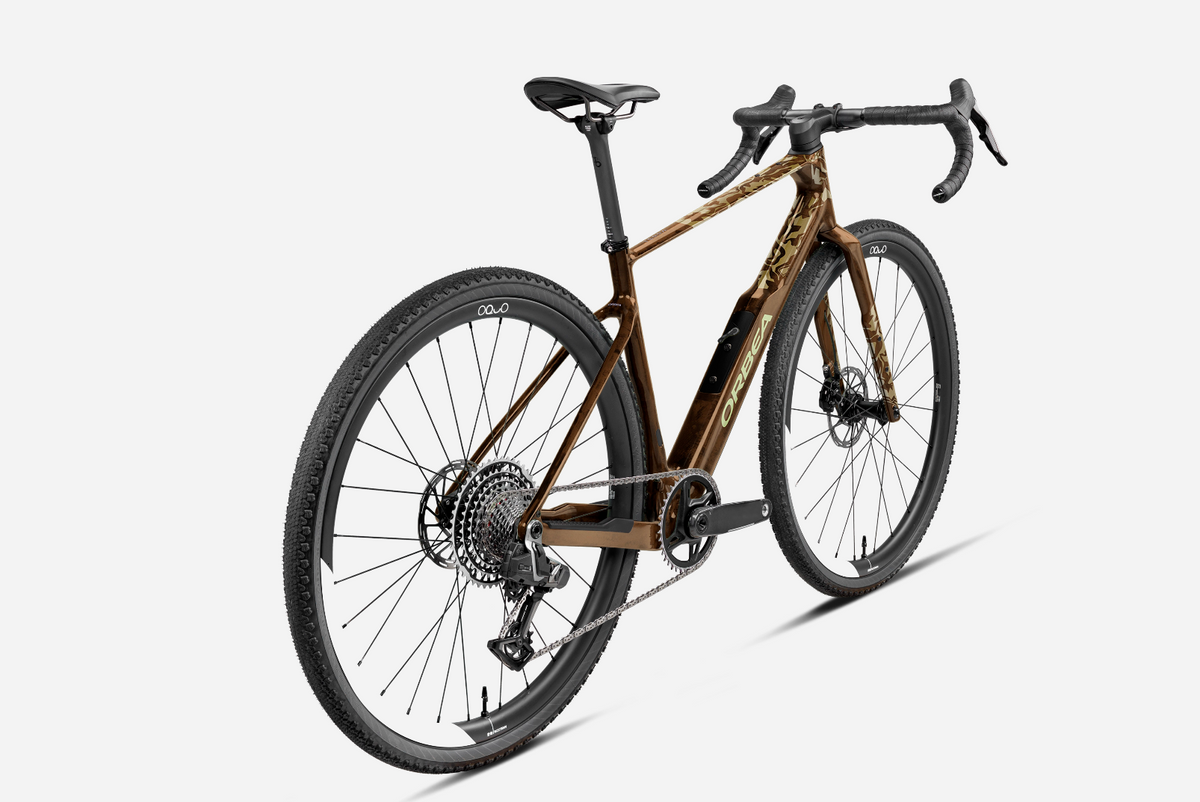

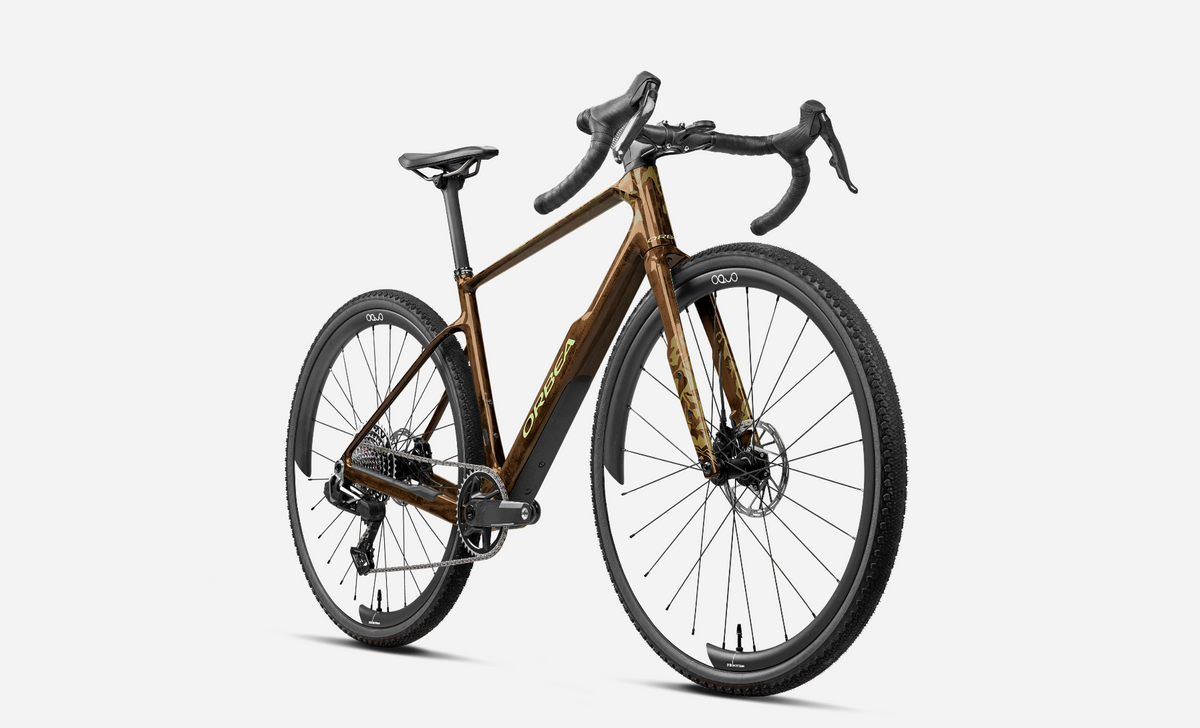

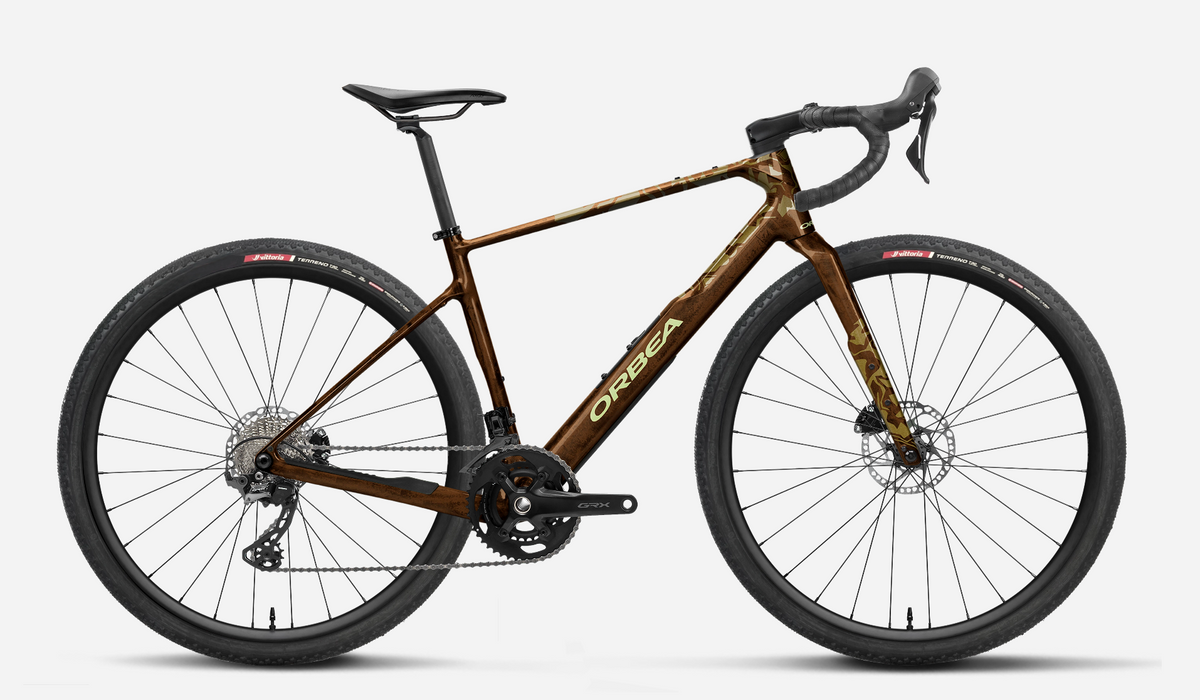

The Orbea Terra M30Team is a high-performance carbon gravel bike designed to balance road speed with off-road adventure capabilities.

View full details

Details

Specifications

Frameset
Fork
Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready.

Frame
Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout, LOCKR XXL service box, MMS munti mount system, fender ready.

Headset
FSA 1-1/2" Integrated Aluminium Cup

Drivetrain
Crankset
Shimano GRX RX610 30x46T

Shifters
Shimano GRX RX610

Cassette
Shimano HG710 11-36T 12S

Rear derailleur
Shimano GRX RX820

Front derailleur
Shimano GRX RX820

Chain
Shimano M6100

Cockpit
Handlebar
OC Handlebar GR31

Stem
OC Road Performance 23, -5º

Brakes
Brakes
Shimano RX410 Hydraulic disc

Brakes Configuration
N/A

Wheels
Wheels
Alloy, Tubeless, 700c, 21c

Tyres
Vittoria Terreno T30 Fine Loose Gravel Endurance G2.0 700x45c

Orbea Thru Axle 12x100mm M12xP1 Hollow

Rear Wheel Axle
Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded

Components
Saddle
Fizik Terra Argo X7 Aluminium Rail 140mm

Seatpost
SP 0.2 Carbon, 27.2mm, Setback 20mm

Accessories
Mudguard
N/A

Handlebar Tape
OC Components

Storage
Accesories Containers

Discounted Items Are Final Sale

Please visit our Return/Exchange Policy page for more information.

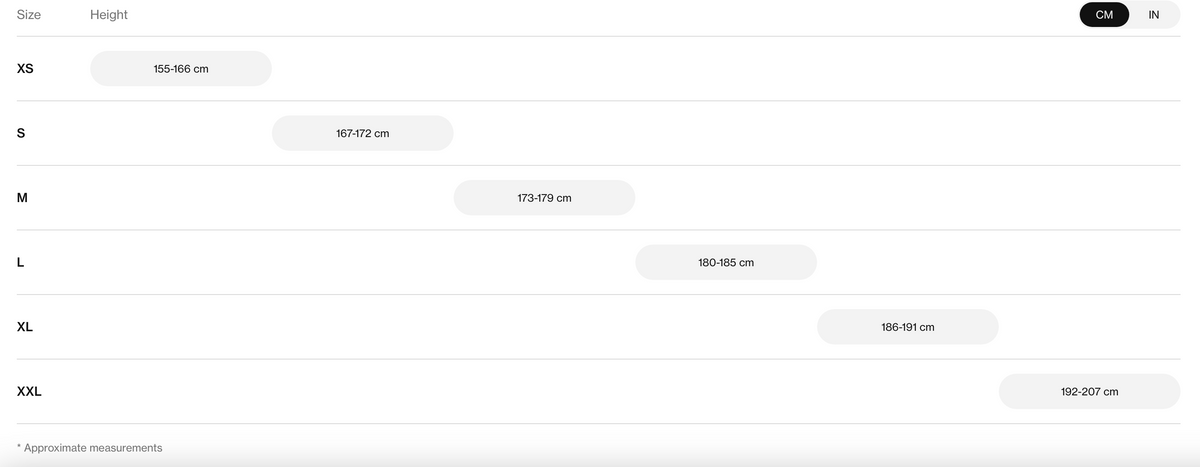

Size Chart

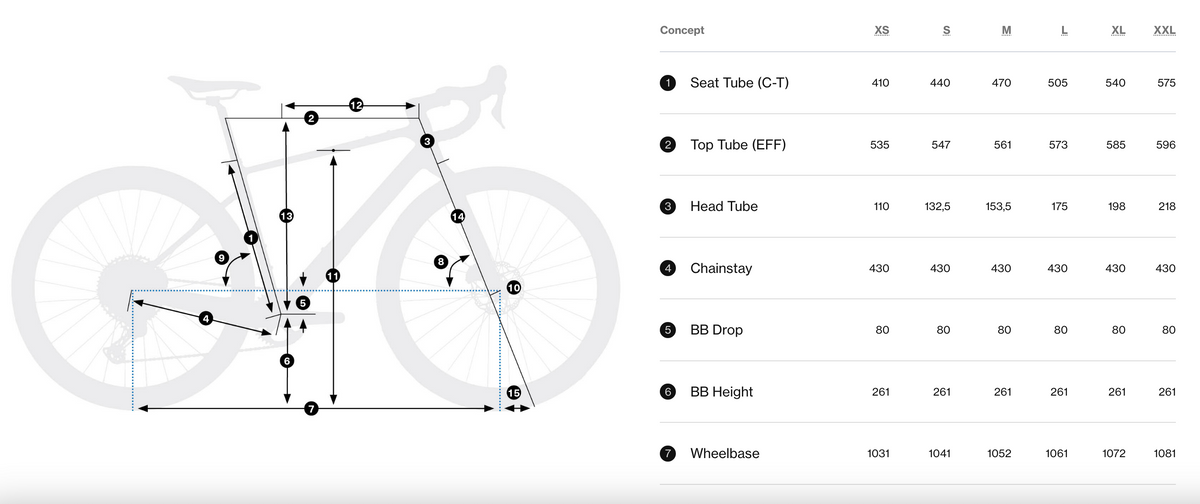

Geometry Chart
