Supercaliber SL 9.7 GX AXS Gen 2
Supercaliber SL 9.7 GX AXS Gen 2
Couldn't load pickup availability
Special Order Bike
Special Order Bike
This bike is not kept in store.
Lead time to pick-up is 10-14 days.

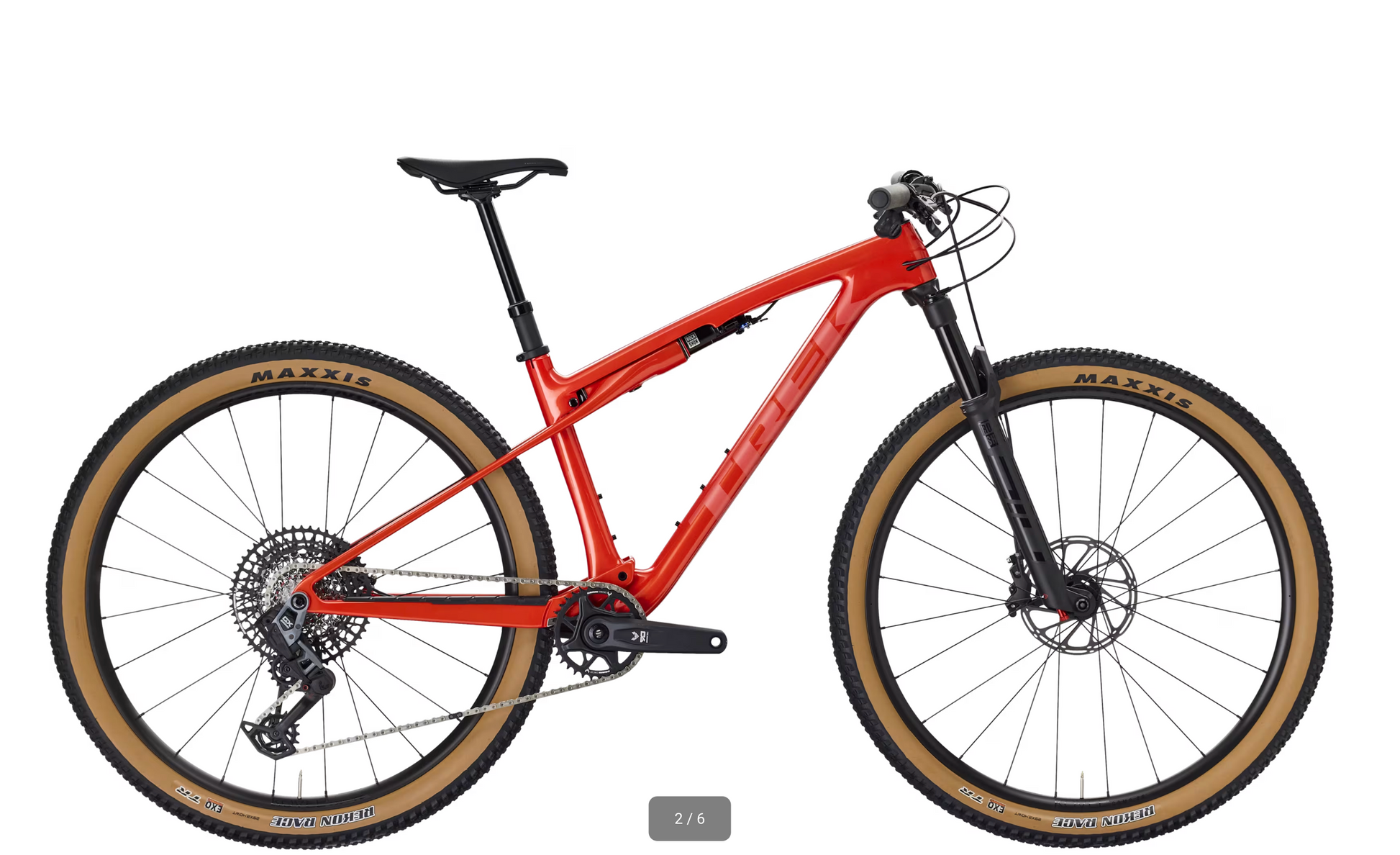

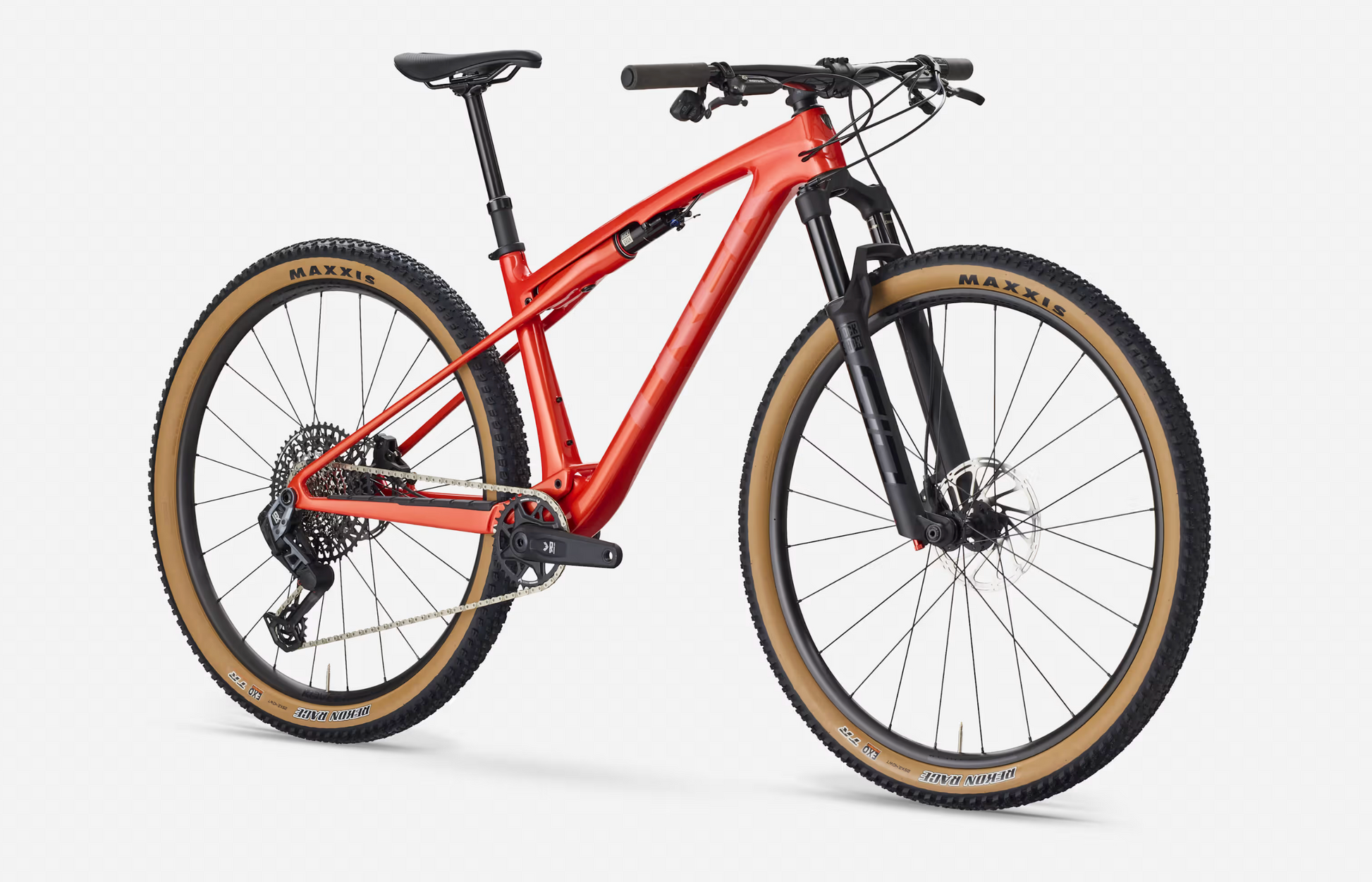

Supercaliber SL 9.7 GX AXS is an ultralight carbon XC mountain bike that's ready to lay down rubber on race day.
Its SL OCLV Mountain Carbon frame is as light as it is meticulous, with a high modulus layup that gives you all the stiffness you crave, and none of the weight. XC courses get rowdier every year, so it's equipped with a 110mm fork and 80mm of IsoStrut rear suspension to smooth your roll without kicking pedaling efficiency to the wind.
It's all topped off with a carbon cockpit and SRAM's wireless GX AXS Transmission.
Share
Details
Specifications
Frame
SL OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel
Fork
RockShox SID, DebonAir spring, Rush RL damper, remote lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 110mm travel
Shock

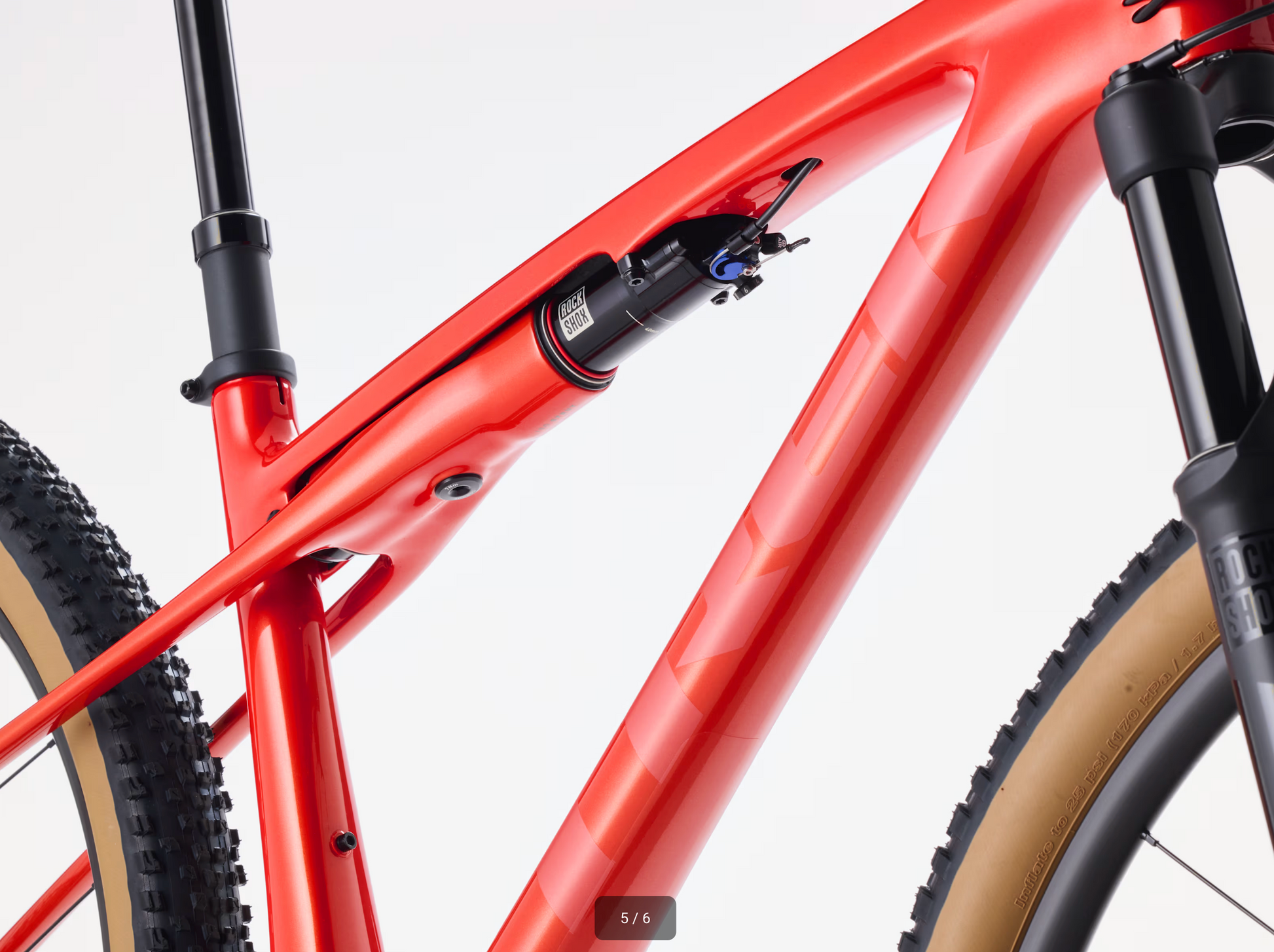

Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
Wheels
Wheel front
Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Wheel rear
Bontrager Kovee Comp 25, Tubeless Ready, Rapid Drive 108, Boost148, 12mm thru axle, 29"
Skewer rear
Bontrager Switch thru axle, removable lever
Tire
Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.40"
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tire size
Frame: 29x2.40", Fork: See manufacturer
E-system
Battery
SRAM AXS battery pack (with charger)

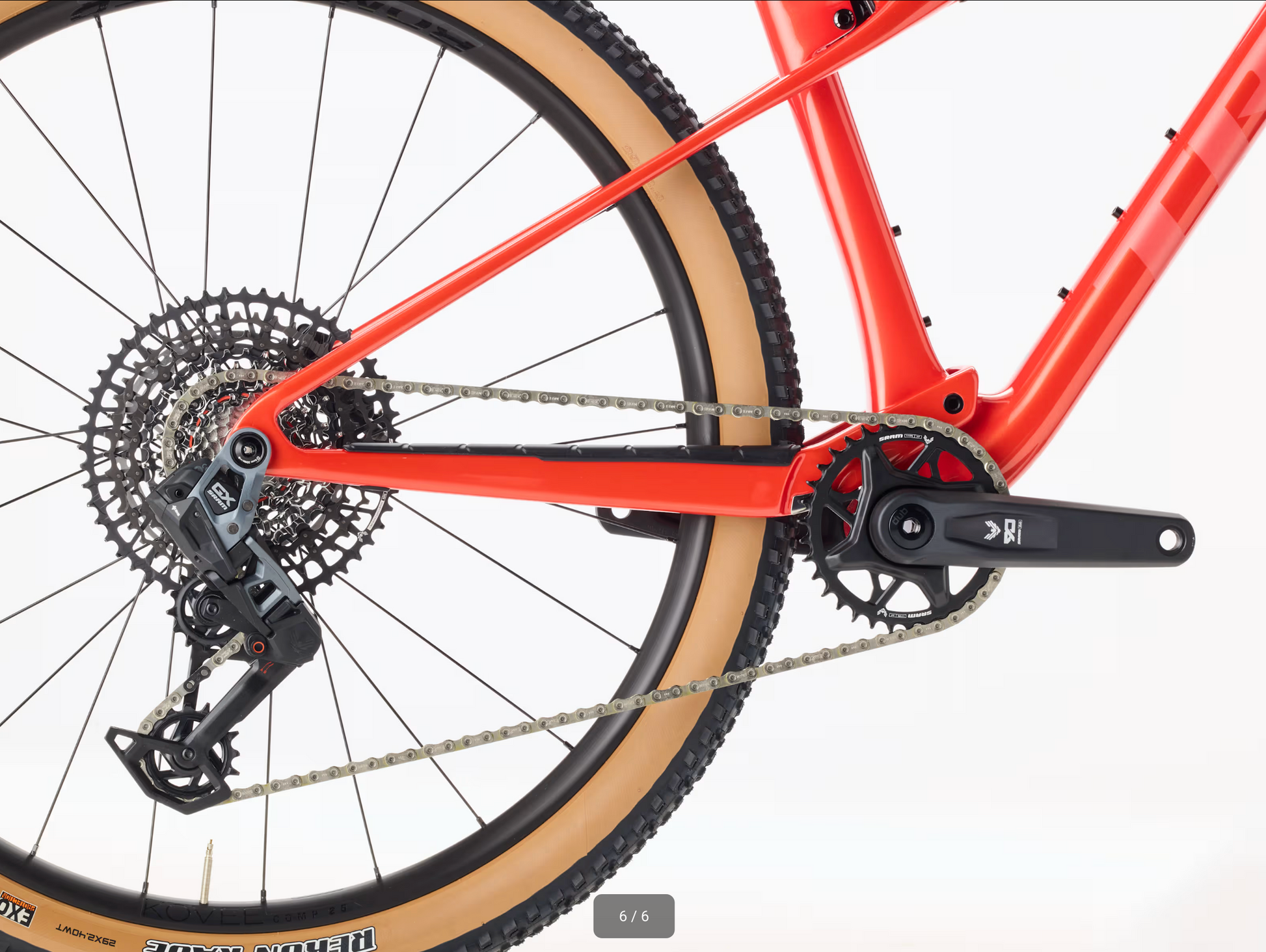

Drivetrain
Shifter
SRAM AXS pod
Rear derailleur
SRAM GX Eagle AXS, T-Type
*Crank
Size: S, M, ML
Sram Eagle 90, T-Type, DUB, 34T, 55mm chainline, 170mm length
Size: L, XL
Sram Eagle 90, T-Type, DUB, 34T, 55mm chainline, 175mm length
Bottom bracket
SRAM DUB, 92mm, PressFit
Cassette
SRAM Eagle XS-1275, T-Type, 10-52, 12 speed
Chain
SRAM GX Eagle, T-Type, 12 speed
Max chainring size
1x: 38T, min 30T
Components
Saddle
Verse Short Elite, hollow magnesium rails, 145mm width
*Seatpost
Size: S
Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length
Size: M, ML, L
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6mm, 410mm length
Size: XL
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 450mm length

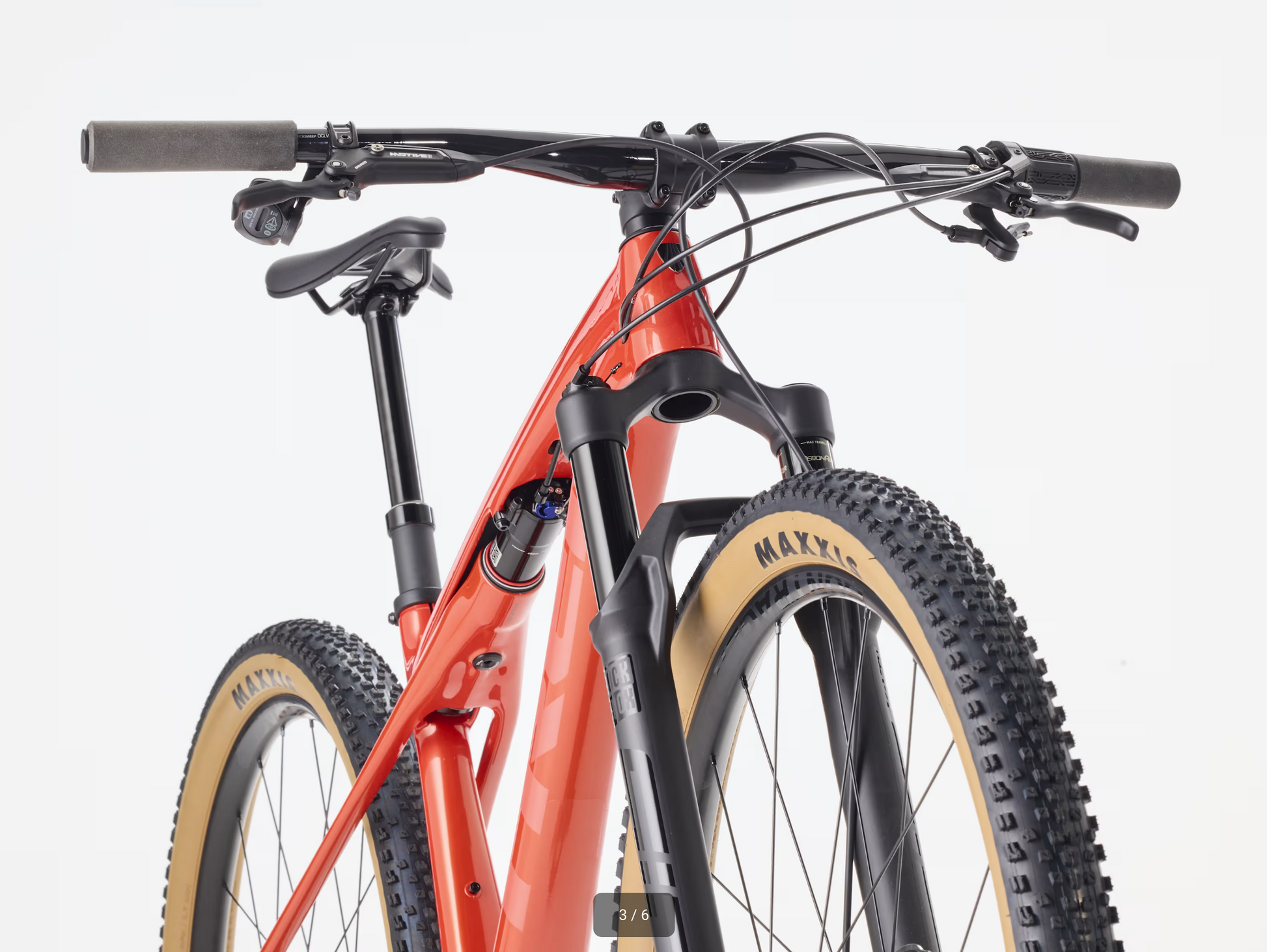

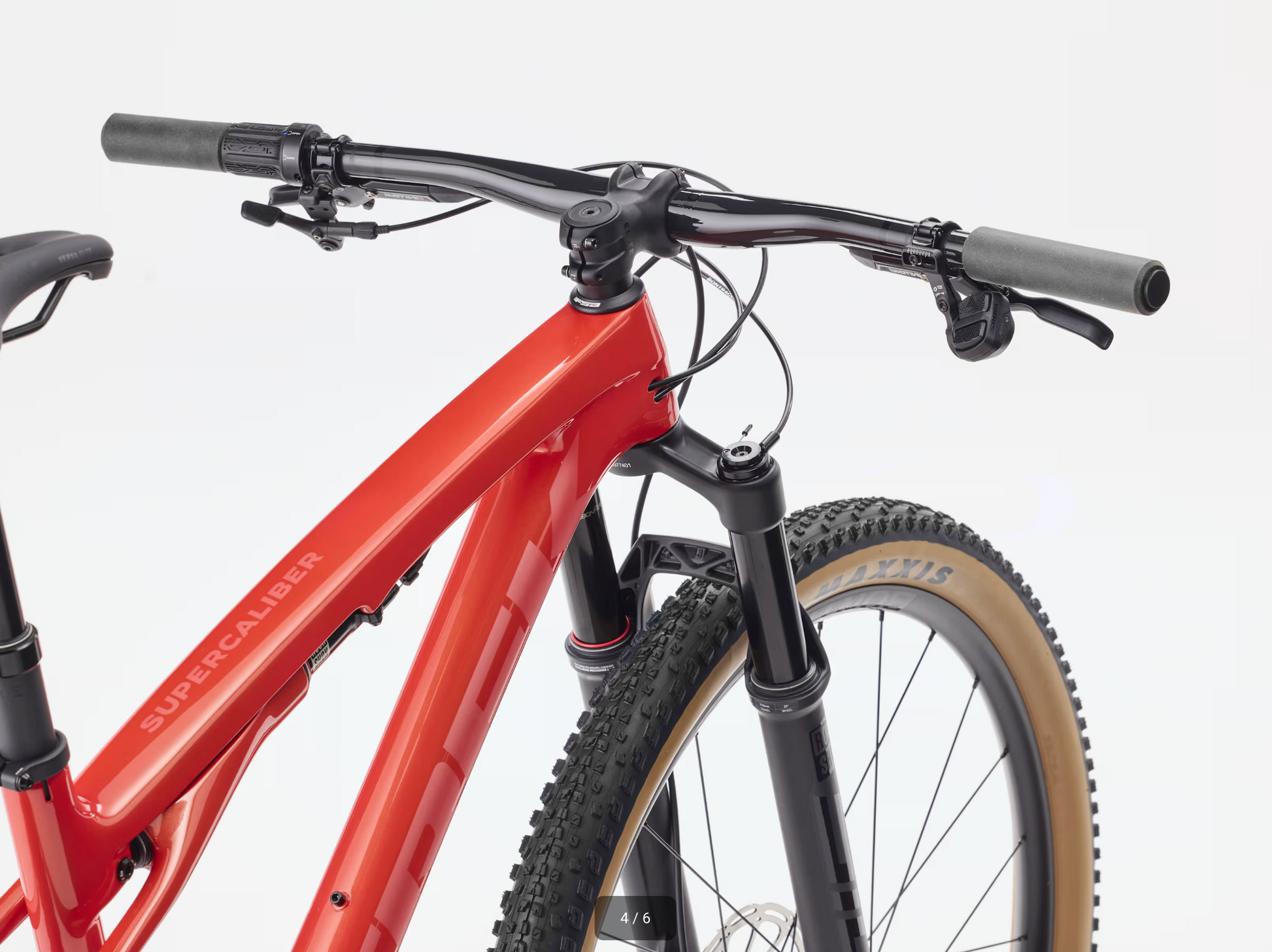

*Handlebar
Size: S
Bontrager Kovee Pro, OCLV Carbon, 35mm, 5mm rise, 720mm width
Size: M, ML, L, XL
Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width
*Stem
Size: S, M
Bontrager Elite, 35mm, 13-degree, 60mm length
Size: ML
Bontrager Elite, 35mm, 13-degree, 70mm length
Size: L
Bontrager Elite, 35mm, 13-degree, 80mm length
Size: XL
Bontrager Elite, 35mm, 13-degree, 90mm length
Headset
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
SRAM Motive Bronze Stealth 4-Piston hydraulic disc
*Brake rotor
Size: S, M, ML, L, XL
SRAM CenterLine, 6-bolt, round edge, 180mm
Size: S, M, ML, L, XL
SRAM CenterLine, 6-bolt, round edge, 160mm
Rotor size
Max brake rotor sizes - Frame: 160mm
Accessories
Tool
Bontrager Switch Lever, w/tool
Weight
Weight
M - 12.18 kg / 26.86 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
