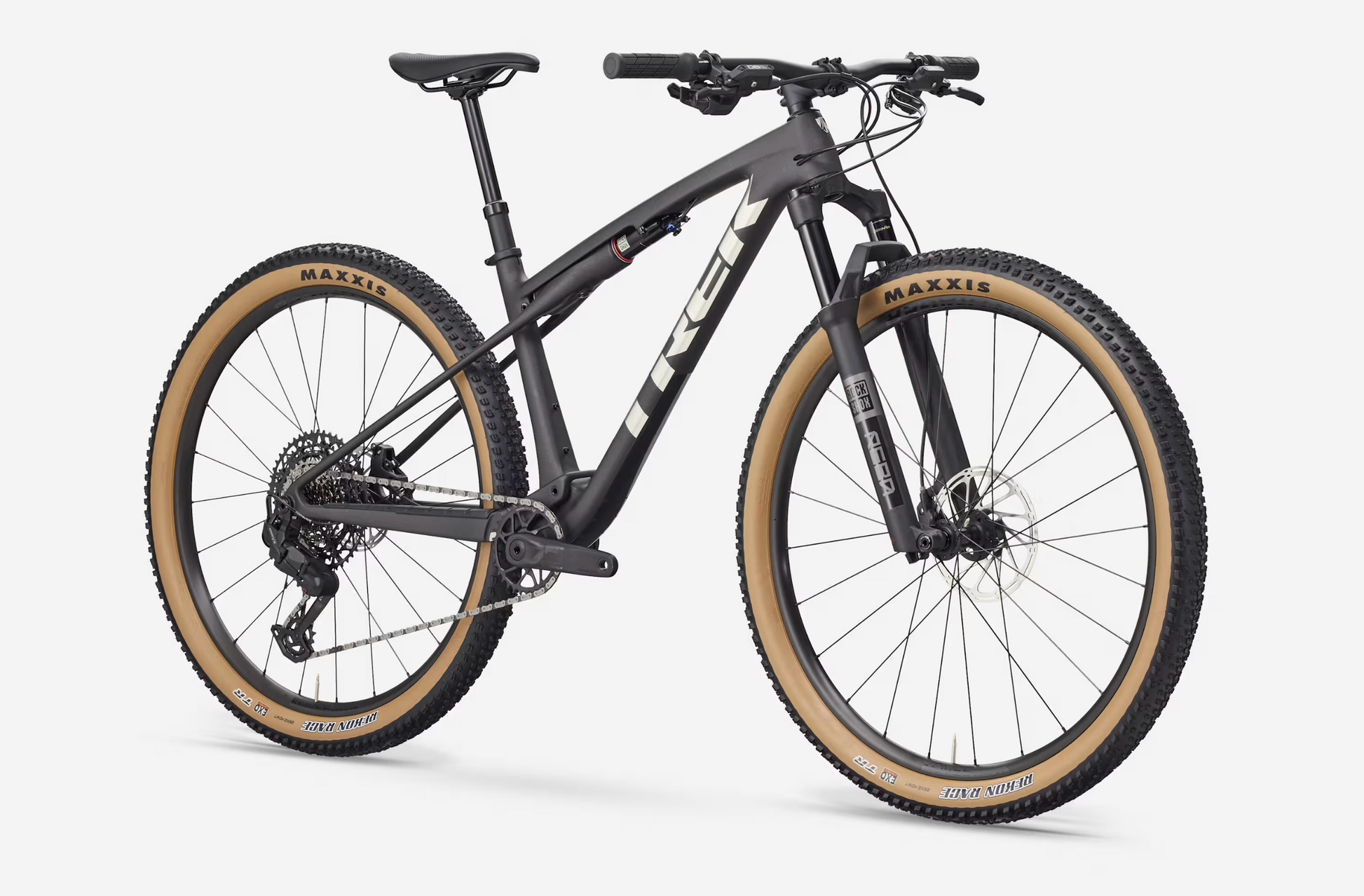

Supercaliber SL 9.6 Gen 2

Frame
SL OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel

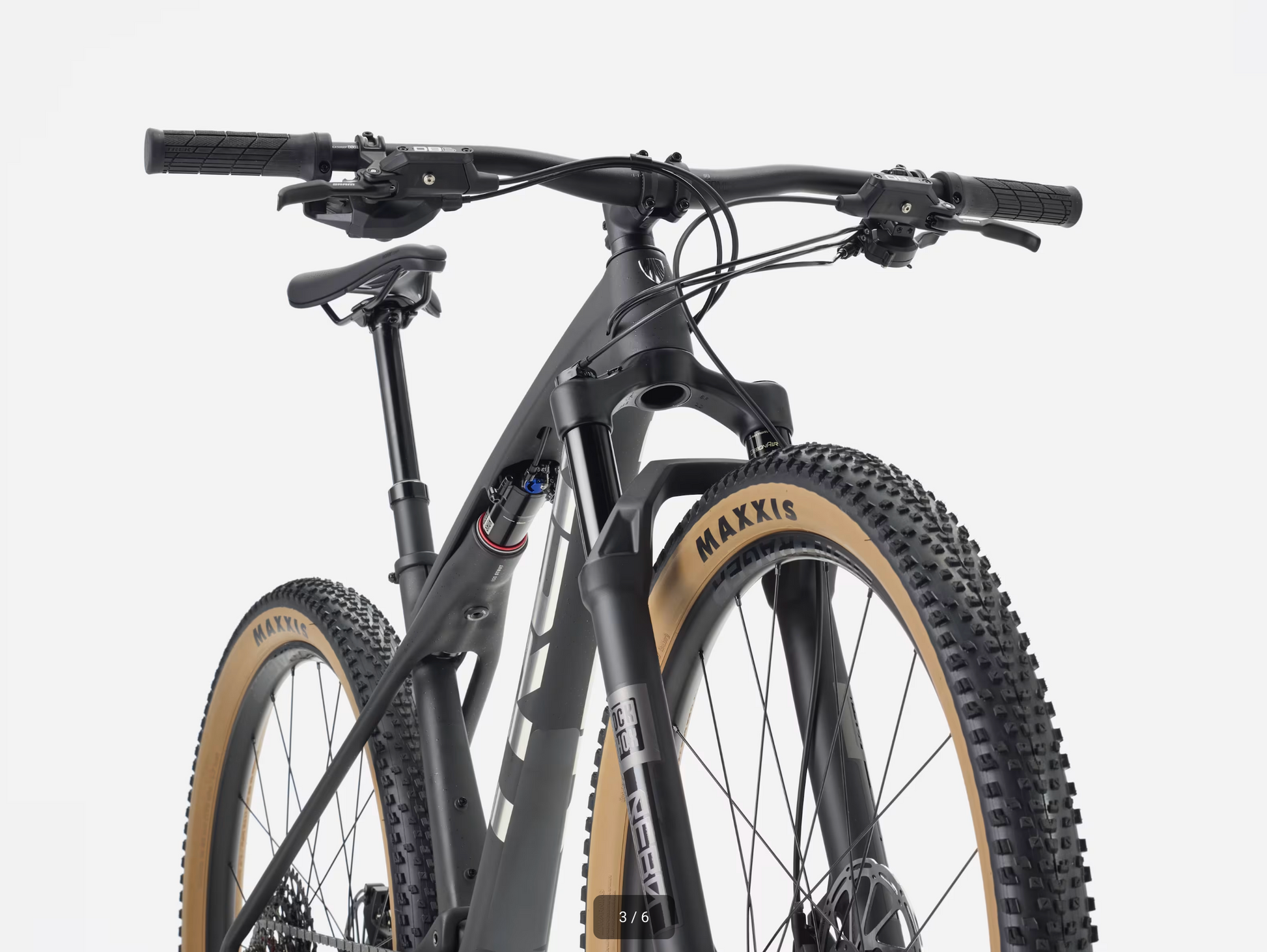

Fork
RockShox Reba RL, DebonAir, Motion Control damper, lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 110mm travel
Shock

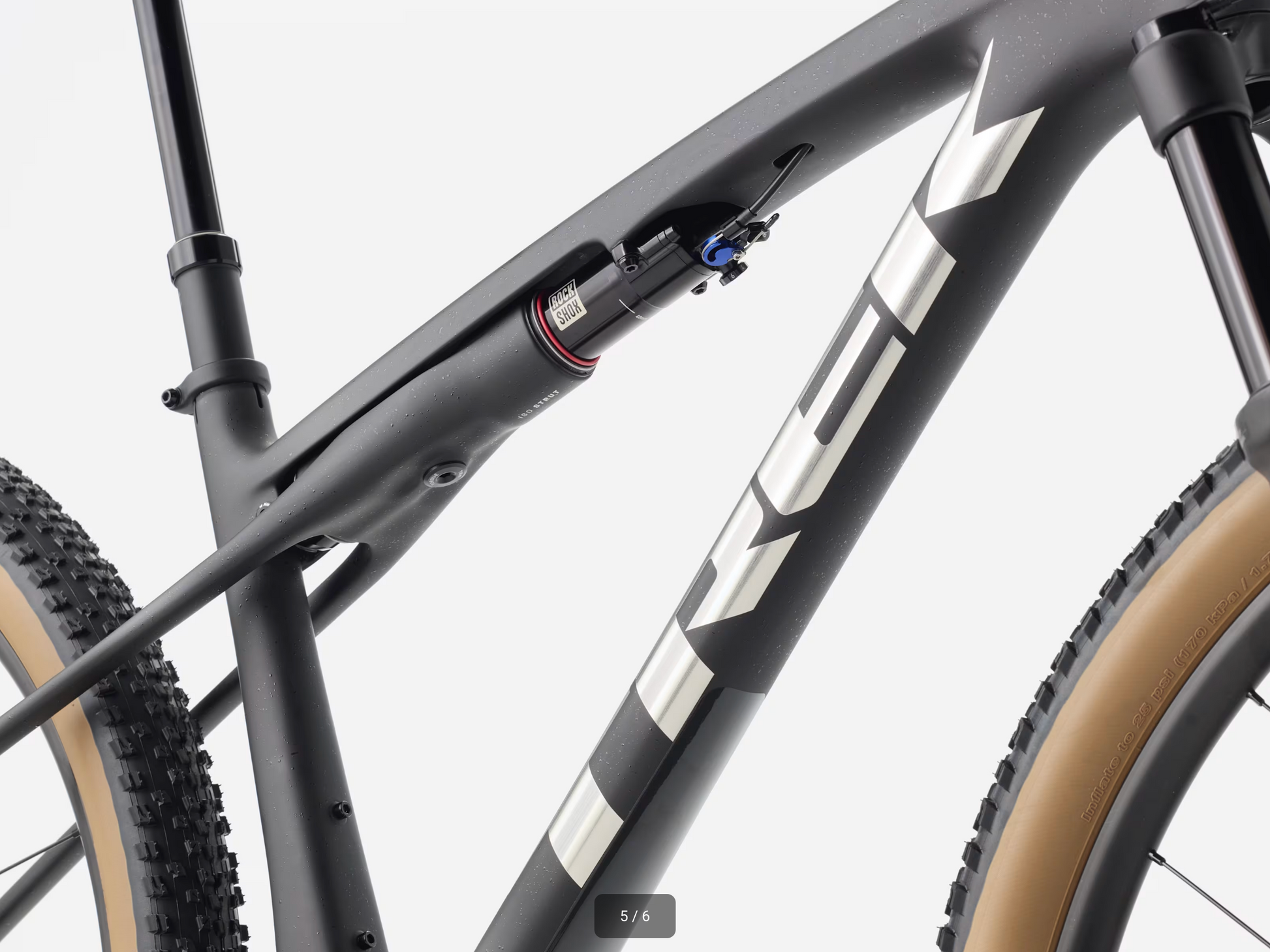

Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
Suspension part
Bontrager Drop Lock remote

Wheels
Wheel front
Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Wheel rear
Bontrager Kovee Comp 25, Tubeless Ready, Rapid Drive 108, Boost148, 12mm thru axle, 29"
Skewer rear
Bontrager Switch thru axle, removable lever
Tire
Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.40"
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tire size
Frame: 29x2.40", Fork: See manufacturer

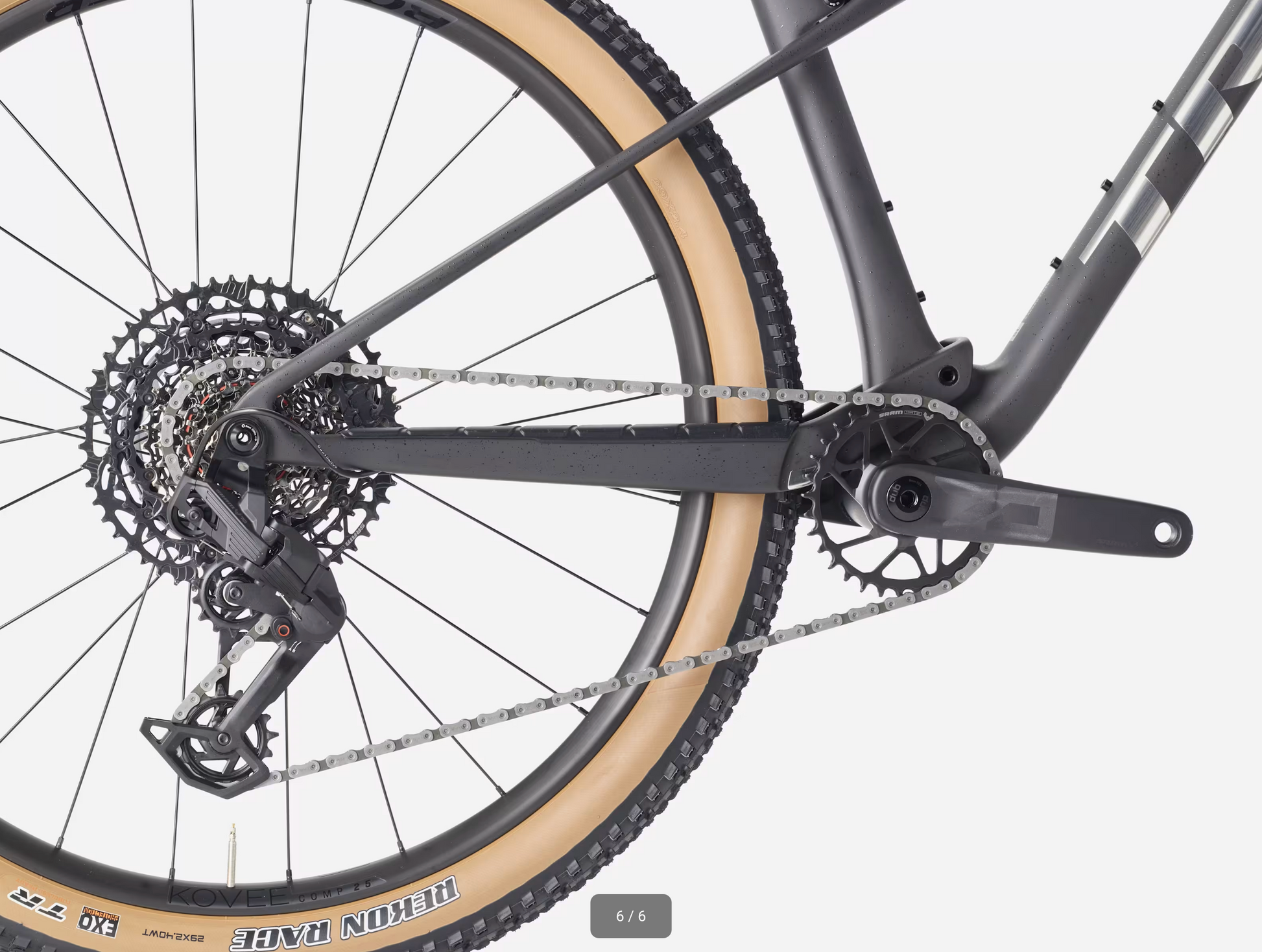

Drivetrain
Shifter
SRAM Eagle 70, 12 speed
Rear derailleur
SRAM Eagle 70, T-Type
*Crank
Size: S, M, ML
Sram Eagle 70, T-Type, DUB, 32T, 55mm chainline, 170mm length
Size: L, XL
Sram Eagle 70, T-Type, DUB, 32T, 55mm chainline, 175mm length
Bottom bracket
SRAM DUB, 92mm, PressFit
Cassette
SRAM Eagle XS-1270, T-Type,10-52, 12 speed
Chain
SRAM Eagle 70, T-Type, 12 speed
Max chainring size
1x: 38T, min 30T

Components
Saddle
Verse Short Comp, steel rails, 145mm width
*Seatpost
Size: S
Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length
Size: M, ML, L
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6mm, 410mm length
Size: XL
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 450mm length

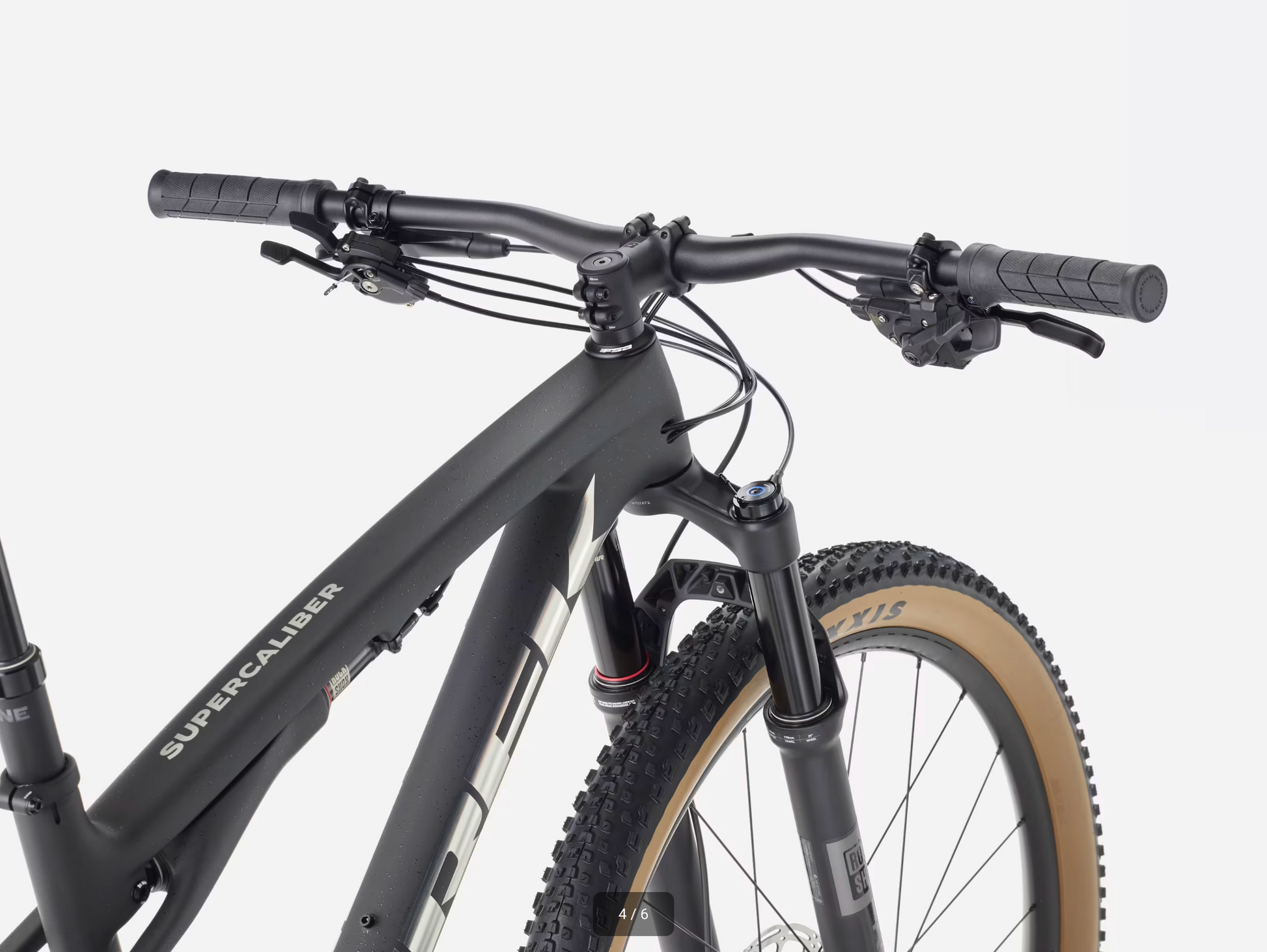

*Handlebar
Size: S
Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width
Size: M, ML, L, XL
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips
Trek Line Comp, nylon lock-on
*Stem
Size: S
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: M, ML
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: L
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: XL
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Headset
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
SRAM DB 6 4-piston hydraulic disc
*Brake rotor
Size: S, M, ML, L, XL
SRAM CenterLine, 6-bolt, round edge, 180mm
Size: S, M, ML, L, XL
SRAM CenterLine, 6-bolt, round edge, 160mm
Size: S, M, ML, L, XL
SRAM Centerline 2.0, 6-bolt, 180mm
Rotor size
Max brake rotor sizes - Frame: 160mm

Accessories
Tool
Bontrager Switch Lever, w/tool

Weight
Weight
M - 12.93 kg / 28.51 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
