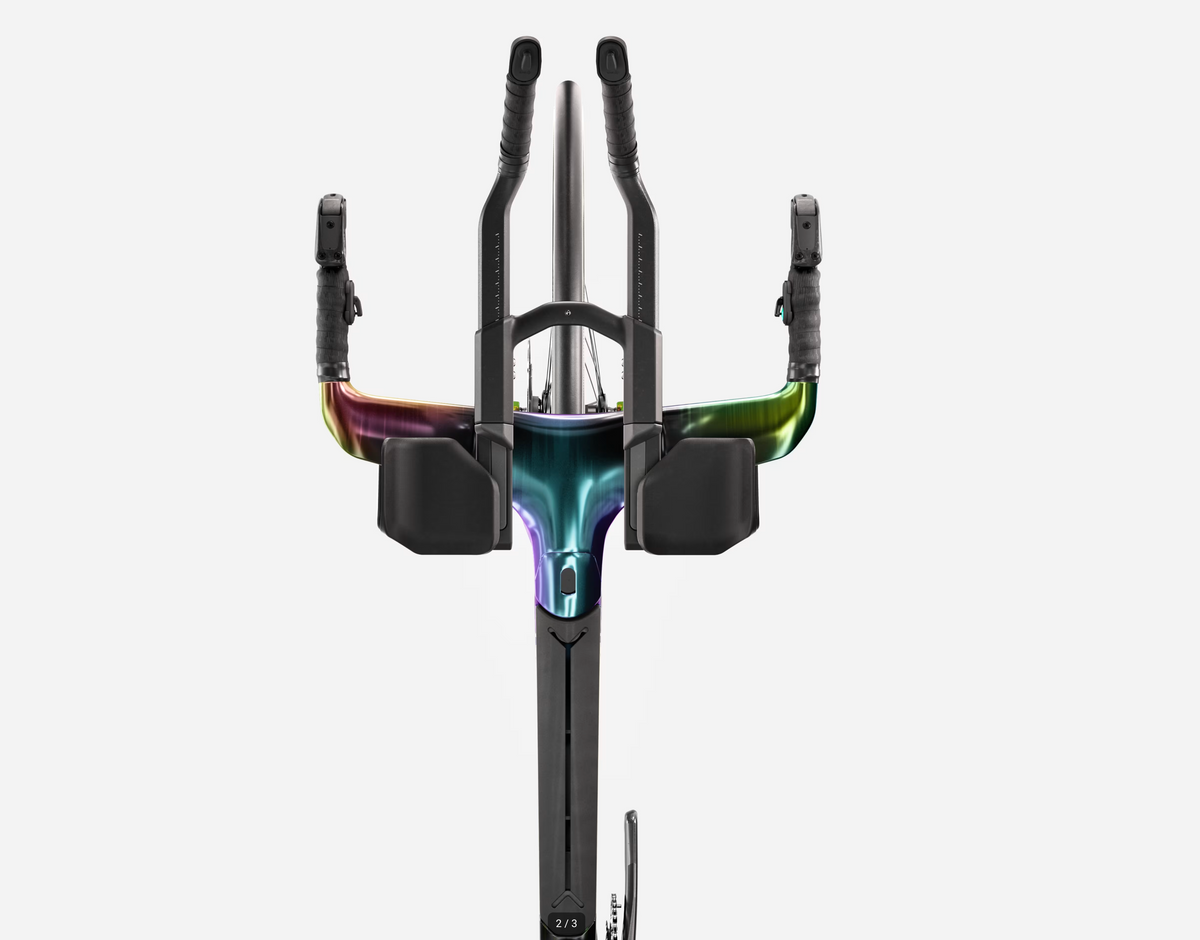

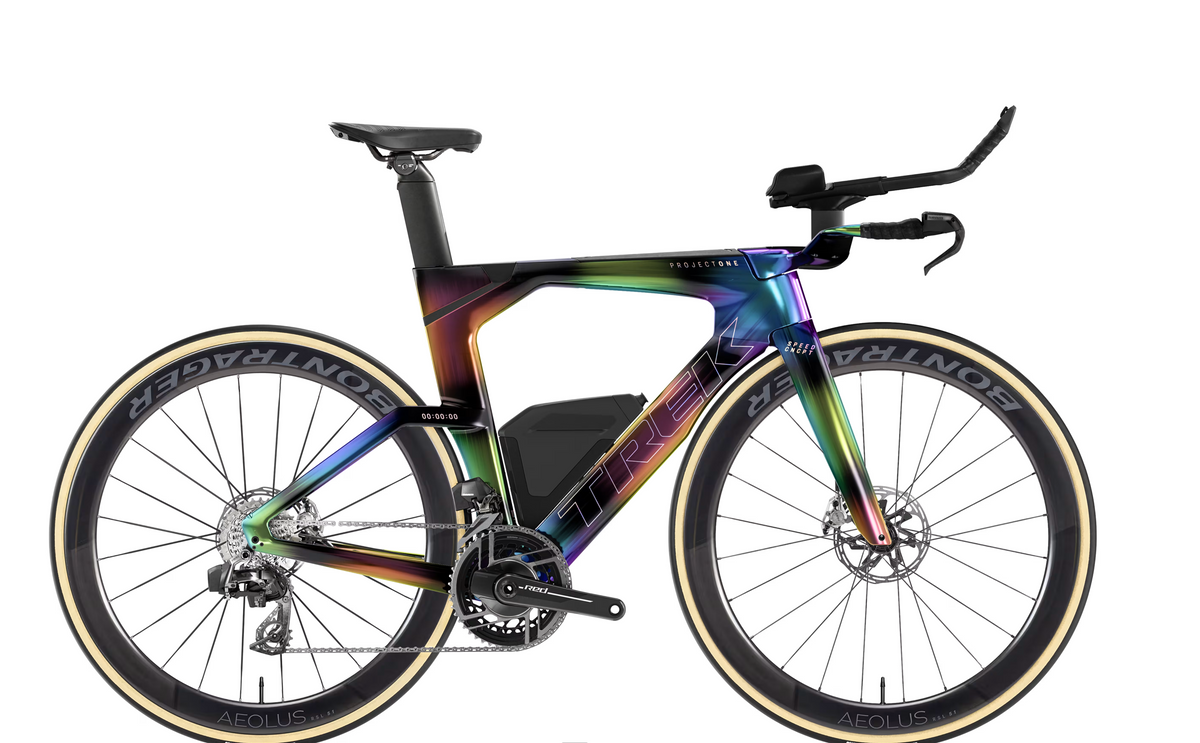

Speed Concept SLR 9 AXS Limited Edition

Frame
800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, T47 BB, integrated Bento box, integrated downtube storage
Fork
SC full foil carbon, integrated brake & stem

Weight
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system
Battery
SRAM AXS battery pack (with charger)

Drivetrain
Shifter
SRAM AXS Wireless Blips, basebar and extension-mounted
Front derailleur
SRAM RED AXS E1, braze-on
Rear derailleur
SRAM RED AXS E1, 36T max cog
*Crank
Size: S
SRAM RED AXS E1, power meter, 48/35, DUB, 160mm length
Size: M, L, XL
SRAM RED AXS E1, power meter, 48/35, DUB, 170mm length
Size: M, L
SRAM RED AXS E1, power meter, 48/35, DUB, 165mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM RED XG-1290 E1, 10-33, 12 speed
Chain
SRAM RED E1, 12/13 speed
Max chainring size
1x: 58T, 2x: 55/44

Wheels
*Wheel front
Size: S, M, L, XL
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle
Size: S, M, L, XL
Bontrager Aeolus RSL 65X, OCLV Carbon, Tubeless Ready, 65mm rim depth, 100x12mm thru axle
*Wheel rear
Size: S, M, L, XL
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, Shimano 11/12 freehub, 142x12mm thru axle
Size: S, M, L, XL
Bontrager Aeolus RSL 65X, OCLV Carbon, Tubeless Ready, 58mm rim depth, Shimano freehub, 142x12mm thru axle
Skewer front
Bontrager Switch thru axle
Skewer rear
Bontrager Switch thru axle
Tire
Bontrager R4 320, 700x25mm
Max tire size
28mm rear, 25mm front

Components
Saddle
Bontrager Hilo Pro Carbon
*Seatpost
Size: S
Speed Concept SLR, 11.5mm or -20mm offset, short length
Size: M, L, XL
Speed Concept SLR, 11.5mm or -20mm offset, tall length
*Handlebar part
Size: S
Speed Concept Cockpit Tower Topper Near
Size: S, M, L, XL
Speed Concept 45mm Base Tower
Size: S, M
Speed Concept 30mm Base Tower
Size: M, L, XL
Speed Concept Cockpit Tower Topper Mid
Size: L, XL
Speed Concept 60mm Base Tower
Handlebar/stem (integrated)
Speed Concept mid-rise bar/stem
*Handlebar tape
Size: S, M, L, XL
Trek EcoTack
Size: S, M, L, XL
Bontrager Gel Cork tape
Brake rotor
SRAM Paceline X, rounded, centerlock, 160mm
Brake lever
SRAM RED Aero
Max rotor size
Max brake rotor sizes: 160mm front & rear

Accessories
Cage
Speed Concept Downtube Bottle Cage
Bottle
Speed Concept Downtube Bottle
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.

Please visit our Return/Exchange Policy page for more information.

This bike is not eligible for shipping
