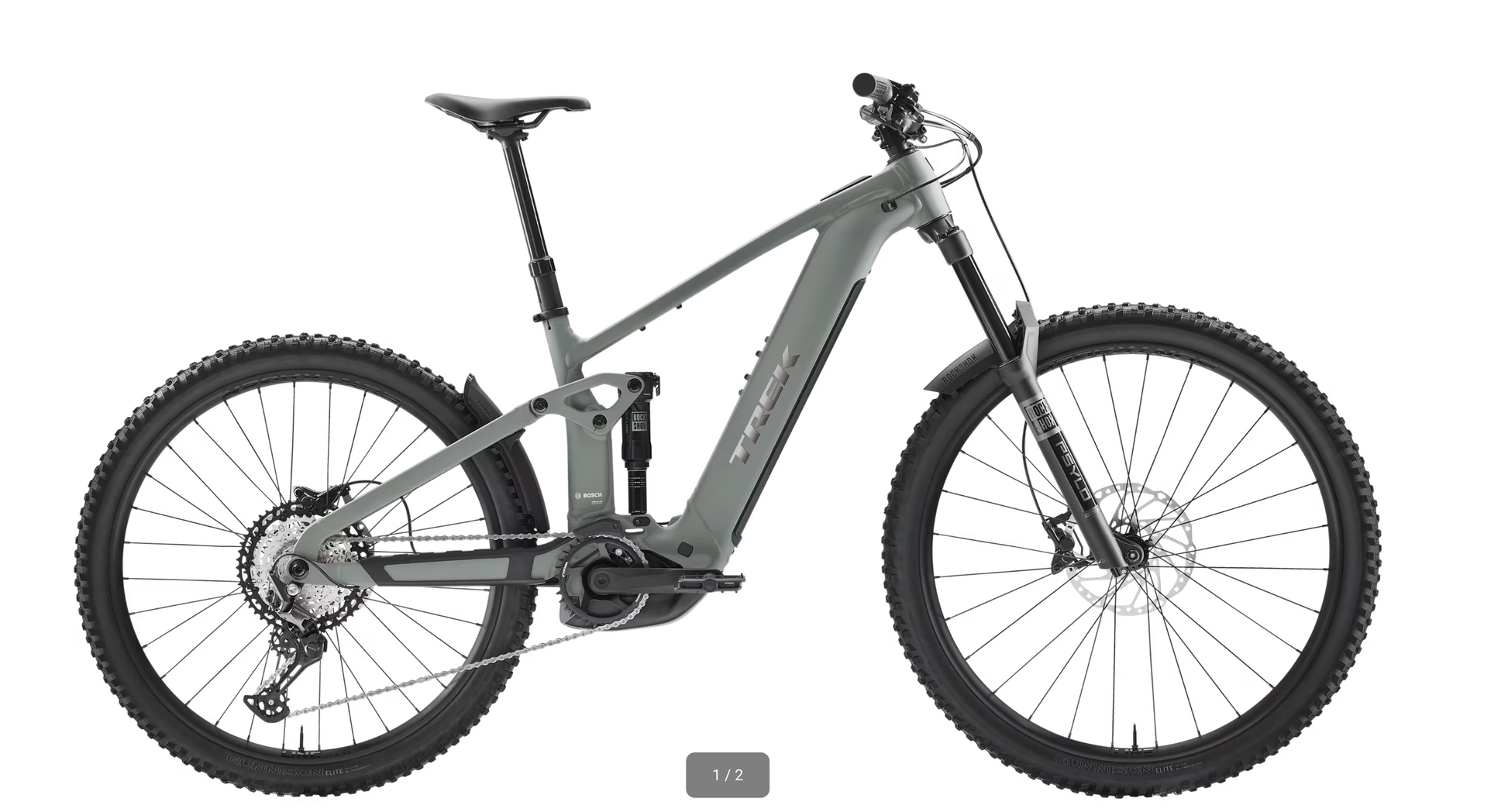

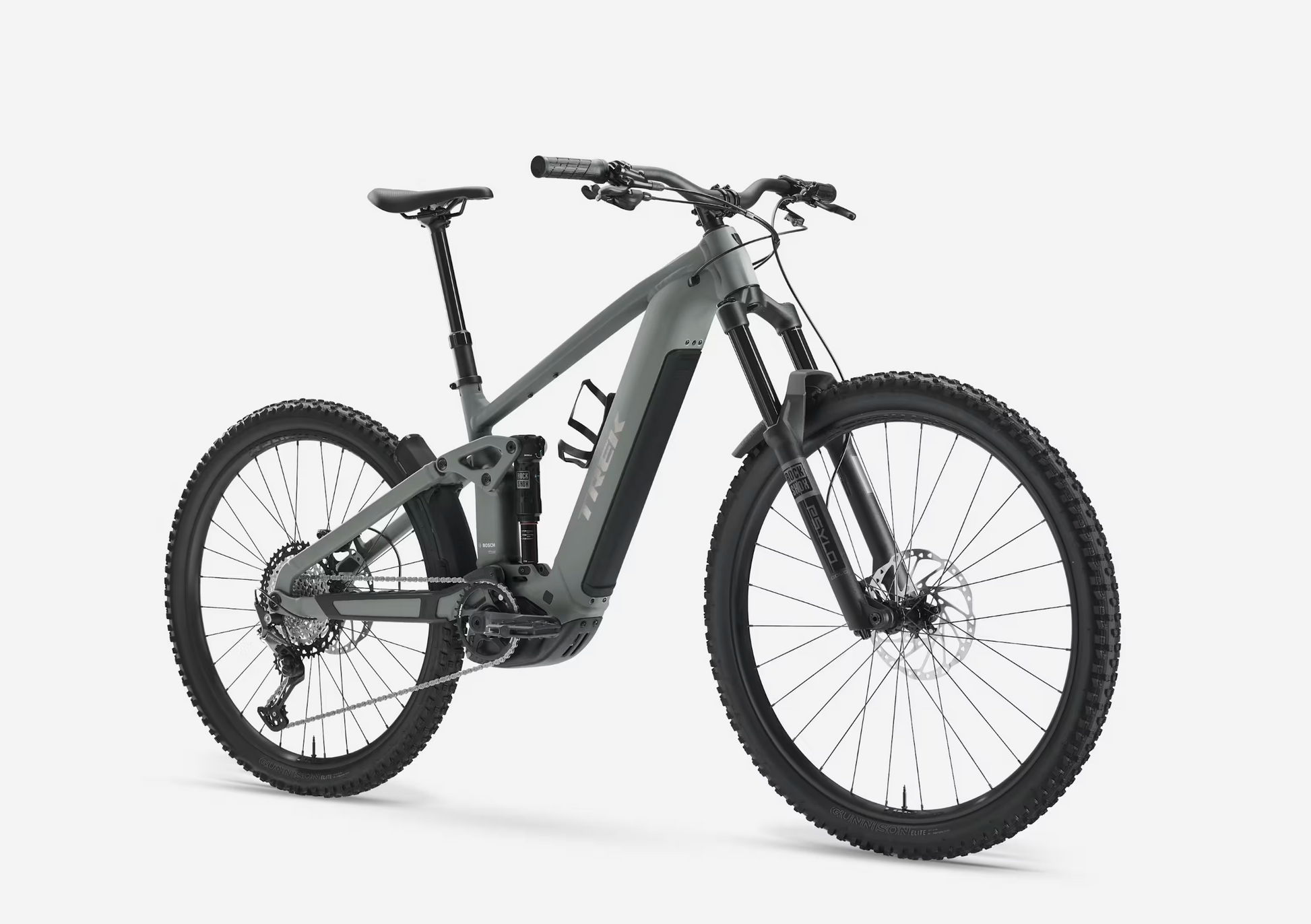

Rail+ 5 Gen 5

Frame
Alpha Platinum Aluminum, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle, 160mm travel
Fork
RockShox Psylo Silver RC, Solo Air, Motion Control, tapered steerer, 44mm offset, Boost 110, 15mm Maxle Stealth, 160mm travel
Shock
RockShox Deluxe Select, 205mm x 65mm

Wheels
Hub front
Shimano TC500 alloy, centerlock, 110x15mm thru axle
Hub rear
Shimano TC500 alloy, centerlock, 148x12mm thru axle
Skewer rear
Bontrager Switch thru axle, removable lever
Rim
Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
*Tire
Size: S
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40''
Size: M, L, XL
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40''
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tire size
Frame: 27.5x2.60", Fork: See manufacturer

E-system
Battery
Bosch PowerTube 800Wh, smart system
Charger
Bosch standard 2A, 110V, smart system
Controller
Bosch System Controller Kiox400C, smart system

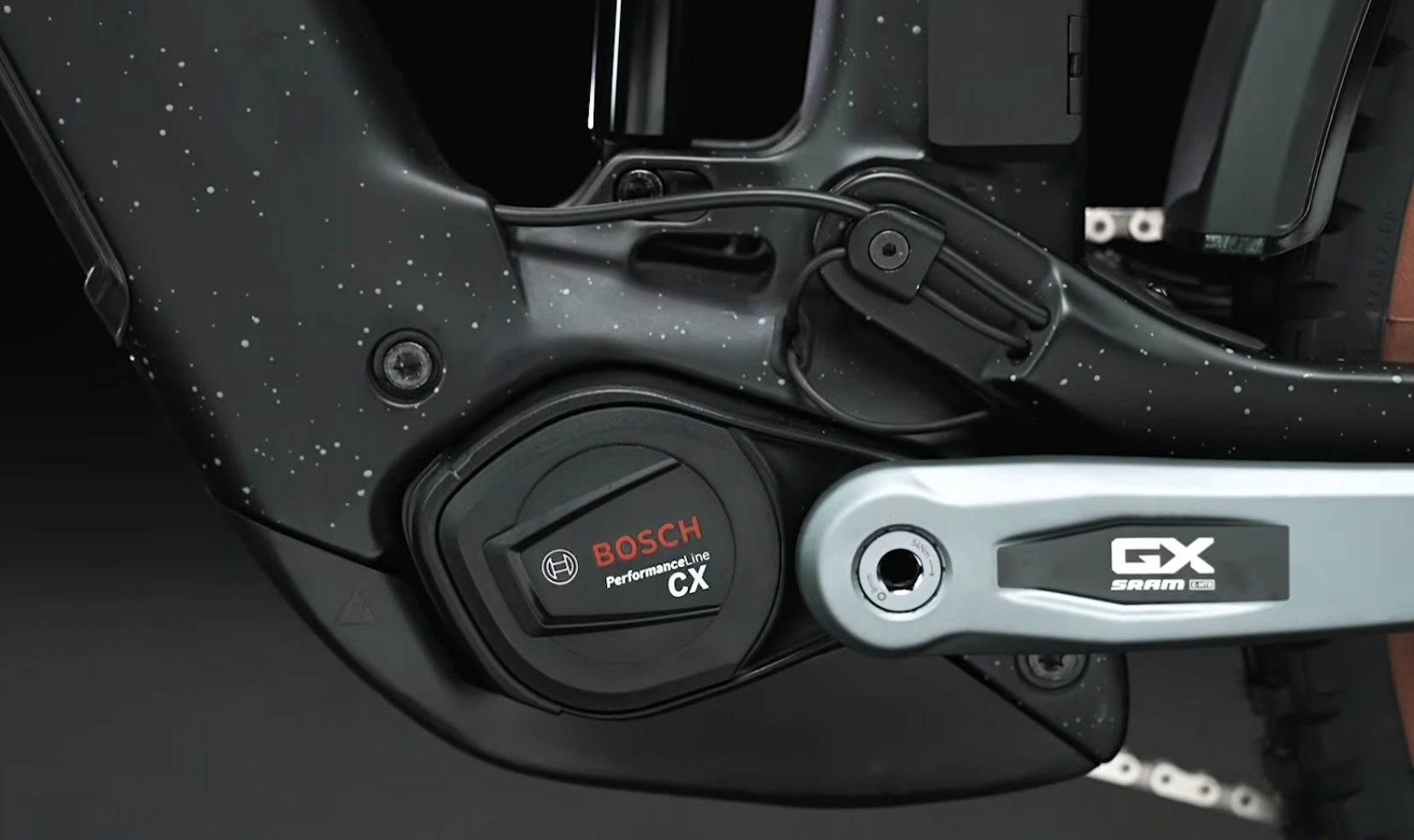

Motor
Bosch Performance Line CX (Europe and APAC: 25 km/h, US and ROW: 20 mph / 32 km/h)
E-bike Classification
Class 1

Drivetrain
Shifter
Shimano Deore M6200
Rear derailleur
Shimano Deore M8200, long cage
Crank
FSA alloy, 160mm length
Chain ring
E*thirteen, 34T, steel
Cassette
Shimano M6200, 10-51, 12 speed
Chain
Shimano Deore M6100, 12 speed
Pedal
Nylon platform
Max chainring size
1x: 36T

Components
Saddle
Bontrager Verse P3, steel rails
*Seatpost
Size: S
TranzX JD-YSI34, 150mm travel, internal routing, 34.9mm
Size: M, L, XL
TranzX JD-YSI34, 170mm travel, internal routing, 34.9mm
Handlebar
Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width
Grips
Trek Line Comp, nylon lock-on
Stem
Bontrager Comp, 31.8mm, 7 degree, 35mm length
Brake
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
*Brake rotor
Size: S, M, L, XL
Shimano RT64, centerlock, 203mm
Size: S, M, L, XL
Shimano RT64, CentreLock, 203 mm
Rotor size
Max brake rotor sizes - Frame: 220mm, Fork: see fork manufacturer

Accessories
Fender
Trek custom fender

Weight
Weight
M - 24.78 kg / 54.64 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
