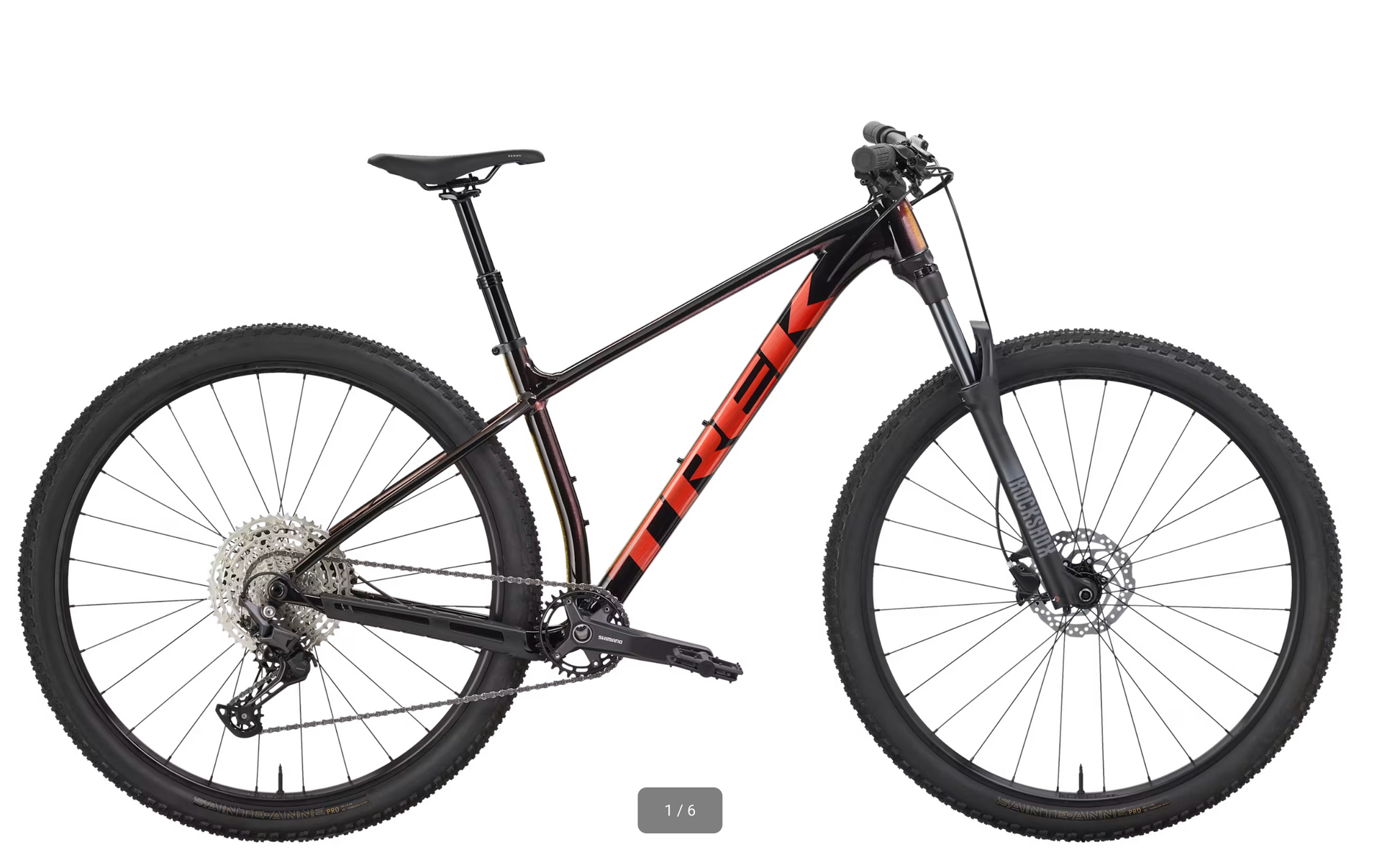

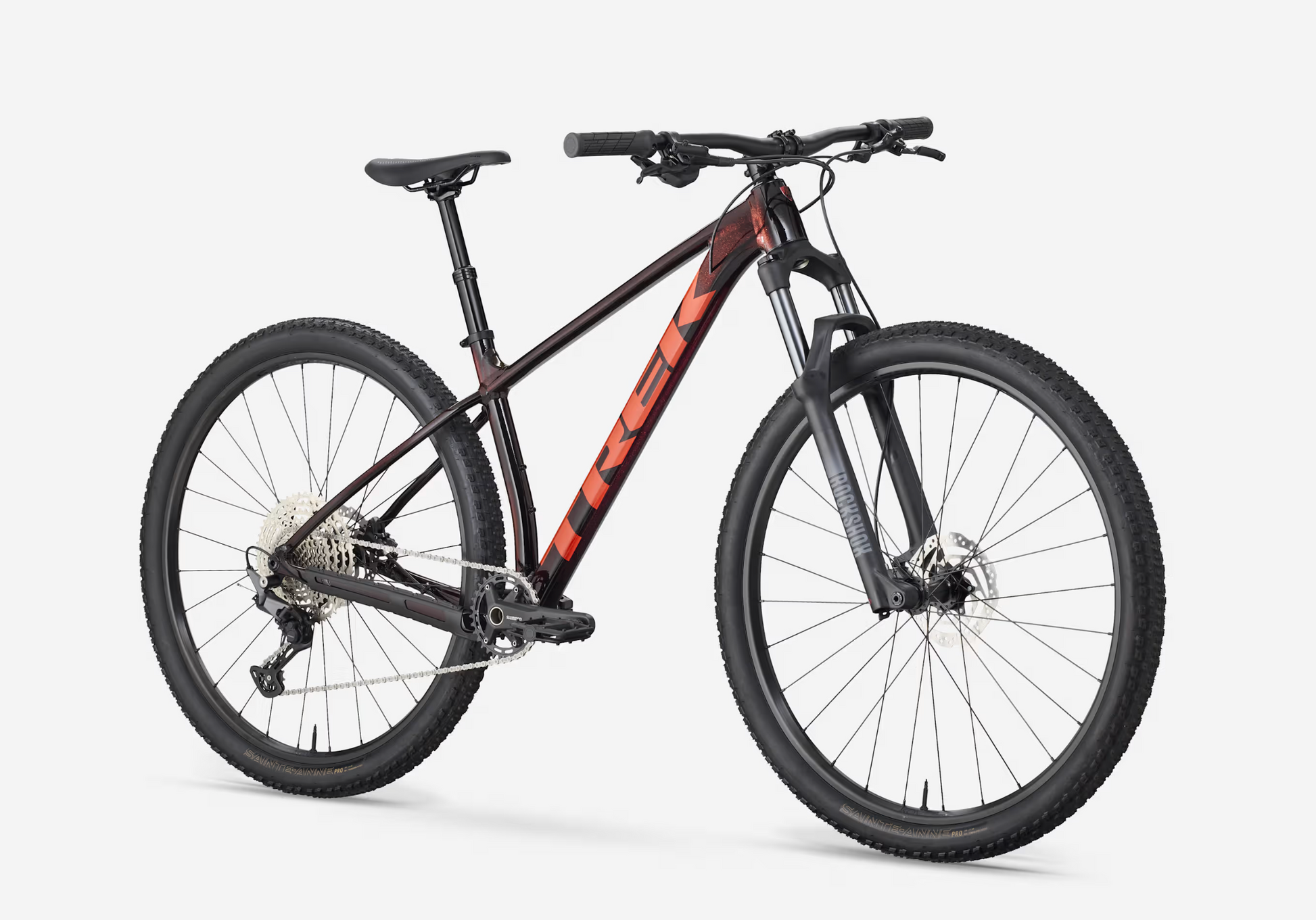

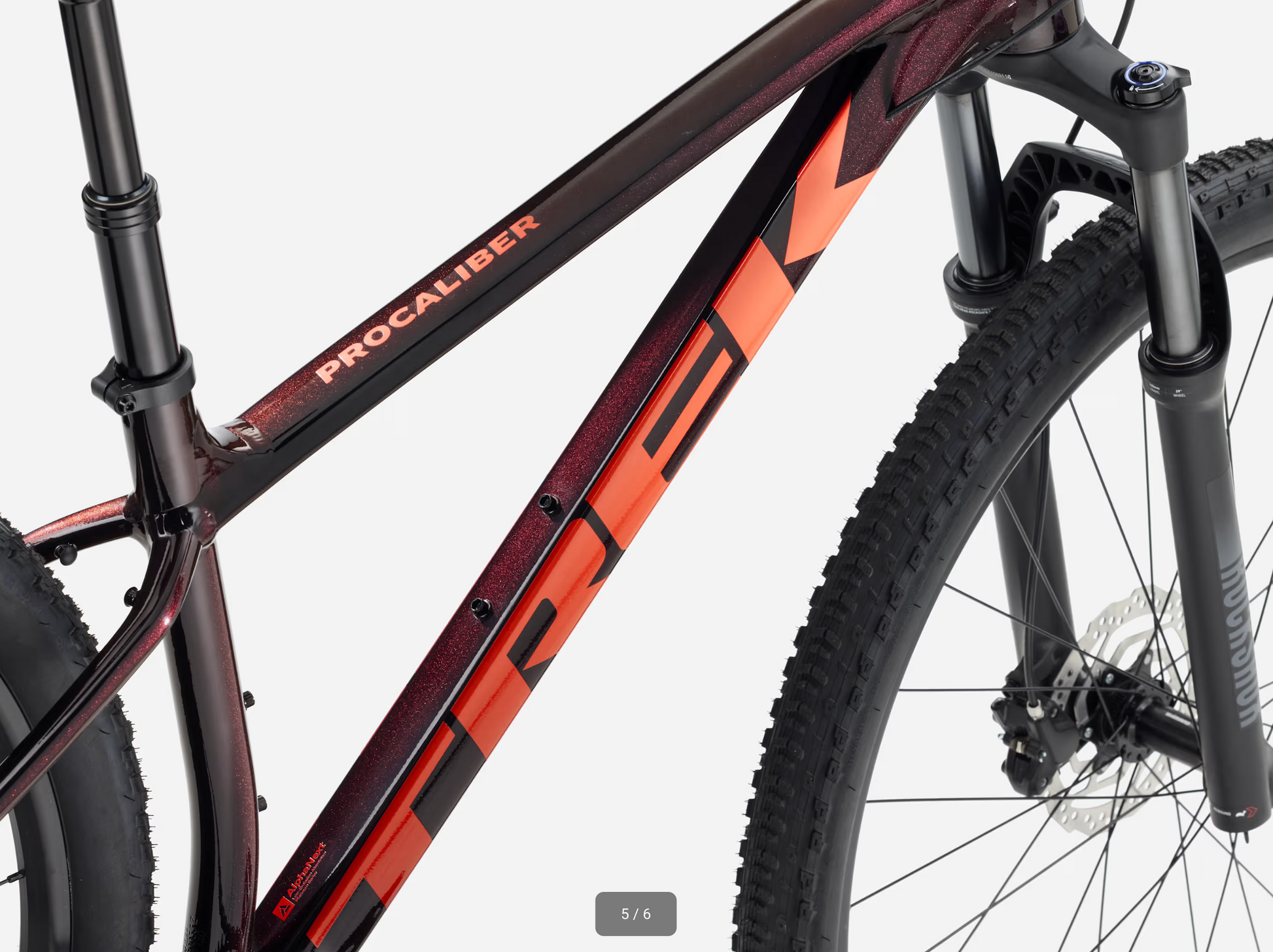

Procaliber 6

Frame
Alpha Platinum Aluminum, tapered head tube, internal routing, BSA 73, hidden rack and kickstand mounts, UDH, Boost148, 12mm thru axle
Fork
RockShox Judy Silver, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel

Wheels
Hub front
Shimano TC500 alloy, centerlock, 110x15mm thru axle
Hub rear
Shimano TC500 alloy, centerlock, 148x12mm thru axle
Skewer rear
Bontrager Switch thru axle, removable lever
Rim
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
Tire
Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20''
Rim strip
Bontrager TLR
Max tire size
Frame: 29x2.40", Fork: See manufacturer

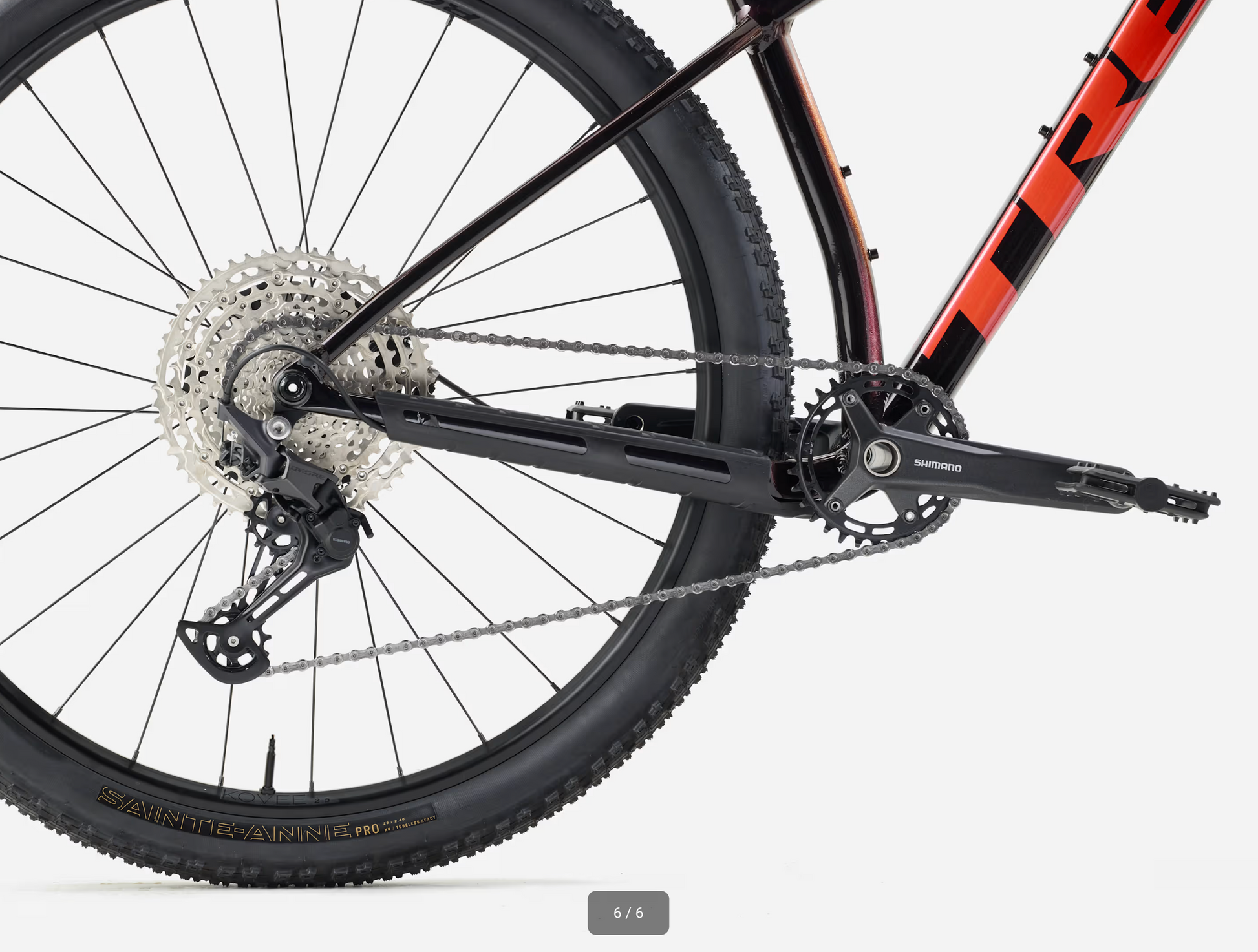

Drivetrain
Shifter
Shimano Deore M6200
Rear derailleur
Shimano Deore M6200, long cage
Crank
Shimano MT520, 32T, 55mm chainline, 170mm length
Bottom bracket
Shimano BB-MT501 BSA
Cassette
Shimano M6200, 10-51, 12 speed
Chain
Shimano Deore M6100, 12 speed
Pedal
VP-536, nylonová platforma.
Max chainring size
See service manual

Components
Saddle
Verse Short, steel rails, 145mm width
*Seatpost
Size: S, M
TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length
Size: ML, L
TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length
Size: XL
TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length
*Handlebar
Size: S
Bontrager alloy, 31.8mm, 5mm rise, 720 width
Size: M, ML, L, XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips
Trek Line Comp, nylon lock-on
*Stem
Size: S, M
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: ML
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 80mm length
Headset
Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom
*Brake rotor
Size: S, M, ML, L, XL
Shimano RT10, CenterLock, 160 mm
Size: L, XL
Shimano RT10, CenterLock, 180 mm
Brake Set
Shimano MT200 hydraulic disc
Rotor size
Max brake rotor sizes - Frame: 180mm, Fork: see fork manufacturer

Weight
Weight
M - 14.08 kg / 31.05 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
