Frame
Alpha Silver Aluminum, 16'' kids' frame size

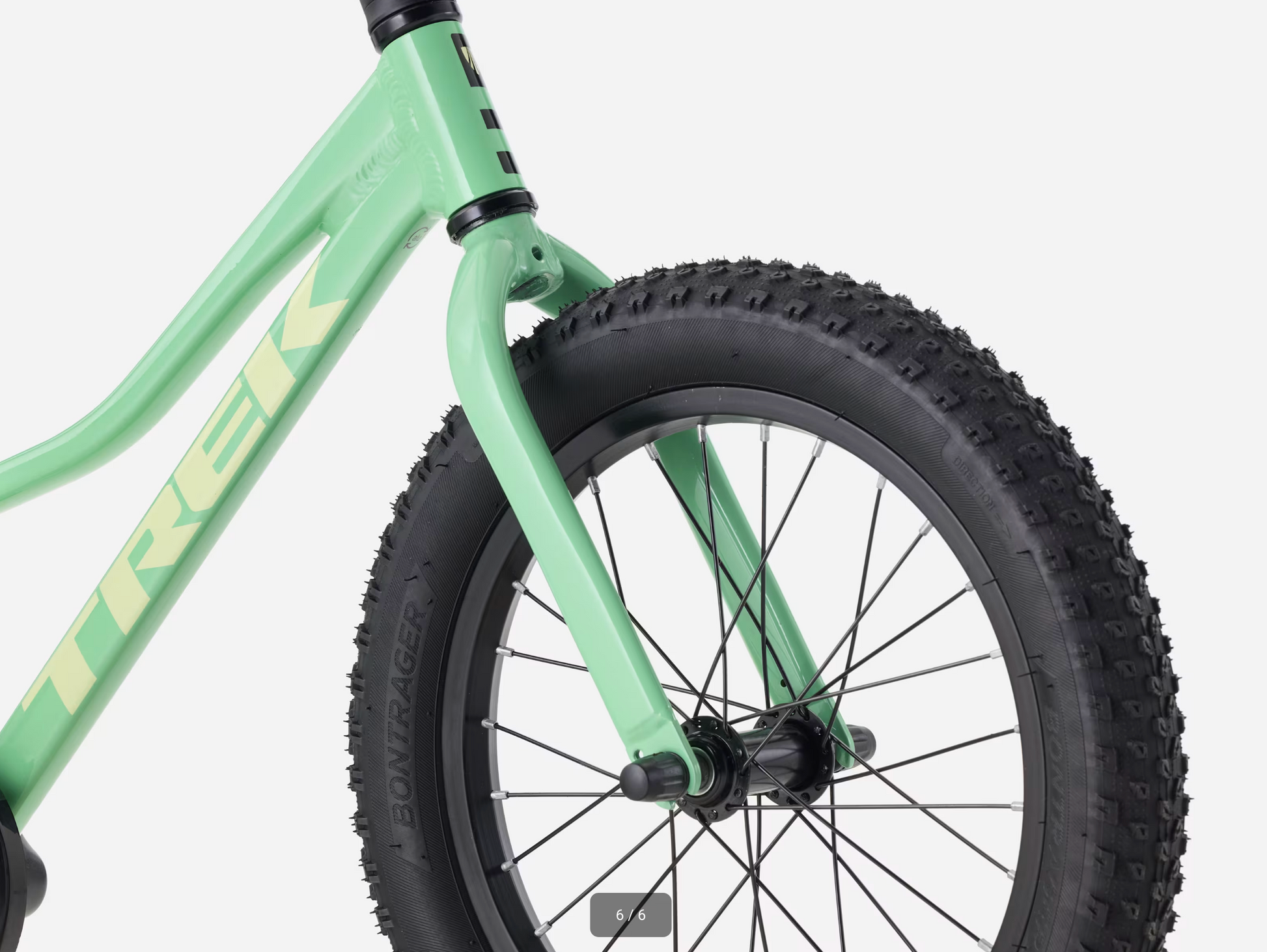

Fork
Steel, 16'', threadless 1'' steerer
Wheels
Hub front
Steel, 100mm bolt-on
Hub rear
Coaster brake, 18T, 120mm bolt-on
Rim
Alloy 16'', 28-hole, schrader valve
Tire
Bontrager XR1, wire bead, 27 tpi., 16x2.25''
Max tire size
16x2.25"
Drivetrain
Crank
Alloy, 26T steel ring, chainguard, 89mm length
Bottom bracket
Square taper, 68mm, sealed cartridge
Chain
HV410, 1/2x1/8
Pedal
Kids' Satellite, 9/16 thread
Max chainring size
1x: 26T
Components

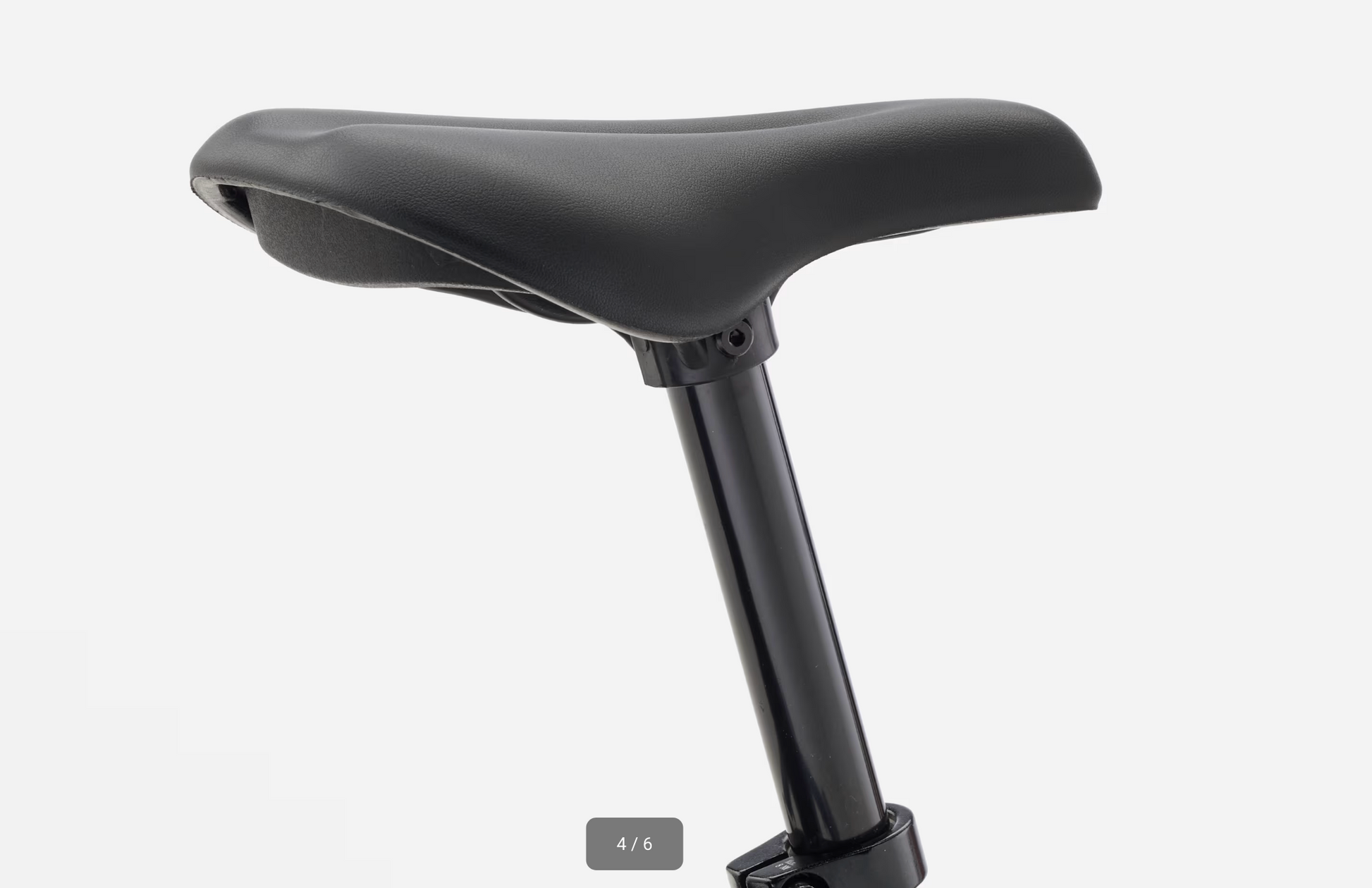

Saddle
Kids' padded, integrated seatpost, with handle
Handlebar
Kids' steel, 25.4 mm clamp, 80 mm rise, 500 mm width
Grips
Kids' grip, 107mm width
Stem
Bontrager Approved alloy, 25.4 mm clamp, 15-degree rise, 50 mm
Headset
Adjustable ball bearing
Accessories
Training wheel
Training Wheel Trek Dialed 16''
Weight
Weight
7.85 kg / 17.31 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 80 pounds (36 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
