Marlin 6 Gen 3 2027
Marlin 6 Gen 3 2027
Couldn't load pickup availability
Pick up could take up to 10 days
Pick up could take up to 10 days
Not all our bikes are stored at our retail location so in store pick up for bikes could take up to 10 days.
Please contact the store for more information on estimated pick up ETA.
Don't see what you want?
Don't see what you want?
Other colour and size options might be available for special order.
Contact us for more information.

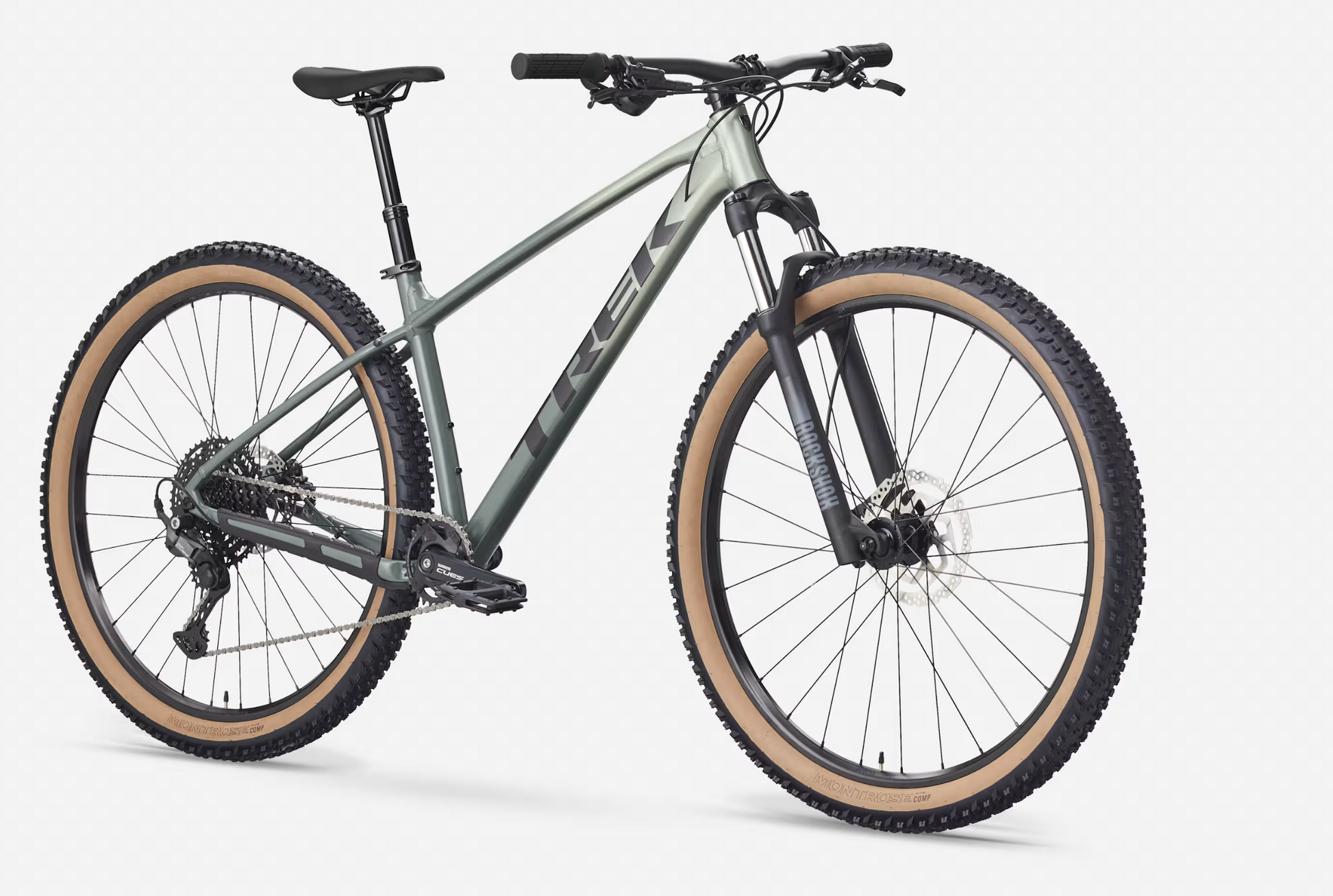

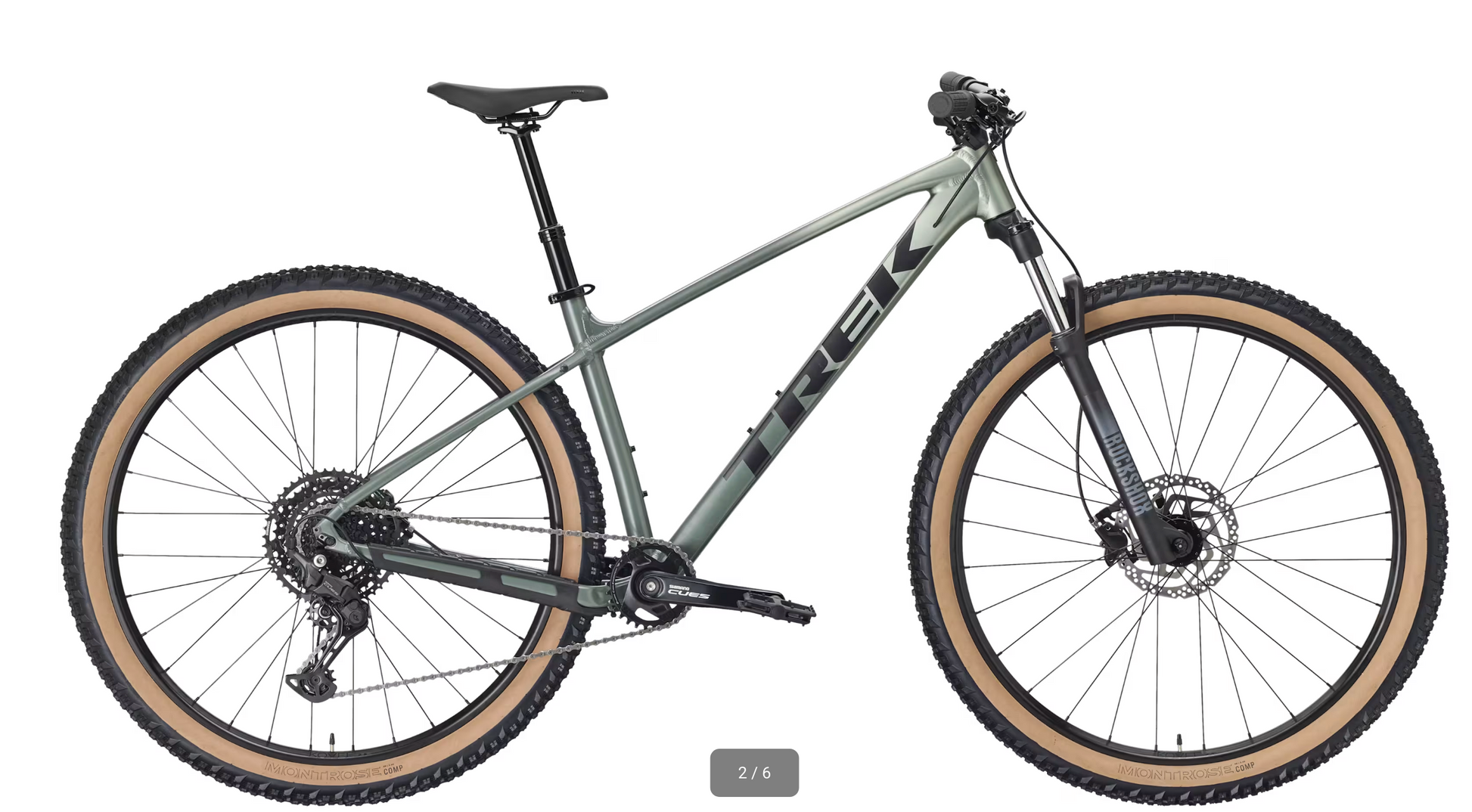

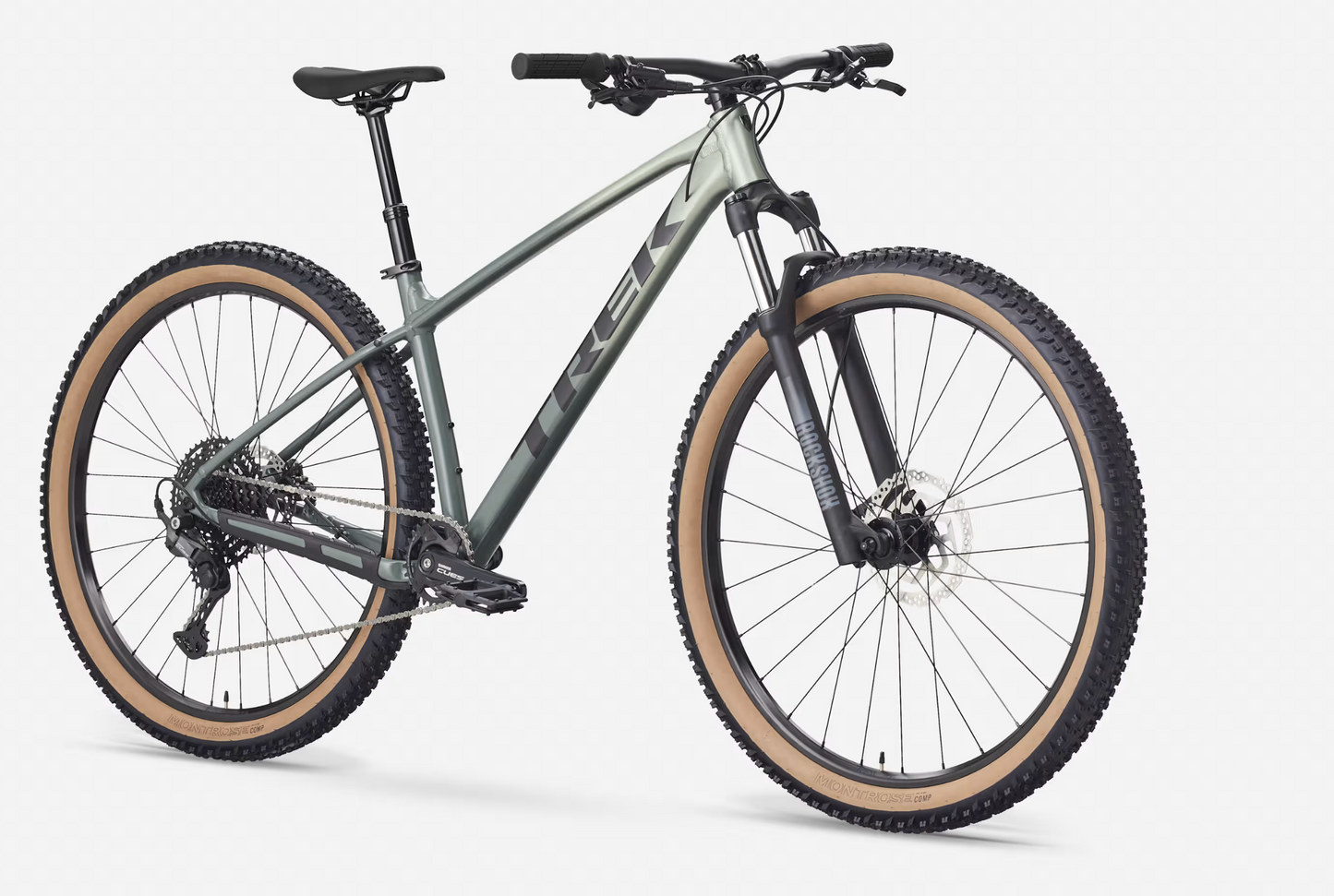

Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated, slacker frame geometry makes descents easier to control, while a suspension fork helps smooth out bumpy terrain.
Integrated rack and kickstand mounts make it easy to set up for weekday commuting or everyday errands.
Share
Details
Specifications
*Frame
Size: XS

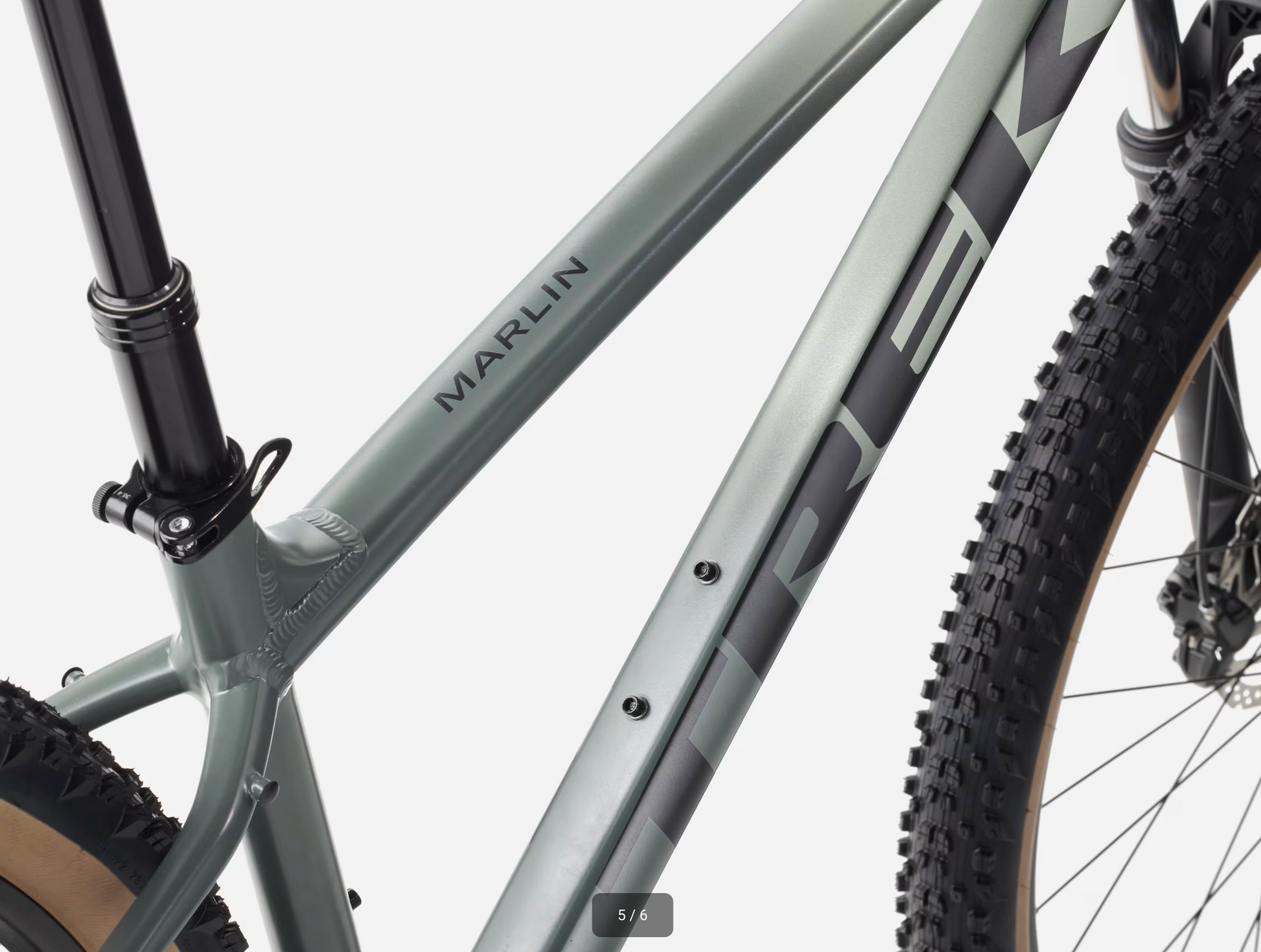

Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
Size: S , M , ML , L , XL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

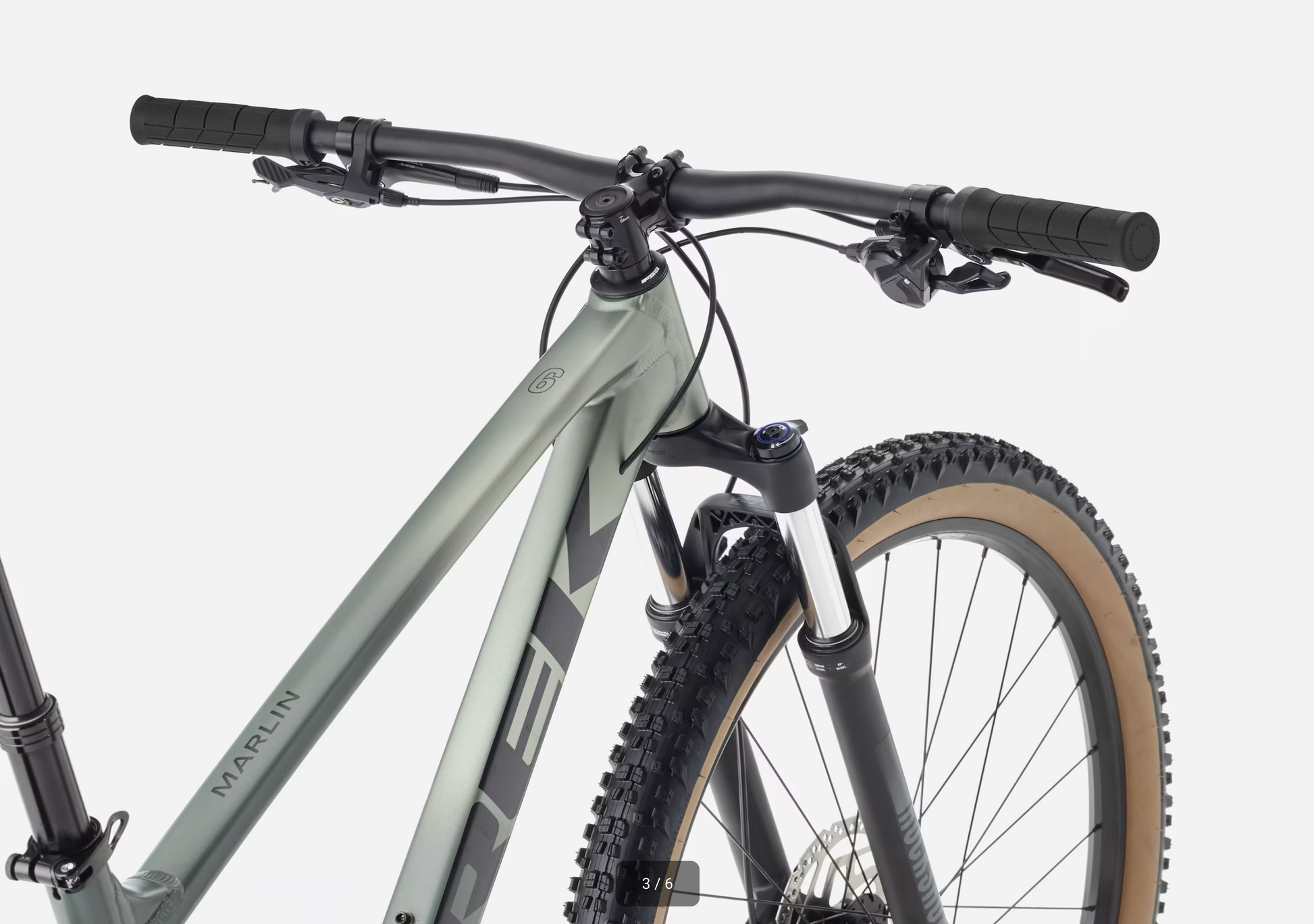

*Fork
Size: XS , S
RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: M , ML , L , XL
RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Wheels
Hub front
Formula DC-20, alloy, 6-bolt, 100 mm
Skewer front
Rychloupínák 116 x 5 mm.
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
Skewer rear
173x5mm QR
*Rim
Size: XS , S , M , ML , L , XL
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
Size: M , ML , L , XL
Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve
*Tire
Size: XS , S
Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40"
Size: M , ML , L , XL
Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"
Rim strip
Bontrager TLR
Max tire size
Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer

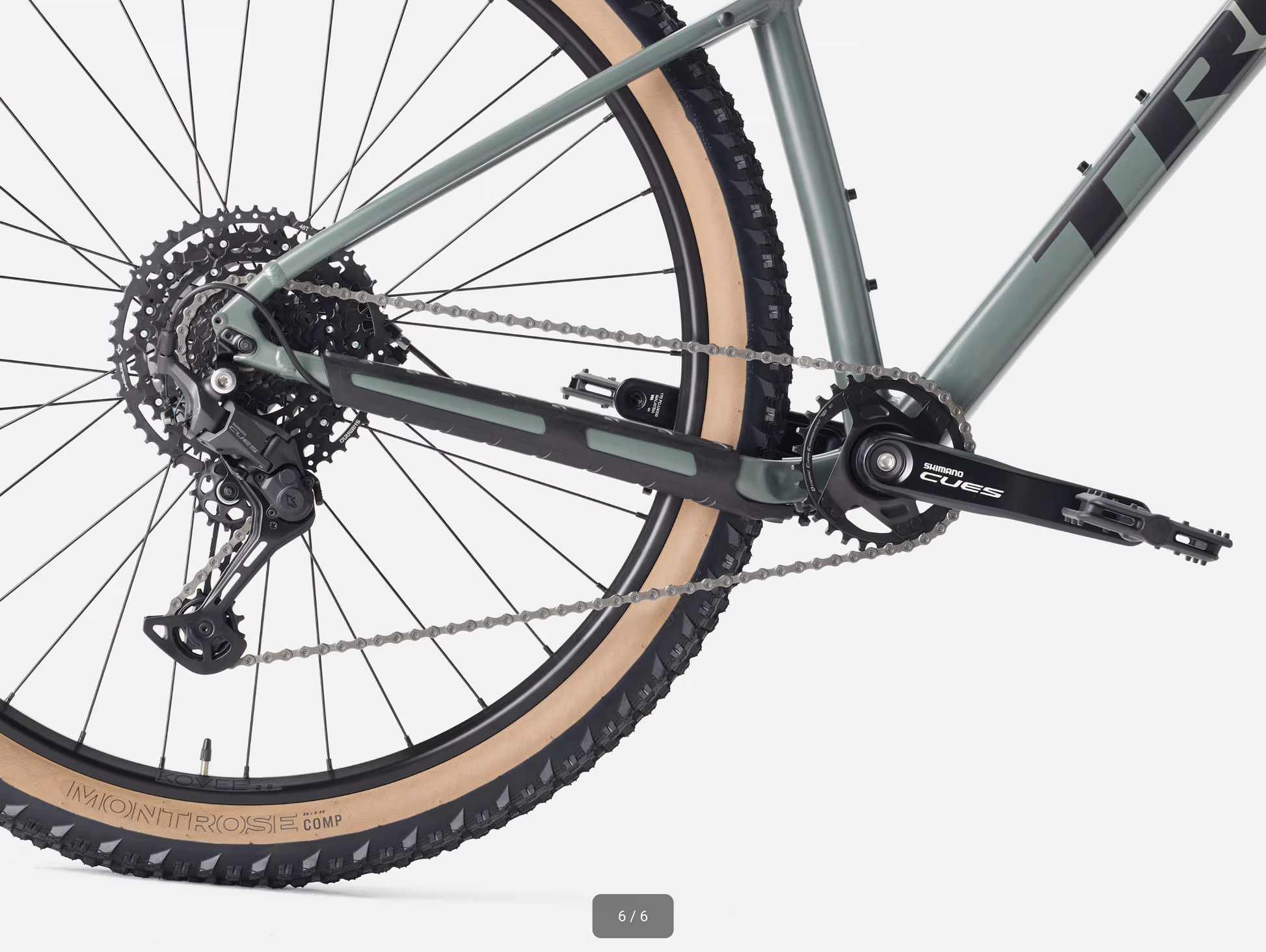

Drivetrain
Shifter
Shimano U6000, 10 speed
Rear derailleur
Shimano CUES U6000 GS
*Crank
Size: XS , S , M , ML
Shimano U4000, 30T chainring, 170mm length
Size: L , XL
Shimano U4000, 30T chainring, 175mm length
Bottom bracket
Shimano, 73mm, threaded cartridge, 122.5mm spindle
Cassette
Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
Chain
Shimano LG500
Pedal
Nylon platform
Max chainring size
1x: See FAQ, 2x: 36T, 3x: 42T
Components
Saddle
Bontrager Verse Short, stainless steel rails
*Seatpost
Size: XS , S
TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length
Size: M
TranzX JD-YSI34, 125mm travel, internal routing, 31.6mm, 405mm length
Size: ML , L , XL
TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length

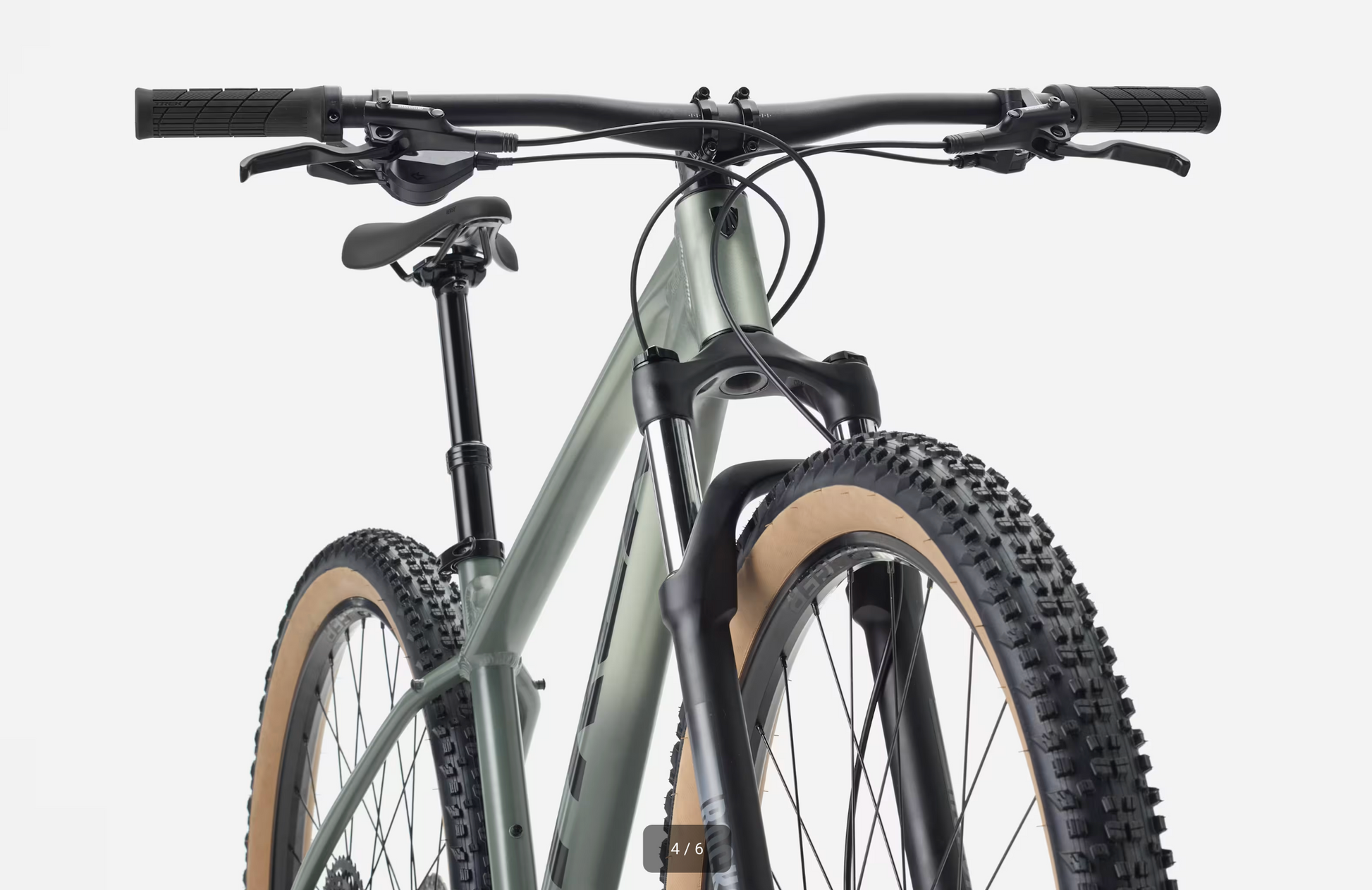

*Handlebar
Size: XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M , ML , L , XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips
Trek Line Comp, nylon lock-on
*Stem
Size: XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length
Size: M , ML , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Headset
Semi-integrated, 1-1/8"
*Brake rotor
Size: XS , S , M , ML , L , XL
Shimano RT26, 6-bolt, 160mm
Size: M , ML , L , XL
Shimano RT26, 6-bolt, 180mm
Brake Set
Shimano MT200 hydraulic disc
Rotor size
Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer
Weight
Weight
M - 15.00 kg / 33.07 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
