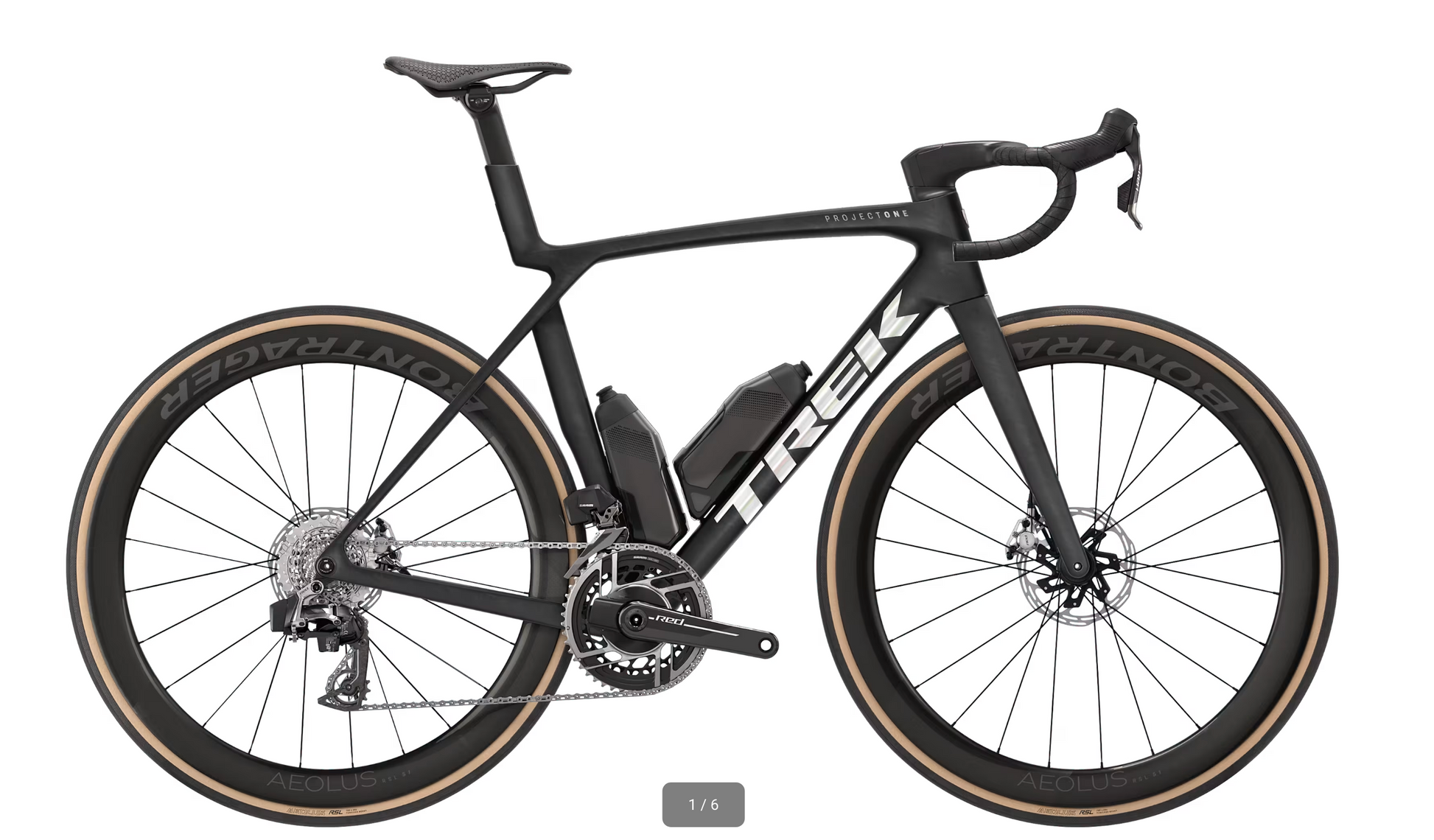

Madone SLR 9 AXS Gen 8 2027

Frame with Fork
900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
Fork
Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Weight
Weight
ML - 7.00 kg / 15.44 lbs (with TLR sealant, no tubes, no bottles/cages)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system
Battery
SRAM AXS battery pack (with charger)

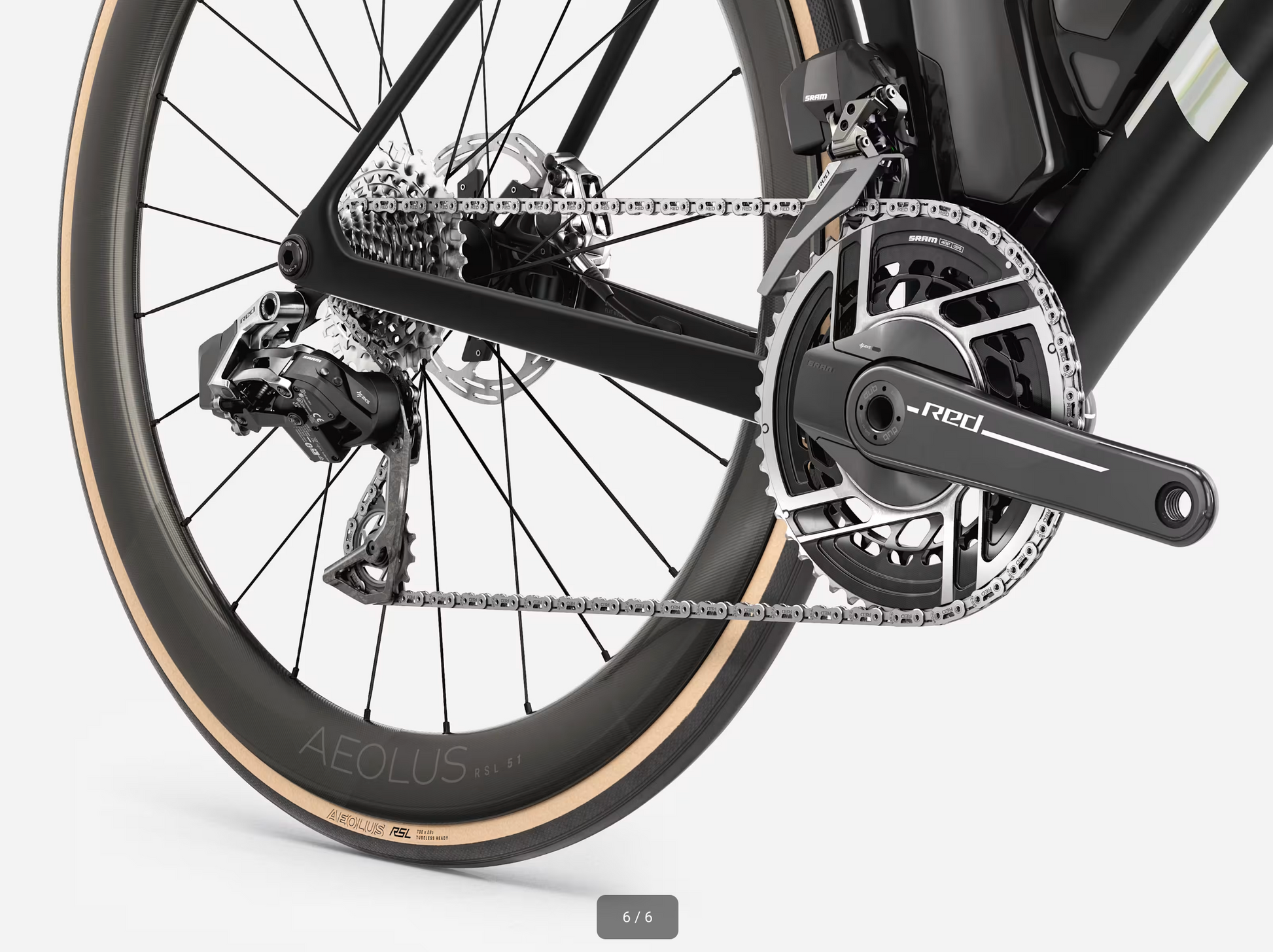

Drivetrain
Shifter
SRAM RED AXS E1
Front derailleur
SRAM RED AXS E1, braze-on
Rear derailleur
SRAM RED AXS E1, 36T max cog
*Crank
Size: XS, S
SRAM RED AXS E1, power meter, 48/35, DUB, 160mm length
Size: XS, S, M, ML
SRAM RED AXS E1, power meter, 48/35, DUB, 165mm length
Size: M, ML, L, XL
SRAM RED AXS E1, power meter, 48/35, DUB, 170mm length
Size: L, XL
SRAM RED AXS E1, power meter, 48/35, DUB, 172.5mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM RED XG-1290 E1, 10-33, 12 speed
Chain
SRAM RED E1
Max chainring size
1x: 54T, 2x: 56/43

Wheels
Wheel front
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle
*Wheel rear
Size: XS, S, M, ML, L, XL
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, SRAM XD-R driver, 142x12mm thru axle
Size: XS, S, M, ML, L, XL
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, Shimano 11/12 freehub, 142x12mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
*Tire
Size: XS, S, M, ML, L, XL
Bontrager Aeolus RSL RD, Tubeless Ready, cotton construction, aramid bead, 170 tpi, 700x28mm
Size: XS, S, M, ML, L, XL
Pirelli P Zero Race TLR RS, 120 tpi, tubeless compatible, 700x28mm
Size: XS, S, M, ML, L, XL
Pirelli P Zero Race, 120 tpi, tubeless compatible, 700x28mm
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Tube
Pirelli P Zero SmarTube, TPU
Max tire size
32mm (as measured, see manual for details)

Components
*Saddle
Size: XS, S, M, ML, L, XL
Aeolus RSL, carbon rails, 145mm width
Size: XS, S, M, ML, L, XL
Aeolus RSL AirLoom, carbon rails, 145mm width
Seatpost
Madone aero carbon seatpost, 0mm offset, short length

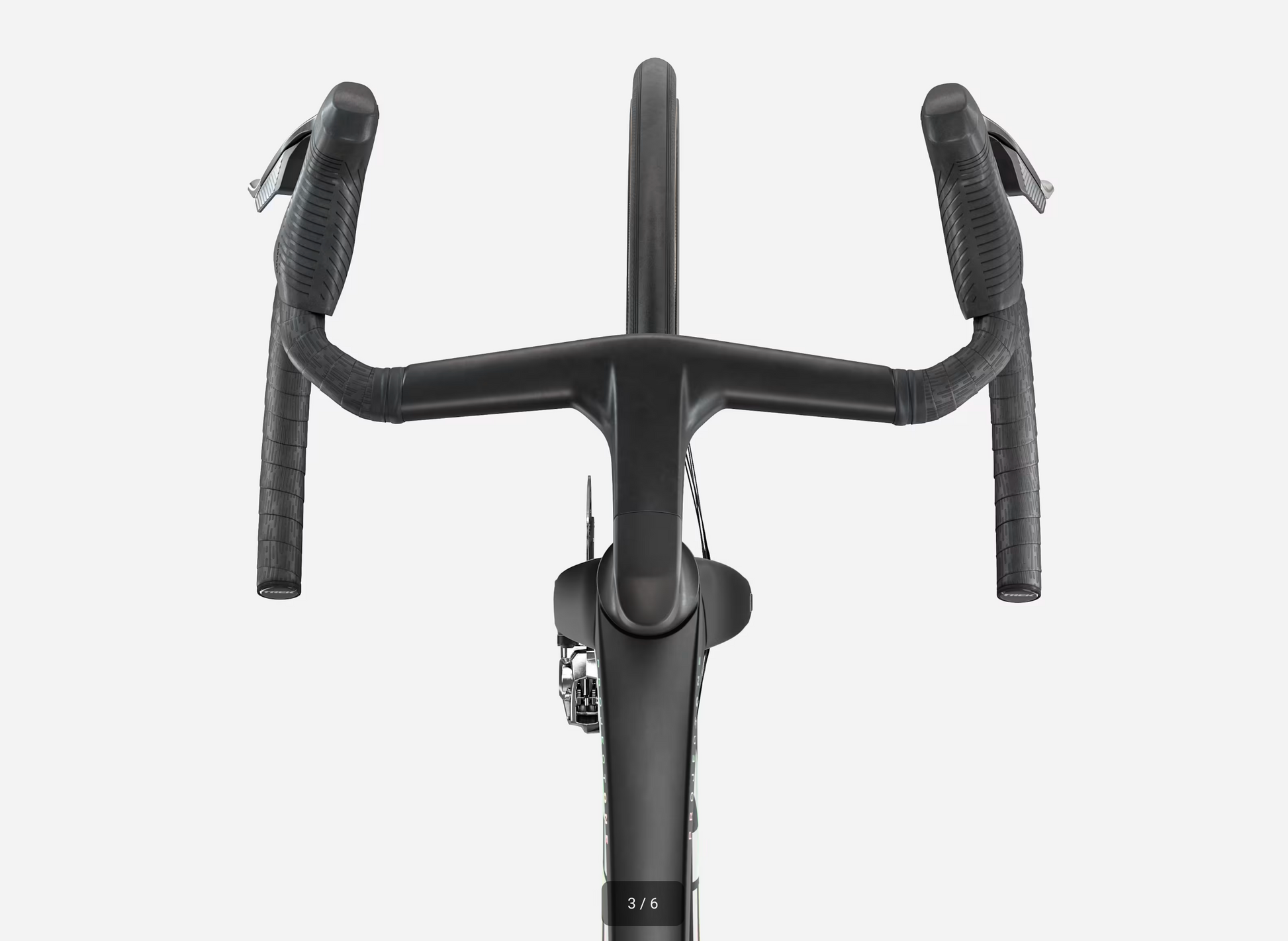

*Handlebar/stem (integrated)
Size: XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 35cm control width, 38cm drop width, 80mm stem length
Size: S
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 90mm stem length
Size: M
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length
Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 100mm stem length
Size: XL
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length
*Handlebar tape
Size: XS, S, M, ML, L, XL
Trek EcoTack
Size: XS, S, M, ML, L, XL
Trek gel cork
Brake
SRAM Red AXS E1 hydraulic disc, flat mount
Brake rotor
SRAM Paceline X, rounded, centerlock, 160mm
Rotor size
Max brake rotor sizes: 180mm front, 160mm rear
