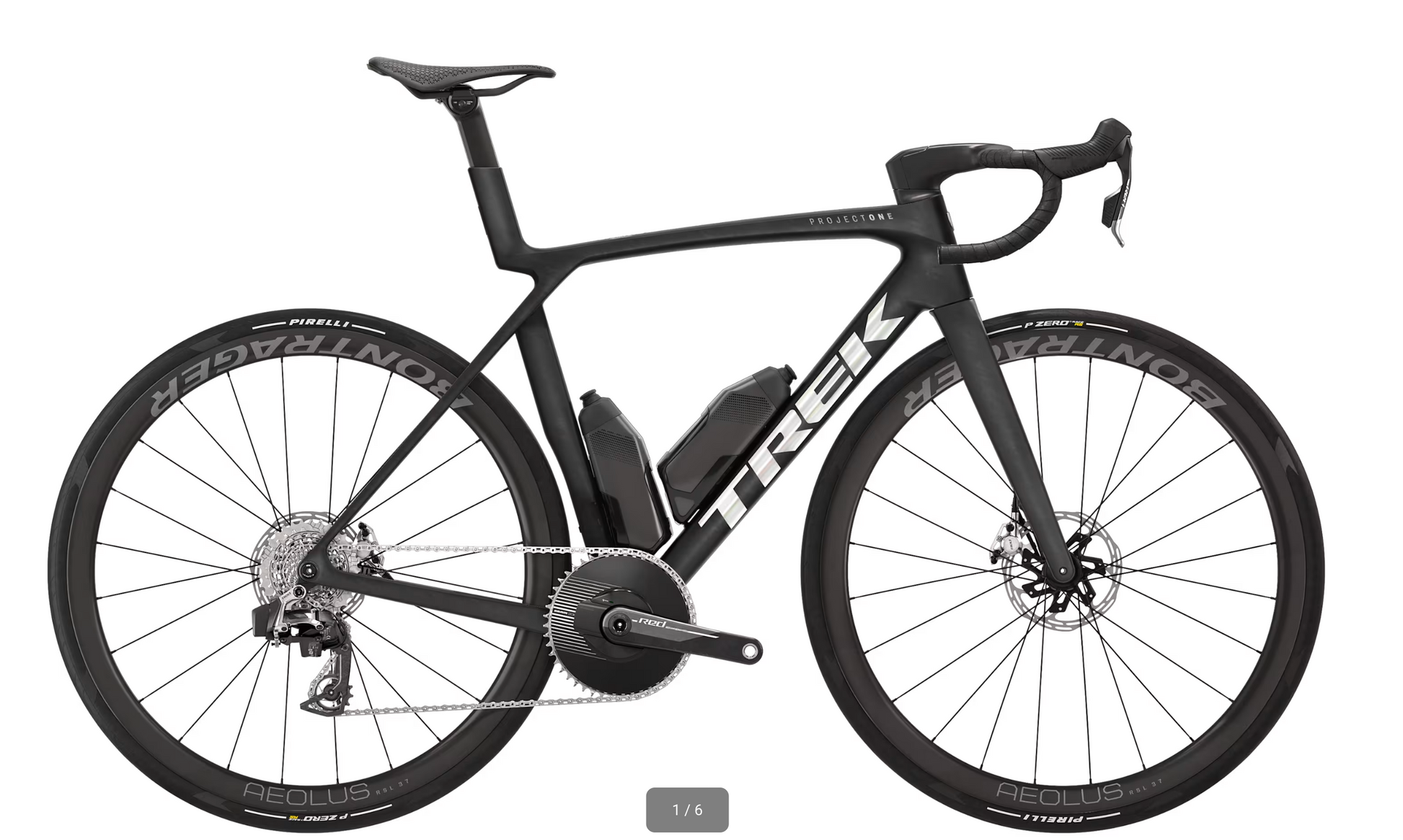

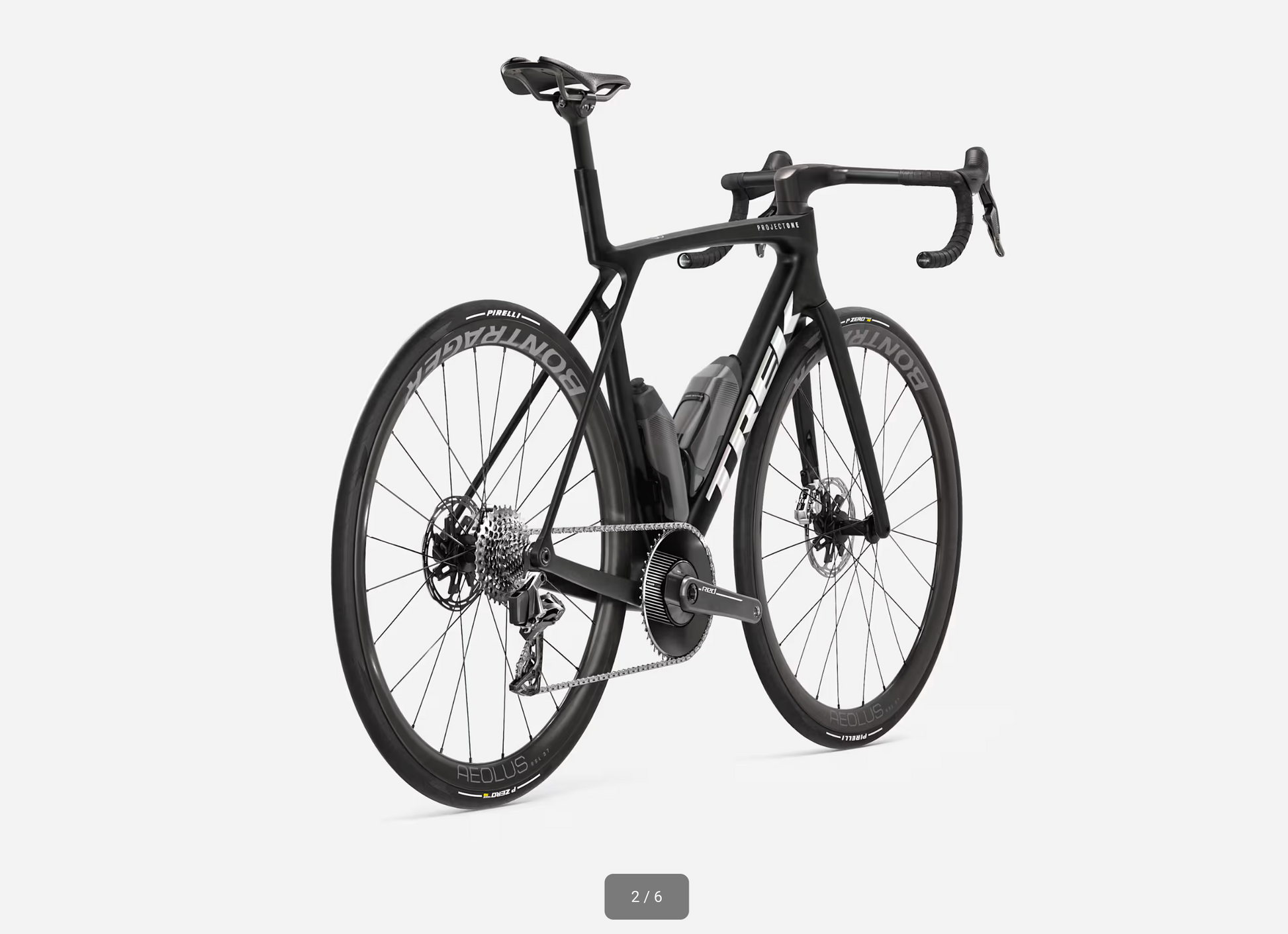

Madone SLR 9 AXS 1x Gen 8 2027

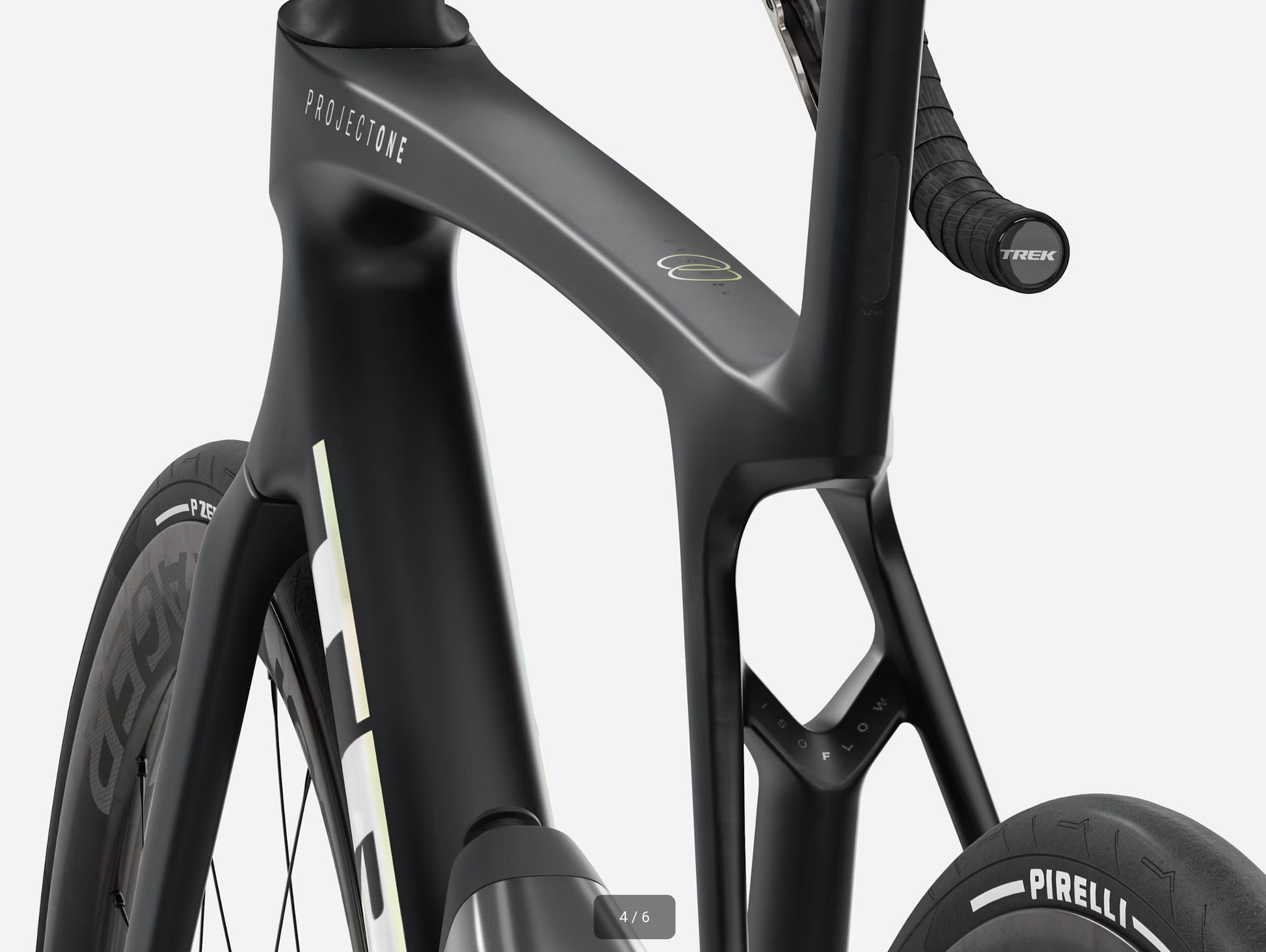

Frame with Fork
900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
Fork
Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Weight
Weight
ML - 6.40 kg / 14.11 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system
Battery
SRAM AXS battery pack (with charger)

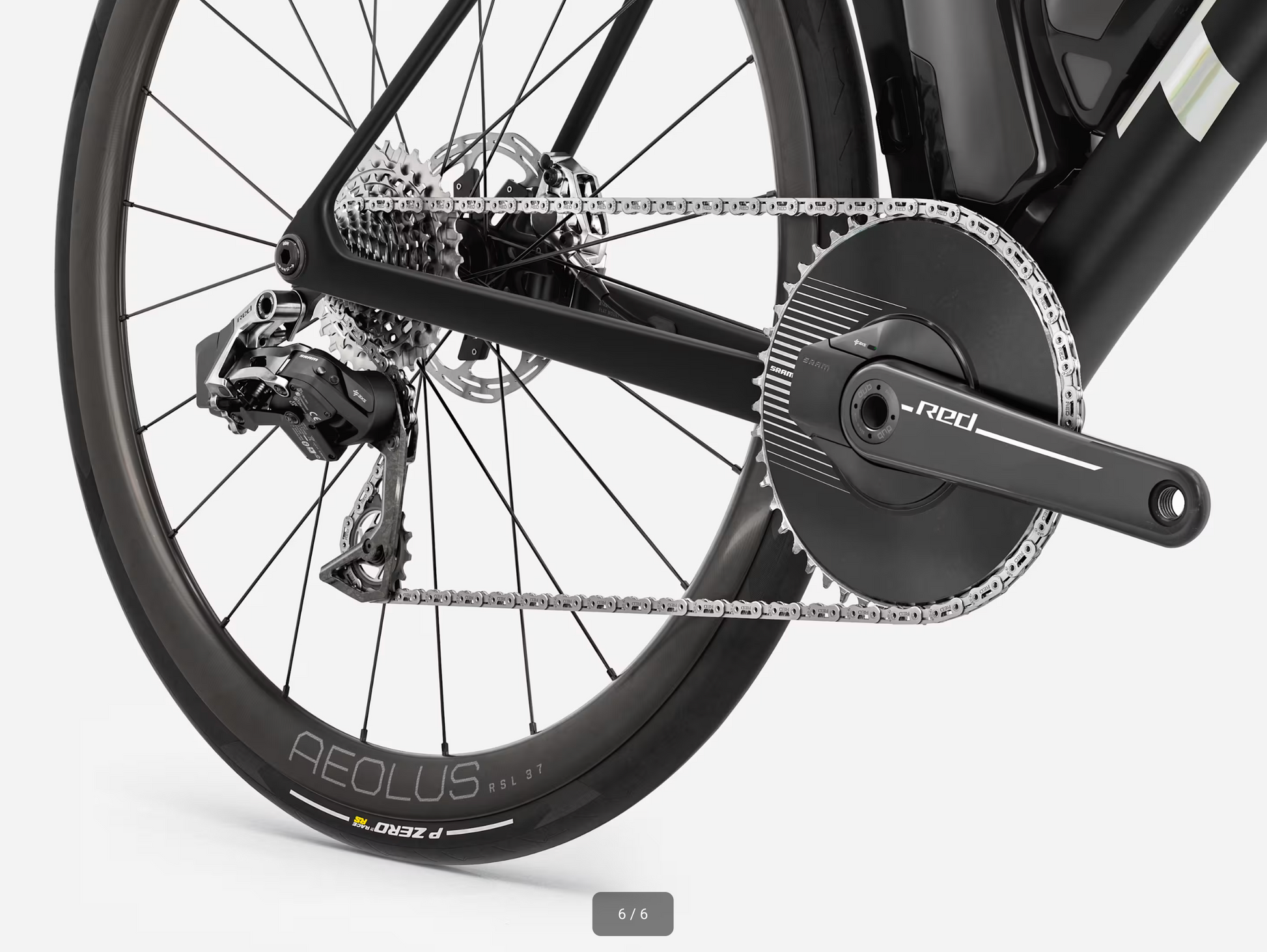

Drivetrain
Shifter
SRAM RED AXS E1
Rear derailleur
SRAM RED AXS E1, 36T max cog
*Crank
Size: XS, S
SRAM Red 1 AXS E1 w/ Power Meter, 48T Aero, DUB, 160mm length
Size: XS, S, M, ML
SRAM RED E1, power meter, 48T, DUB, 165mm length
Size: M, ML, L, XL
SRAM RED E1, power meter, 48T, DUB, 170mm length
Size: L, XL
SRAM RED E1, power meter, 48T, DUB, 172.5mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM RED XG-1290 E1, 10-36, 12 speed
Chain
SRAM RED E1
Max chainring size
1x: 54T, 2x: 56/43

Wheels
*Wheel front
Size: XS, S, M, ML, L, XL
Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
Size: XS, S, M, ML, L, XL
Bontrager Aeolus RSL 43X, OCLV Carbon, Tubeless Ready, 43mm rim depth, 100x12mm thru axle
*Wheel rear
Size: XS, S, M, ML, L, XL
Bontrager Aeolus RSL 43X, OCLV Carbon, Tubeless Ready, 38mm rim depth, Shimano freehub, 142x12mm thru axle
Size: XS, S, M, ML, L, XL
Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tire
Pirelli P Zero Race RS, 120 tpi, 700x28mm
Tube
Pirelli P Zero SmarTube, TPU
Max tire size
32mm (as measured, see manual for details)

Components
*Saddle
Size: XS, S, M, ML, L, XL
Aeolus RSL, carbon rails, 145mm width
Size: XS, S, M, ML, L, XL
Aeolus RSL AirLoom, carbon rails, 145mm width
Seatpost
Madone aero carbon seatpost, 0mm offset, short length

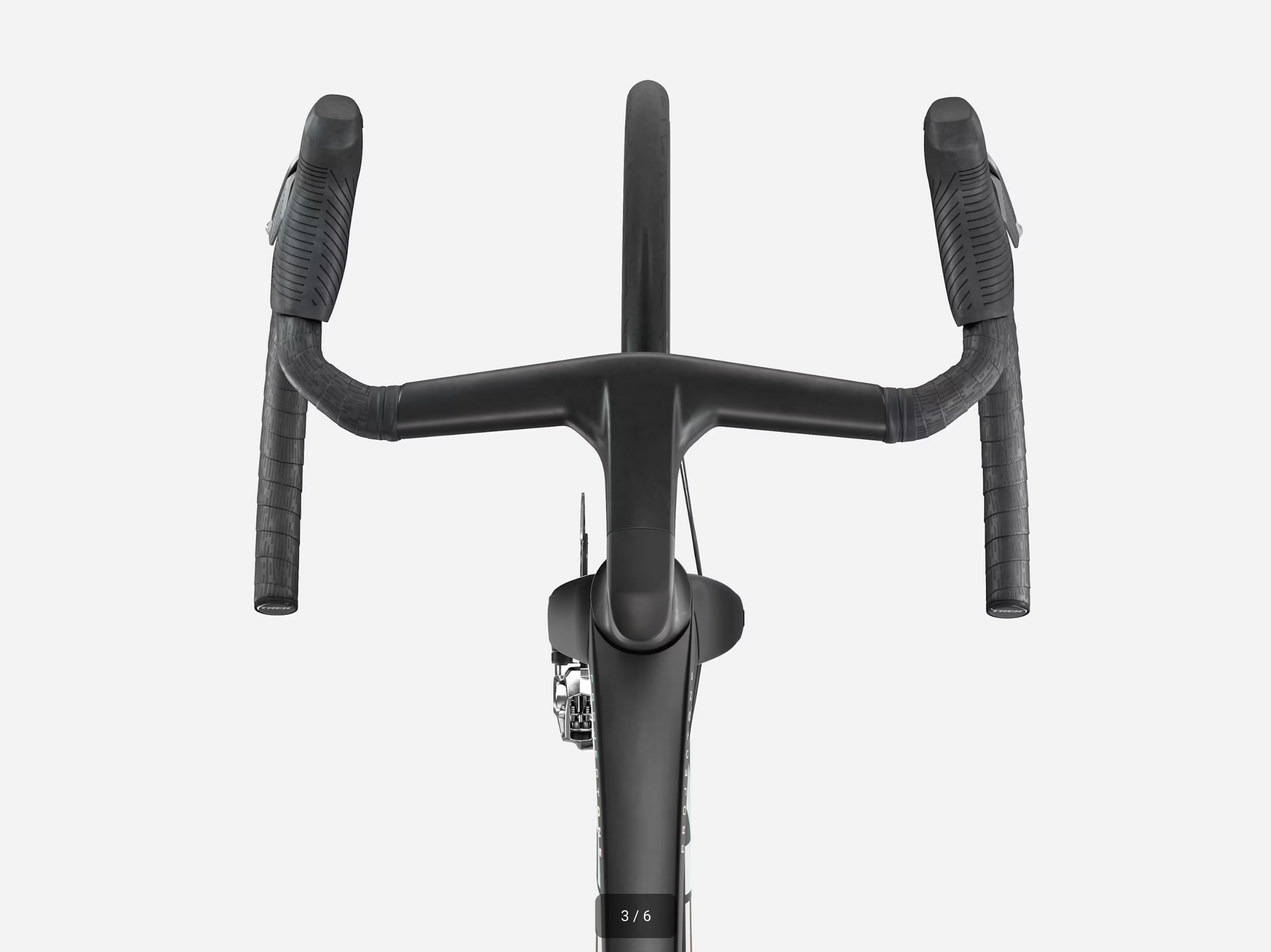

*Handlebar/stem (integrated)
Size: XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 35cm control width, 38cm drop width, 80mm stem length
Size: S
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 90mm stem length
Size: M
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length
Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 100mm stem length
Size: XL
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length
Handlebar tape
Trek gel cork
Brake
SRAM Red AXS E1 hydraulic disc, flat mount
Brake rotor
SRAM Paceline X, rounded, centerlock, 160mm
Rotor size
Max brake rotor sizes: 180mm front, 160mm rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.

Please visit our Return/Exchange Policy page for more information.

This bike is not eligible for shipping
