Frame with Fork

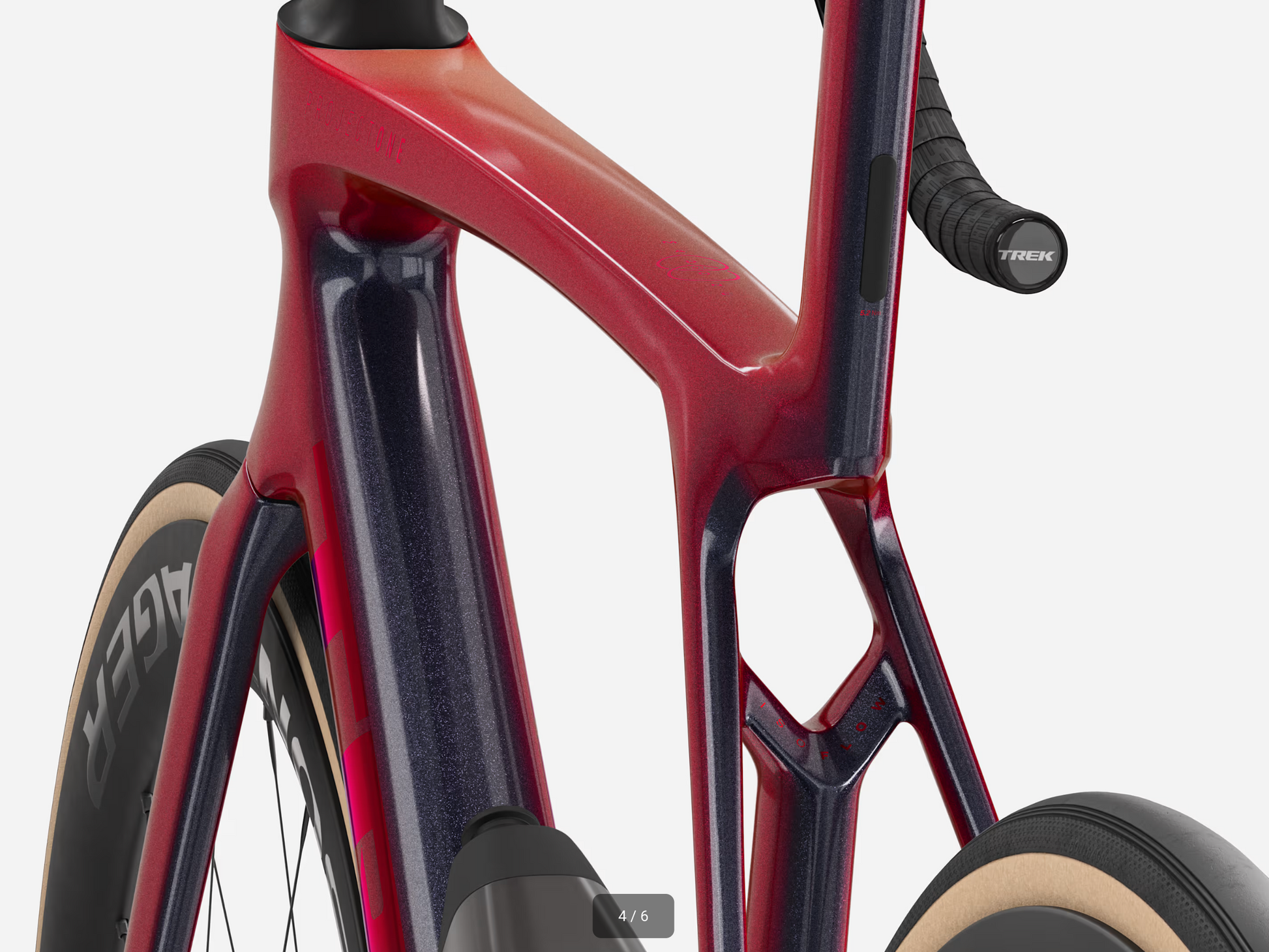

900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
Fork
Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Weight
Weight
ML - 7.52 kg / 16.58 lbs (with TLR sealant, no tubes, no bottles/cages)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
E-system
Battery
Shimano BT-DN300
Drivetrain
*Shifter
Size: XS, S, M, ML, L, XL
Shimano Ultegra R8171 Di2, 12 speed
Size: XS, S, M, ML, L, XL
Shimano Ultegra R8170 Di2, 12 speed
Front derailleur
Shimano Ultegra R8150 Di2, braze-on, down swing
Rear derailleur
Shimano Ultegra R8150 Di2, 34T max cog

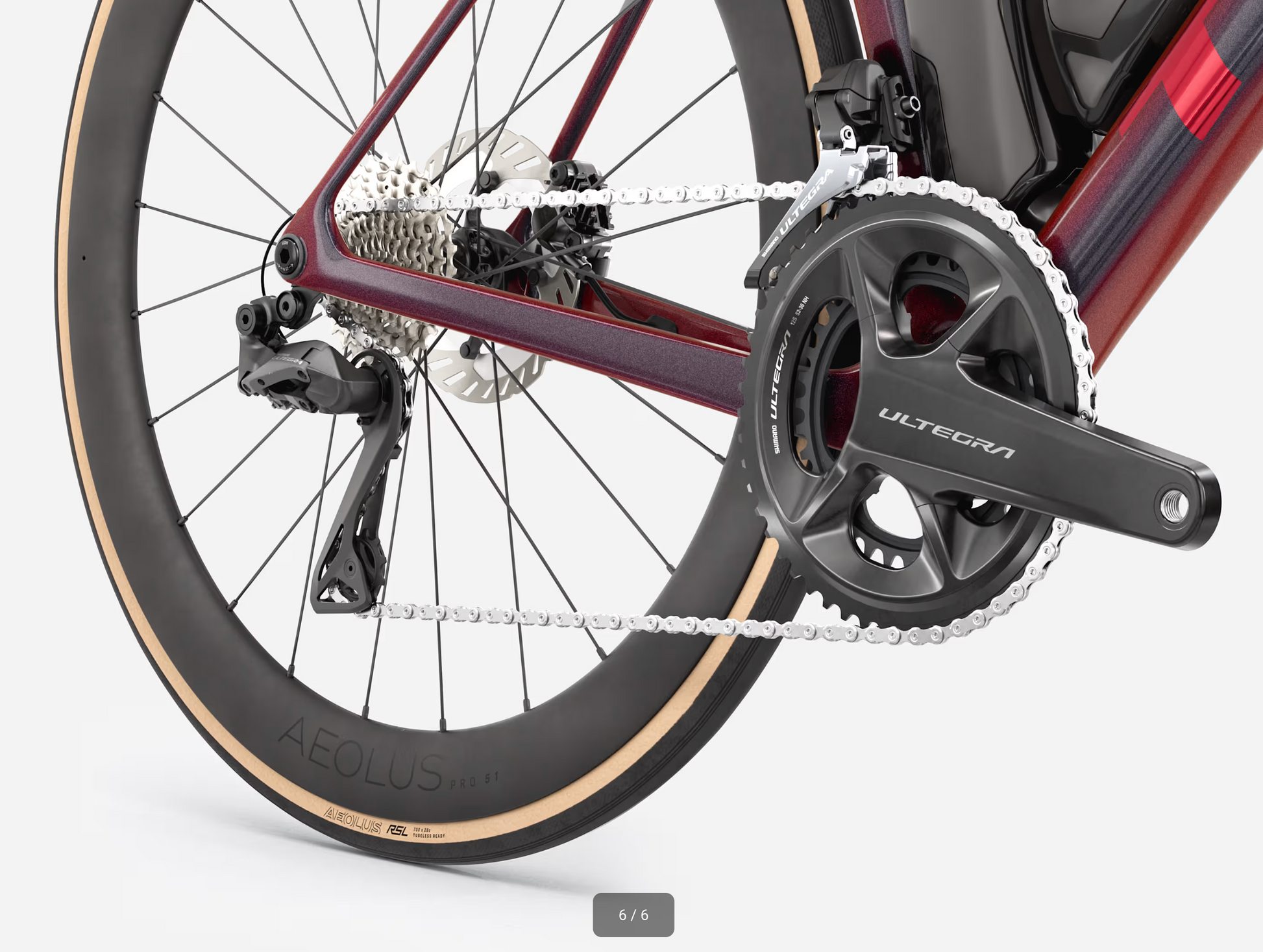

*Crank
Size: XS, S
Shimano Ultegra R8100, 52/36, 160mm length
Size: XS, S, M, ML
Shimano Ultegra R8100, 52/36, 165mm length
Size: M, ML
Shimano Ultegra R8100, 52/36, 170mm length
Size: ML, L, XL
Shimano Ultegra R8100, 52/36, 172.5mm length
Size: XL
Shimano Ultegra R8100, 52/36, 175mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano Ultegra R8101, 11-30, 12 speed
Chain
Shimano Ultegra/XT M8100, 12 speed
Max chainring size
1x: 54T, 2x: 56/43
Wheels
Wheel front
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
*Wheel rear
Size: XS, S, M, ML, L, XL
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12mm thru axle
Size: XS, S, M, ML, L, XL
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
*Tire
Size: XS, S, M, ML, L, XL
Bontrager Aeolus RSL RD, Tubeless Ready, cotton construction, aramid bead, 170 tpi, 700x28mm
Size: XS, S, M, ML, L, XL
Pirelli P Zero Race TLR RS, 120 tpi, tubeless compatible, 700x28mm
Size: XS, S, M, ML, L, XL
Pirelli P Zero Race, 120 tpi, tubeless compatible, 700x28mm
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Tube
Pirelli P Zero SmarTube, TPU
Max tire size
32mm (as measured, see manual for details)
Components
*Saddle
Size: XS, S, M, ML, L, XL
Bontrager Aeolus Pro, carbon rails, 145mm width
Size: XS, S, M, ML, L, XL
Trek Aeolus Pro, carbon fiber rails, AirLoom lattice 145mm width
Seatpost
Madone aero carbon seatpost, 0mm offset, short length

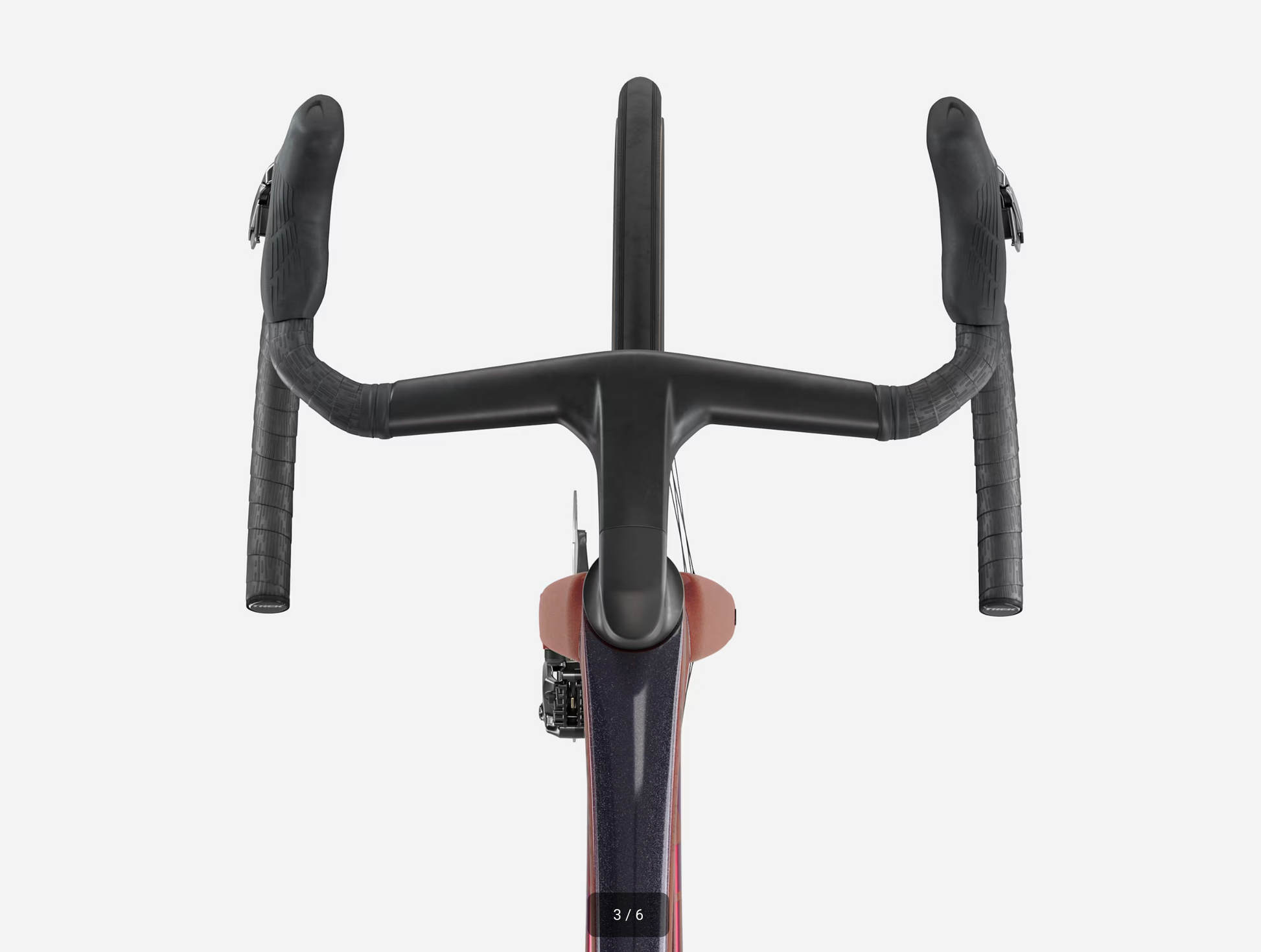

*Handlebar/stem (integrated)
Size: XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 35cm control width, 38cm drop width, 80mm stem length
Size: S
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 90mm stem length
Size: M
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length
Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 100mm stem length
Size: XL
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length
*Handlebar tape
Size: XS, S, M, ML, L, XL
Trek EcoTack
Size: XS, S, M, ML, L, XL
Trek gel cork
Brake
Shimano Ultegra hydraulic disc, flat mount
Brake rotor
Shimano CL800, centerlock, 160mm
Rotor size
Max brake rotor sizes: 180mm front, 160mm rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
