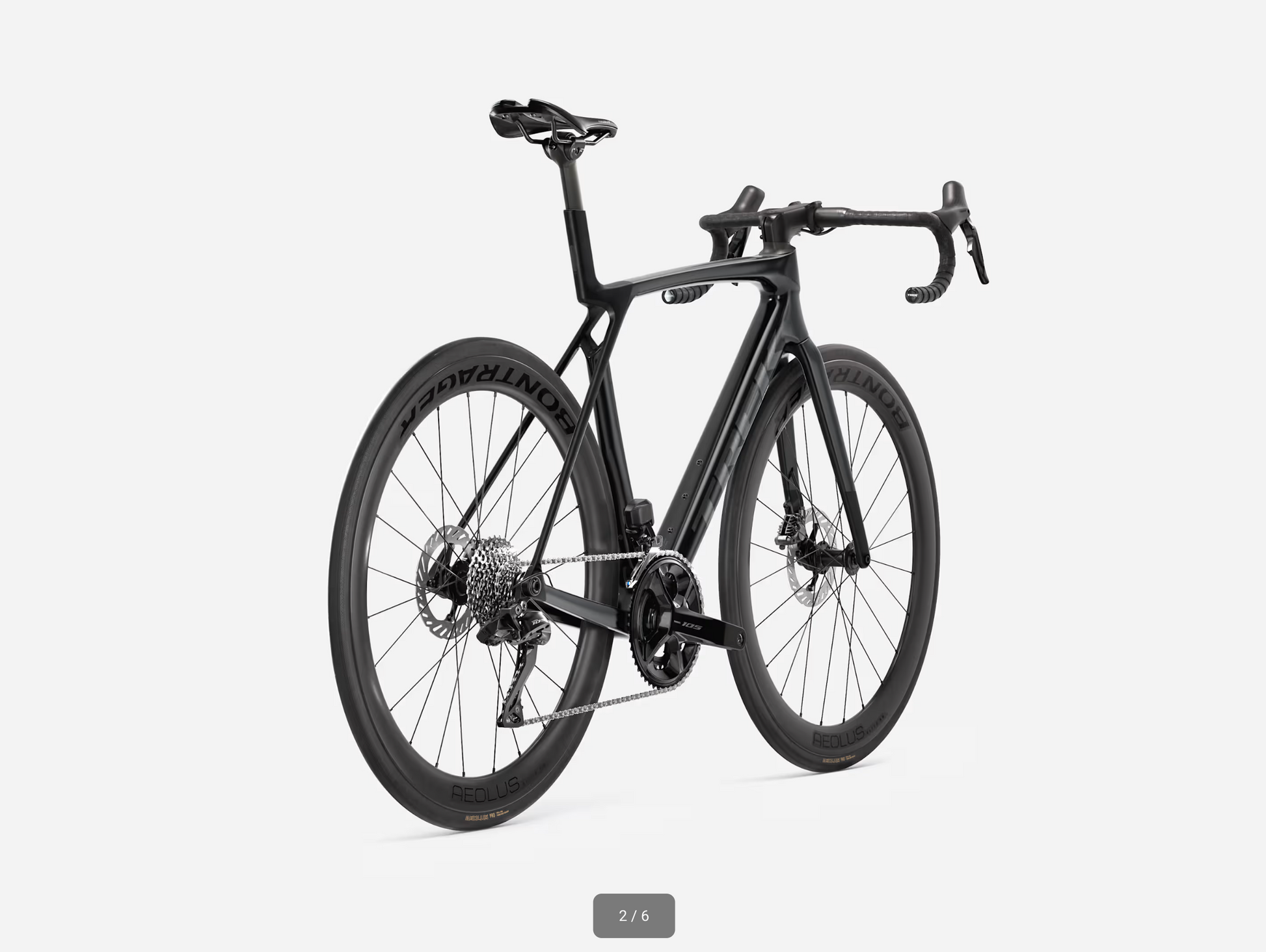

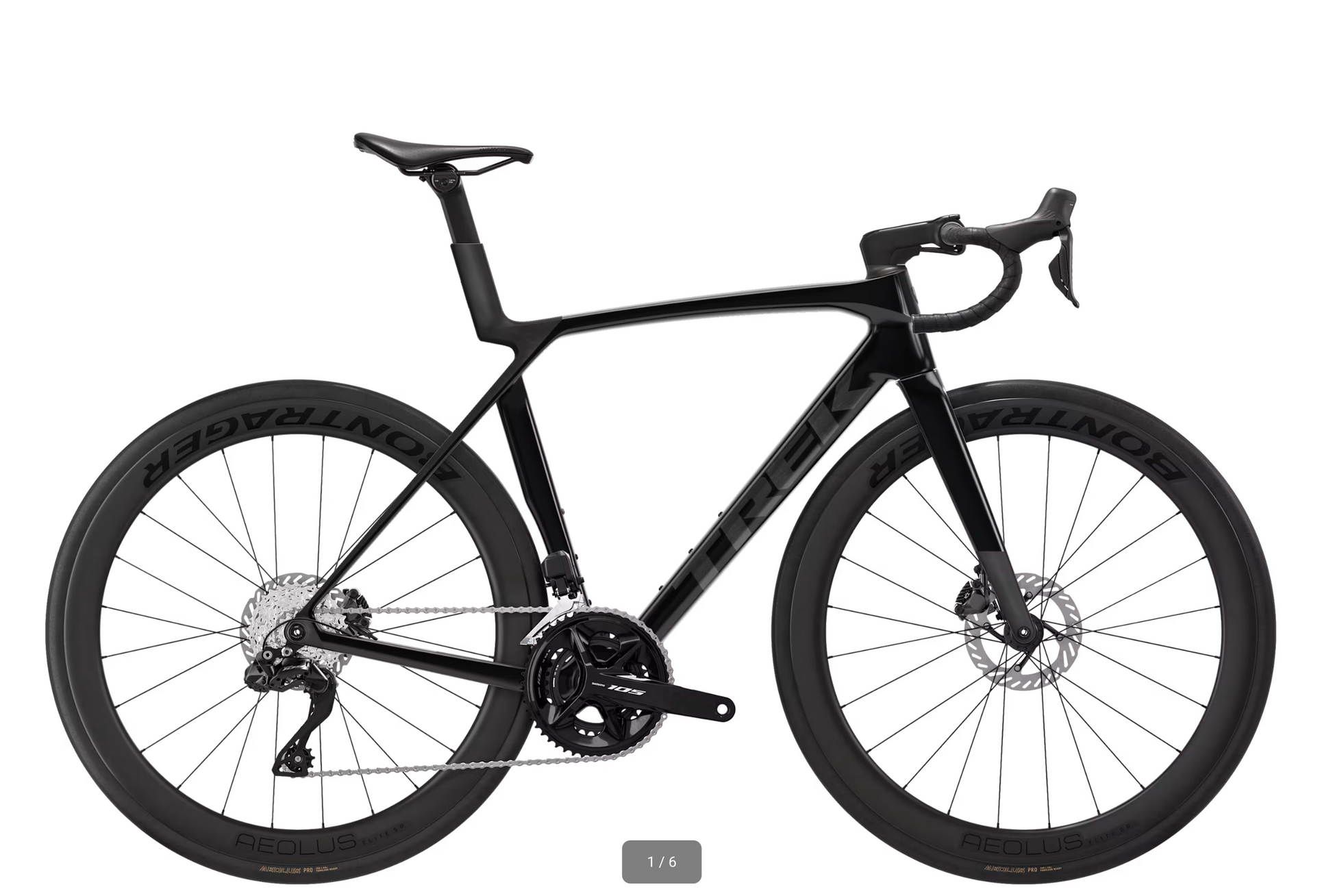

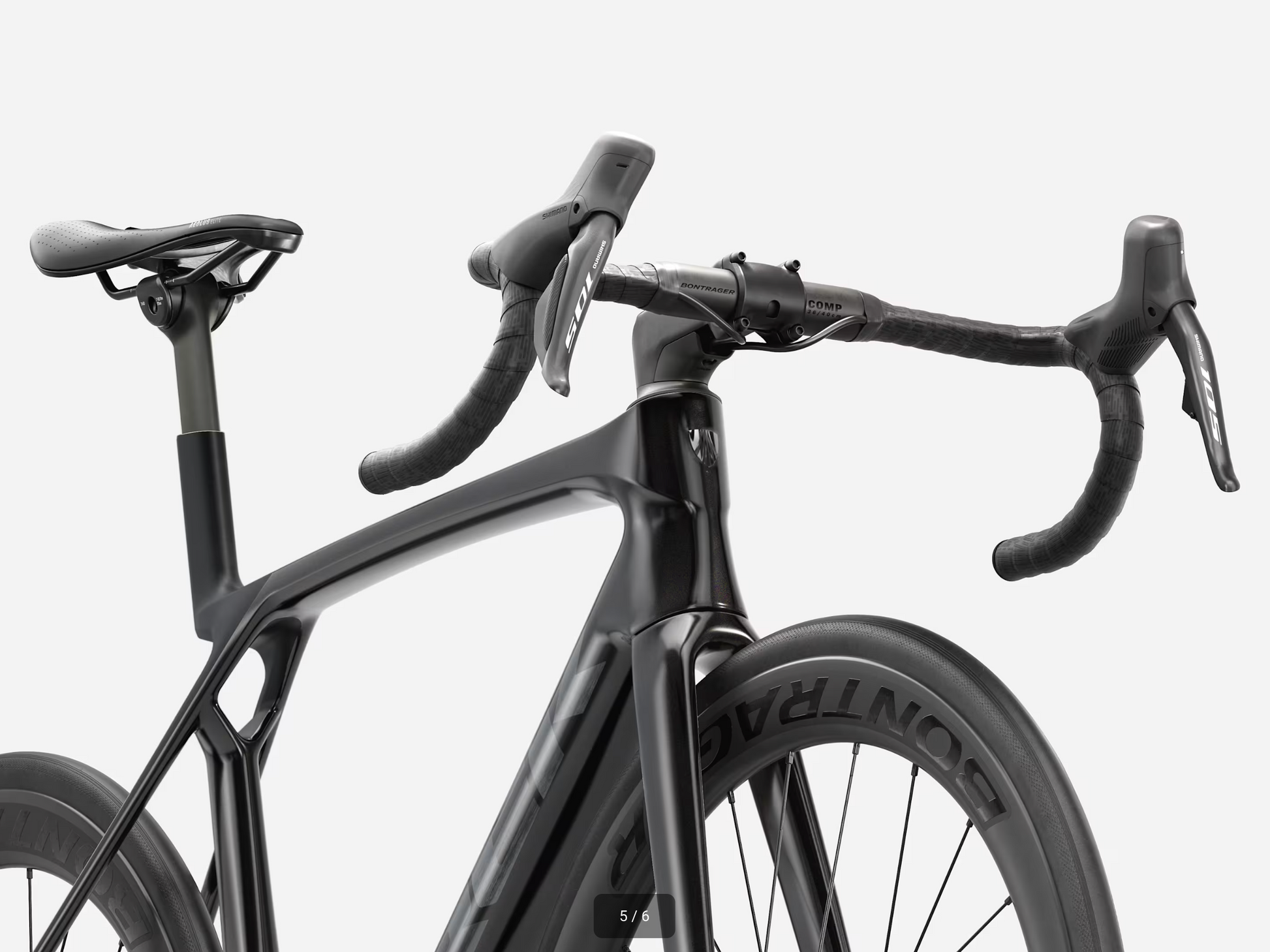

Madone SL 6 Gen 8

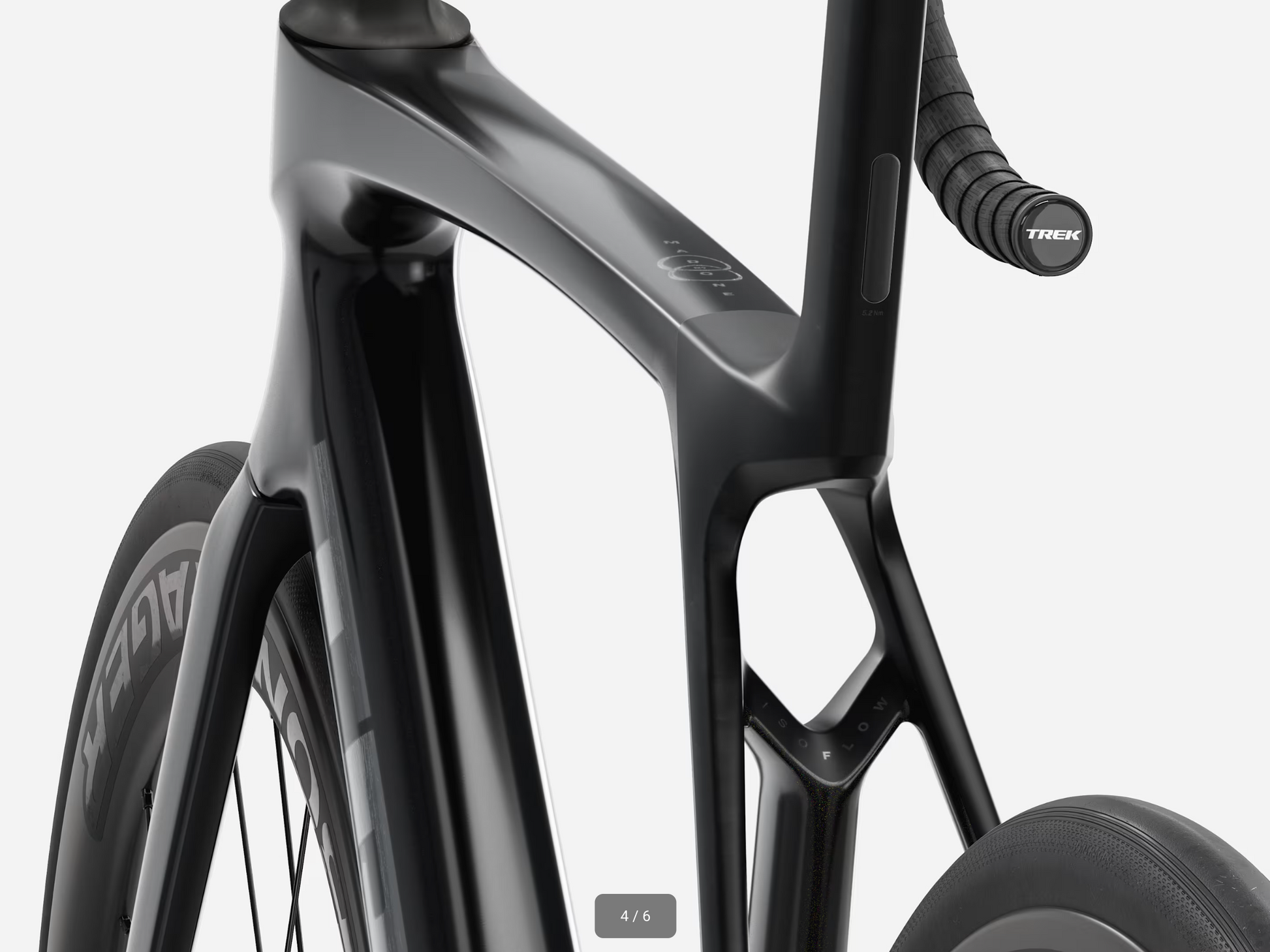

Frame
500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
Fork
Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Weight
Weight
ML - 8.16 kg / 17.99 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system
Battery
Shimano BT-DN300

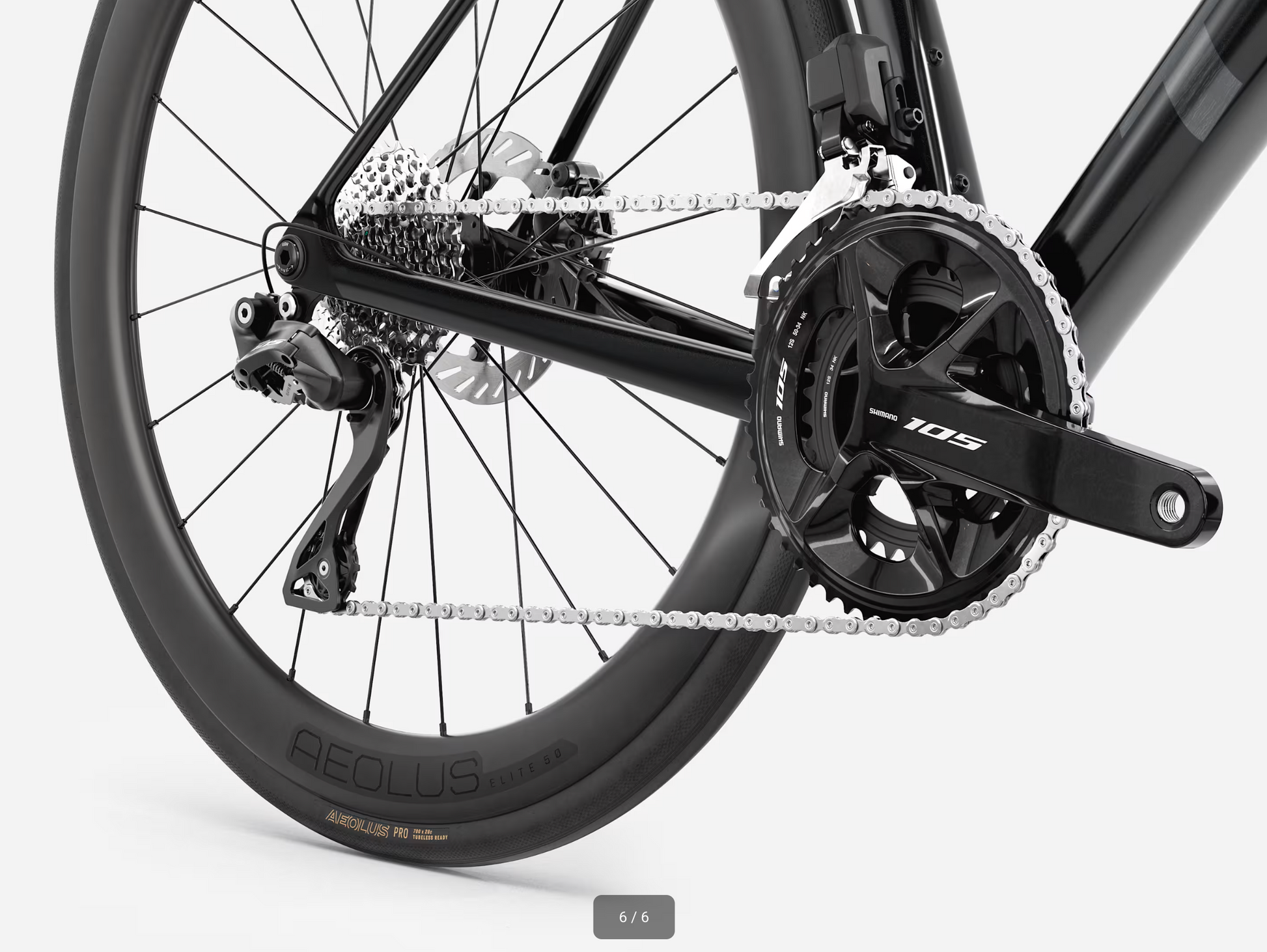

Drivetrain
Shifter
Shimano 105 R7170 Di2, 12 speed
Front derailleur
Shimano 105 R7150 Di2, braze-on, down swing
Rear derailleur
Shimano 105 R7150 Di2, 36T max cog
*Crank
Size: XS, S
Shimano 105 R7100, 50/34, 160mm length
Size: M, ML
Shimano 105 R7100, 50/34, 165mm length
Size: L, XL
Shimano 105 R7100, 50/34, 170mm length
Cassette
Shimano 105 7101, 11-34, 12 speed
Chain
Shimano SLX M7100, 12 speed
Max chainring size
1x: 54T, 2x: 56/43

Wheels
Wheel front
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Wheel rear
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50mm rim depth, Shimano 11 speed freehub, 142x12mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Tire
Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120tpi, 700x28mm
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Max tire size
32mm (as measured, see manual for details)

Components
Saddle
Bontrager Aeolus Elite, austenite rails, 145mm width

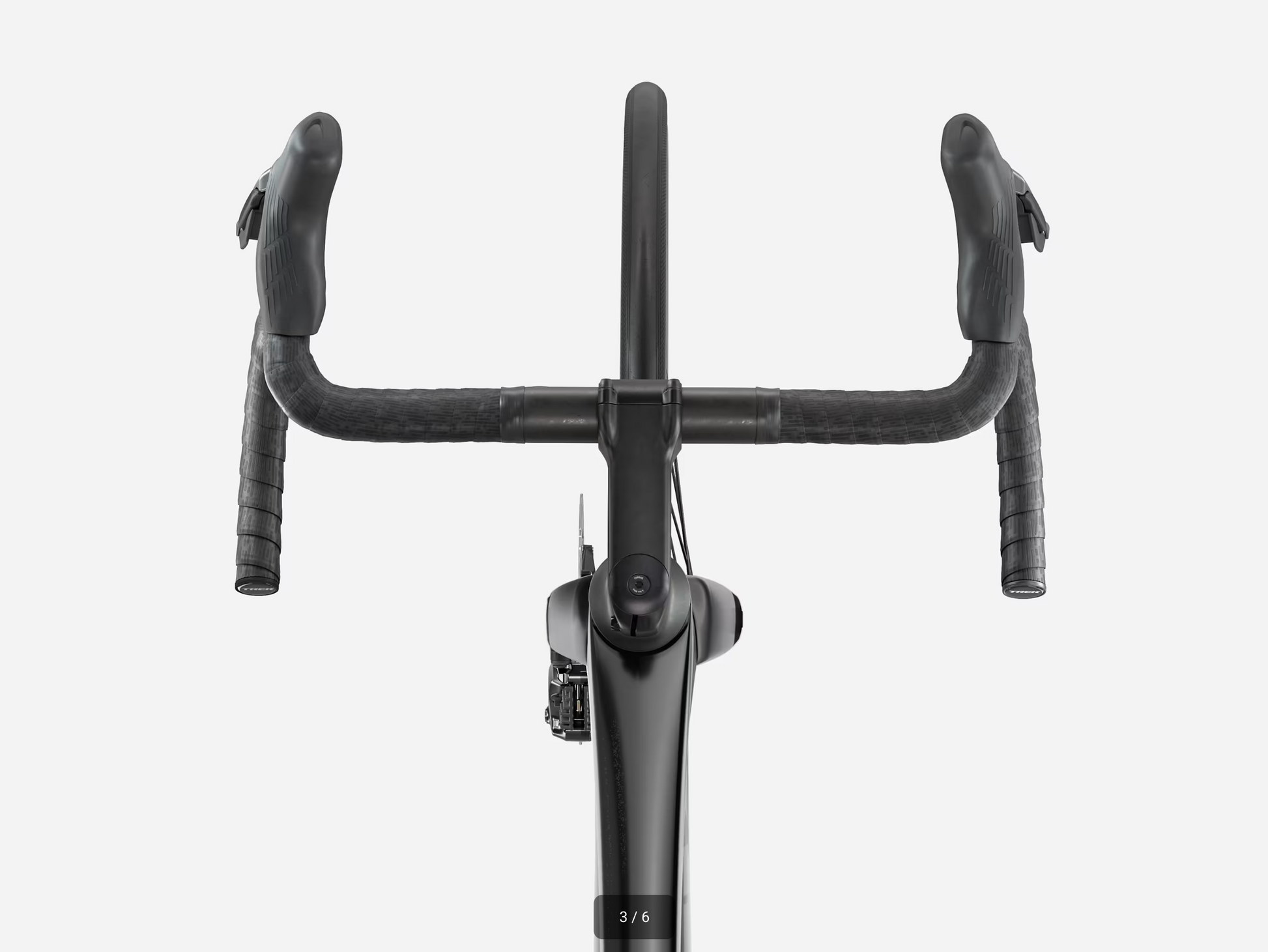

*Handlebar
Size: XS
Bontrager Aero Pro, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 35cm control width, 38cm width
Size: S
Bontrager Aero Pro, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 37cm control width, 40cm width
Size: M, ML, L
Bontrager Aero Pro, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 39cm control width, 42cm width
Size: XL
Bontrager Aero Pro, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 41cm control width, 44cm width
Handlebar tape
Trek EcoTack
Brake
Shimano 105 hydraulic disc, flat mount
Brake rotor
Shimano CL700, centerlock, 160mm
Rotor size
Max brake rotor sizes: 180mm front, 160mm rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
