rame

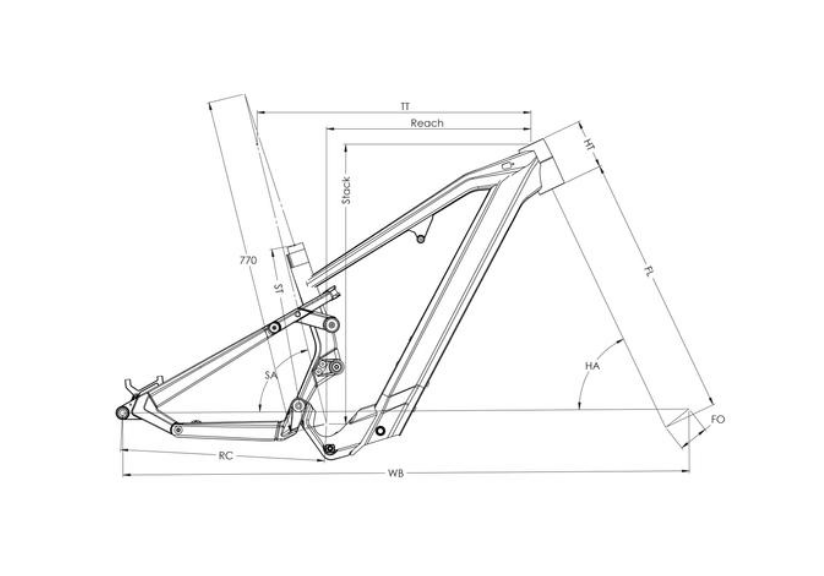

Frame

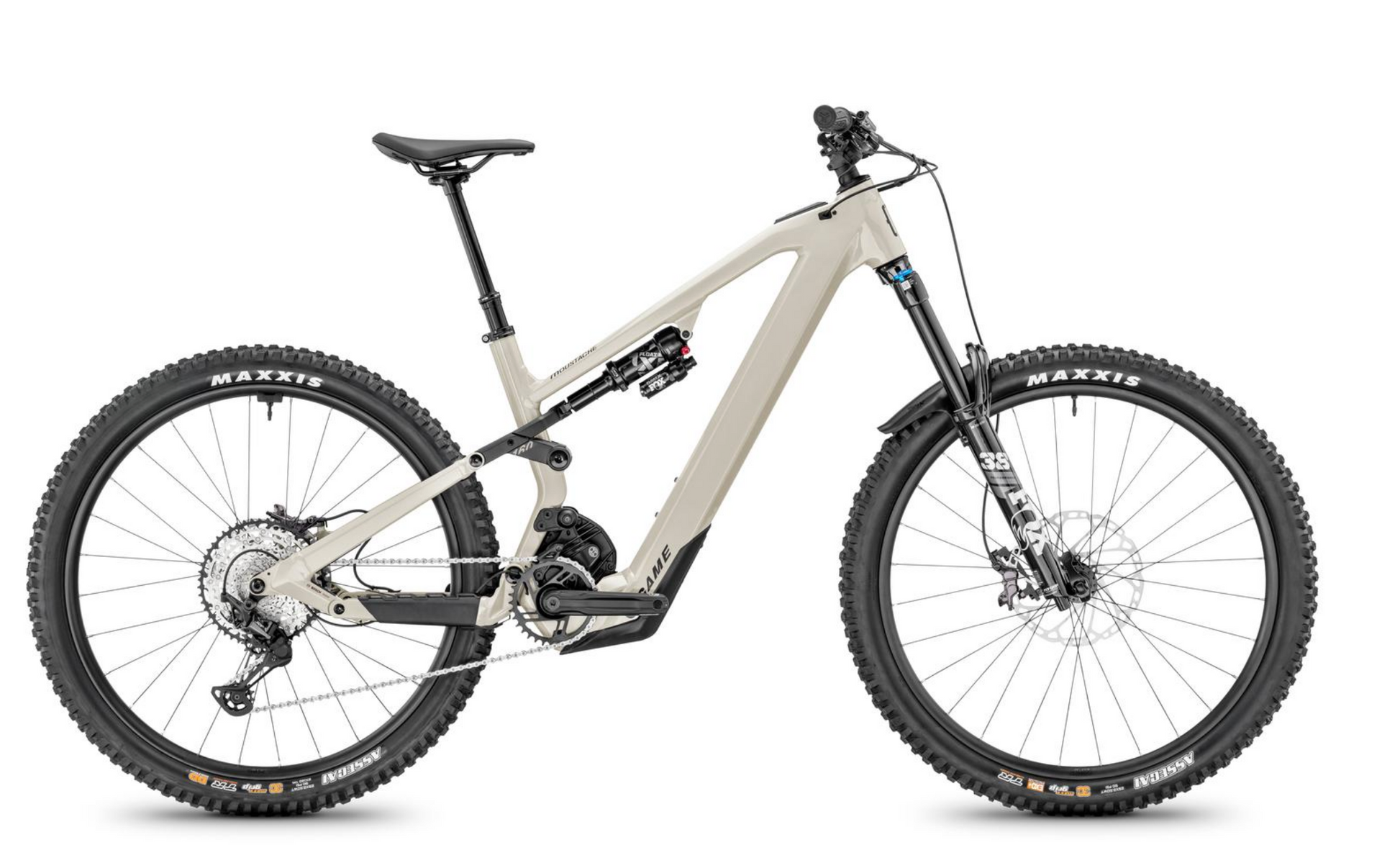

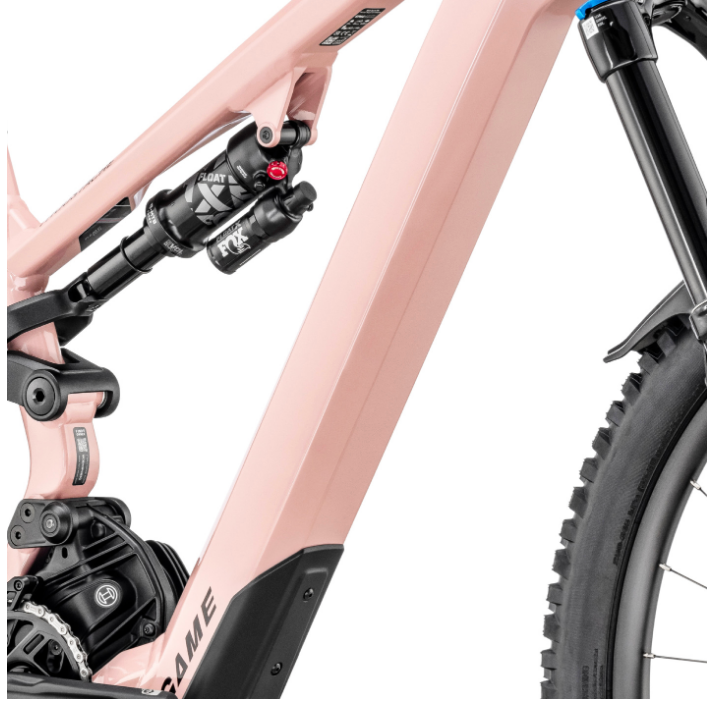

Game, 6061 T4-T6 alloy, 160mm travel, custom integration of Bosch PowerTube battery and new CX drive unit, internal cable routing, 12x148mm, Boost
Suspensions
Fork

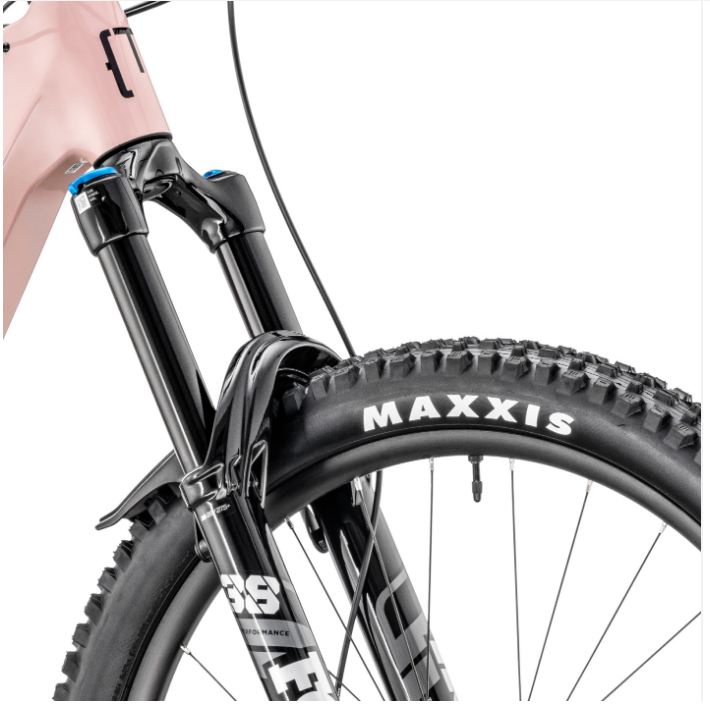

FOX, Float 38 Performance, GRIP, 3-position w/Micro Adjust lever, 170mm travel, 15x110mm Boost, 44mm Offset, mini-fender mounted

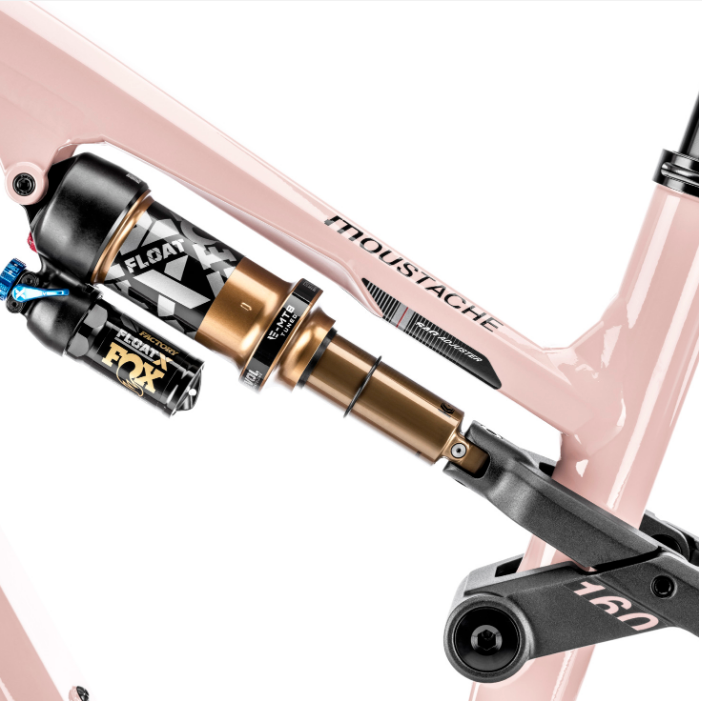

Shock
Fox, Float X, Performance, 2 positions lever and rebound adjustement, Moustache tune, 230-65mm, 160mm travel
Motor system
Motor

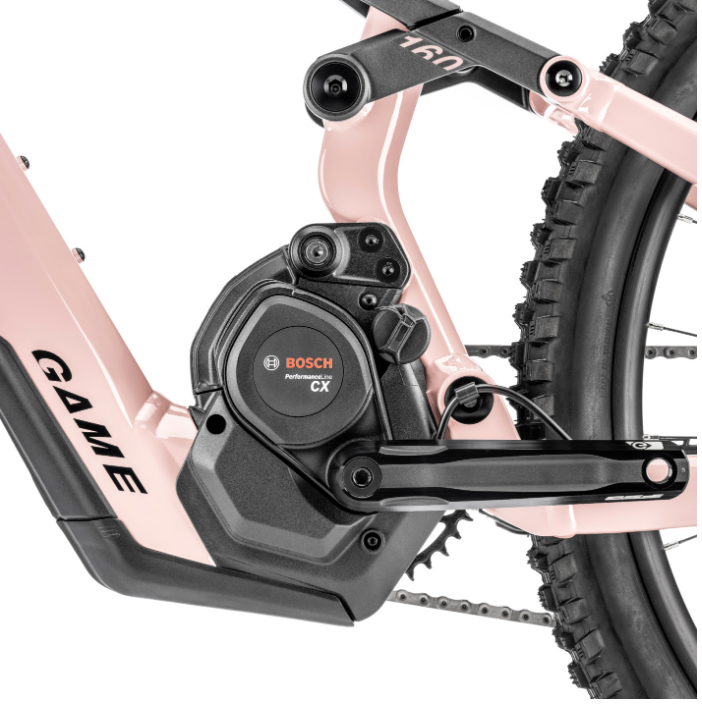

Bosch, Performance Line CX, Smart System, 85-100 Nm
Battery
Bosch, PowerTube 750Wh, horizontal, Smart System
Autonomy
117km
Charger
Bosch, 4Ah
Display

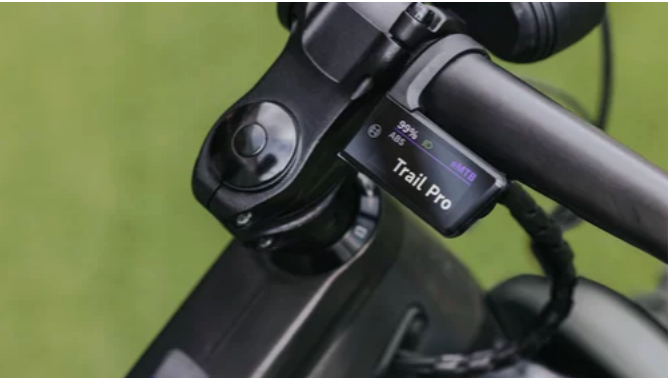

Bosch, Purion 400, Smart System

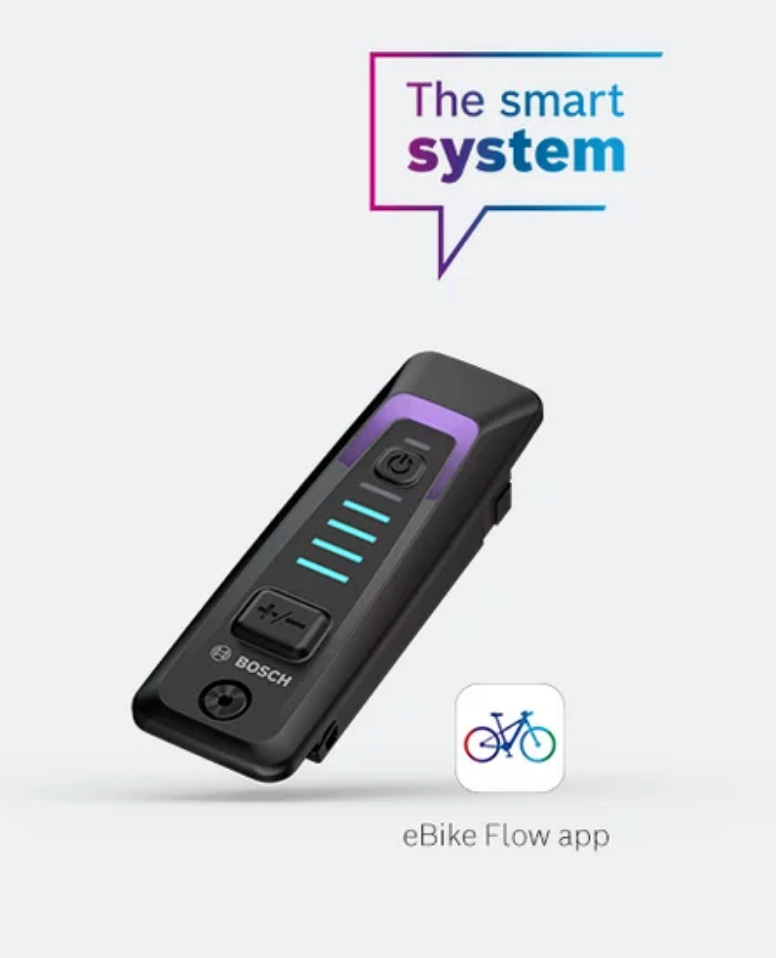

Remote
Bosch, System Controller and Mini Remote, Smart System
Transmission
Cassette
Shimano, SLX, CS-M7100 12-speed, 10-51T
Chain
Shimano, CN-M6100, 12-speed, 120 links
Shifter
Shimano, SLX, SL-M7100, 12-speed
Cranks
FSA, aluminum, 165mm
Rear Derailleur
Shimano, XT, RD-M8100-SGS, 12-speed
Chainring
Narrow-Wide, 34 teeth
Brakes
Front brake

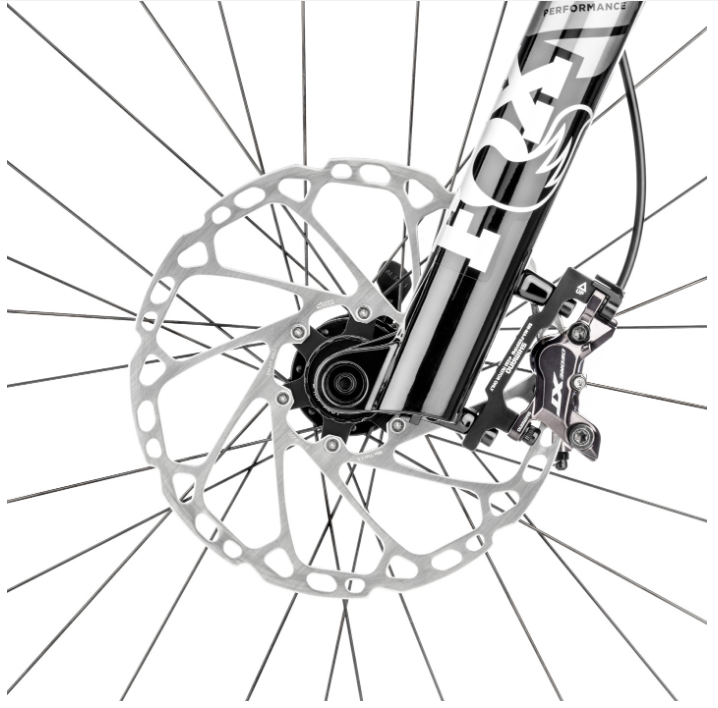

Shimano, XT BR-M8120, hydraulic disc, 4 pistons
Rear Brake
Shimano, XT, BR-M8120, hydraulic disc, 4 pistons
Front Rotor
Shimano, 220mm
Rear Rotor
Shimano, 203mm
Wheels
Front Hub
Moustache, 28H, 15x110mm, thru axle
Rear Hub
Moustache by Mavic, 28H, ID360, 12x148mm, thru axle
Front rim
Moustache, asymmetric, alloy 6061E, welded, double wall, 28 holes, 29'', internal width 30mm, mounted with Tubeless valves & flap, brass nuts with locking ''Blue Nylon'' insert
Rear rim
Moustache, asymmetric, alloy 6061E, welded, double wall, 28 holes, 29'', internal width 30mm, mounted with Tubeless valves & flap, brass nuts with locking ''Blue Nylon'' insert
Front tyre
Maxxis, Assegai, 29x2.50, foldable, 3C MaxxGrip / EXO+ / TR (Tubeless Ready)
Cockpit
Saddle
Selle Royal, SRX
Seatpost
KS, Rage-i, dropper-post w/ Shimano remote lever, 31.6mm, 170mm
Seatclamp
Moustache, alloy, 38.6mm

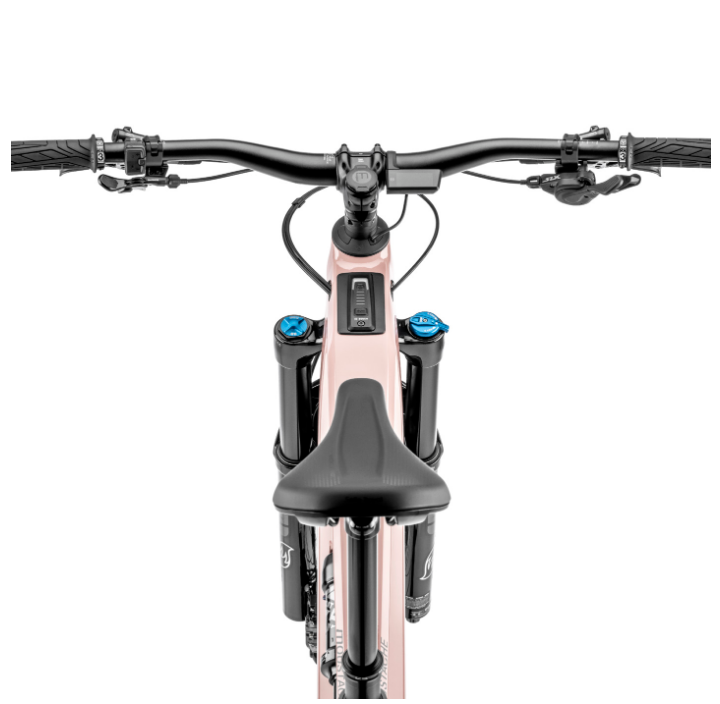

Handlebar
Moustache, alloy, 780mm, 35mm, 30mm rise, 9° backsweep, 5° upsweep
Stem
Moustache, alloy, 3D forged, 40mm
Headset
Acros, AZF-725, sealed bearings, internal routing, integrated multi-tool
Grips
SB3, Hornet
Equipment
Pedals
alloy platform with reflectors
Features

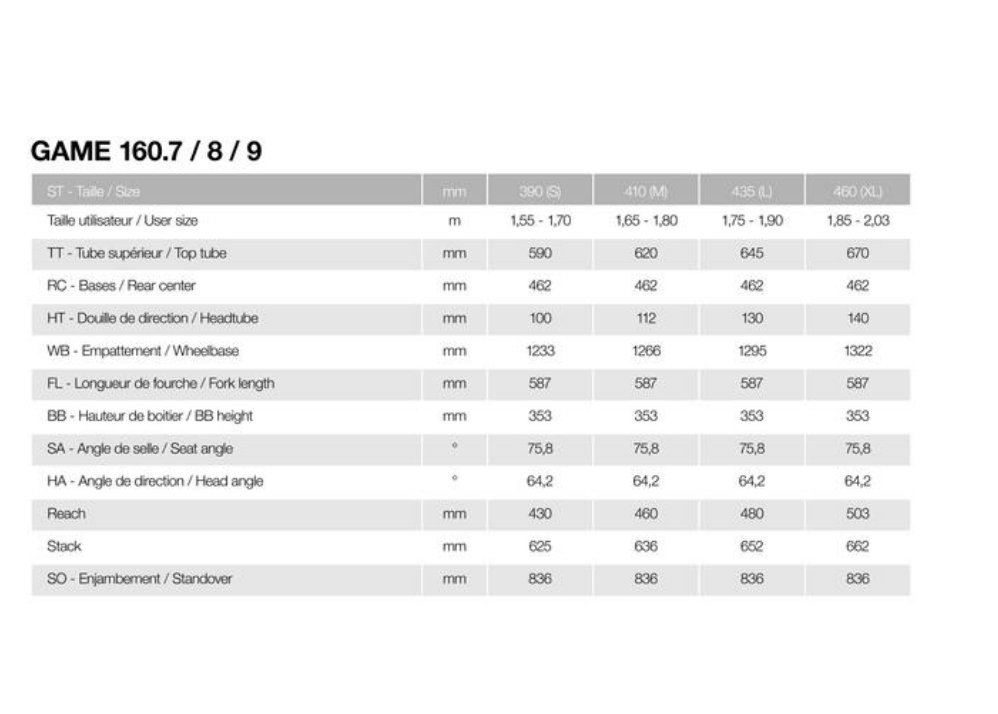

Size
L
Color
Moon Landing glossy
Weight
25.5kg
GVWR
140kg
Warranty
Warranty
5 years frame and fork Moustache Bikes - 2 years motor, battery
Product specifications may change without notice. Non-binding information.
