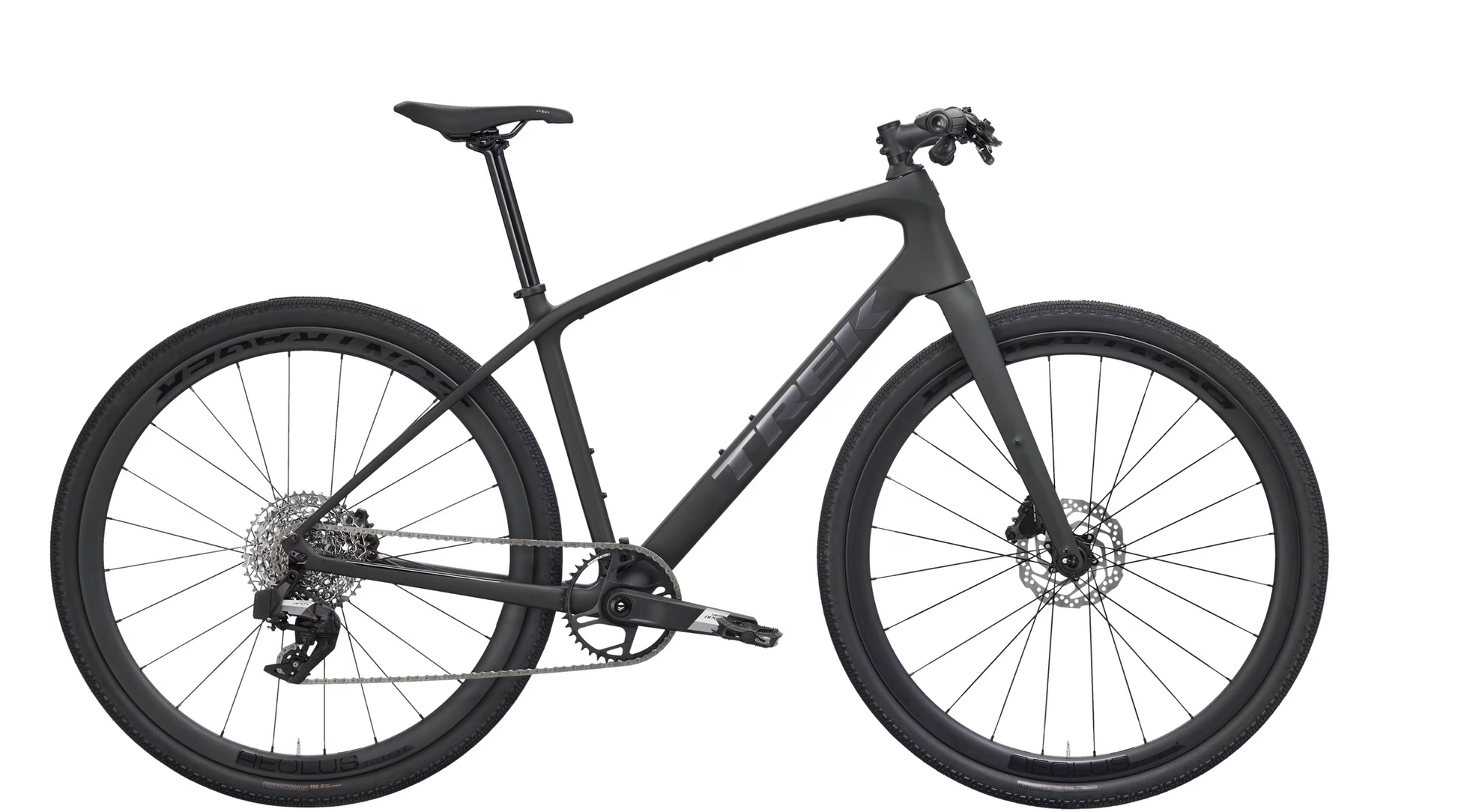

FX Sport SL 6

Frame
400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 135x5mm ThruSkew
Fork
Carbon, hidden fender mounts, flat mount disc, 100x5mm thru-skew

Weight
Weight
M - 9.80 kg / 21.61 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

E-system
Battery
SRAM AXS battery pack (with charger)

Drivetrain
Rear derailleur
SRAM Apex XPLR eTap AXS, 44T max cog
*Crank
Size: XS, S
SRAM Apex 1, 40T, DUB Wide, 170mm length
Size: M, L, XL
SRAM Apex 1, 40T, DUB Wide, 175mm length
Bottom bracket
SRAM DUB, 86.5mm, PressFit
Cassette
SRAM XPLR PG-1231, 11-44, 12 speed
Chain
SRAM Apex, 12 speed
Pedal
Bontrager City pedals
Max chainring size
1x: 44T

Wheels
Wheel front
Bontrager Aeolus Elite 35,Tubeless Ready, 100x5 mm QR
Wheel rear
Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, Shimano 11-speed freehub, 135x5mm skewer
Hub front
Bontrager Affinity, Tubeless Ready, centerlock, 100x5mm axle
Skewer front
135x5mm bolt-on
Hub rear
Bontrager Affinity Comp, Shimano 11/12 speed freehub, 142x5mm
Skewer rear
169x5mm bolt-on
Tire
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
Max tire size
700x42mm

Components
Seatpost
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar
Size: XS, S, M
Bontrager alloy, 31.8mm, 15mm rise, 600mm width
Size: L, XL
Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Grips
Trek Ergonomic Pro, lock-on
*Stem
Size: XS
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: S, M
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Size: L, XL
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Brake
Shimano hydraulic disc, MT201 lever, UR300 caliper
Brake rotor
Shimano RT10, CenterLock, 160 mm
Rotor size
Max brake rotor sizes: 160mm front & rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.

Please visit our Return/Exchange Policy page for more information.

This bike is not eligible for shipping
