Trek
FX 2 Midstep 2027
FX 2 Midstep 2027
Couldn't load pickup availability
Special Order Bike
Special Order Bike
This bike is not kept in store.
Lead time to pick-up is 10-14 days.

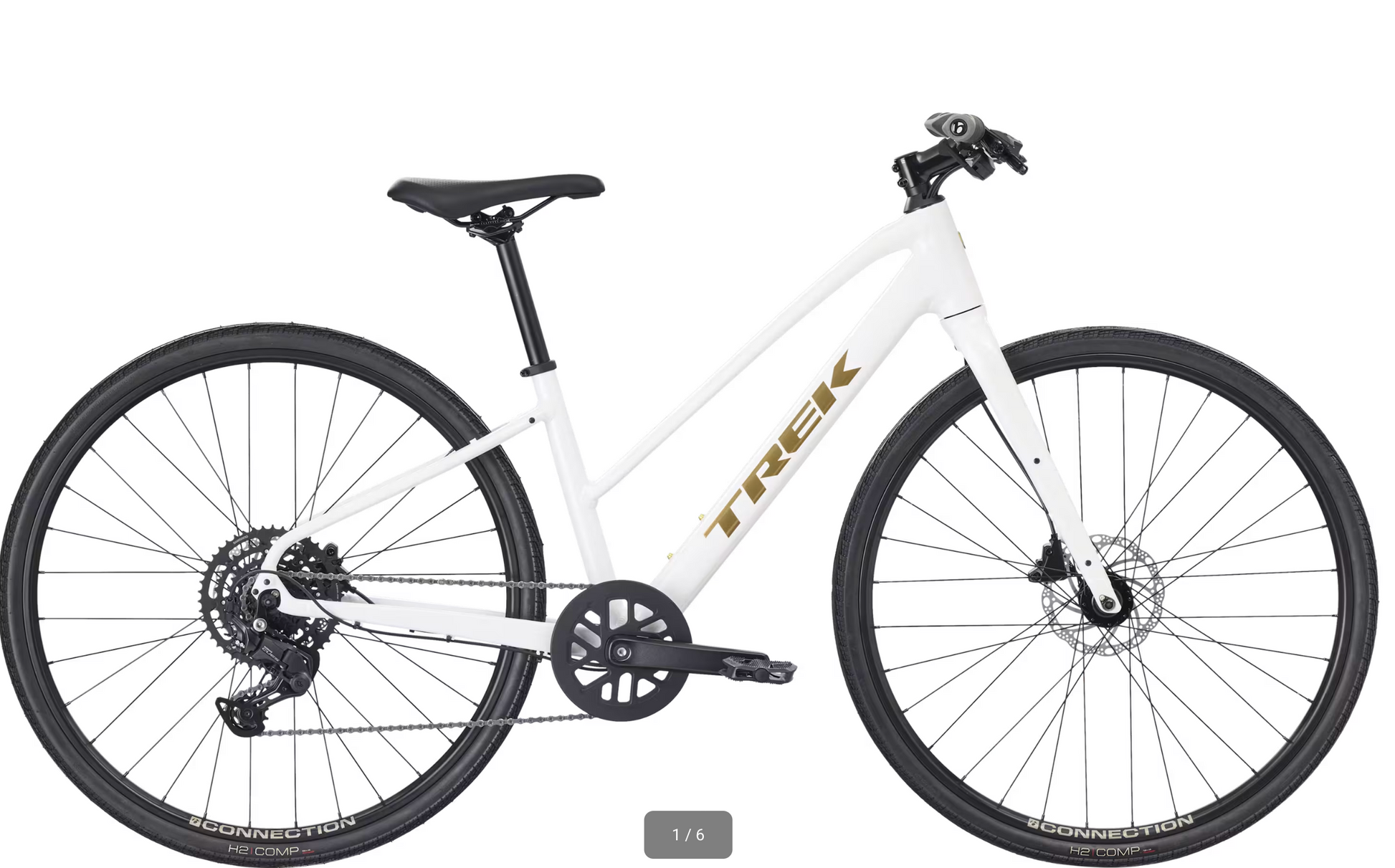

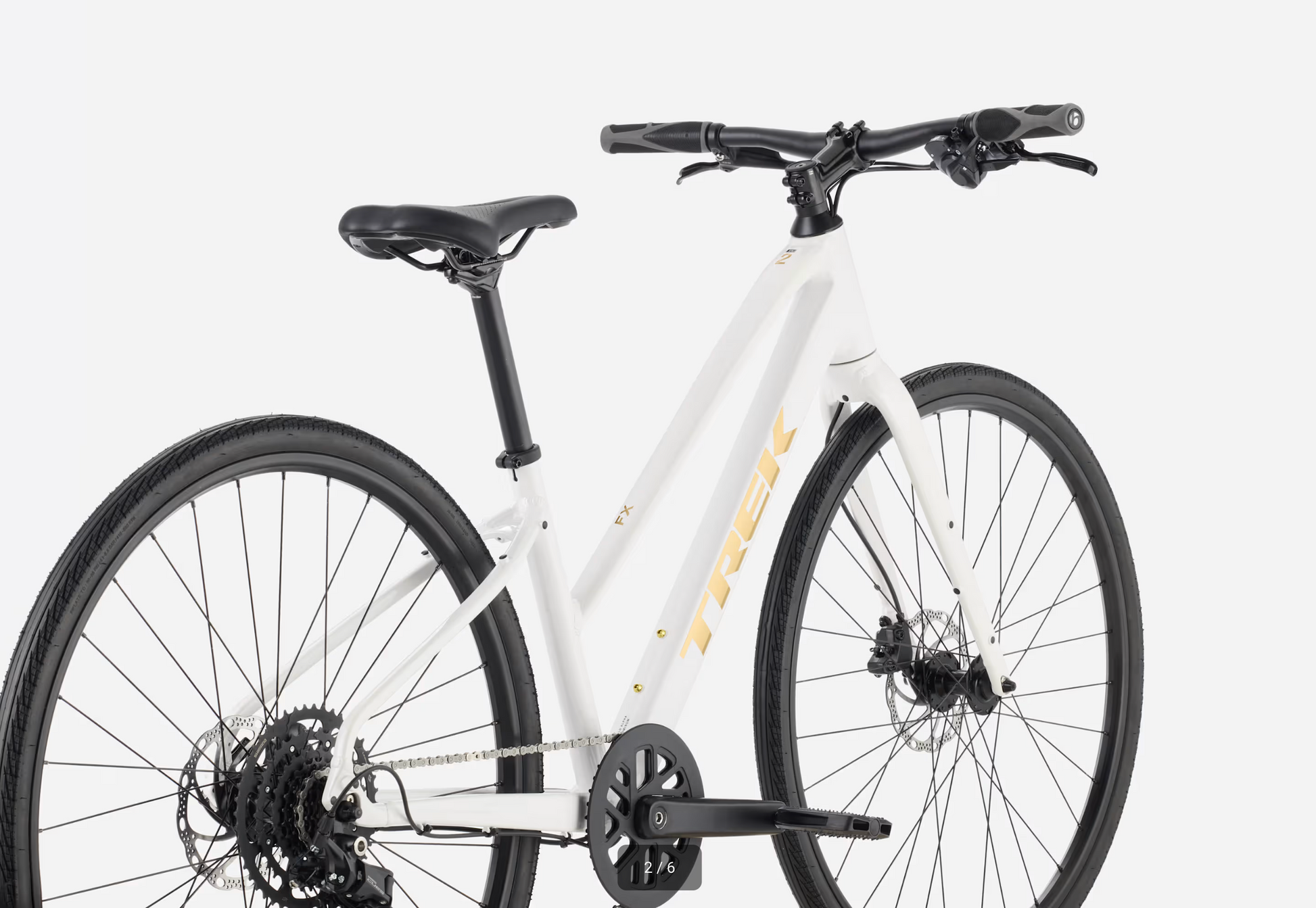

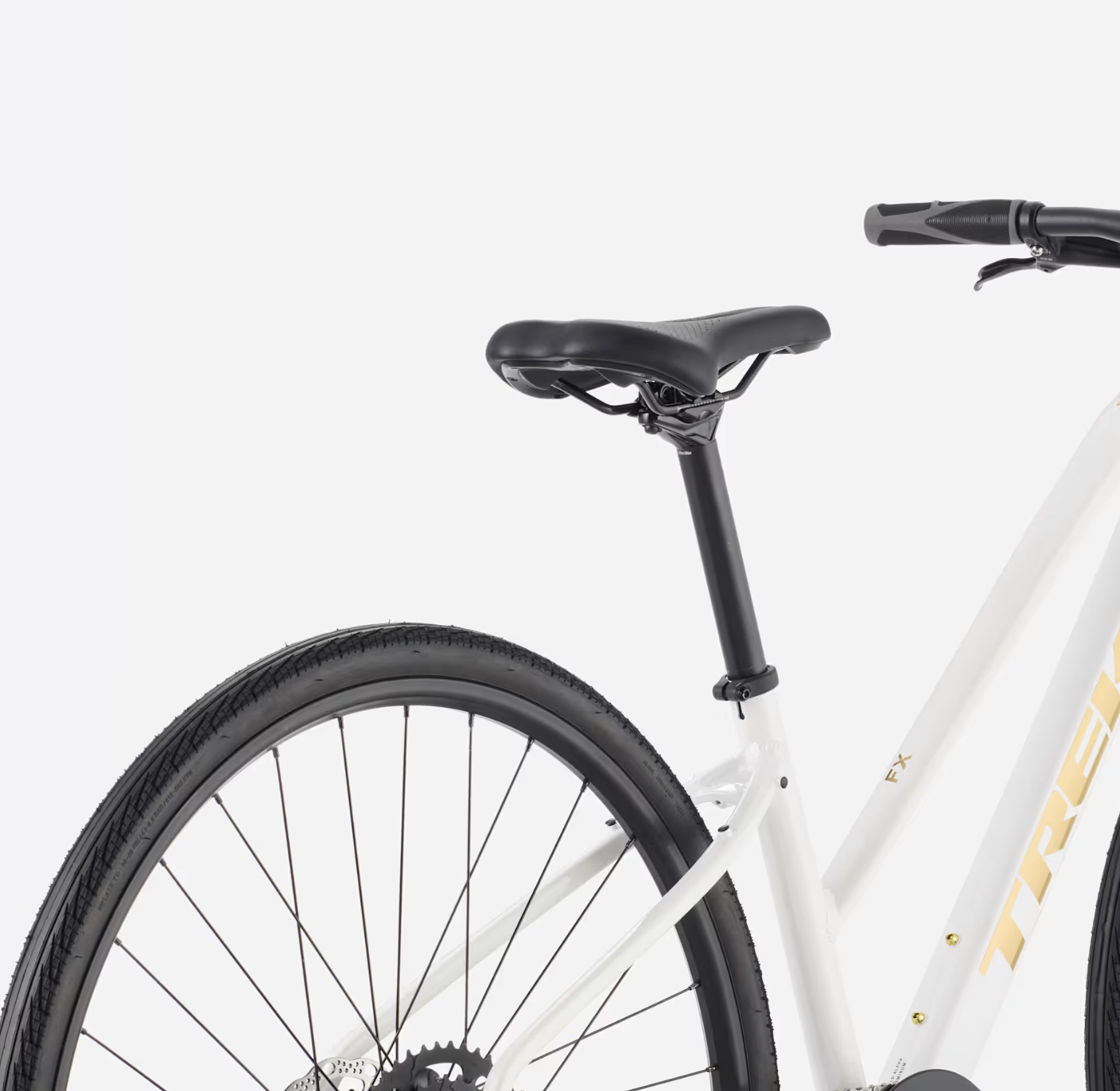

FX 2 Midstep is a stylish and versatile hybrid bike with a frame that’s easy to step through and easy to ride.
Its lightweight frame and 9-speed Shimano CUES drivetrain deliver smooth, reliable shifting, while hydraulic disc brakes provide confident stopping power. With mounts for racks and accessories, it’s easy to set it up for whatever your day looks like.
How tall are you?
To measure your height, stand straight up, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inseam?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inseam measurement. Your inseam is very important to your final bike size so please measure carefully.
Share
Details
Specifications
Frame
Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Fork
FX alloy, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR
Wheels
Hub front
Formula DC-20, alloy, 6-bolt, 100x5mm
Skewer front
139x5mm bolt-on
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
Skewer rear
152x5mm QR
Rim
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Tire
Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm
Max tire size
700x40mm
Drivetrain
Shifter
Shimano U4000, 9 speed
Rear derailleur
Shimano CUES U4000
Crank
ProWheel Pro alloy, 40T narrow-wide steel ring, 170mm length
Bottom bracket
Sealed cartridge, 68mm
Cassette
Shimano LINKGLIDE LG300, 11-46, 9 speed
Chain
Shimano LG500
Pedal
Bontrager City pedals
Max chainring size
1x: 44T, 2x: 46/32
Components
Saddle
Bontrager Sport Women's
*Seatpost
Size: S, M
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Size: L
Bontrager alloy, 27.2mm, 12mm offset, 400mm length
*Handlebar
Size: S, M
Bontrager alloy, 31.8mm, 15mm rise, 600mm width
Size: L
Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Grips
Trek Ergonomic Comp, lock-on
*Stem
Size: S, M
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 100mm length
Brake rotor
Tektro wave, 6-bolt, 160mm
Brake Set
Tektro HD-R280 hydraulic disc, 160mm rotor
Rotor size
Max brake rotor sizes: 160mm front & rear
Weight
Weight
M - 11.95 kg / 26.35 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
