Trek
2027
FX+ 2 Midstep
FX+ 2 Midstep
Couldn't load pickup availability
Special Order Bike
Special Order Bike
This bike is not kept in store.
Lead time to pick-up is 10-14 days.

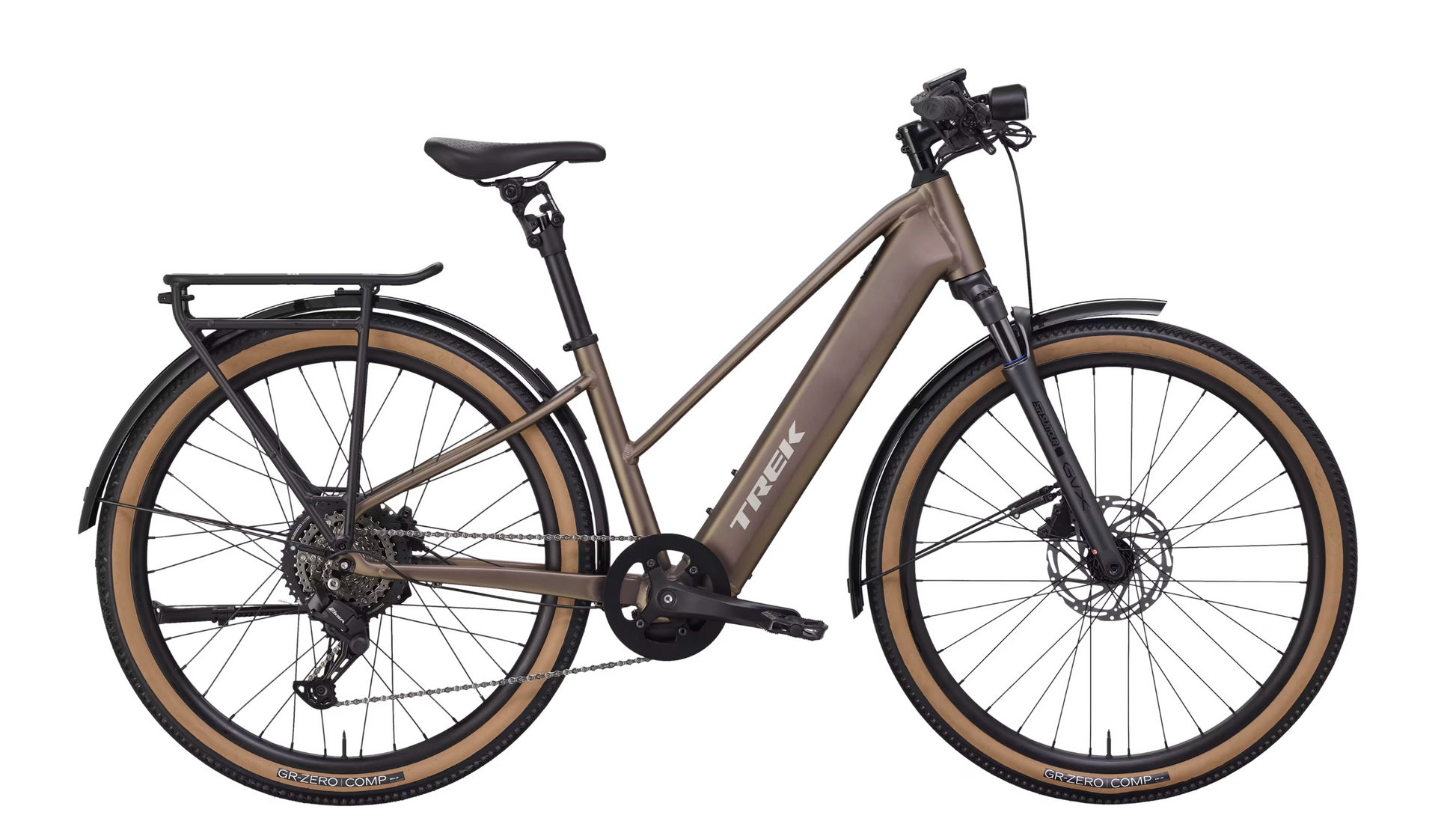

FX+ 2 Midstep is a comfort-focused fitness e-bike that helps you ride farther, faster — and still take it easy when you want to.
Its confidence-boosting midstep frame makes it easy to hop on and go, while pedal assist up to 32 km/h gives you just the right boost. And when you want to coast? The optional throttle has your back.
Suspension at the front and seatpost smooths the bumps, while wide gravel tires, integrated lights, and the Trek Central app round out a ride that’s ready for anything.
How tall are you?
To measure your height, stand straight up, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inseam?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inseam measurement. Your inseam is very important to your final bike size so please measure carefully.
Share
Details
Specifications
Frame
Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, flat mount disc brake, kickstand mount, 144.5mm OLD hub motor spacing
Fork
SR Suntour GVX32-D, air spring, lockout, rebound adjuster, 100mm QR, 63mm travel
Wheels
*Rim
Size: S, M, L
Alloy double wall, 36h
Size: S, M, L
Alloy double wall, 32H
*Spokes
Size: S, M, L
14g stainless steel, black
Size: S, M, L
Sapim Strong, 13G stainless
Tire
Bontrager GR0 Comp, wire bead, 60 tpi, 650x50mm
Max tire size
650x50mm
E-system
Battery
520Wh integrated, removable
Charger
Trek Easy Mag charger, 2.7A, 54.9V output, 100V-240V AC input
Computer
LCD display
Motor
Hub drive motor, 60 Nm, 500W, 36H, black
E-bike Classification
Class 2
Drivetrain
Shifter
Shimano M315, 8 speed
Rear derailleur
Shimano ESSA U2000
Crank
Alloy, 40T steel chainring, 170mm length
Cassette
Shimano HG400, 11-45, 8 speed
Chain
KMC Z8.3
Pedal
Bontrager City pedals
Max chainring size
1x: 40T
Components
*Seatpost
Size: S, M
SR Suntour, suspension, 50mm travel, 31.6mm, 350mm length
Size: L
SR Suntour, suspension, 50mm travel, 31.6mm, 400mm length
*Handlebar
Size: S, M
Bontrager alloy, 31.8mm, 15mm rise, 690mm width
Size: L
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Grips
Bontrager XR Endurance Comp, lock-on
*Stem
Size: S, M
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: L
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
*Brake
Size: S, M, L
Tektro HD-E3110, hydraulické kotoučové.
Size: S, M, L
Tektro HD-E3110 hydraulic disc
Brake rotor
Tektro, 6-bolt, 180mm
Rotor size
Max brake rotor sizes: 180mm front & rear
Accessories
*Light
Size: S, M, L
Sate-lite M-15, brake and turn signal
Size: S, M, L
Sate-lite C19, headlight
Kickstand
Adjustable length rear mount alloy kickstand
Cargo rack
MIK-compatible alloy rear rack
Fender
SKS wide, plastic
Weight
Weight
M - 25.20 kg / 55.56 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
Discounted Items Are Final Sale
Please visit our Return/Exchange Policy page for more information.
Shipping
This bike is not eligible for shipping

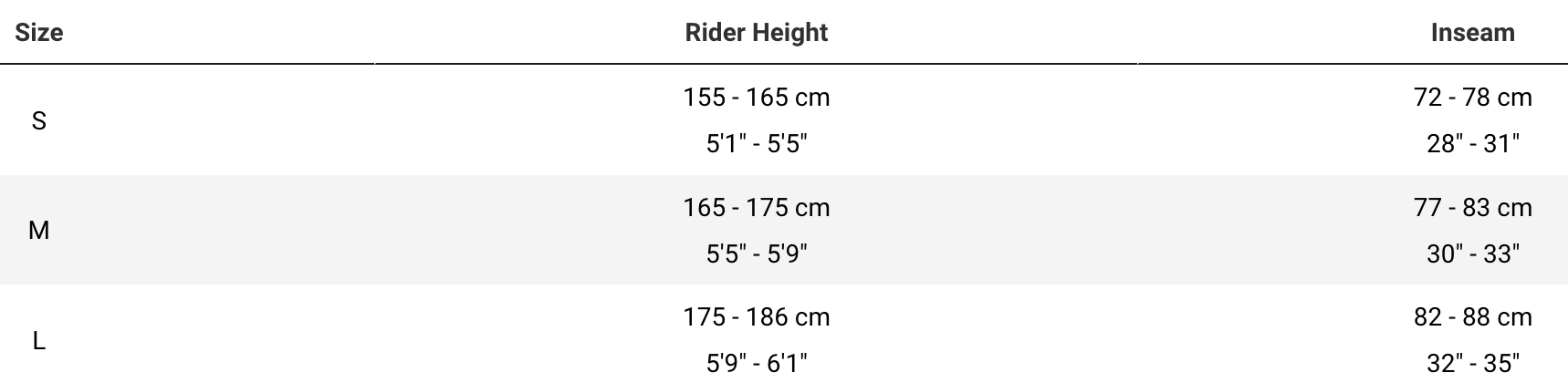

Size Chart

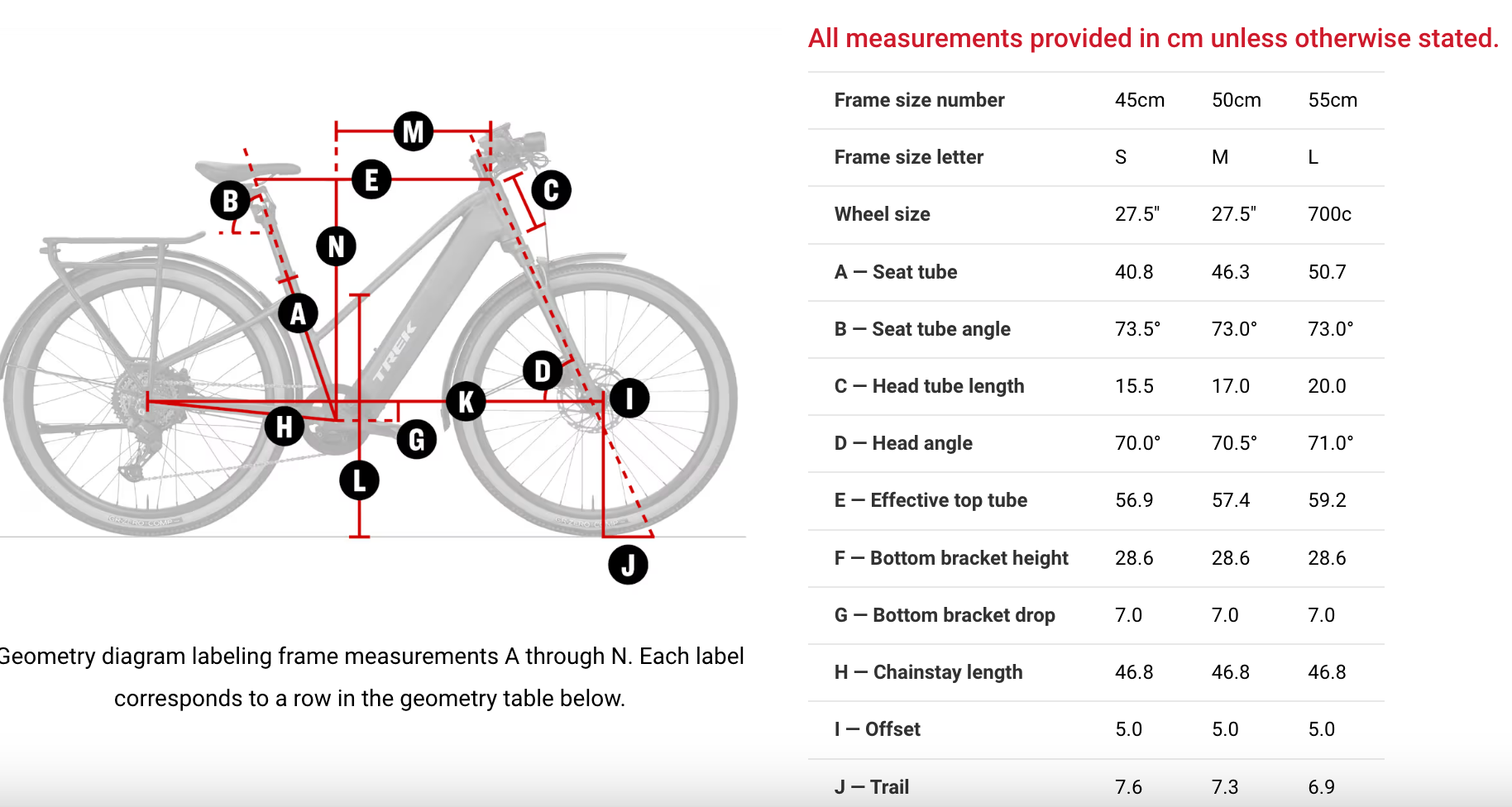

Geometry Chart
