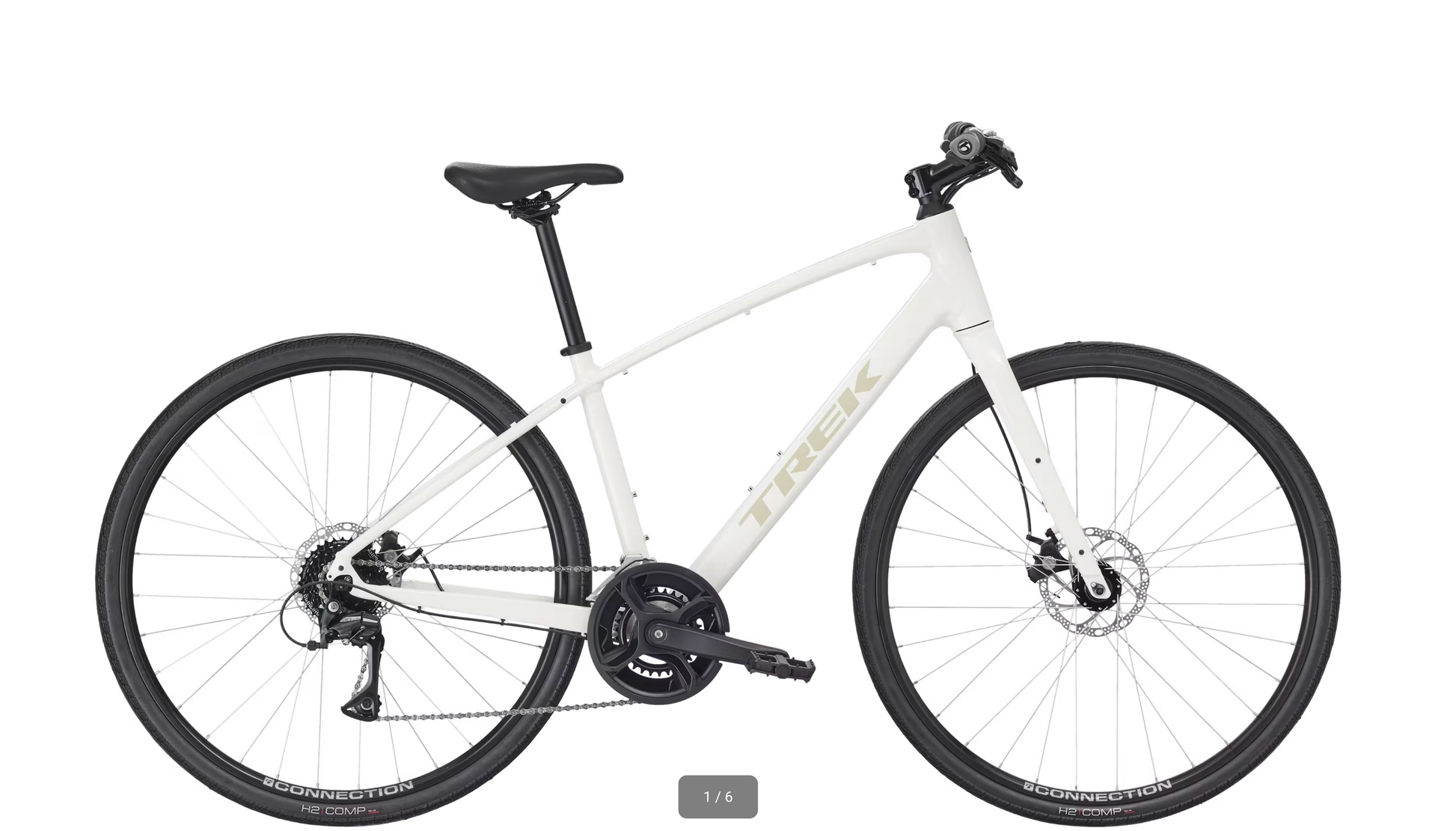

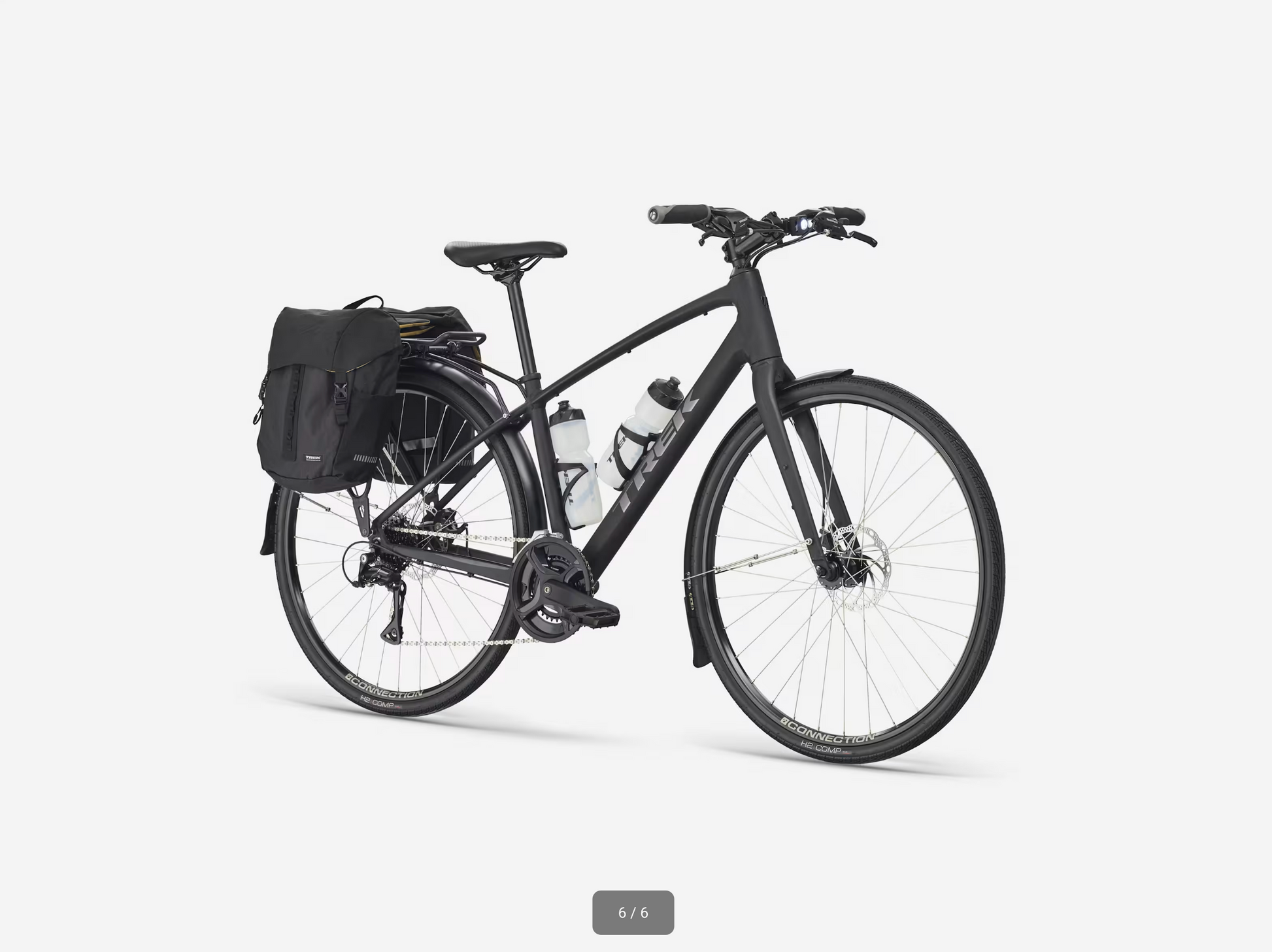

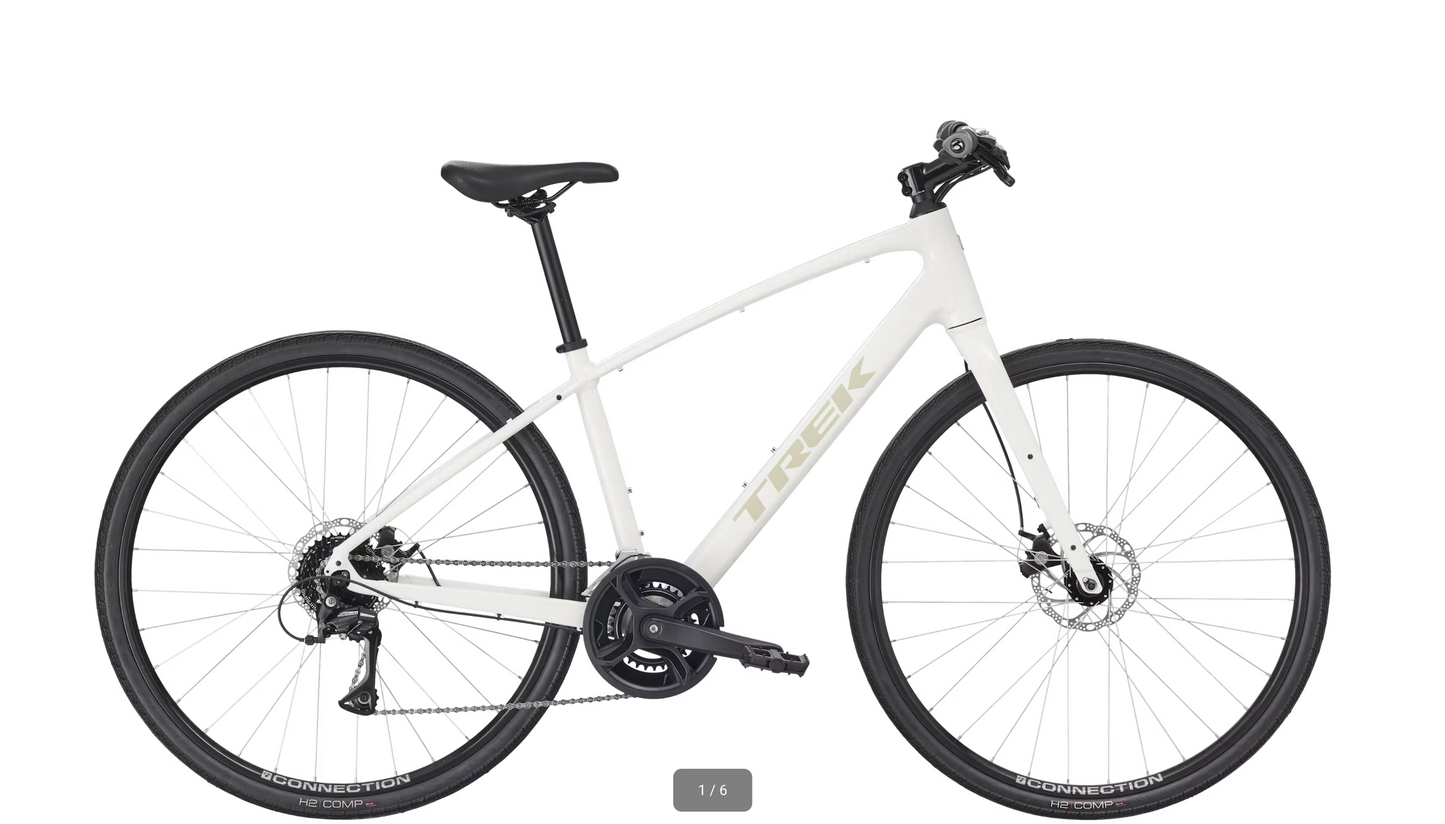

FX 1

Frame
Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Fork
FX steel, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR

Wheels
Hub front
Formula DC-20, alloy, 6-bolt, 100x5mm
Skewer front
139x5mm bolt-on
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
Skewer rear
152x5mm QR
Rim
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Spokes
14g stainless steel, black
Tire
Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm
Max tire size
700x40mm

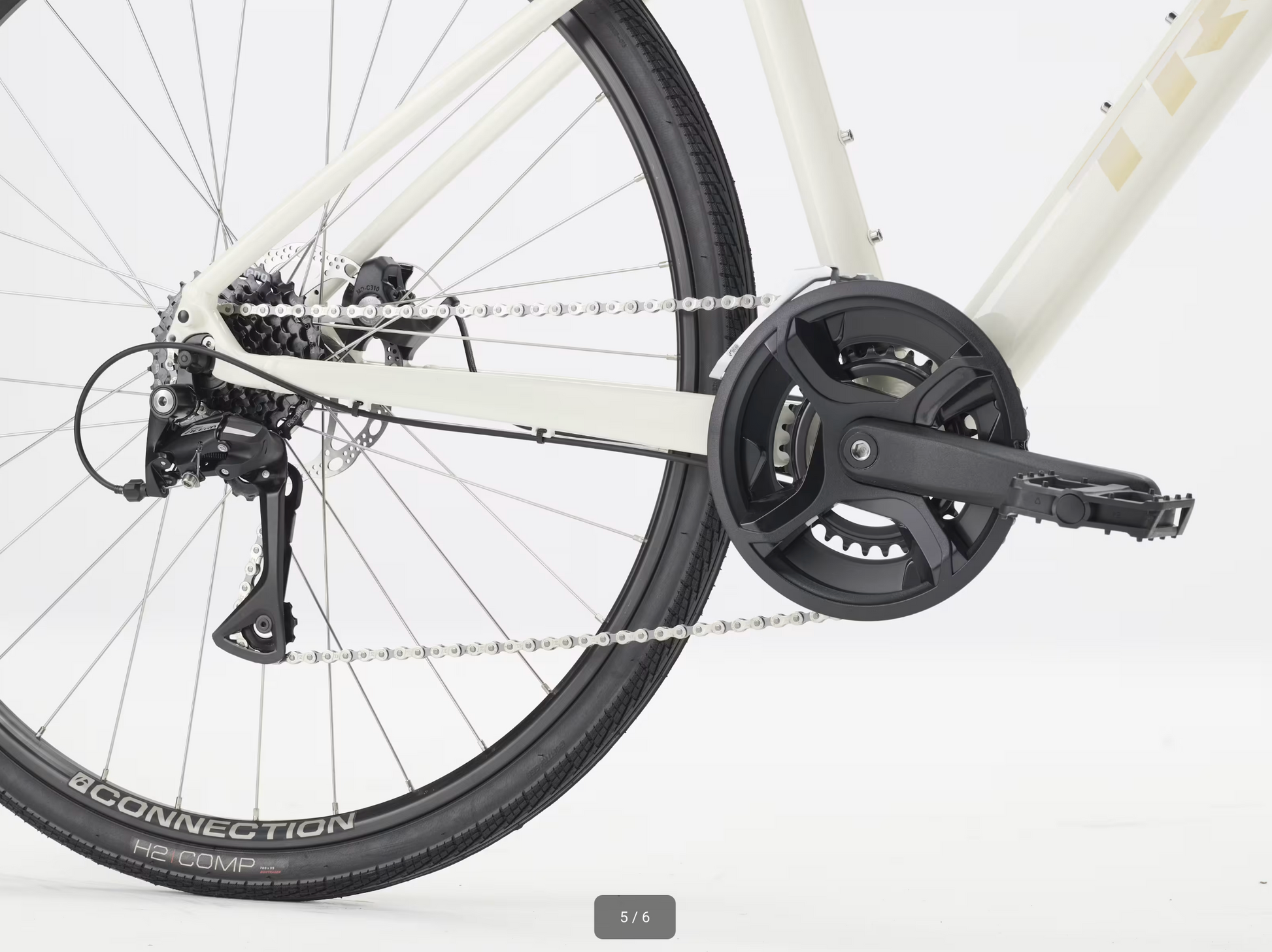

Drivetrain
*Shifter
Size: XS, S, M, L, XL
Shimano EF500, 8 speed
Size: XS, S, M, L, XL
Shimano EF500, 2 speed
Front derailleur
Shimano Tourney TY606, 31.8/34.9mm clamp, top swing, dual pull
Rear derailleur
Shimano Acera M3020-8, 40T max cog
Crank
Forged alloy, 46/30, 170mm length
Bottom bracket
Sealed cartridge, 68mm
Cassette
Shimano HG200, 12-32, 8 speed
Chain
KMC Z8.3
Pedal
Wellgo nylon platform
Max chainring size
1x: 44T, 2x: 46/32

Components
*Seatpost
Size: XS, S, M
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Size: L, XL
Bontrager alloy, 27.2mm, 12mm offset, 400mm length

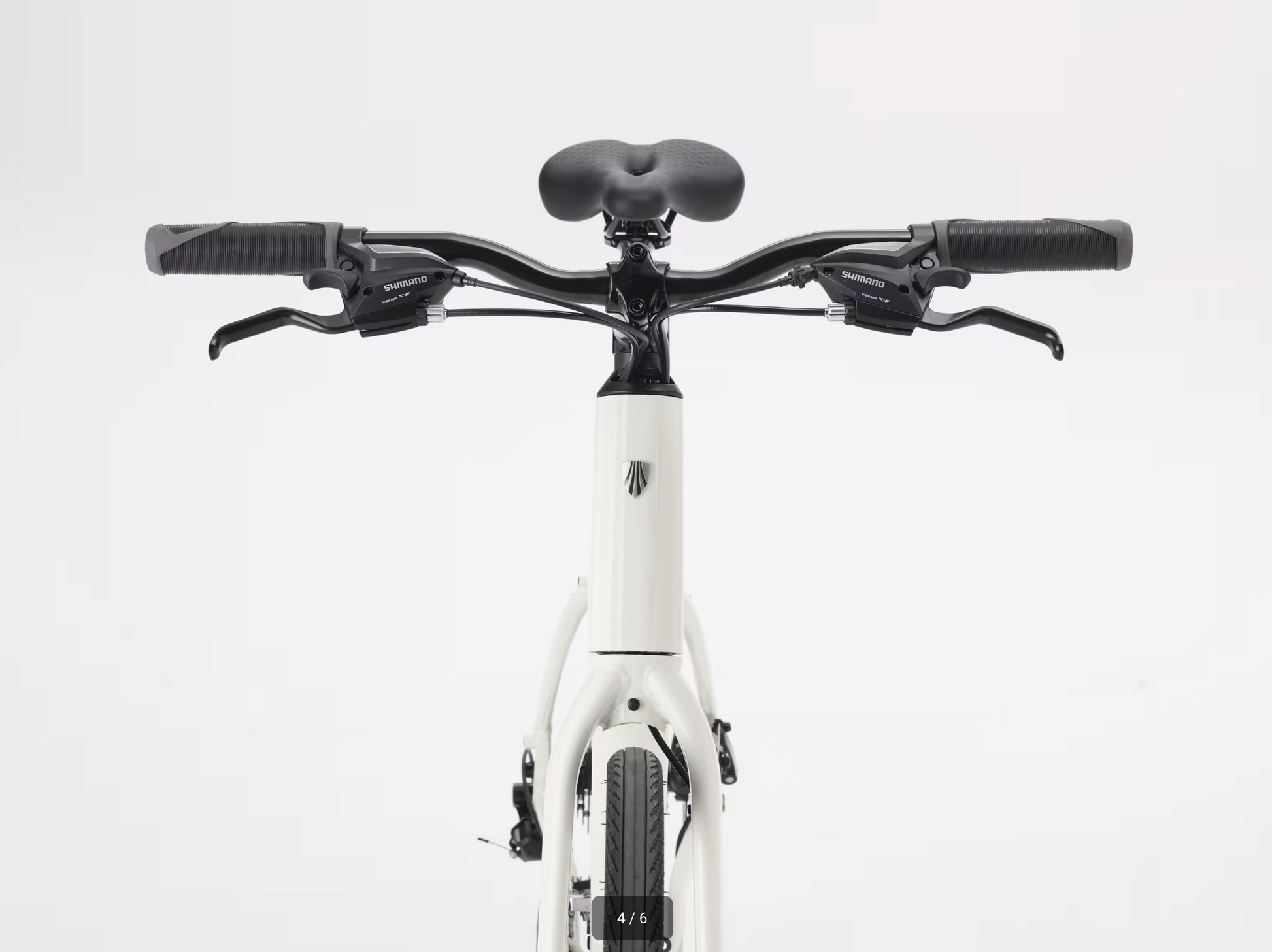

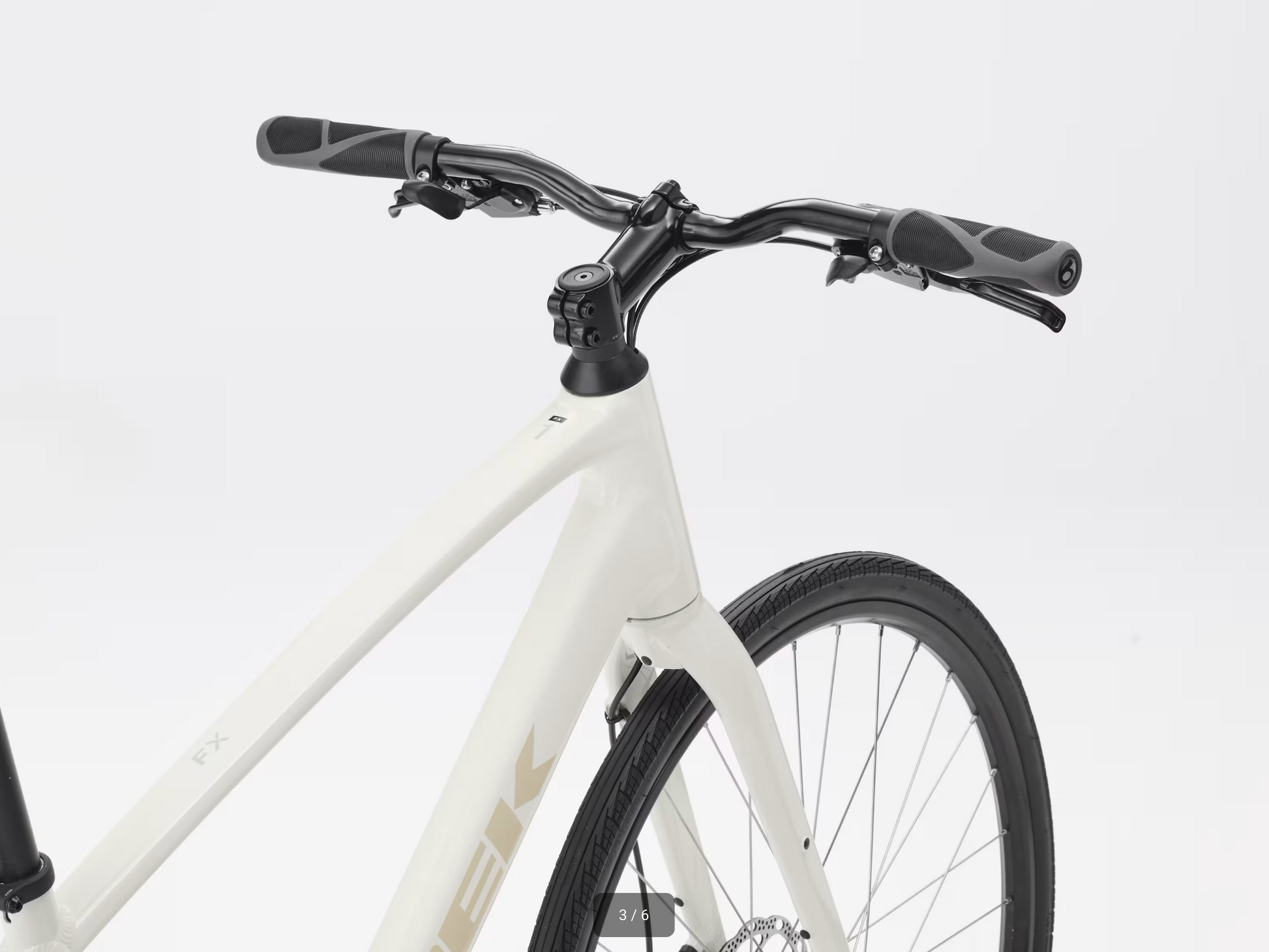

*Handlebar
Size: XS, S, M, L
Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width
Size: XL
Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width
Grips
Trek Ergonomic Comp, lock-on
*Stem
Size: XS, S, M
Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length
Size: L, XL
Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length
Brake
Tektro MD-U310 mechanical disc
Brake rotor
Tektro wave, 6-bolt, 160mm
Rotor size
Max brake rotor sizes: 160mm front & rear

Weight
Weight
M - 13.00 kg / 28.67 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
