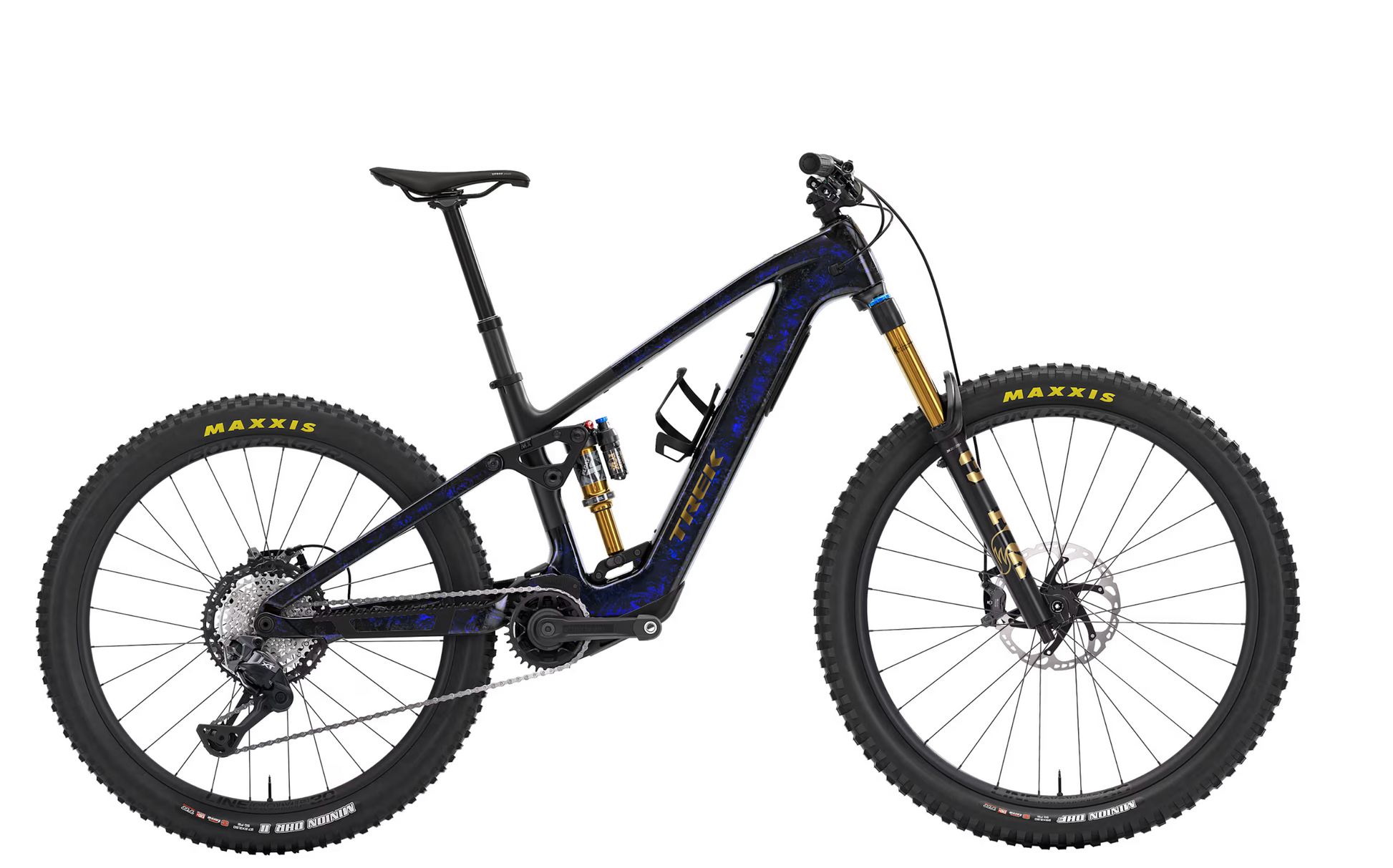

Fuel+ MX 9.8 XT Di2 Gen 2

Frame
OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm
*Fork
Size: S, M, L, XL, XXL
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 160mm travel
Size: S, M, L, XL, XXL
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt, 160mm travel
Shock
Fox Factory Float X, 205mm x 60mm

Wheels
Wheel front
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"
Wheel rear
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 27.5''
Skewer rear
Bontrager Switch thru axle, removable lever
*Tire
Size: S, M, L, XL, XXL
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Size: S, M, L, XL, XXL
Maxxis Minion DHR II, tubeless ready, 3C, Double Down, MAXXGRIP, 27.5x2.5"
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tire size
Frame: 29x2.50", Fork: See manufacturer

E-system
Battery
TQ 580Wh
Charger
TQ 4A charger
Controller
TQ color LED display with Bluetooth & ANT+ connectivity
Motor
TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power

Drivetrain
Shifter
Shimano XT Di2 M8250, 12 speed
Rear derailleur
Shimano XT Di2 M8260, 12 speed
Crank arm
E*thirteen E*spec Plus, 160mm length
Chain ring
E*Thirteen Helix Core Steel 32t steel, 55mm chainline
Cassette
Shimano XT M8200, 10-51, 12 speed
Chain
Shimano Ultegra/XT M8100, 12 speed
Max chainring size
1x: 34T, min 30T

Components
Saddle
Verse Short Comp, steel rails, 145mm width
*Seatpost
Size: S
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
Size: M
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
Size: L, XL, XXL
Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm length
Handlebar
Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width
Grips
Trek Line Elite, lock-on
Stem
Bontrager Elite, 35mm, 0 degree, 45mm length
Brake
Shimano XT M8220 4-piston hydraulic disc
Brake rotor
Shimano RT-6B750, 6-bolt, 200mm
Rotor size
Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
