Trek

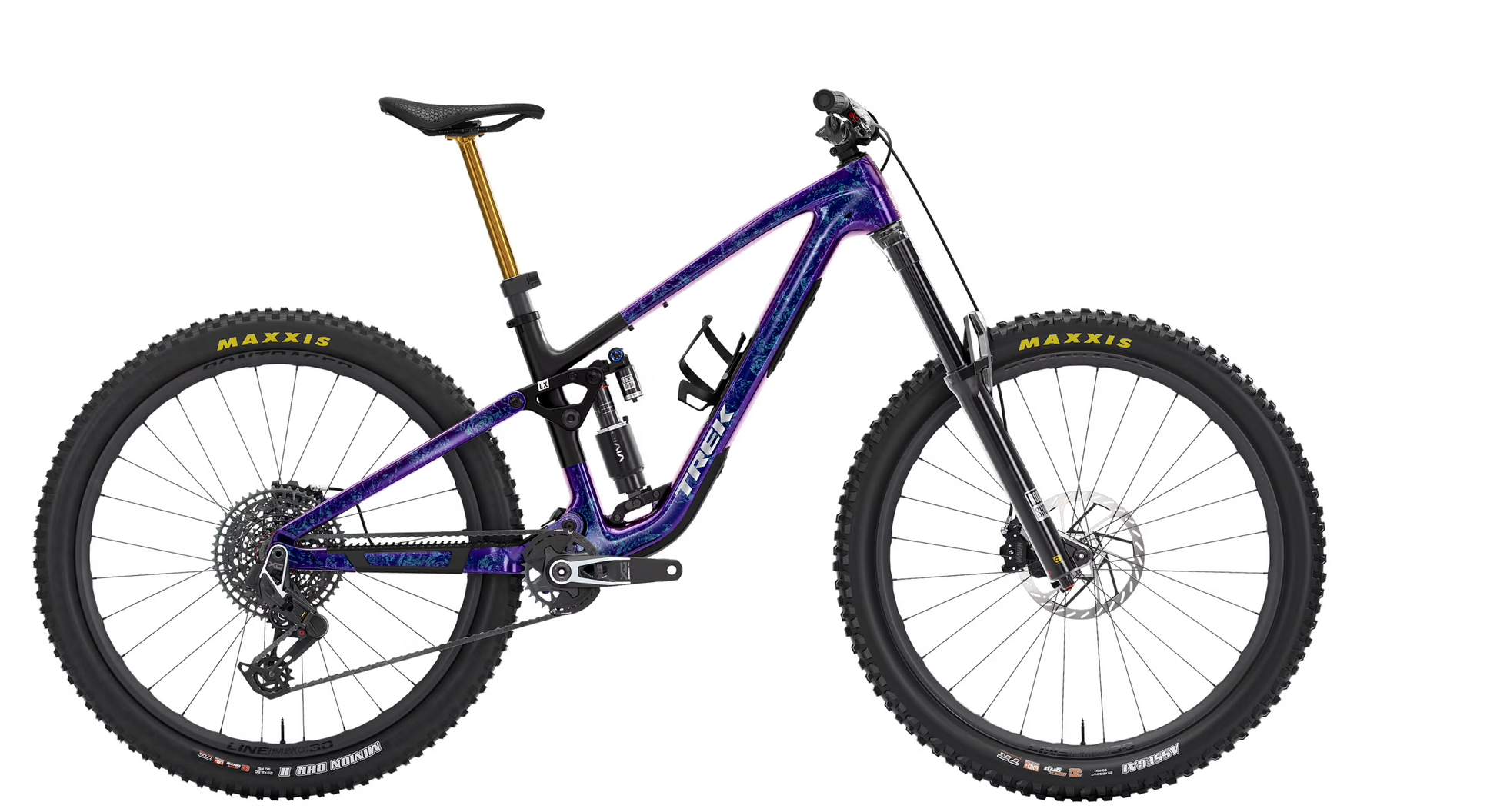

Fuel LX 9.9 X0 AXS Gen 7
Fuel LX 9.9 X0 AXS Gen 7
Couldn't load pickup availability
Custom Order Bike
Custom Order Bike
This bike is not kept in store.
Lead time to pick-up is 30-60 days.
We recommend contacting us prior to ordering.
Fuel LX 9.9 X0 AXS Gen 7 is our top carbon trail bike, born for the chaos and topped with the best components.
Its OCLV Mountain Carbon frame partners with a RockShox ZEB Ultimate fork and Vivid Ultimate shock (160mm rear, 170mm front) for going all-out on the wildest lines on the mountain.
A SRAM X0 AXS transmission gives you clean and crisp shifting, even on the punchiest climbs, while SRAM Maven Silver 4-piston brakes provide incredible modulation and power. It's topped off with a Fox Transfer NEO dropper post and carbon Bontrager Line Pro wheels.
Share
Details
Specifications
Frame
OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
Fork
Rockshox ZEB Ultimate B1, Linear XL w/ ButterCups, Charger 3.2 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 170mm travel
Shock
RockShox Vivid Ultimate D1, 205x65mm
*Suspension part
Size: S
Fox steel coil spring, 250lbs
Size: M
Fox steel coil spring, 350lbs
Size: L
Fox steel coil spring, 400lbs
Size: XL
Fox steel coil spring, 450lbs
Size: XXL
Fox steel coil spring, 500 lbs
Wheels
Wheel front
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Wheel rear
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
Skewer rear
Bontrager Switch thru axle, removable lever
*Tire
Size: S, M, L, XL, XXL
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Size: S, M, L, XL, XXL
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Max tire size
Frame: 29x2.50", Fork: See manufacturer
E-system
Battery
SRAM AXS battery pack (with charger)
Drivetrain
Shifter
SRAM AXS pod
Rear derailleur
SRAM X0 Eagle AXS, T-Type
*Crank
Size: S, M, L, XL, XXL
SRAM X0 Eagle, DUB, 30T steel, T-Type, 55mm chainline, 170mm length
Size: S, M, L, XL, XXL
SRAM X0 Eagle, DUB, 30T, T-Type, 55mm chainline, 165mm length
Bottom bracket
SRAM DUB MTB Wide, 73mm, BSA threaded
Cassette
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
Chain
SRAM X0 Eagle, T-Type, 12 speed
Max chainring size
1x: 34T round, 32T oval, min 30T, 32T oval
Components
Saddle
Trek Aeolus Pro, carbon fiber rails, AirLoom lattice 145mm width
*Seatpost
Size: S
Fox Transfer NEO, 150mm travel, wireless, 34.9mm
Size: M, L
Fox Transfer NEO, 175mm travel, wireless, 34.9mm
Size: XL, XXL
Fox Transfer NEO, 200mm travel, wireless, 34.9mm
Handlebar
Race Face ERA, carbon, 35mm, 27.5mm rise, 800mm width
Grips
Trek Line Elite, lock-on
Stem
Race Face Turbine R, 35mm, 0 degree, 40mm length
Brake
SRAM Maven Silver 4-piston hydraulic disc
*Brake rotor
Size: S, M, L, XL, XXL
SRAM HS2, 6-bolt, 200mm
Size: S, M, L, XL, XXL
SRAM HS2, 6-bolt, 180mm
Rotor size
Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
Weight
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
