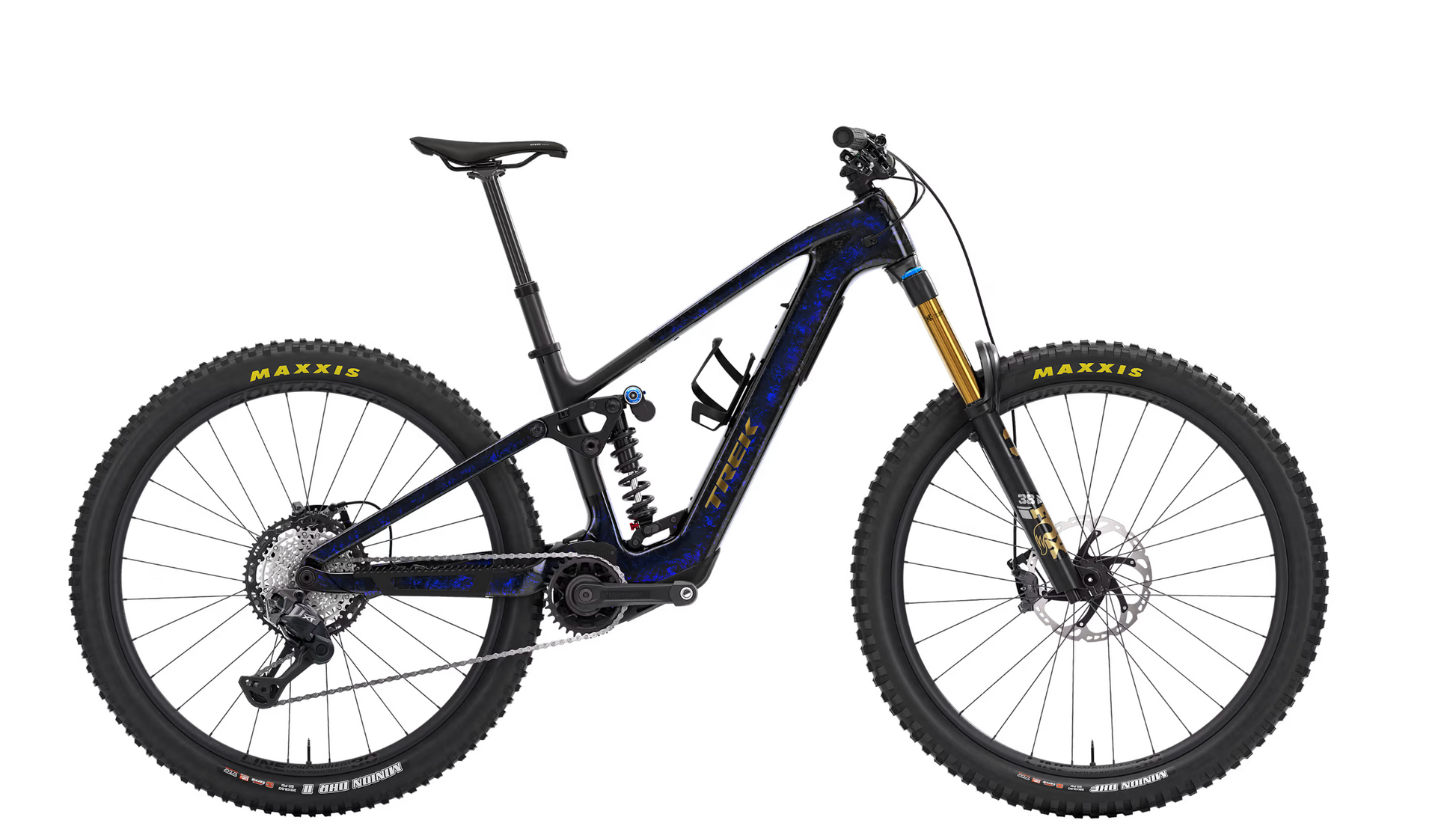

Fuel+ LX 9.9 X0 AXS Gen 2

Frame
OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm
Fork
Rockshox ZEB Ultimate B1, Linear XL w/ ButterCups, Charger 3.2 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 170mm travel
Shock
RockShox Vivid Ultimate D1, 205x65mm

Wheels
Wheel front
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"
Wheel rear
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
Skewer rear
Bontrager Switch thru axle, removable lever
*Tire
Size: S, M, L, XL, XXL
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Size: S, M, L, XL, XXL
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Max tire size
Frame: 29x2.50", Fork: See manufacturer

E-system
Battery
TQ 580Wh
Charger
TQ 4A charger
Controller
TQ color LED display with Bluetooth & ANT+ connectivity
Motor
TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power

Drivetrain
Shifter
SRAM AXS pod
Rear derailleur
SRAM X0 Eagle AXS, T-Type
*Crank
Size: S, M, L, XL, XXL
SRAM XX, 165mm length
Size: S, M, L, XL, XXL
SRAM X0 Eagle, 160mm length
Chain ring
SRAM T-Type, 32T, alloy
Cassette
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
Chain
SRAM X0 Eagle, T-Type, 12 speed
Max chainring size
1x: 34T, min 30T

Components
Saddle
Trek Aeolus Pro, carbon fiber rails, AirLoom lattice 145mm width
*Seatpost
Size: S
Fox Transfer NEO, 150mm travel, 34.9mm
Size: M
Fox Transfer NEO, 175mm travel, 34.9mm
Size: L, XL, XXL
Fox Transfer NEO, 200mm travel, 34.9mm
Handlebar
Race Face ERA, carbon, 35mm, 27.5mm rise, 800mm width
Grips
Trek Line Elite, lock-on
Stem
Race Face Turbine R, 35mm, 0 degree, 40mm length
Brake
SRAM Maven Silver 4-piston hydraulic disc
Brake rotor
SRAM HS2, 6-bolt, 200mm
Rotor size
Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
