Trek
2027
Fuel LX 9.8 XT Gen 7
Fuel LX 9.8 XT Gen 7
Couldn't load pickup availability
Custom Order Bike
Custom Order Bike
This bike is not kept in store.
Lead time to pick-up is 30-60 days.
We recommend contacting us prior to ordering.

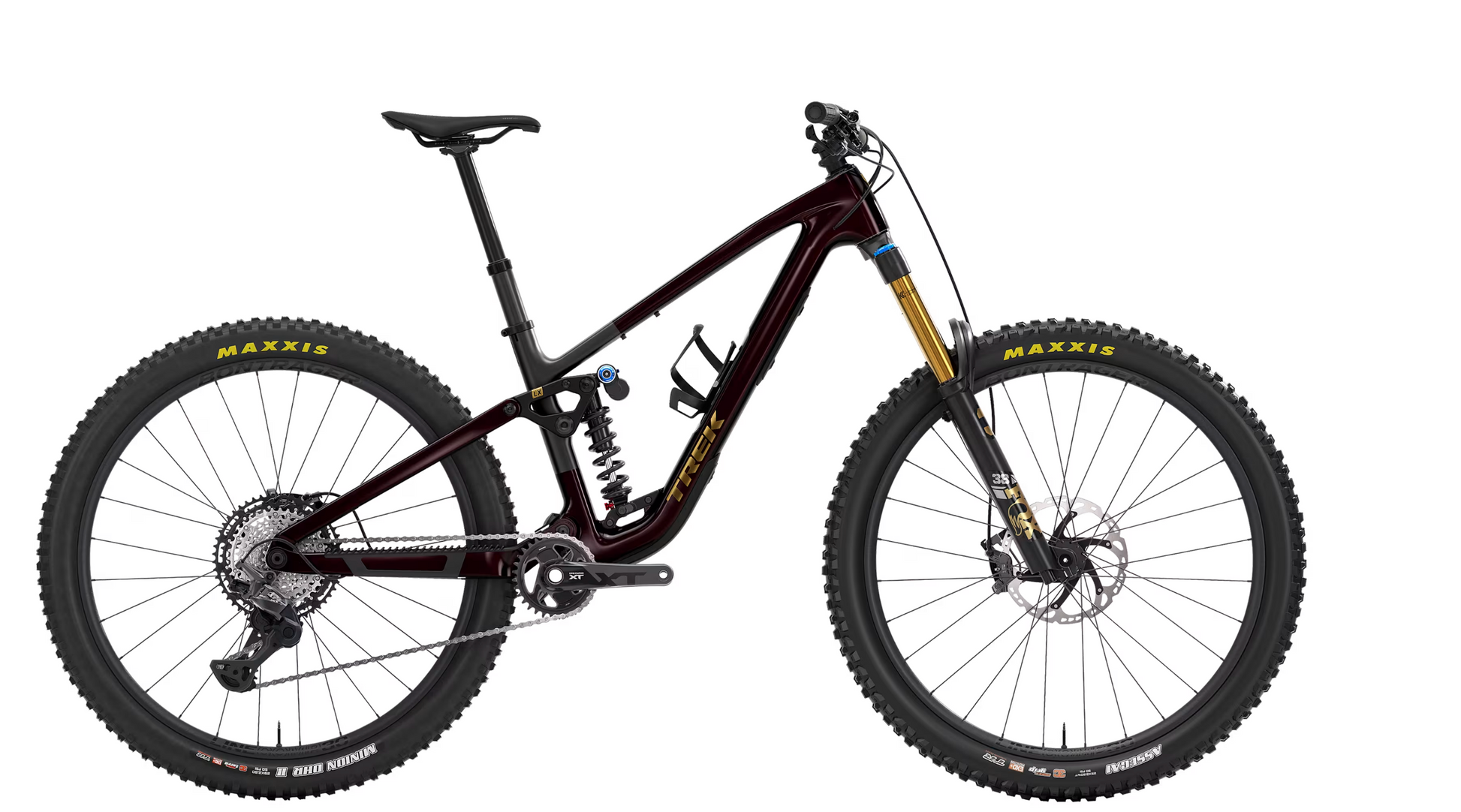

Fuel LX 9.8 XT is a rowdy carbon trail bike ready to slay steep descents and blast through wheel-gobbling terrain.
Its OCLV Mountain Carbon frame partners with a Fox Factory 38 fork and DHX2 coil shock (160mm rear, 170mm front) for going all-out on the wildest lines on the mountain.
A mechanical Shimano XT M8200 12-speed drivetrain gives you clean, reliable shifting, and 4-piston Shimano XT M8220 brakes provide excellent modulation and stop-on-a-dime power.
Share
Details
Specifications
Frame
OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
Fork
Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 170mm travel
Shock
Fox DHX2, 205mm x 65mm
*Suspension part
Size: S
Fox steel coil spring, 250lbs
Size: M
Fox steel coil spring, 350lbs
Size: L
Fox steel coil spring, 400lbs
Size: XL
Fox steel coil spring, 450lbs
Size: XXL
Fox steel coil spring, 500 lbs
Wheels
Wheel front
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"
Wheel rear
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 29''
Skewer rear
Bontrager Switch thru axle, removable lever
*Tire
Size: S, M, L, XL, XXL
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Size: S, M, L, XL, XXL
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tire size
Frame: 29x2.50", Fork: See manufacturer
Drivetrain
Shifter
Shimano XT M8200, 12 speed
Rear derailleur
Shimano Deore M8200, long cage
*Crank
Size: S, M, L, XL, XXL
Shimano XT 8200, 30T, 55mm chainline, 170mm length
Size: S, M, L, XL, XXL
Shimano XT M8200, 30T, 55mm chainline, 165mm length
Bottom bracket
Shimano BB-MT501 BSA
Cassette
Shimano XT M8200, 10-51, 12 speed
Chain
Shimano Ultegra/XT M8100, 12 speed
Max chainring size
1x: 34T round, 32T oval, min 30T, 32T oval
Components
Saddle
Verse Short Comp, steel rails, 145mm width
*Seatpost
Size: S
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
Size: M
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
Size: L, XL, XXL
Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm length
Handlebar
Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width
Grips
Trek Line Elite, lock-on
Stem
Bontrager Elite, 35mm, 0 degree, 45mm length
Brake
Shimano XT M8220 4-piston hydraulic disc
*Brake rotor
Size: S, M, L, XL, XXL
Shimano RT86, 6-bolt, 180mm
Size: S, M, L, XL, XXL
Shimano RT86, 6-bolt, 203mm
Rotor size
Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
Weight
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
