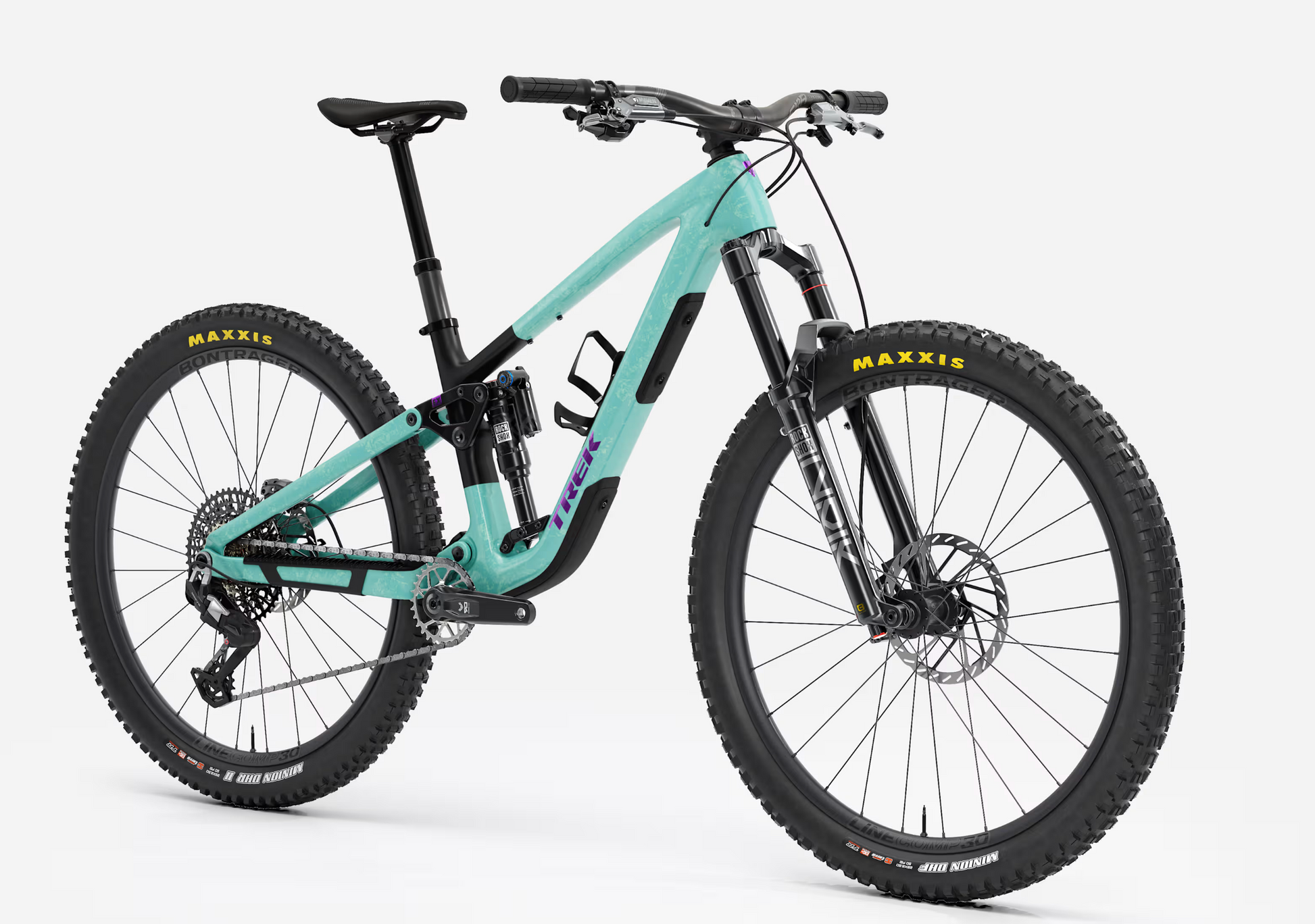

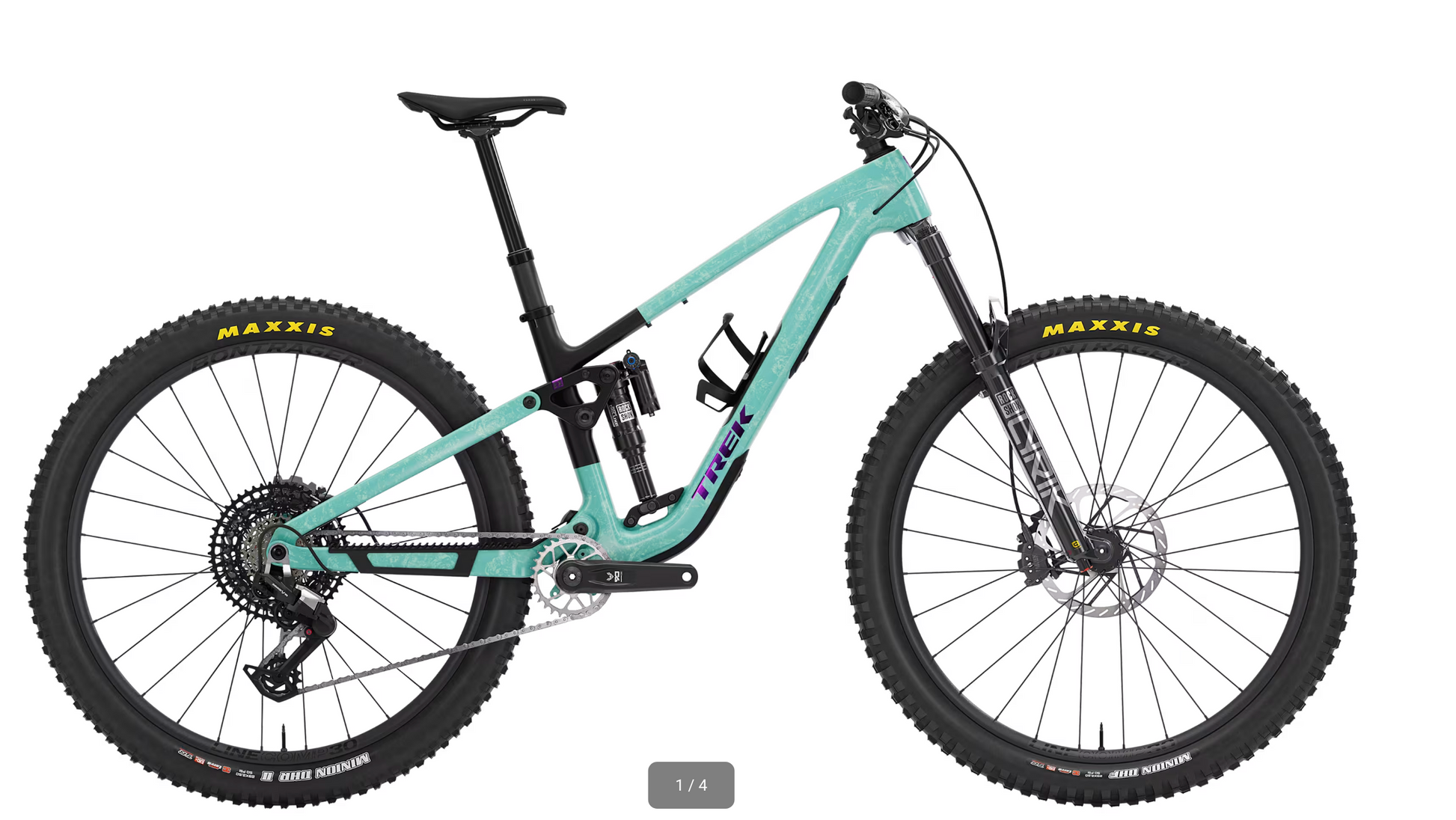

Fuel EX 9.8 Eagle 90 Gen 7

Frame
OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
Fork
RockShox Lyrik Ultimate, DebonAir+ w/ ButterCups, Charger 3.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel

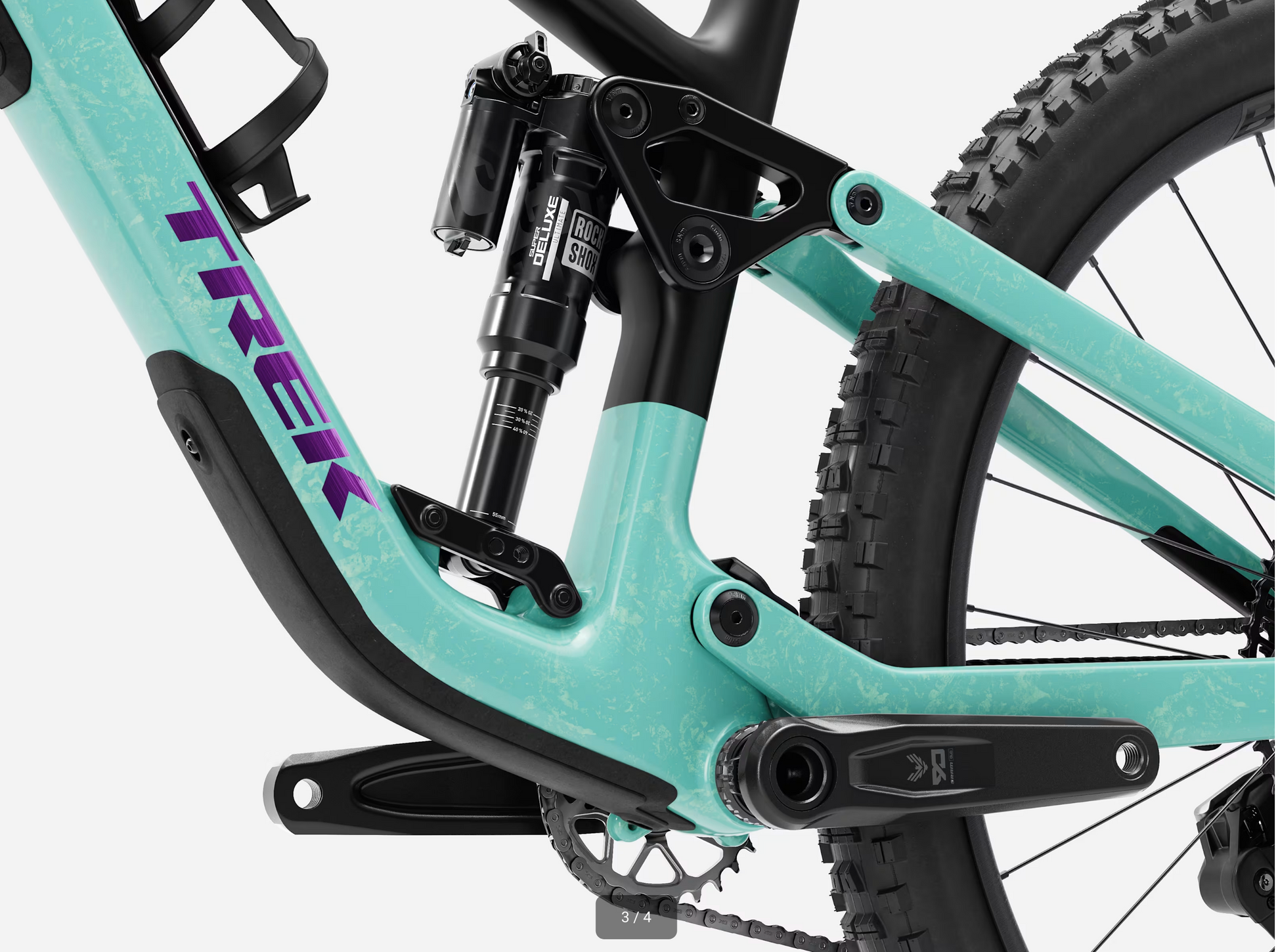

Shock
RockShox Deluxe Ultimate RC2T, 205mm x 60mm

Wheels
Wheel front
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"
*Wheel rear
Size: S
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 27.5''
Size: M, L, XL, XXL
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 29''
Skewer rear
Bontrager Switch thru axle, removable lever
*Tire
Size: S
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
Size: S, M, L, XL, XXL
Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Size: M, L, XL, XXL
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tire size
Frame: 29x2.50", Fork: See manufacturer

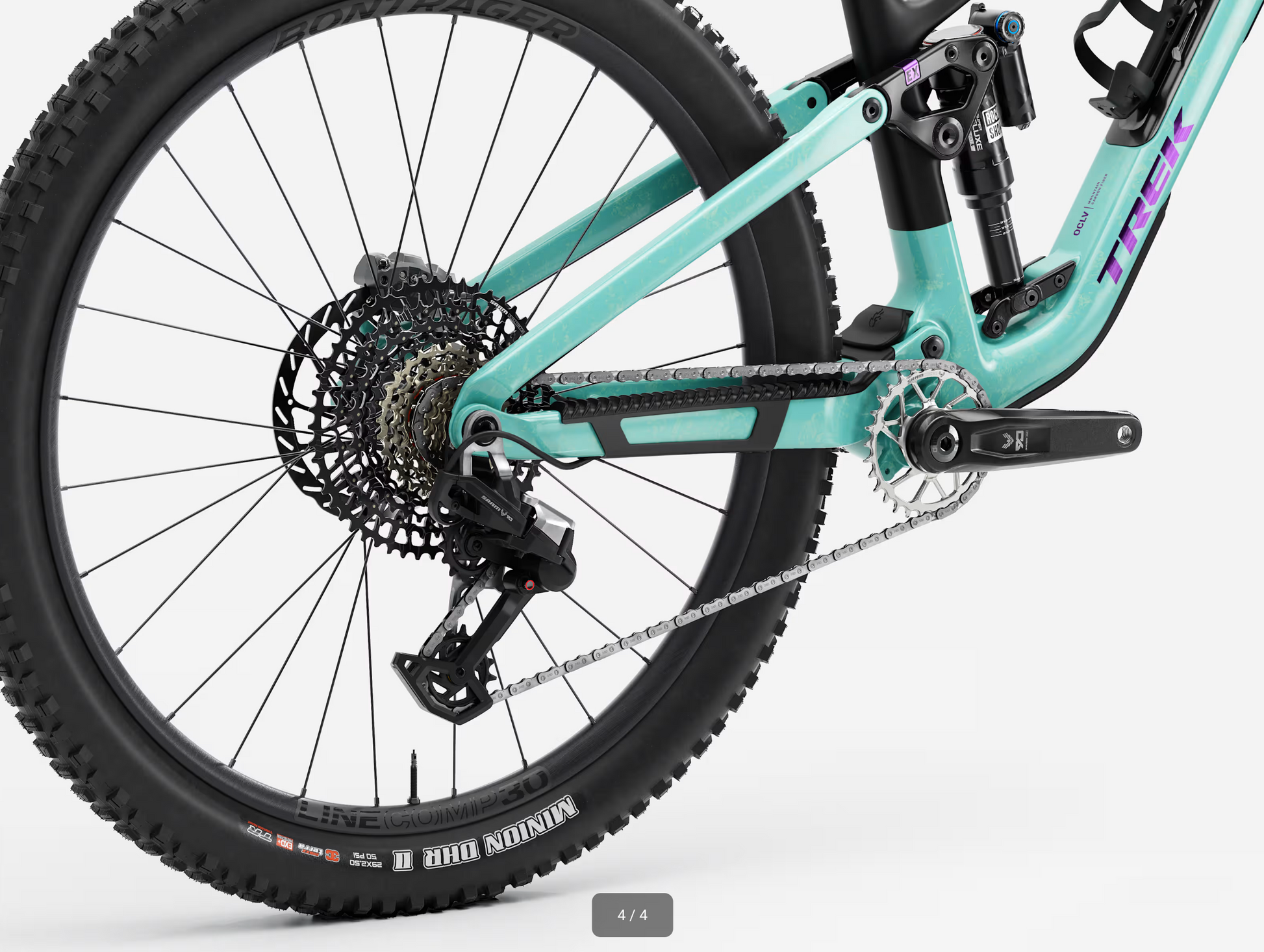

Drivetrain
Rear derailleur
SRAM Eagle 90, T-Type
*Crank
Size: S, M, L, XL, XXL
SRAM Eagle 90, DUB, 30T steel, T-Type, 55mm chainline, 170mm length
Size: S, M, L, XL, XXL
SRAM Eagle 90, DUB, 30T steel, T-Type, 55mm chainline, 165mm length
Bottom bracket
SRAM DUB MTB Wide, 73mm, BSA threaded
Cassette
SRAM Eagle XS-1275, T-Type, 10-52, 12 speed
Chain
SRAM GX Eagle, T-Type, 12 speed
Max chainring size
1x: 34T round, 32T oval, min 30T, 32T oval

Components
Saddle
Verse Short Comp, steel rails, 145mm width
*Seatpost
Size: S
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
Size: M
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
Size: L, XL, XXL
Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm length
Handlebar
Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width
Grips
Trek Line Elite, lock-on
Stem
Bontrager Elite, 35mm, 0 degree, 45mm length
Brake
SRAM Maven Bronze 4-piston hydraulic disc
*Brake rotor
Size: S, M, L, XL, XXL
SRAM HS2, 6-bolt, 200mm
Size: S, M, L, XL, XXL
SRAM HS2, 6-bolt, 180mm
Rotor size
Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
