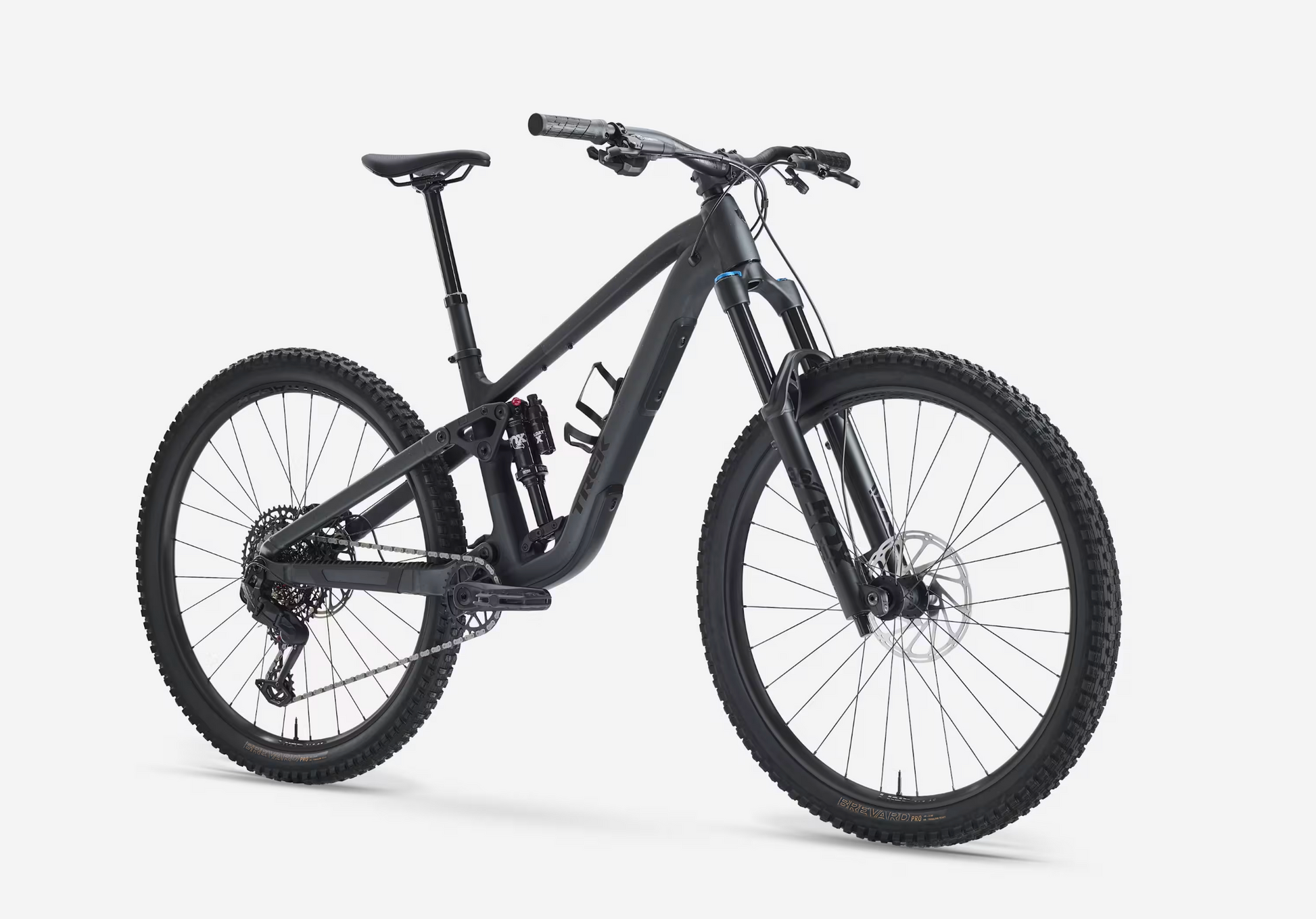

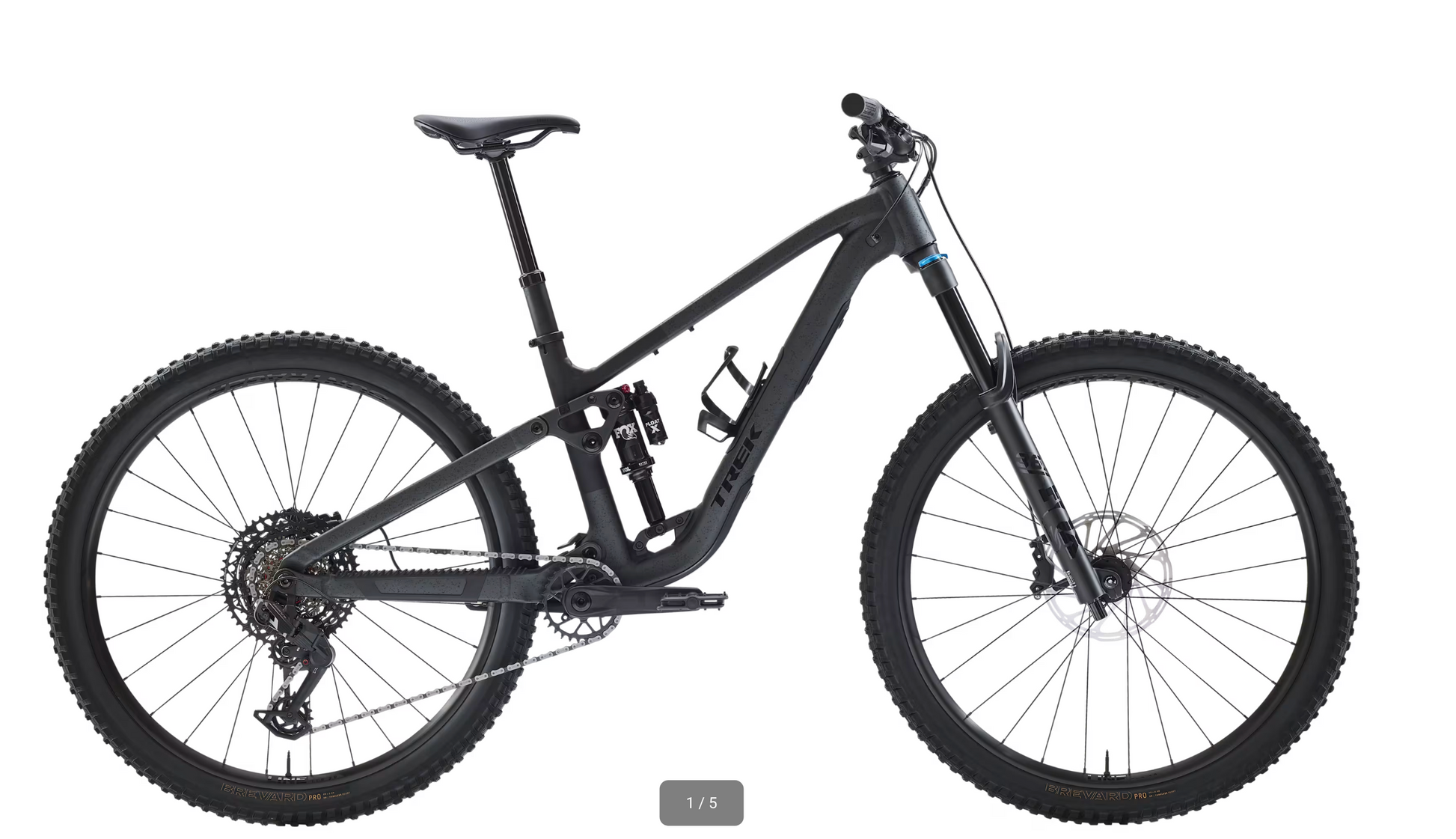

Fuel EX 8 Gen 7

Frame
Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm

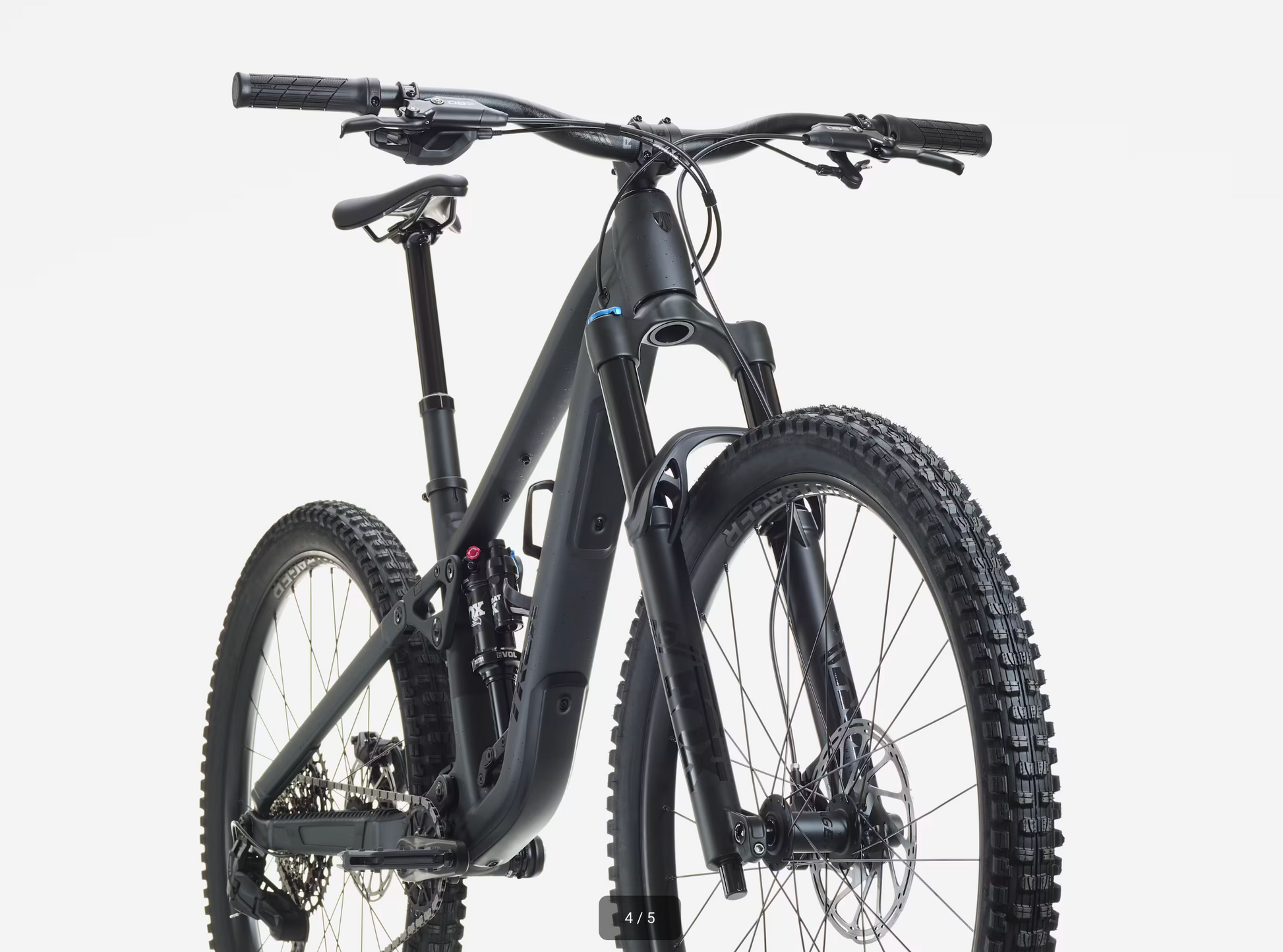

Fork
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel

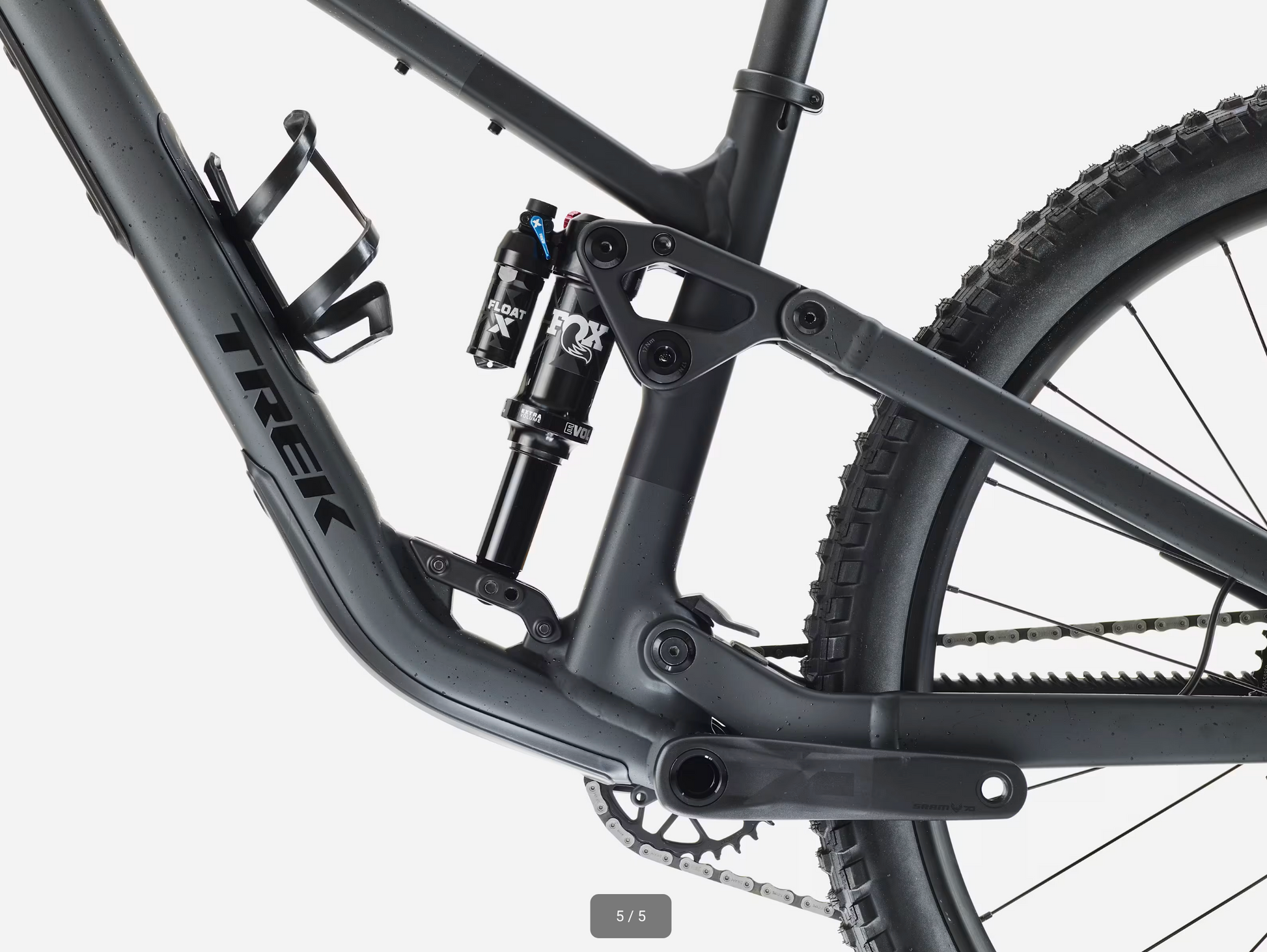

*Shock
Size: S, M, L, XL
Fox Performance Float X, 2-position damper, 205mm x 60mm
Size: S, M, L, XL
Fox Float X, 205mm x 60mm

Wheels
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12mm thru axle
Skewer rear
Bontrager Switch thru axle, removable lever
Rim
Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
*Tire
Size: S
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
Size: S, M, L, XL
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tire size
Frame: 29x2.50", Fork: See manufacturer

Drivetrain
Shifter
SRAM Eagle 70, 12 speed
Rear derailleur
SRAM Eagle 70, T-Type
Crank
SRAM Eagle 70, DUB, 30T, T-Type, 55mm chainline, 165mm length
Bottom bracket
SRAM DUB MTB Wide, 73mm, BSA threaded
Cassette
SRAM Eagle XS-1270, T-Type,10-52, 12 speed
Chain
SRAM Eagle 70, T-Type, 12 speed
Max chainring size
1x: 34T round, 32T oval, min 30T, 32T oval

Components
Saddle
Verse Short Comp, steel rails, 145mm width
*Seatpost
Size: S
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
Size: M
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
Size: L, XL
Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm length

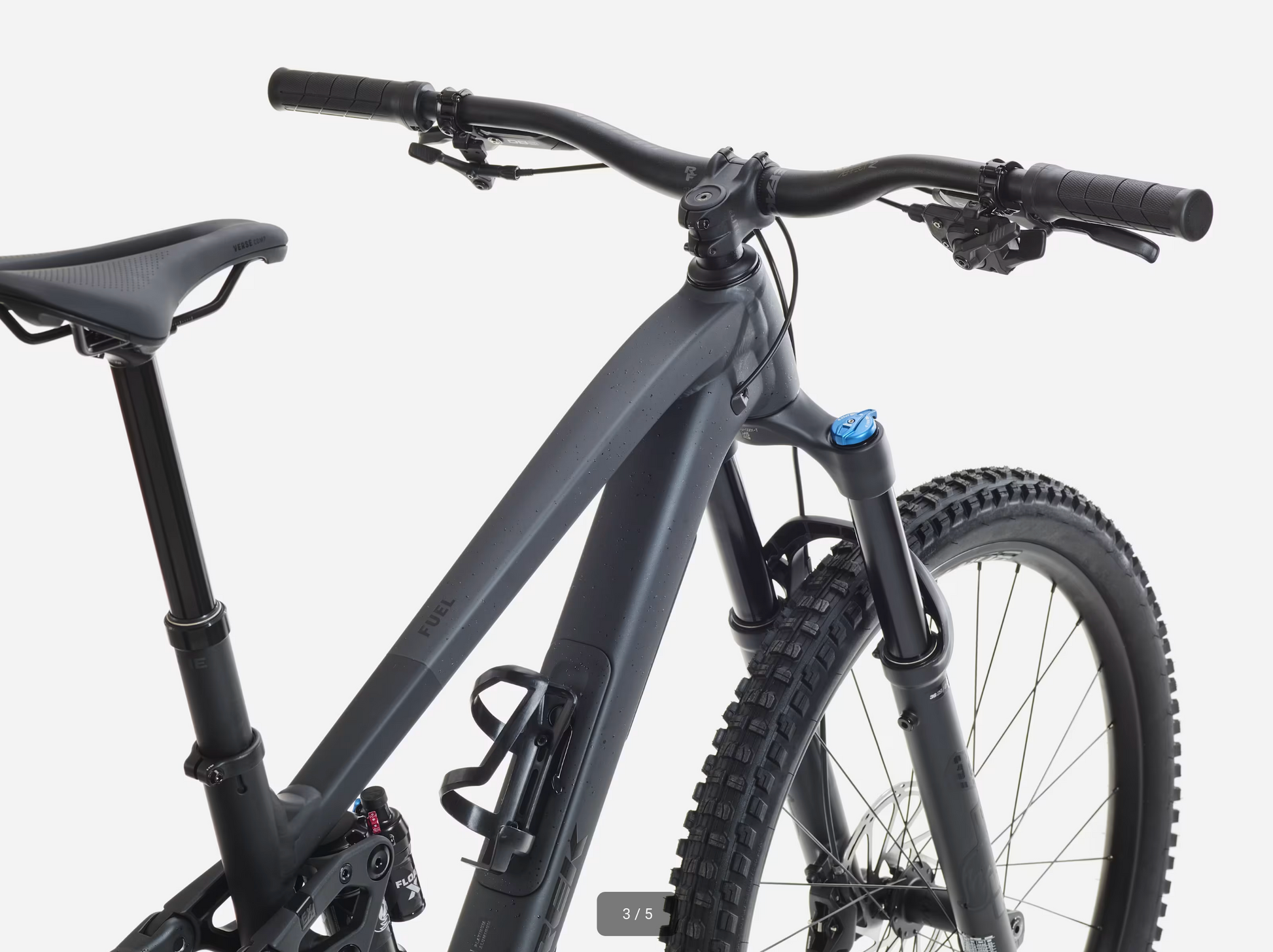

Handlebar
Race Face Aeffect, alloy, 35mm, 40mm rise, 800mm width
Grips
Trek Line Comp, nylon lock-on
Stem
Bontrager Elite, 35mm, 0 degree, 45mm length
Headset
FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
Brake
SRAM DB 8 4-piston hydraulic disc
*Brake rotor
Size: S, M, L, XL
SRAM Centerline 2.0, 6-bolt, 200mm
Size: S, M, L, XL
SRAM Centerline 2.0, 6-bolt, 180mm
Rotor size
Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Accessories
Bag
Bontrager BITS Internal Frame Storage Bag

Weight
Weight
M - 16.58 kg / 36.56 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
