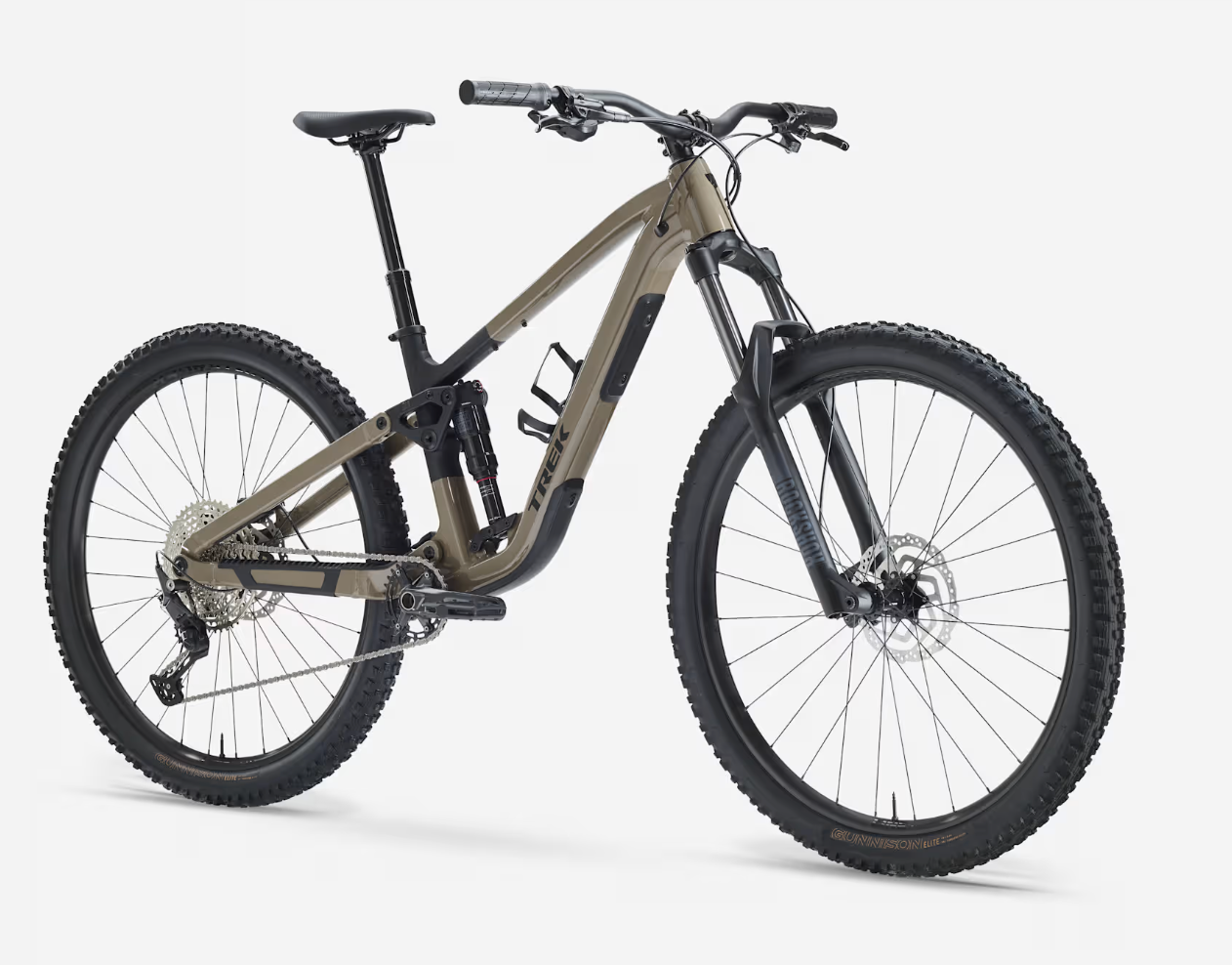

Fuel EX 5 Gen 7 2027

Frame
Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
Fork
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 150mm travel

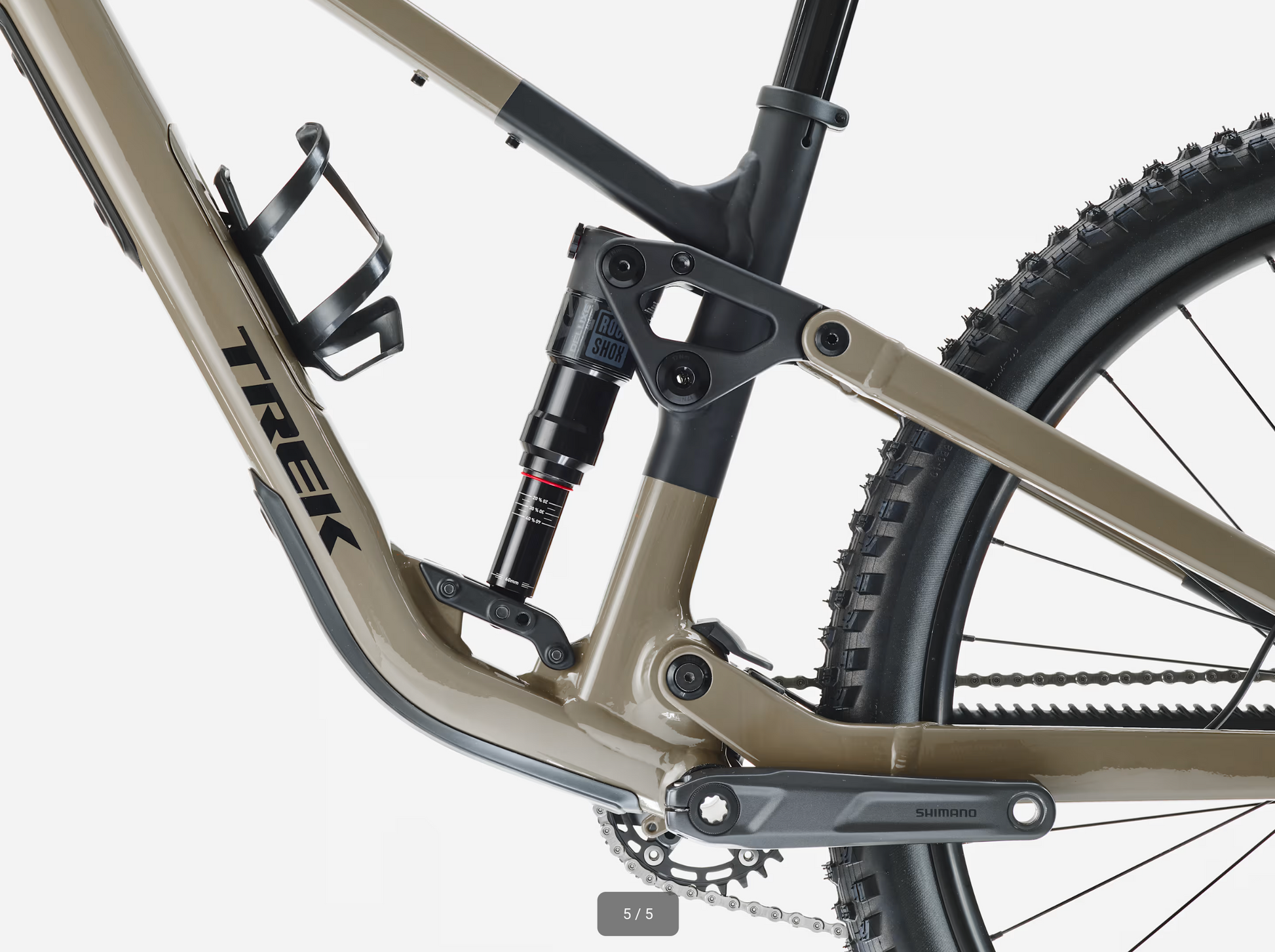

Shock
RockShox Deluxe Select, 205mm x 60mm

Wheels
Hub front
Shimano TC500 alloy, centerlock, 110x15mm thru axle
Hub rear
Shimano TC500 alloy, centerlock, 148x12mm thru axle
Skewer rear
Bontrager Switch thru axle, removable lever
*Rim
Size: S, M, L, XL
Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
Size: S, M, L, XL
Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
*Tire
Size: S, M, L, XL
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40''
Size: S
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40''
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tire size
Frame: 29x2.50", Fork: See manufacturer

Drivetrain
Shifter
Shimano Deore M6200
Rear derailleur
Shimano Deore M6200, long cage
Crank
Shimano MT520 Deore, 30T ring, 55mm chainline, 165mm length
Bottom bracket
Shimano BB-MT501 BSA
Cassette
Shimano M6200, 10-51, 12 speed
Chain
Shimano Deore M6100, 12 speed
Max chainring size
1x: 34T round, 32T oval, min 30T, 32T oval

Components
Saddle
Bontrager Verse Short, stainless steel rails
*Seatpost
Size: S
TranzX JD-YSI34, 150mm travel, internal routing, 34.9mm
Size: M, L, XL
TranzX JD-YSI34, 170mm travel, internal routing, 34.9mm
Handlebar
Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width
Grips
Trek Line Comp, nylon lock-on
Stem
Bontrager Comp, 31.8mm, 7 degree, 35mm length
Headset
FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
Brake
Shimano hydraulic disc, MT201 lever, MT200 caliper
Brake rotor
Shimano RT10, CenterLock, 180 mm
Rotor size
Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight
Weight
M - 16.88 kg / 37.22 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
