Rocky Mountain
2026

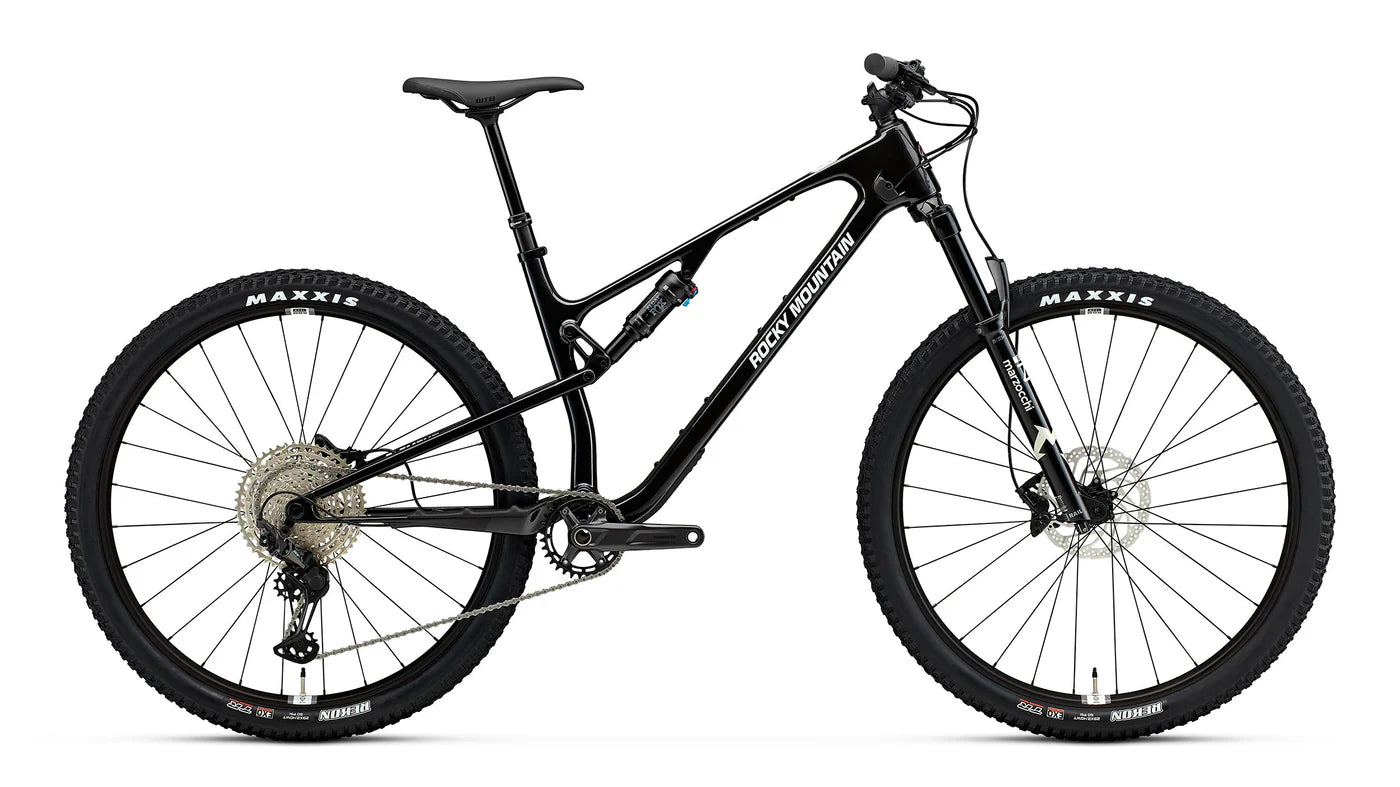

Element Carbon 30
Element Carbon 30
Couldn't load pickup availability
Pick up could take up to 10 days
Pick up could take up to 10 days
Not all our bikes are stored at our retail location so in store pick up for bikes could take up to 10 days.
Please contact the store for more information on estimated pick up ETA.
Don't see what you want?
Don't see what you want?
Other colour and size options might be available for speical order.
Contact us for more information.
Designed to strike the perfect balance of lightweight cross-country efficiency and technical precision, the Element is the best of all worlds.
A new addition to the Element is the Smoothlink SL flex stay. By eliminating the traditional pivot, we’re not only able to shave weight but also increase stiffness in the rear triangle.
Lighter and more refined, you can expect the same supreme ride quality of our traditional Smoothlink design that puts the Element ahead of its competitors.


Share

Details
Specifications
Frame - SMOOTHWALL™ Carbon | SMOOTHLINK SL™ Suspension | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry | 120mm Travel | SMOOTHWALL™ Carbon Rear Triangle
Fork - Marzocchi Z2 Float EVOL Rail 130mm | 44mm Offset
Front Travel - 130
Shock - Fox Float Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm | Size-Specific tune in FAQ
Rear Travel - 120
Headset - FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race
Stem - Rocky Mountain 31.8 XC | 5° Rise | All Sizes = 50mm
Handlebar - Rocky Mountain AM | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips - Rocky Mountain Lock On Light
Brakes - Shimano MT4120 4 Piston | Resin Pads
Shifters - Shimano XT
Rear Derailleur - Shimano XT
Cranks & Chainring - Shimano Deore | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm
Bottom Bracket - Shimano SM-BBMT500
Cassette - Shimano Deore 10-51T 12spd
Chain - Shimano M6100
Front Hub - Shimano TC500 | 15mm Boost
Rear Hub - Shimano TC500 Boost 148mm
Spokes - 2.0 Stainless
Rims - WTB KOM Team i27 TCS 2.0 | 28H | Tubeless Set Up | Sealant Incl
Tires - Maxxis Rekon 2.4 WT EXO Tubeless Ready | Maxxis Rekon 2.4 WT EXO Tubeless Ready | Tubeless Set Up | Sealant Incl
Seatpost - X Fusion Manic Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG = 170mm | XL = 200mm
Saddle - WTB Silverado Race 142 | Steel Rails
We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification. Specifications may not be as shown in photo.
Discounted Items Are Final Sale
Please visit our Return/Exchange Policy page for more information.
Shipping
This bike is not eligible for shipping

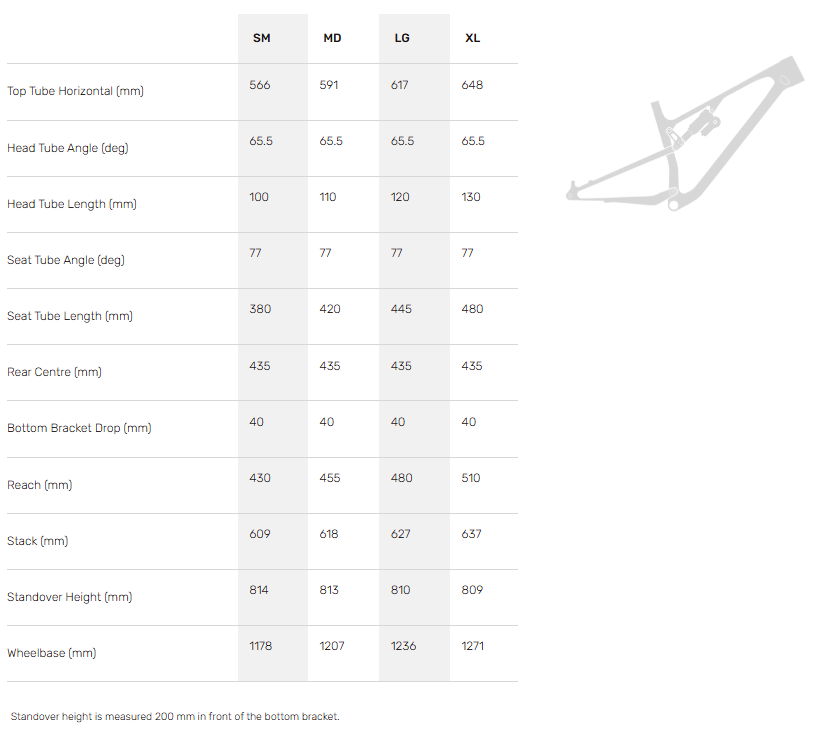

Geometry Chart
