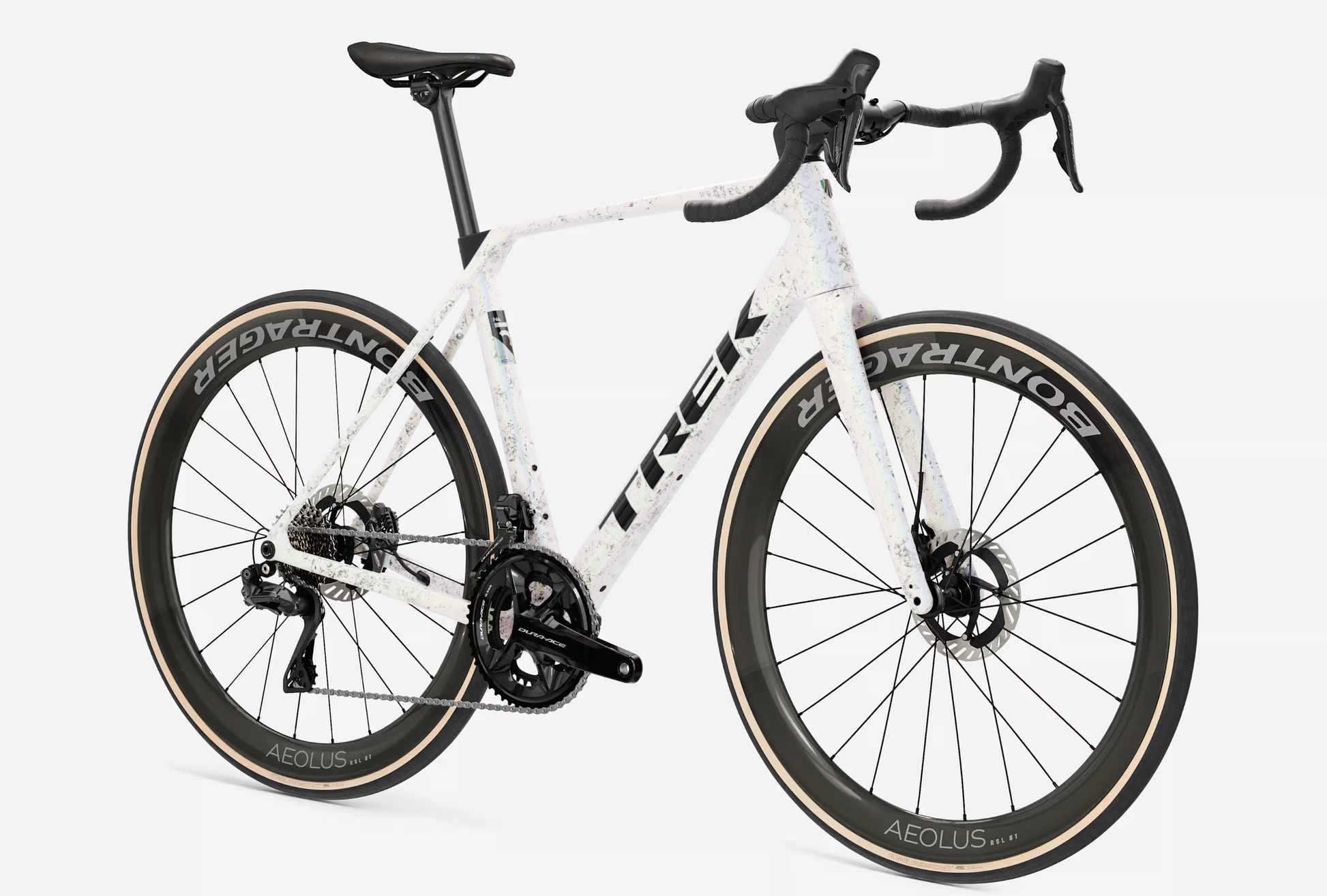

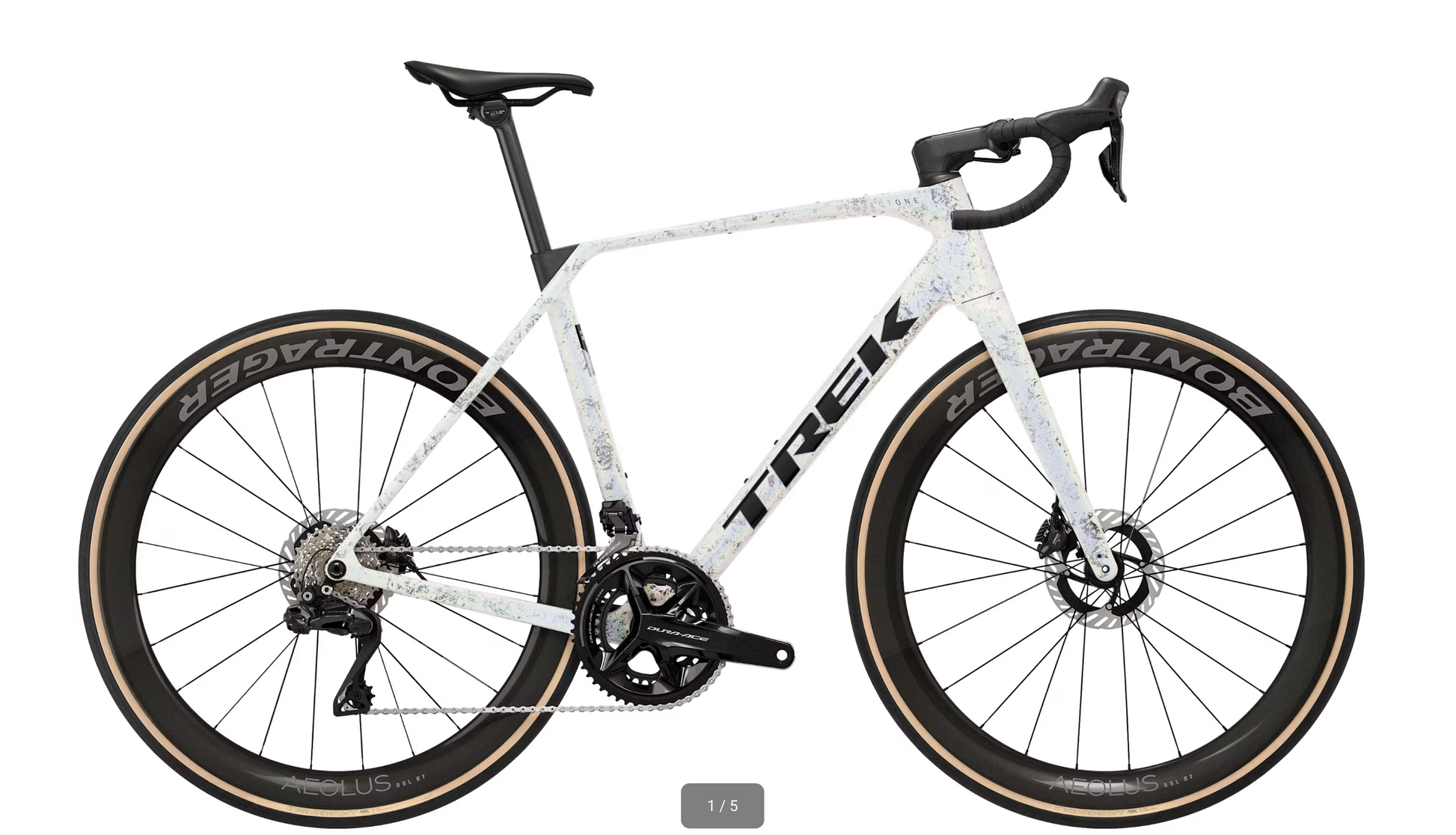

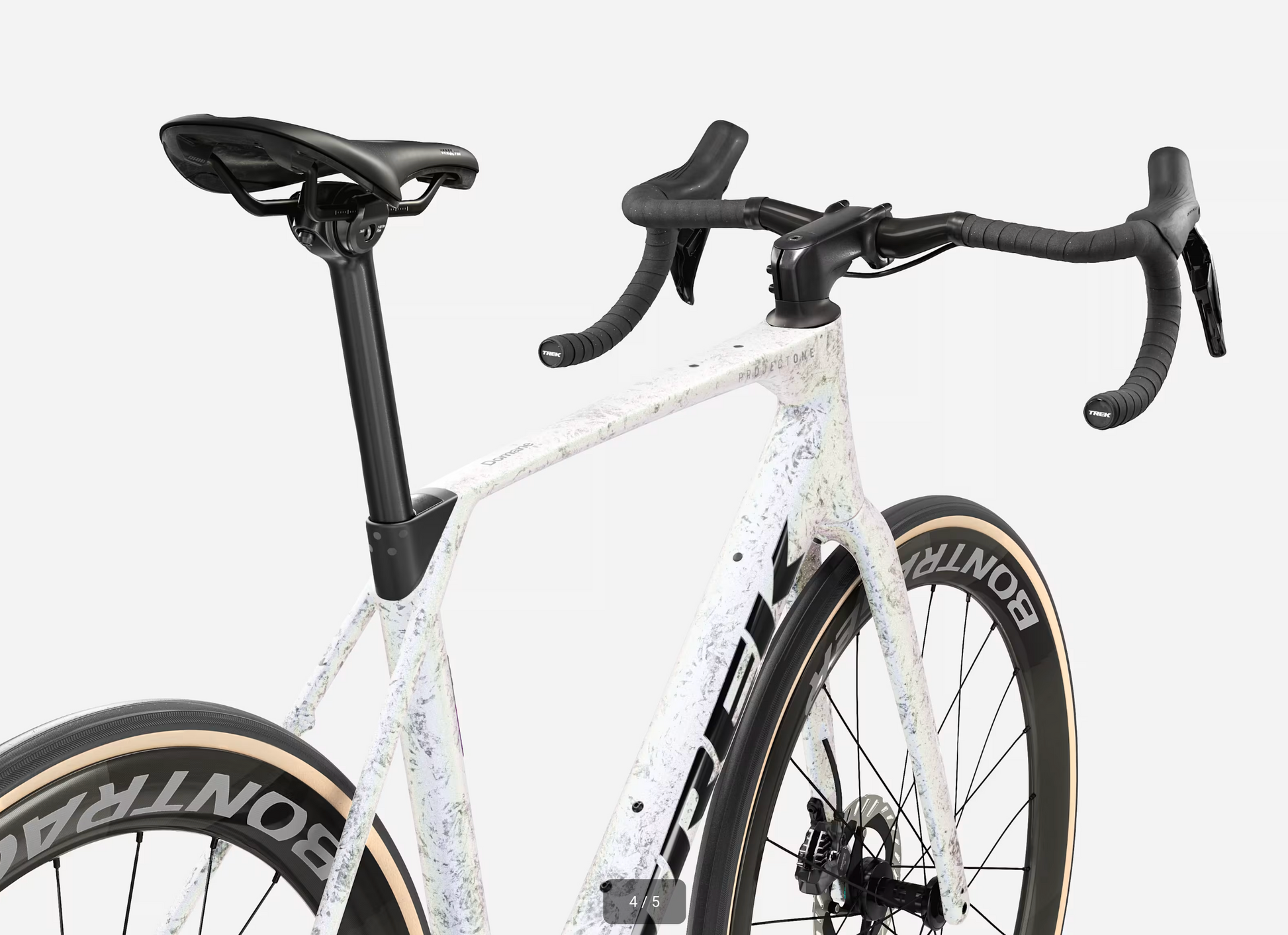

Domane SLR 9 Gen 5 2027

Frame
Size: XS, S, M, ML, XL
900 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle
Size: L
Karbon OCLV řady 900, vnitřní vedení lanek, integrované úchyty na brašnu na rám, T47, integrovaný držák řetězu, úchyty na blatníky, kotouč Flat Mount, UDH, pevná osa 142 x 12 mm.
Fork
Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle

Weight
Weight
ML - 7.34 kg / 16.19 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system
Battery
Shimano BT-DN300

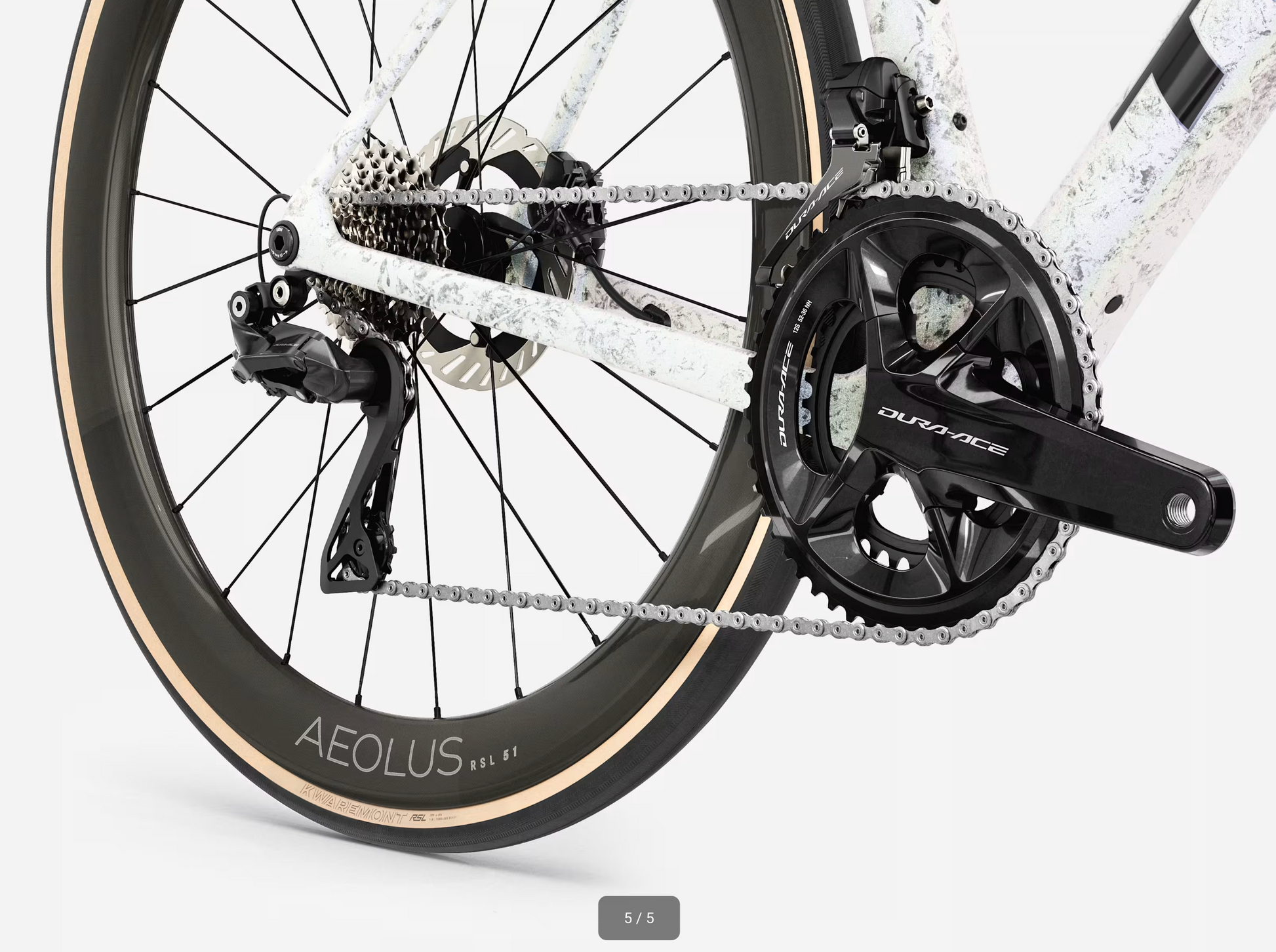

Drivetrain
Shifter
Shimano Dura-Ace R9271 Di2, 12 speed
Front derailleur
Shimano Dura-Ace R9250 Di2, braze-on, down swing
Rear derailleur
Shimano Dura-Ace R9250 Di2, 34T max cog
*Crank
Size: XS, S
Shimano Dura-Ace R9200, 50/34, 160mm length
Size: M, ML
Shimano Dura-Ace R9200, 50/34, 165mm length
Size: L, XL
Shimano Dura-Ace R9200, 50/34, 170mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano Dura-Ace R9200, 11-34, 12 speed
Chain
Shimano Dura-Ace/XTR M9100, 12 speed
Max chainring size
See service manual

Wheels
Wheel front
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle
Wheel rear
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, Shimano 11/12 freehub, 142x12mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tire
Bontrager Kwaremont RSL, Tubeless Ready, GR puncture protection, aramid bead, 320 tpi, 700x35mm
Tube
Pirelli P Zero SmarTube, TPU
Max tire size
40mm (as measured, see manual for details)

Components
Saddle
Verse Short Pro, carbon rails, 145mm width
Seatpost
Bontrager RSL carbon, 27.2mm, 5mm offset

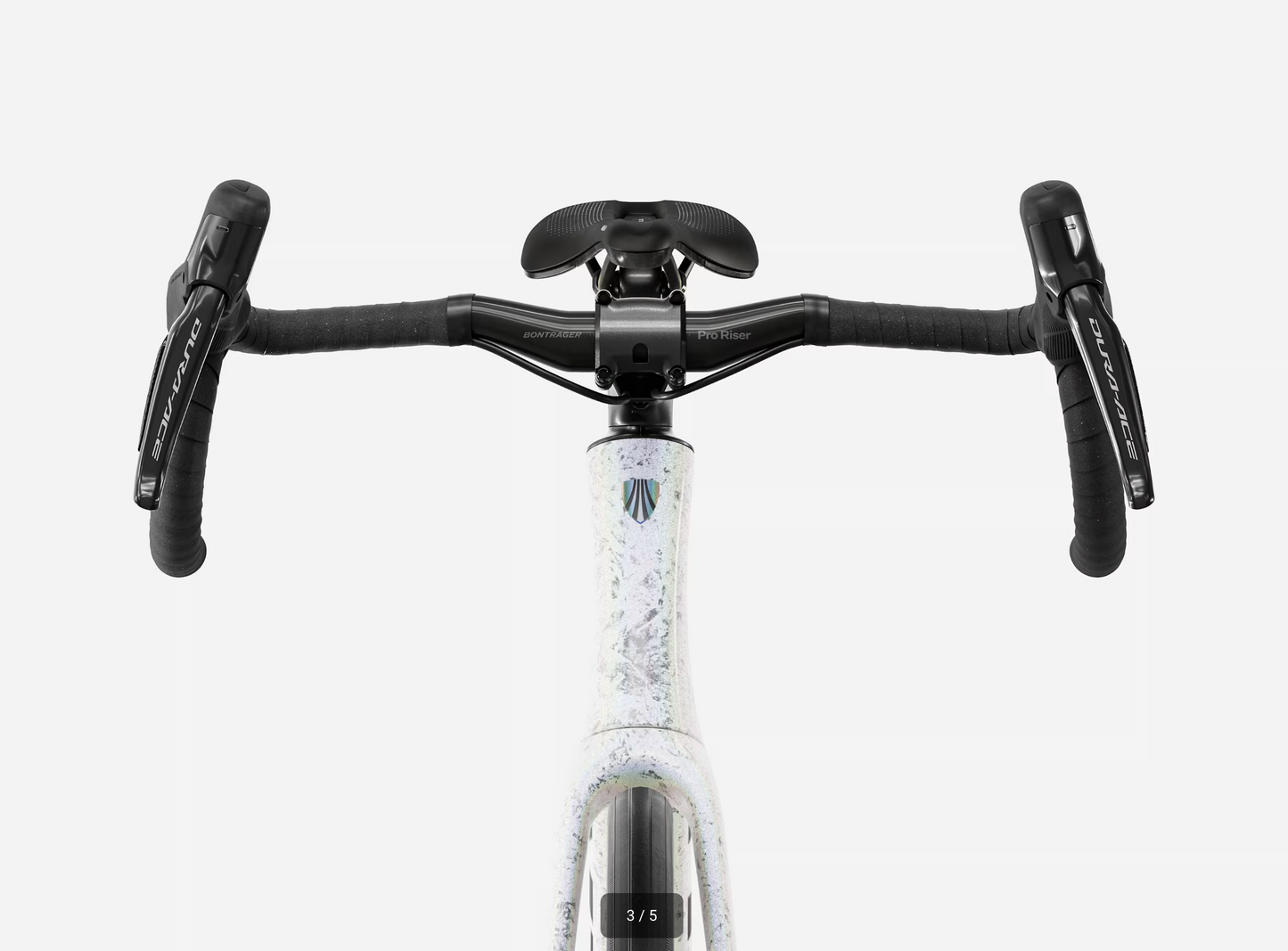

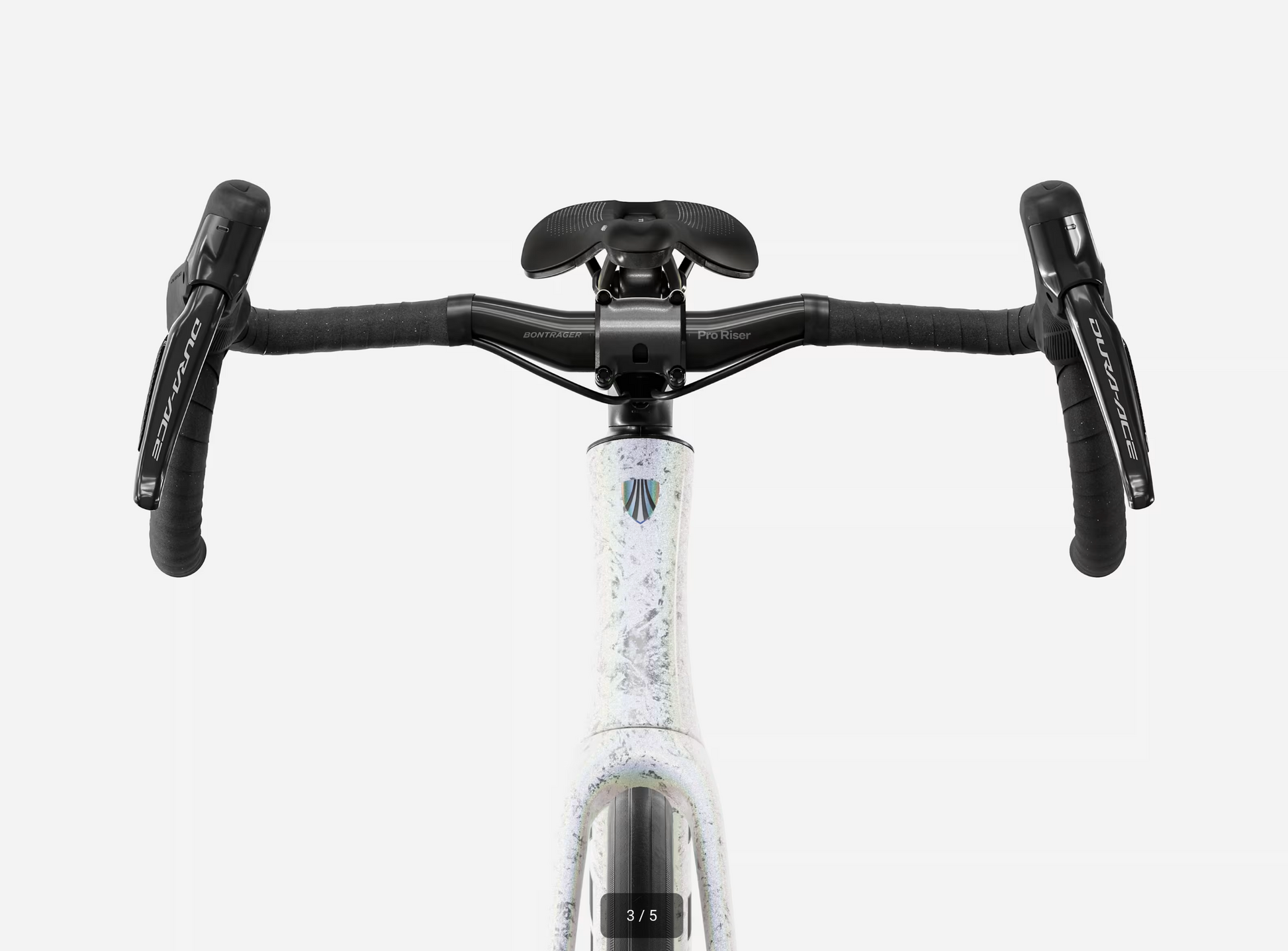

*Handlebar
Size: XS
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 36cm width
Size: S
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 38cm width
Size: M, ML
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 40cm width
Size: L, XL
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 42cm width
Handlebar tape
Trek gel cork
*Stem
Size: XS
Trek RCS Pro, -7 degree, 80mm length
Size: S
Trek RCS Pro, -7 degree, 90mm length
Size: M
Trek RCS Pro, -7 degree, 100mm length
Size: ML, L
Trek RCS Pro, -7 degree, 110mm length
Size: XL
Trek RCS Pro, -7 degree, 120mm length
Brake rotor
Shimano CL900, centerlock, 160mm
Rotor size
Max brake rotor sizes: 180mm front, 160 rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
