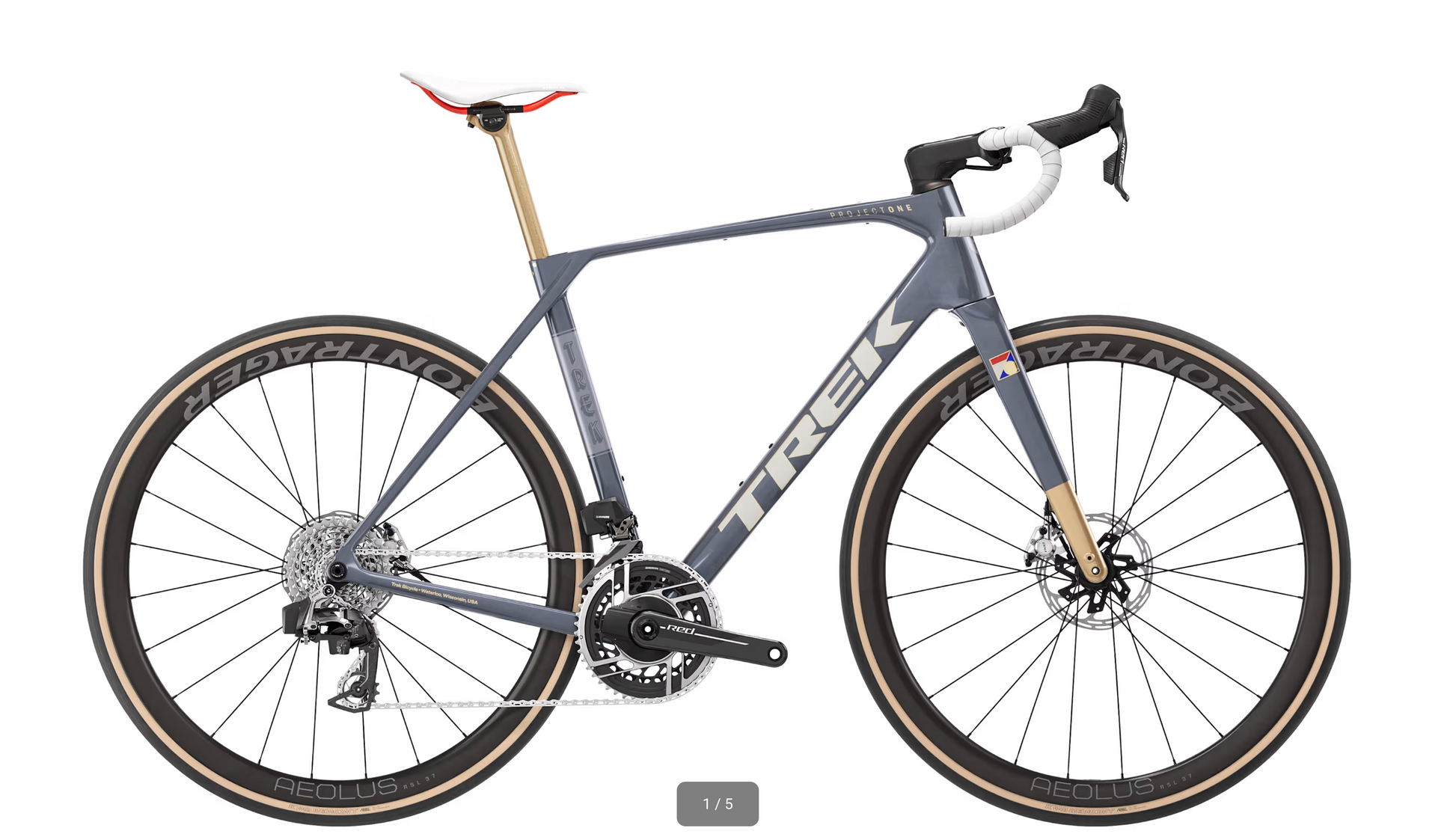

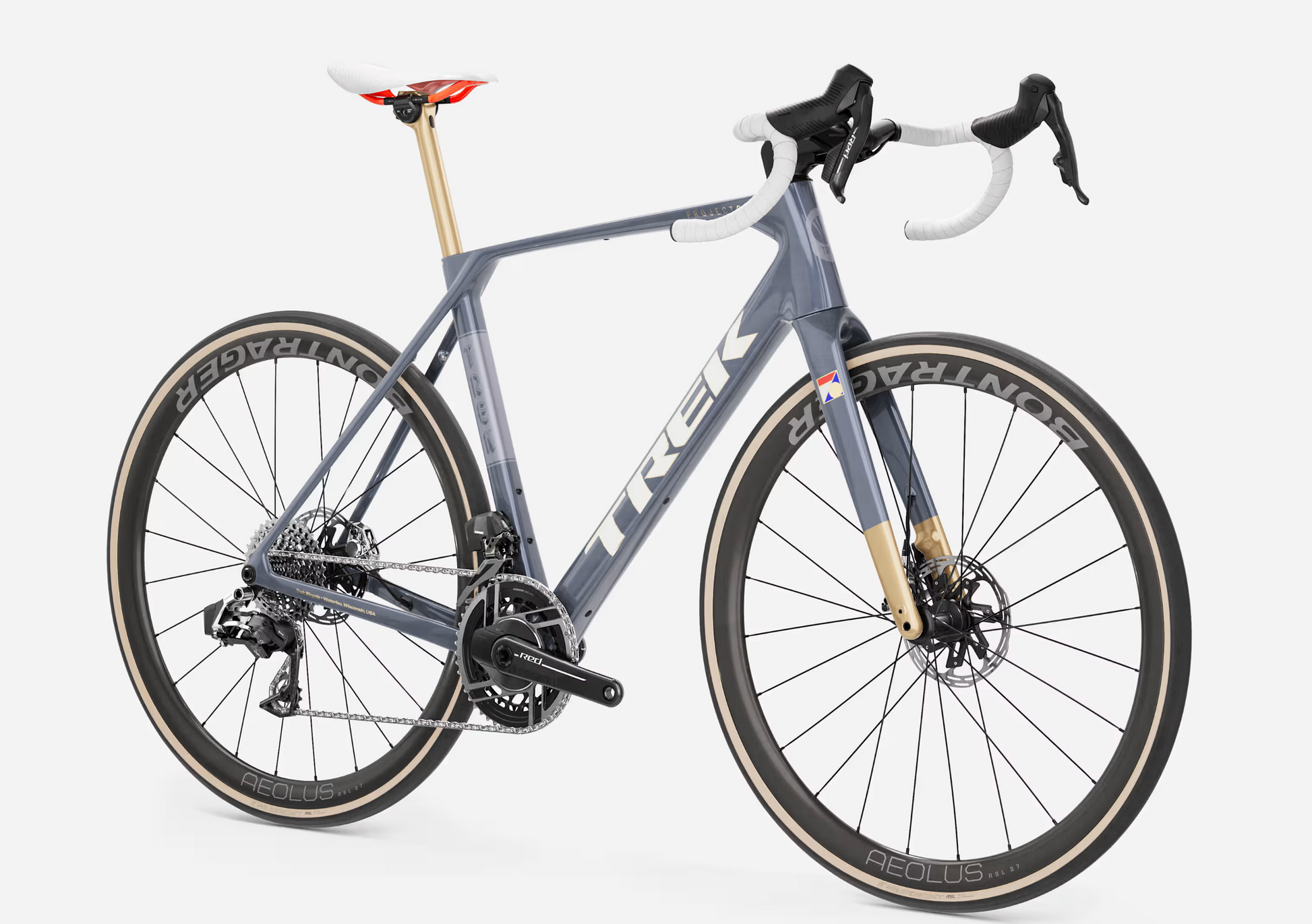

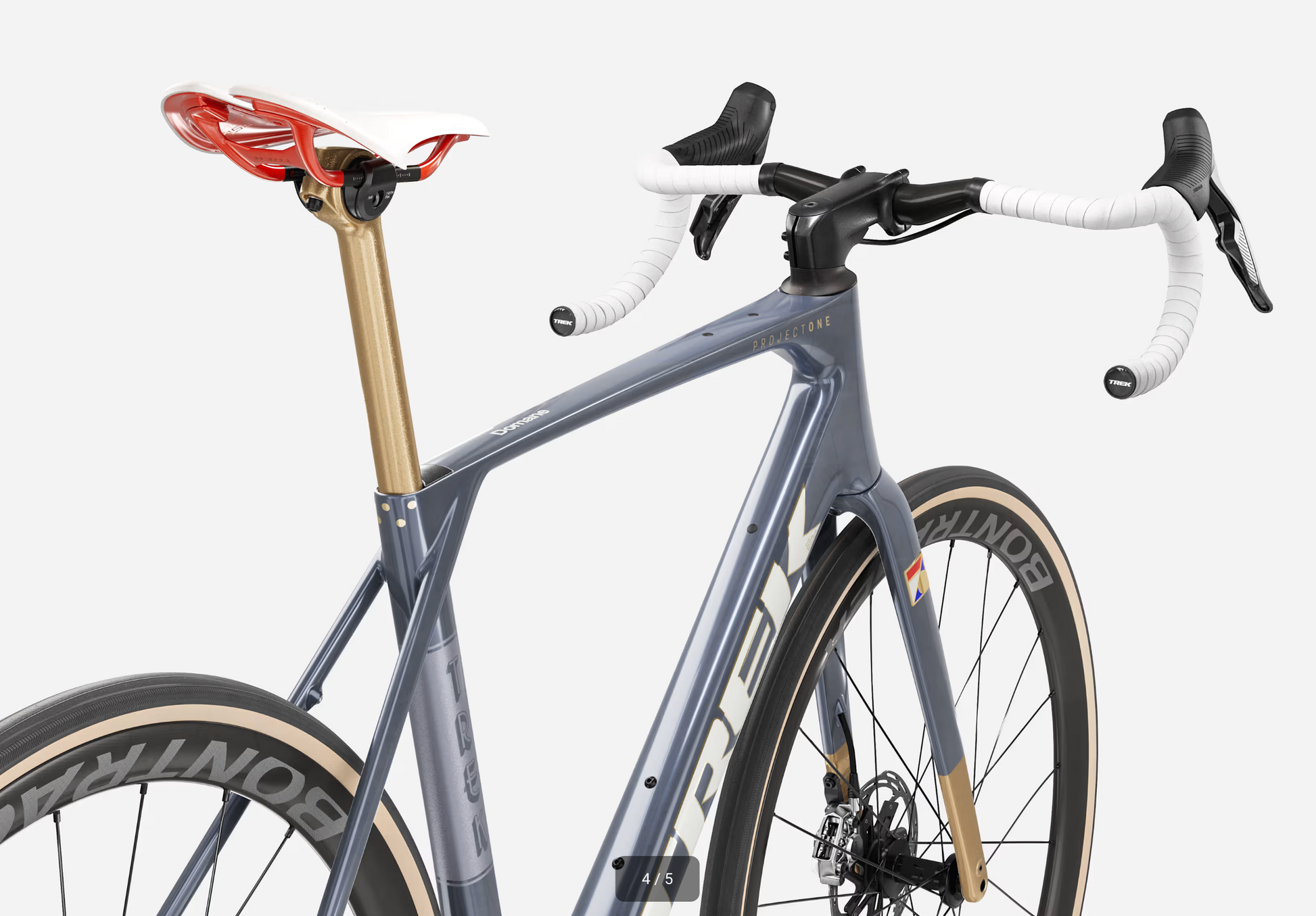

Domane SLR 9 AXS No. 76 Gen 5 2027 Ltd. Edition

Frame

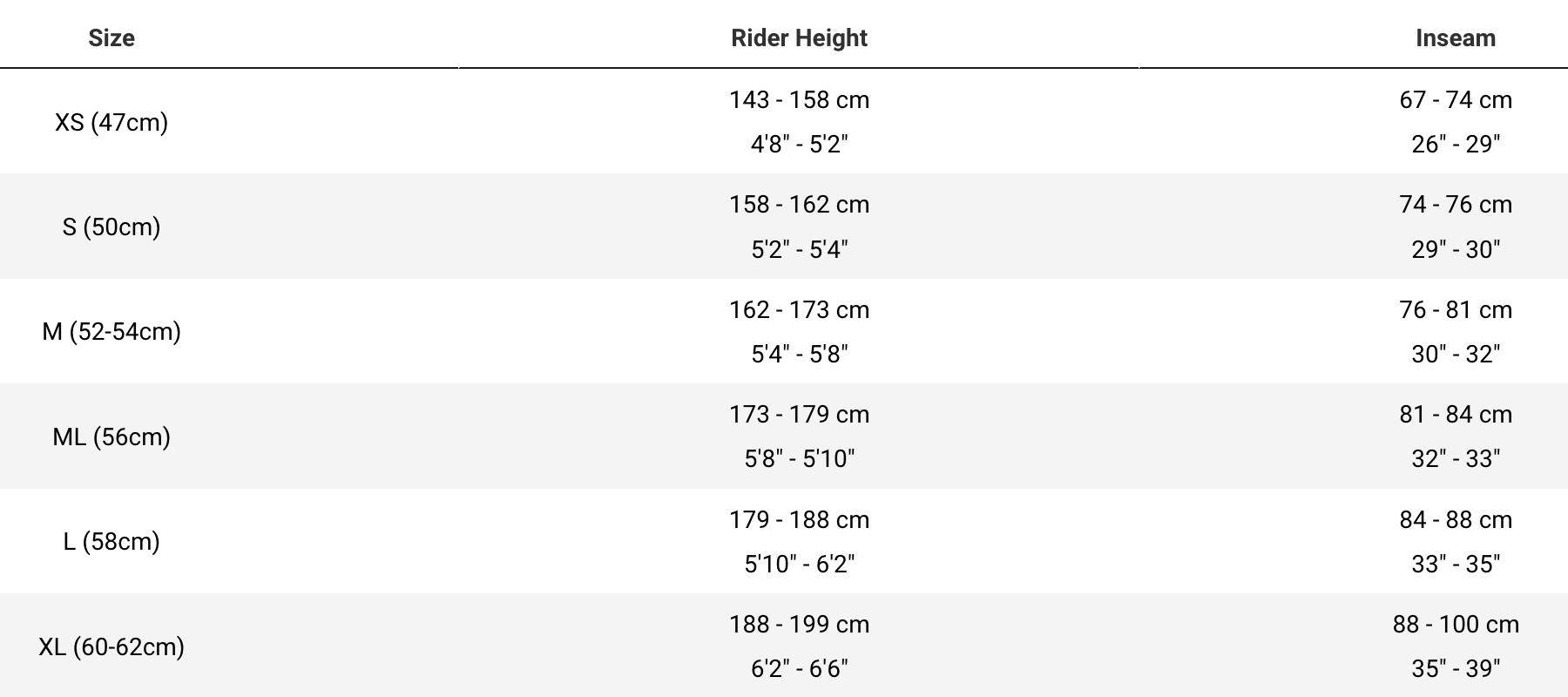

Size: XS, S, M, ML, XL
900 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle
Size: L
Karbon OCLV řady 900, vnitřní vedení lanek, integrované úchyty na brašnu na rám, T47, integrovaný držák řetězu, úchyty na blatníky, kotouč Flat Mount, UDH, pevná osa 142 x 12 mm.
*Fork
Size: XS, S, M
Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Size: ML, L, XL
Domane SLR karbon, kónický karbonový sloupek, vnitřní vedení brzdových lanek, úchyty na blatníky, kotouč s úchytem Flat Mount, karbonové patky, pevná osa 12 x 100 mm.

Weight
Weight
ML - 7.19 kg / 15.86 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system
Battery
SRAM AXS battery pack (with charger)

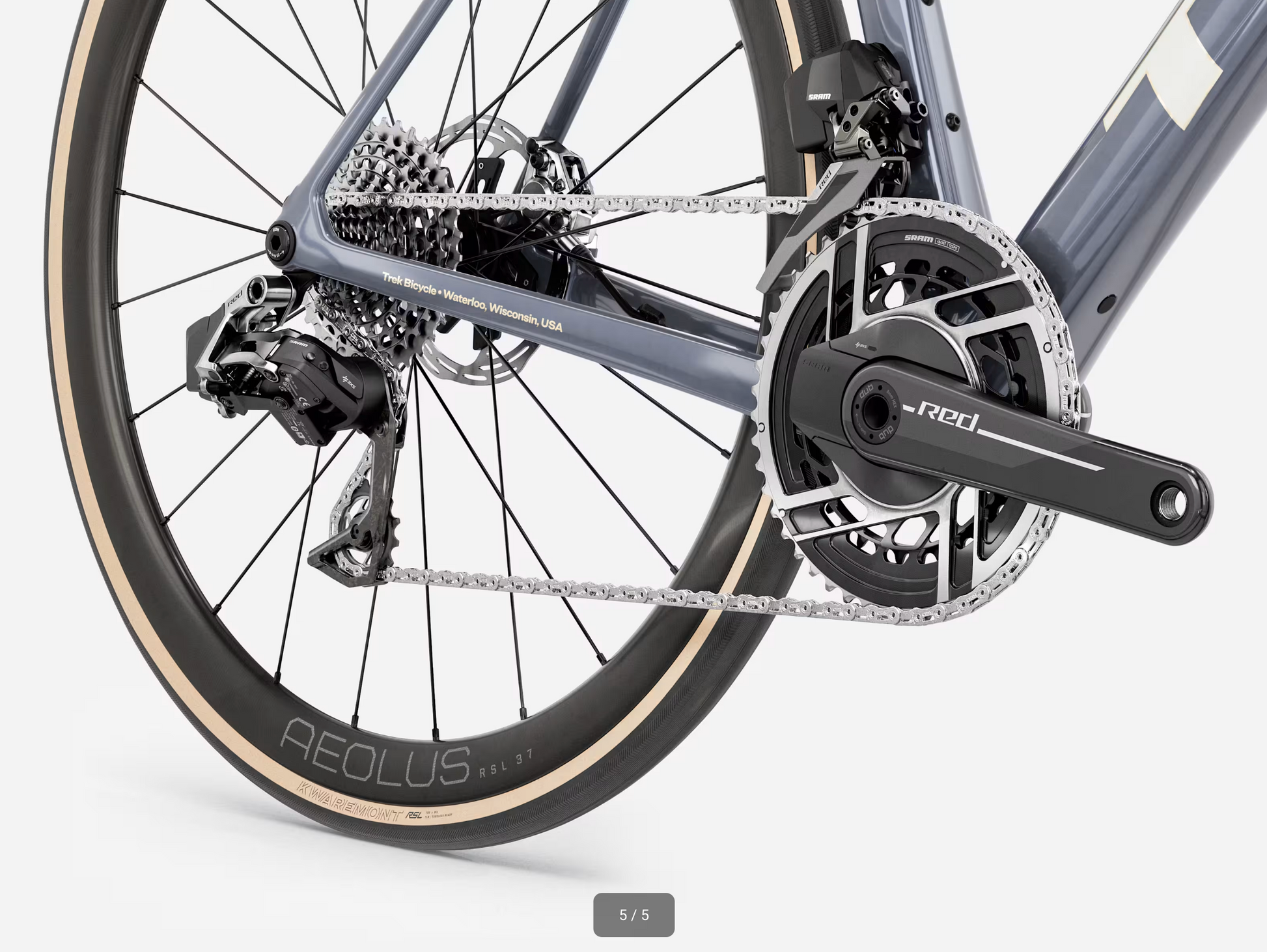

Drivetrain
Shifter
SRAM RED AXS E1
Front derailleur
SRAM RED AXS E1, braze-on
Rear derailleur
SRAM RED AXS E1, 36T max cog
*Crank
Size: XS, S
SRAM RED AXS E1, power meter, 48/35, DUB, 165mm length
Size: M, ML
SRAM RED AXS E1, power meter, 48/35, DUB, 170mm length
Size: L, XL
SRAM RED AXS E1, power meter, 48/35, DUB, 172.5mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM RED XG-1290 E1, 10-36, 12 speed
Chain
SRAM RED E1, 12/13 speed
Max chainring size
See service manual

Wheels
Wheel front
Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
Wheel rear
Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tire
Bontrager Kwaremont RSL, Tubeless Ready, GR puncture protection, aramid bead, 320 tpi, 700x35mm
Tube
Pirelli P Zero SmarTube, TPU
Max tire size
40mm (as measured, see manual for details)

Components
Saddle
Aeolus RSL, carbon rails, 145mm width, 50th anniversary edition
Seatpost
Bontrager RSL carbon, 27.2mm, 5mm offset

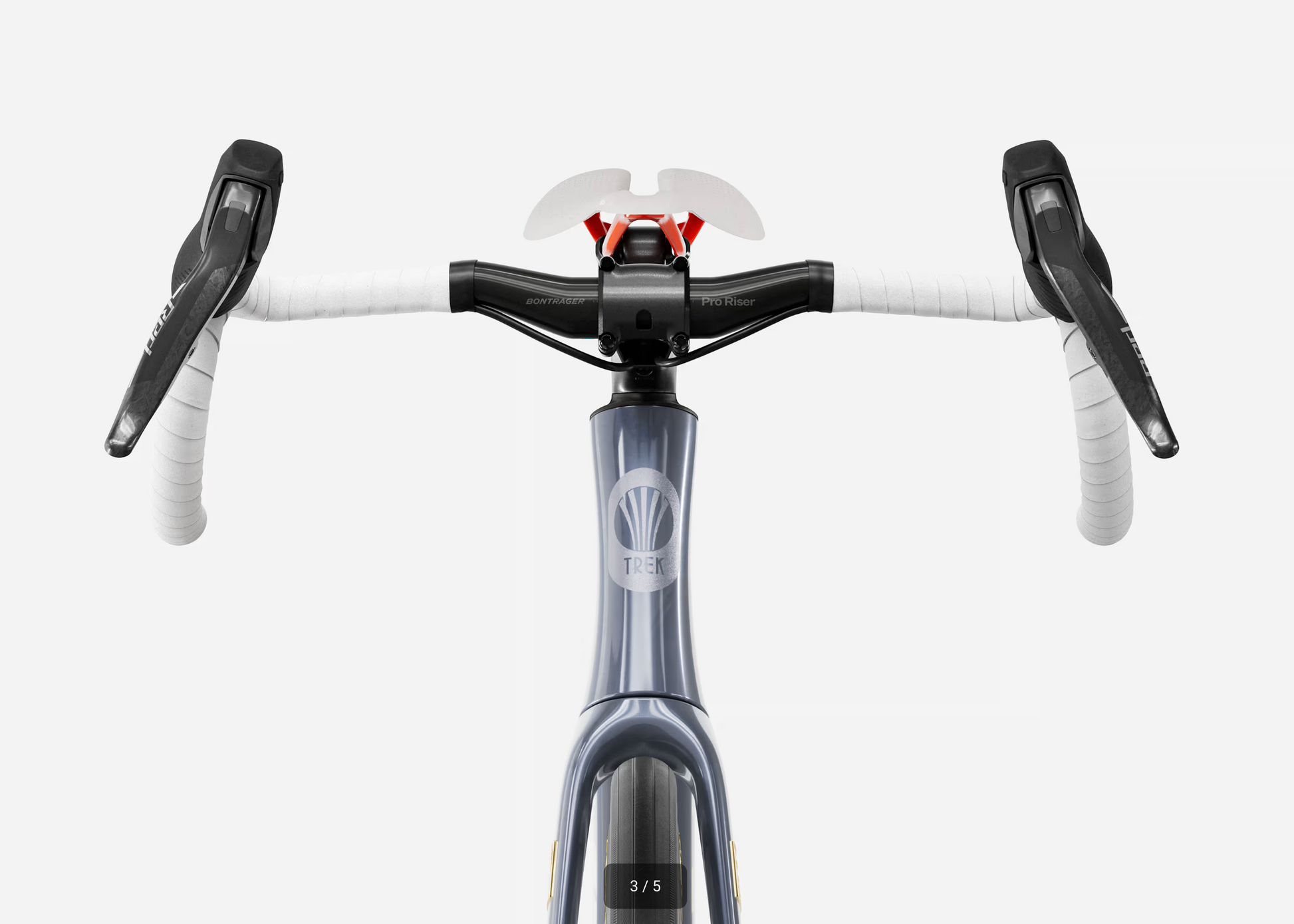

*Handlebar
Size: XS
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 36cm width
Size: S
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 38cm width
Size: M, ML
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 40cm width
Size: L, XL
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 42cm width
*Stem
Size: XS
Trek RCS Pro, -7 degree, 80mm length
Size: S
Trek RCS Pro, -7 degree, 90mm length
Size: M
Trek RCS Pro, -7 degree, 100mm length
Size: ML, L
Trek RCS Pro, -7 degree, 110mm length
Size: XL
Trek RCS Pro, -7 degree, 120mm length
Brake rotor
SRAM Paceline X, rounded, centerlock, 160mm
Rotor size
Max brake rotor sizes: 180mm front, 160 rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
