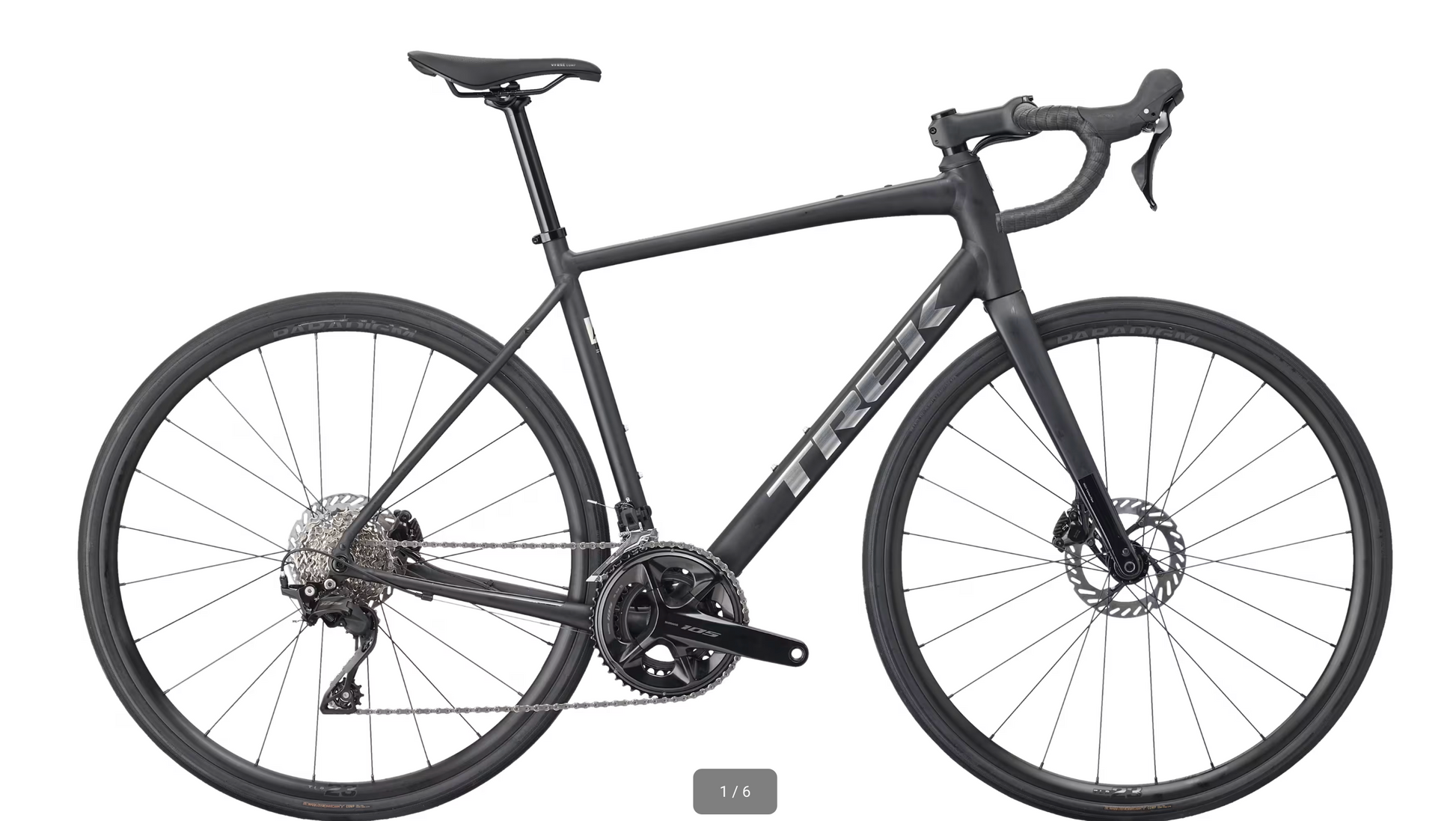

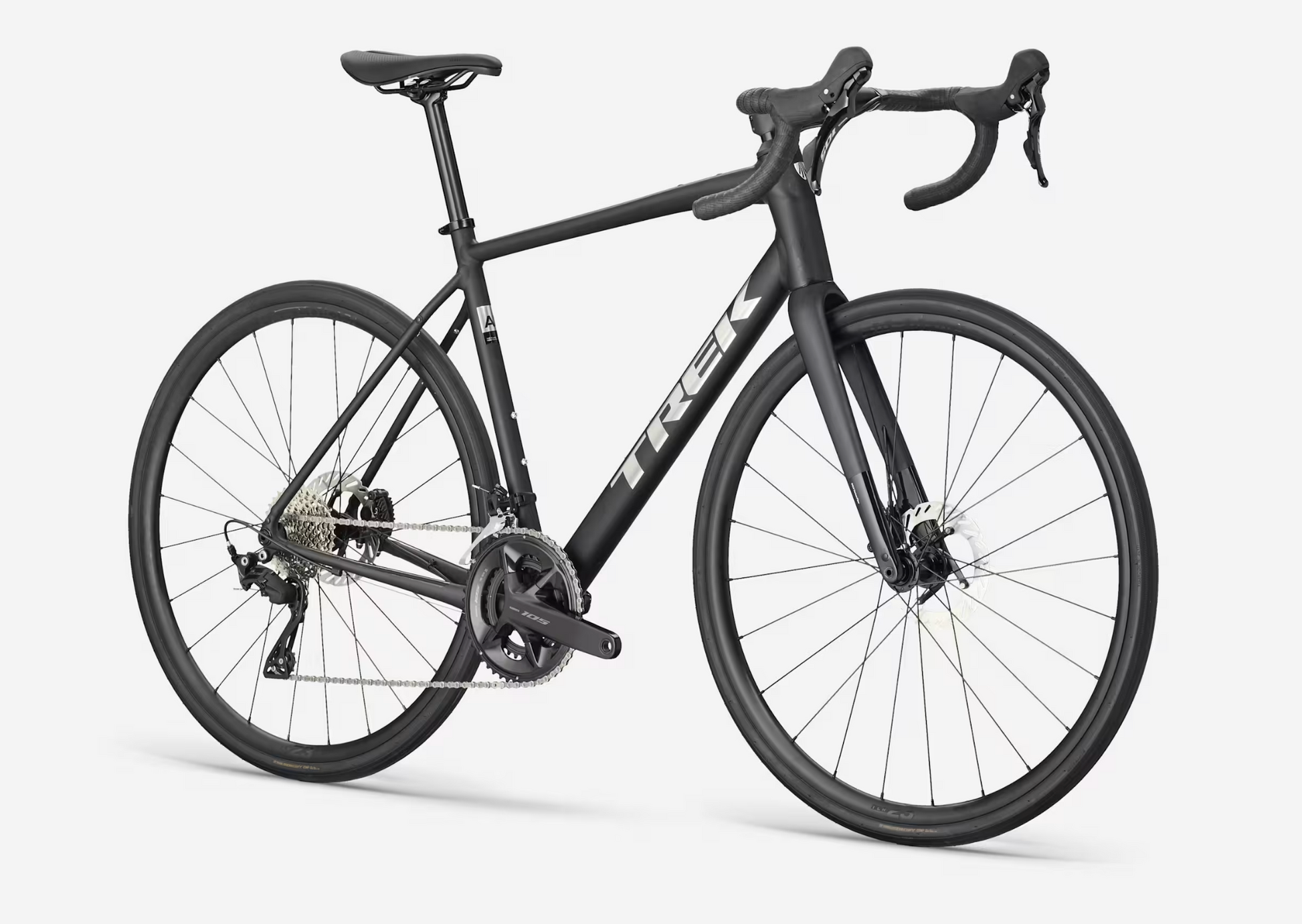

Domane SLR 9 AXS 1x Gen 5 2027

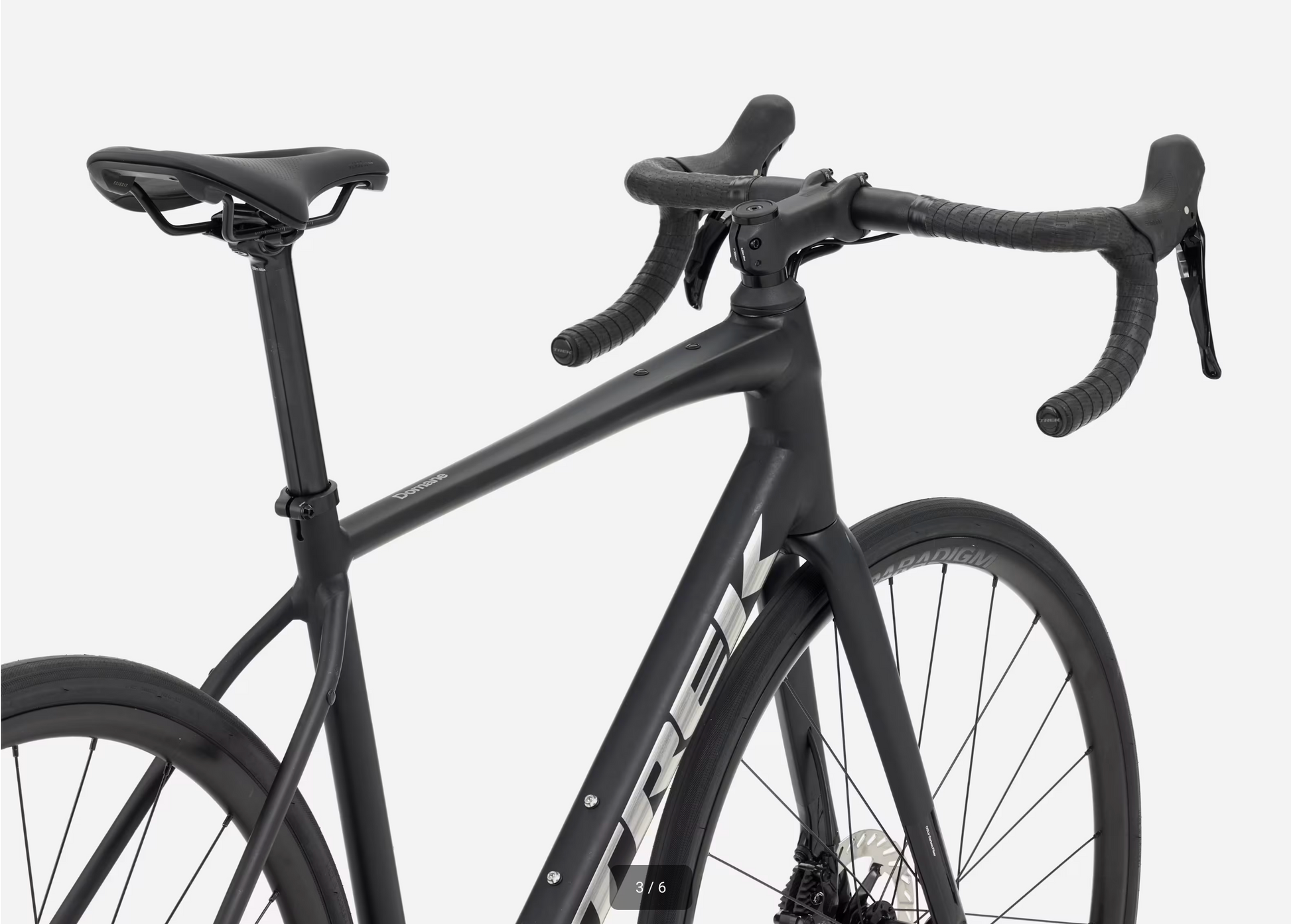

Frame
Size: XS, S, M, ML, XL
900 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle
Size: L
Karbon OCLV řady 900, vnitřní vedení lanek, integrované úchyty na brašnu na rám, T47, integrovaný držák řetězu, úchyty na blatníky, kotouč Flat Mount, UDH, pevná osa 142 x 12 mm.
Fork
Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle

Weight
Weight
ML - 6.63 kg / 14.62 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system
Battery
SRAM AXS battery pack (with charger)

Drivetrain
Shifter
SRAM RED AXS E1
Rear derailleur
SRAM RED XPLR eTap AXS, 46T max cog
*Crank
Size: XS, S
SRAM RED, power meter, 44T, DUB, 160mm length
Size: M, ML
SRAM RED, power meter, 44T, DUB, 165mm length
Size: L, XL
SRAM RED, power meter, 44T, DUB, 170mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM XG-1391, 10-46T, 13 speed
Chain
SRAM RED E1, 12/13 speed
Max chainring size
See service manual

Wheels
Wheel front
Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
Wheel rear
Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tire
Pirelli P Zero Race RS, 120 tpi, 700x28mm
Tube
Pirelli P Zero SmarTube, TPU
Max tire size
40mm (as measured, see manual for details)

Components
Saddle
Aeolus RSL AirLoom, carbon rails, 145mm width
Seatpost
Bontrager RSL carbon, 27.2mm, 5mm offset

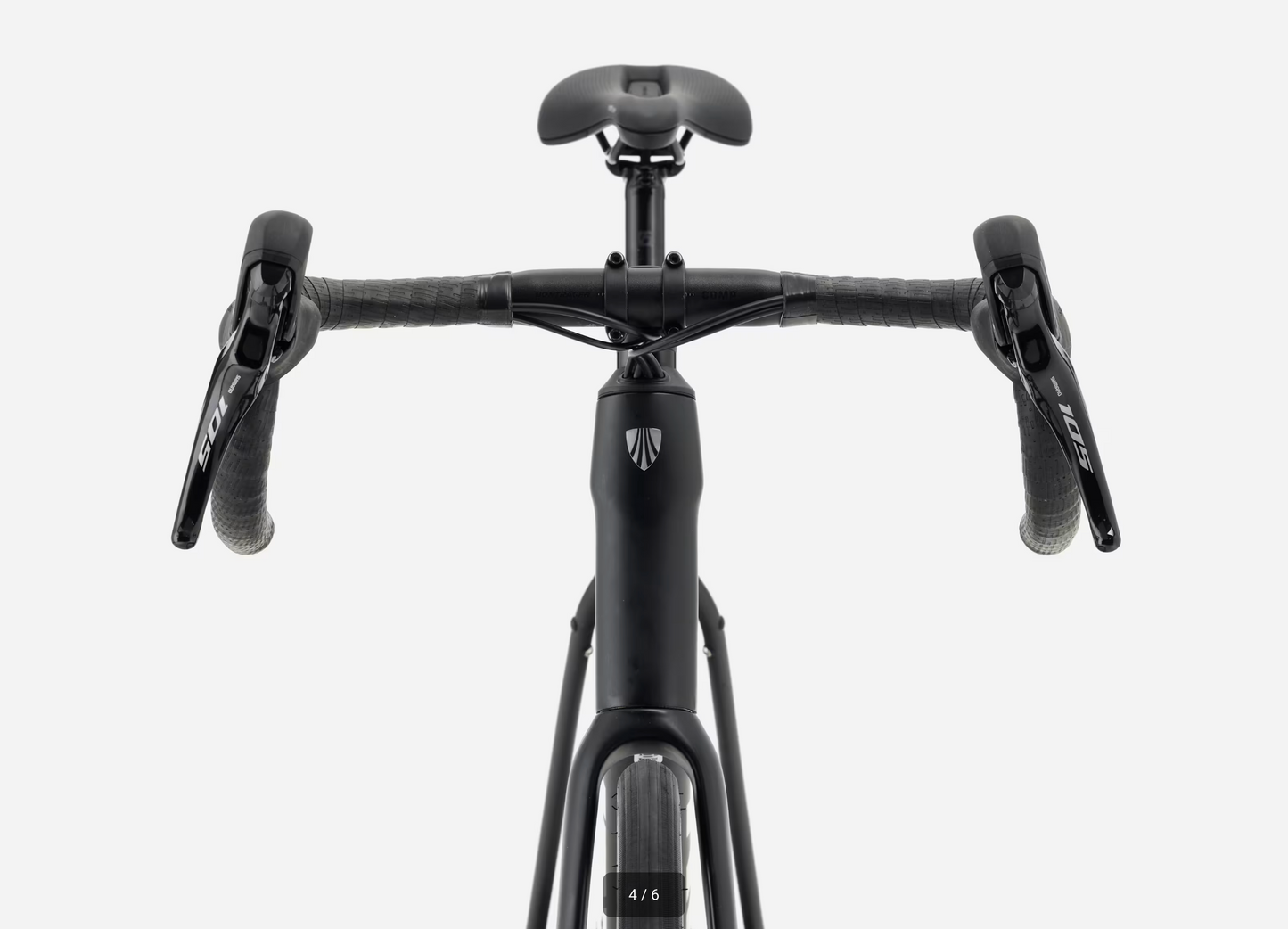

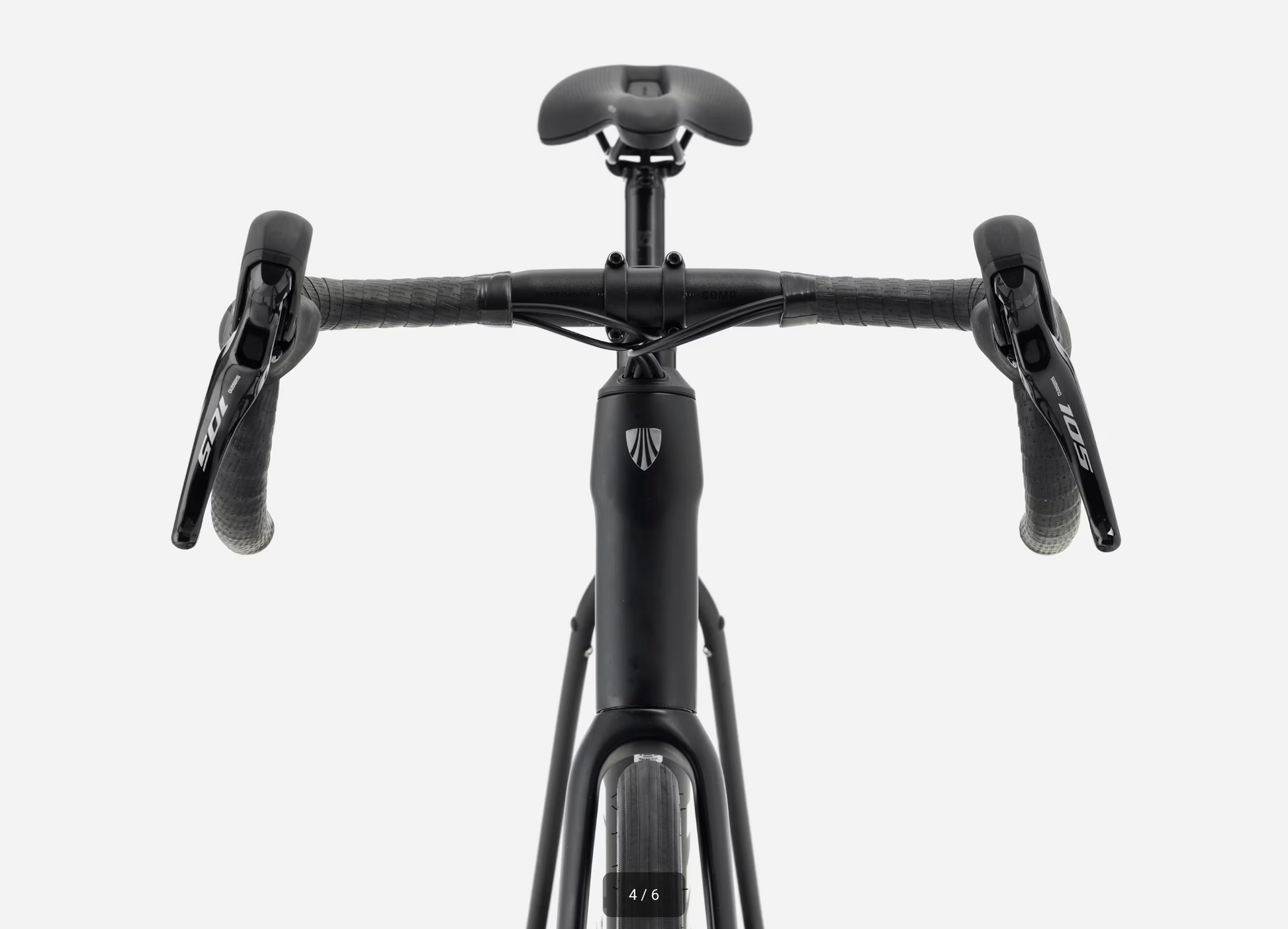

*Handlebar/stem (integrated)
Size: XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 35cm control width, 38cm drop width, 80mm stem length
Size: S
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 90mm stem length
Size: M
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length
Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 100mm stem length
Size: XL
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length
Handlebar tape
Trek gel cork
Brake rotor
SRAM Paceline X, rounded, centerlock, 160mm
Rotor size
Max brake rotor sizes: 180mm front, 160 rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
