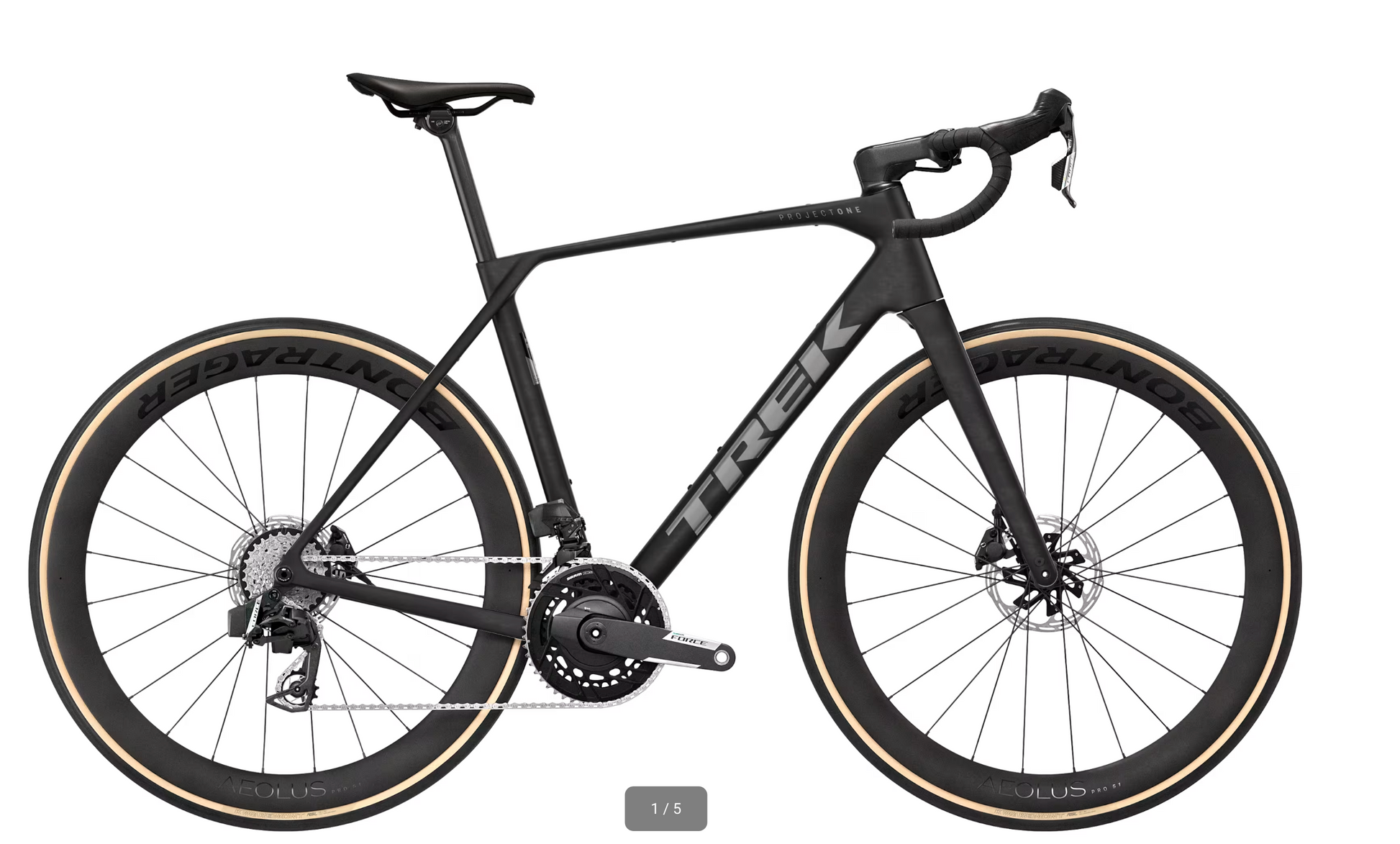

Domane SLR 7 AXS Gen 5 Project One Limited Edition 2027
Domane SLR 7 AXS Gen 5 Project One Limited Edition 2027
Couldn't load pickup availability
Pick up could take up to 10 days
Pick up could take up to 10 days
Not all our bikes are stored at our retail location so in store pick up for bikes could take up to 10 days.
Please contact the store for more information on estimated pick up ETA.
Don't see what you want?
Don't see what you want?
Other colour and size options might be available for special order.
Contact us for more information.
Custom Order
Please allow lead time of 60- 90 days, please contact us prior to completing your order.
Domane SLR 7 AXS Gen 5 brings lightweight comfort and endurance performance together in a clean, modern build.

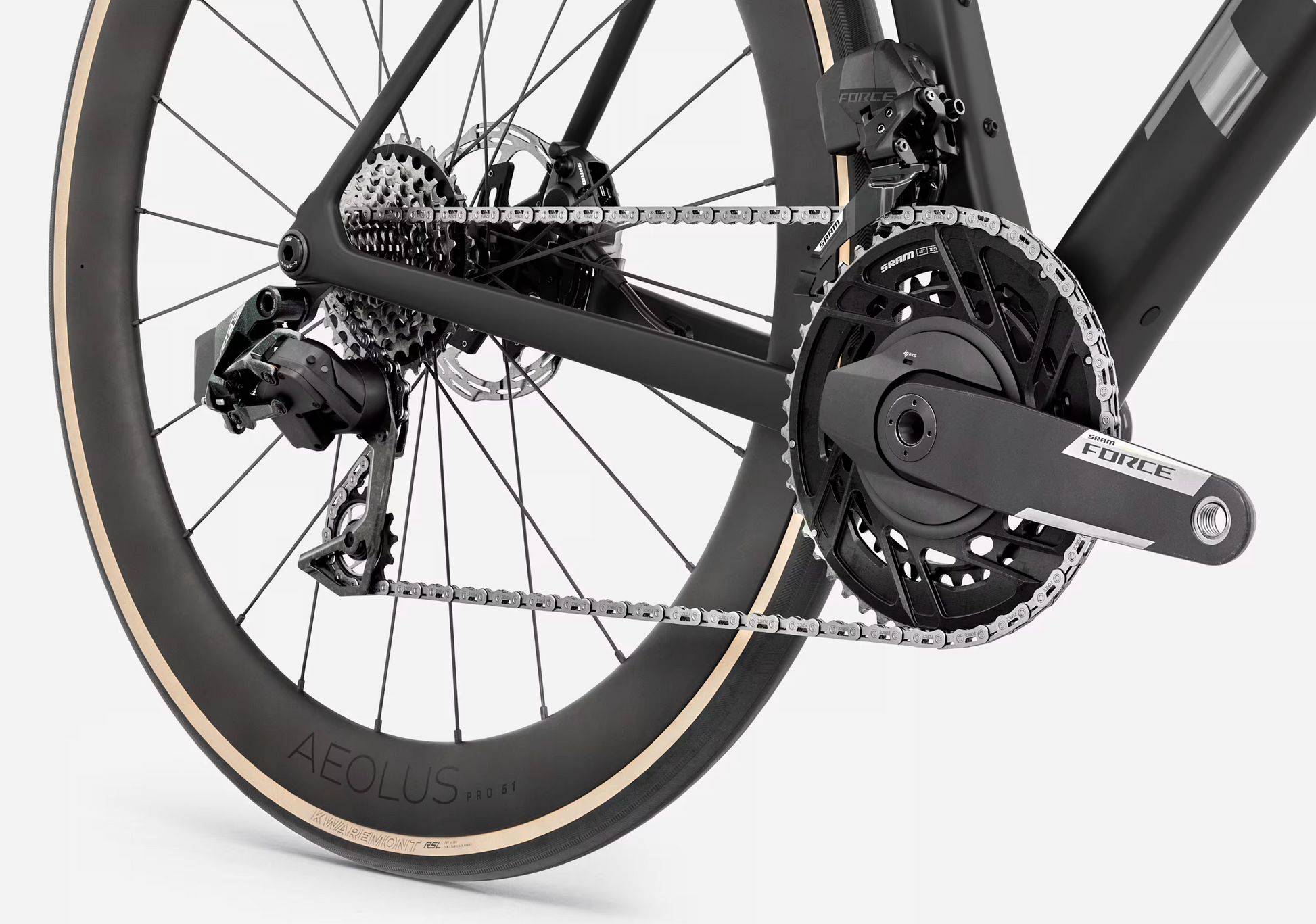

It’s made from ultralight 900 Series OCLV Carbon and pairs a SRAM Force AXS 2x12 wireless drivetrain with an integrated power meter.
Bontrager Aeolus Pro 51 OCLV Carbon wheels and a carbon riser bar offer smooth rolling and stable, upright comfort for long days on the road.
How tall are you?
To measure your height, stand straight up, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inseam?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inseam measurement. Your inseam is very important to your final bike size so please measure carefully.
Share
Details
Specifications
Frame
Size: XS, S, M, ML, XL
900 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle
Size: L
Karbon OCLV řady 900, vnitřní vedení lanek, integrované úchyty na brašnu na rám, T47, integrovaný držák řetězu, úchyty na blatníky, kotouč Flat Mount, UDH, pevná osa 142 x 12 mm.
Fork
Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Weight
Weight
ML - 7.73 kg / 17.05 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
E-system
Battery
SRAM AXS battery pack (with charger)
Drivetrain
Shifter
SRAM Force AXS E1
Front derailleur
SRAM Force AXS, braze-on
Rear derailleur
SRAM Force AXS, 36T max cog
*Crank
Size: XS, S
SRAM Force AXS with power meter, 48/35, DUB, 160mm length
Size: M, ML
SRAM Force AXS with power meter, 48/35, DUB, 165mm length
Size: L, XL
SRAM Force AXS with power meter, 48/35, DUB, 170mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM Force XG-1270, 10-36, 12 speed
Chain
SRAM Force E1, 12/13 speed
Max chainring size
See service manual
Wheels
Wheel front
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Wheel rear
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tire
Bontrager Kwaremont RSL, možnost použití bezdušových plášťů, ochrana proti propíchnutí GR, aramidová patka, 320 tpi, 700 x 35 mm.
Tube
Pirelli P Zero SmarTube, TPU
Max tire size
40mm (as measured, see manual for details)
Components
Saddle
Verse Short Pro, carbon rails, 145mm width
Seatpost
Bontrager RSL carbon, 27.2mm, 5mm offset

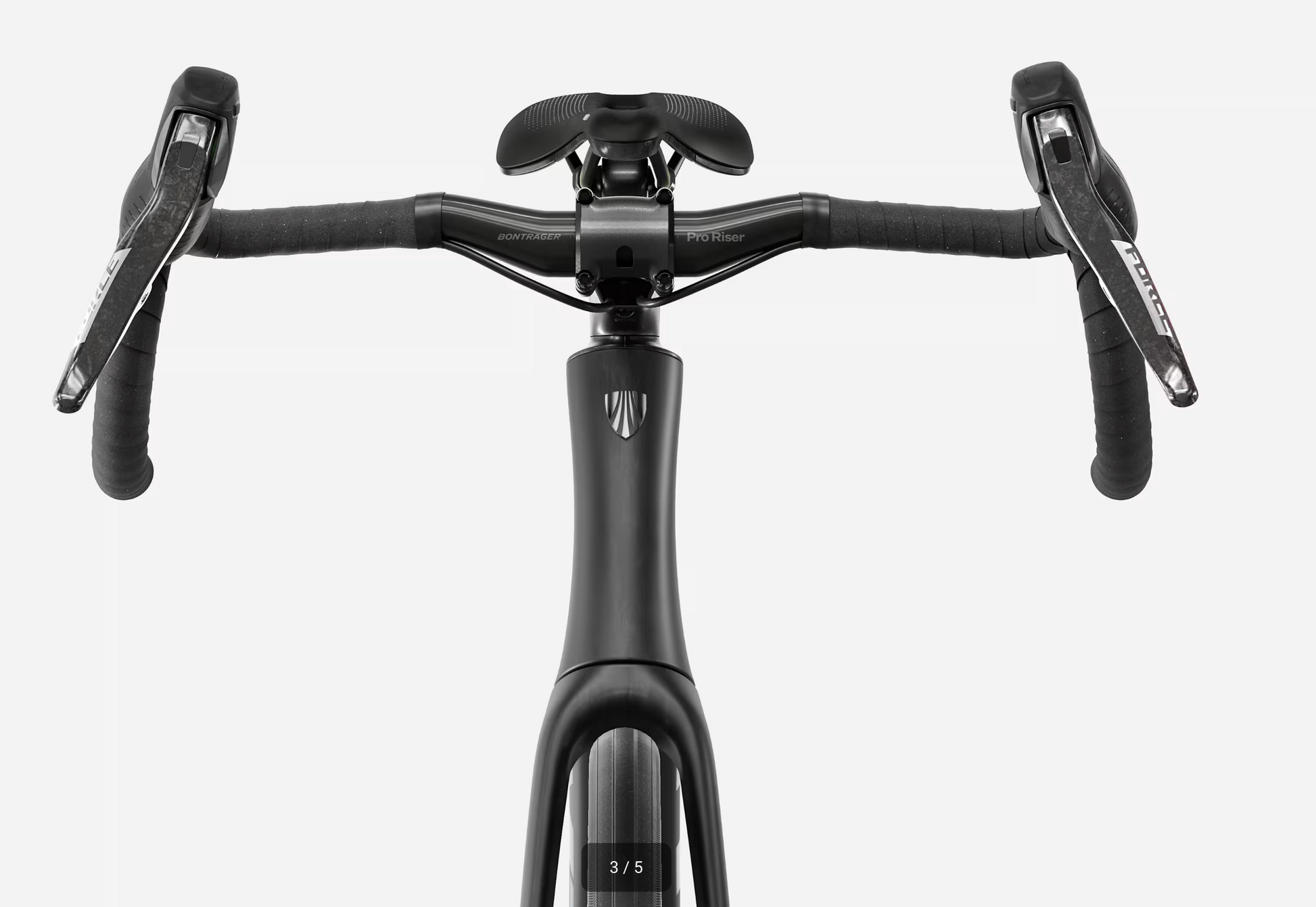

*Handlebar
Size: XS
Bontrager Pro Riser, karbon, 20mm prohnutí, 31,8, 70mm dosah, šířka 36 cm.
Size: S
Bontrager Pro Riser, karbon, 20mm prohnutí, 31,8, 70mm dosah, šířka 38 cm.
Size: M, ML
Bontrager Pro Riser, karbon, 20mm prohnutí, 31,8, 70mm dosah, šířka 40 cm.
Size: L, XL
Bontrager Pro Riser, karbon, 20mm prohnutí, 31,8, 70mm dosah, šířka 42 cm.
*Stem
Size: XS
Trek RCS Pro, -7 degree, 80mm length
Size: S
Trek RCS Pro, -7 degree, 90mm length
Size: M
Trek RCS Pro, -7 degree, 100mm length
Size: ML, L
Trek RCS Pro, -7 degree, 110mm length
Size: XL
Trek RCS Pro, -7 degree, 120mm length
Brake rotor
SRAM Paceline X, rounded, centerlock, 160mm
Rotor size
Max brake rotor sizes: 180mm front, 160 rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
