Domane SL 6 AXS Gen 5 2027
Domane SL 6 AXS Gen 5 2027
Couldn't load pickup availability
Pick up could take up to 10 days
Pick up could take up to 10 days
Not all our bikes are stored at our retail location so in store pick up for bikes could take up to 10 days.
Please contact the store for more information on estimated pick up ETA.
Don't see what you want?
Don't see what you want?
Other colour and size options might be available for special order.
Contact us for more information.

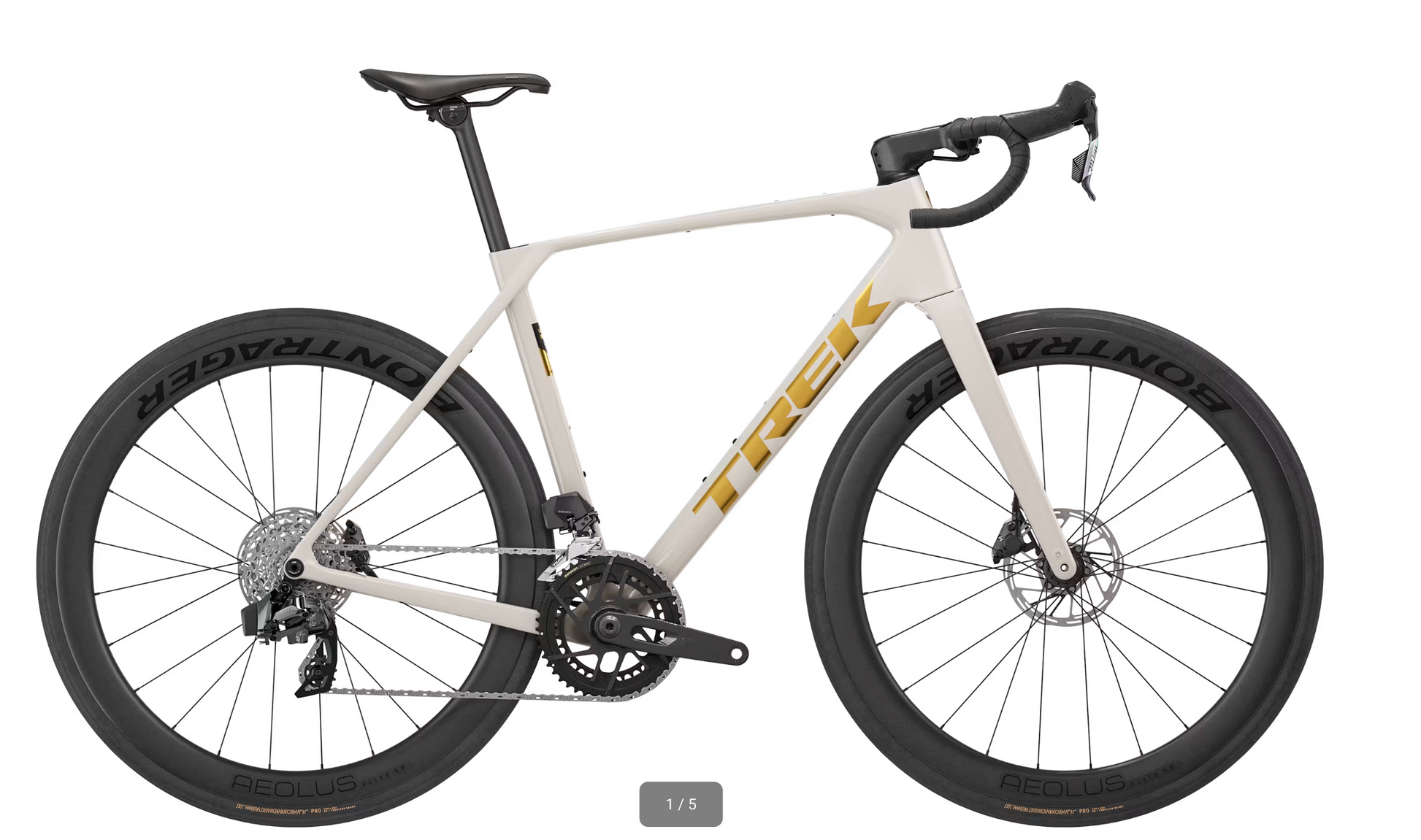

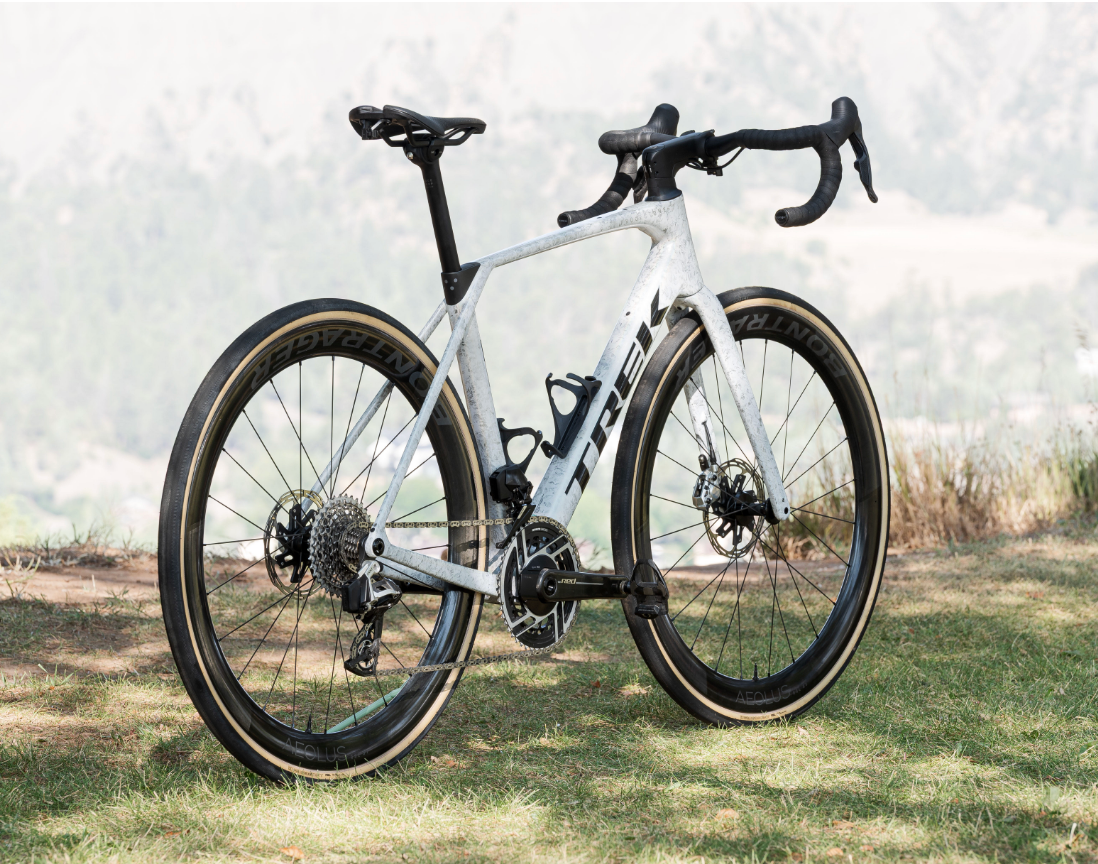

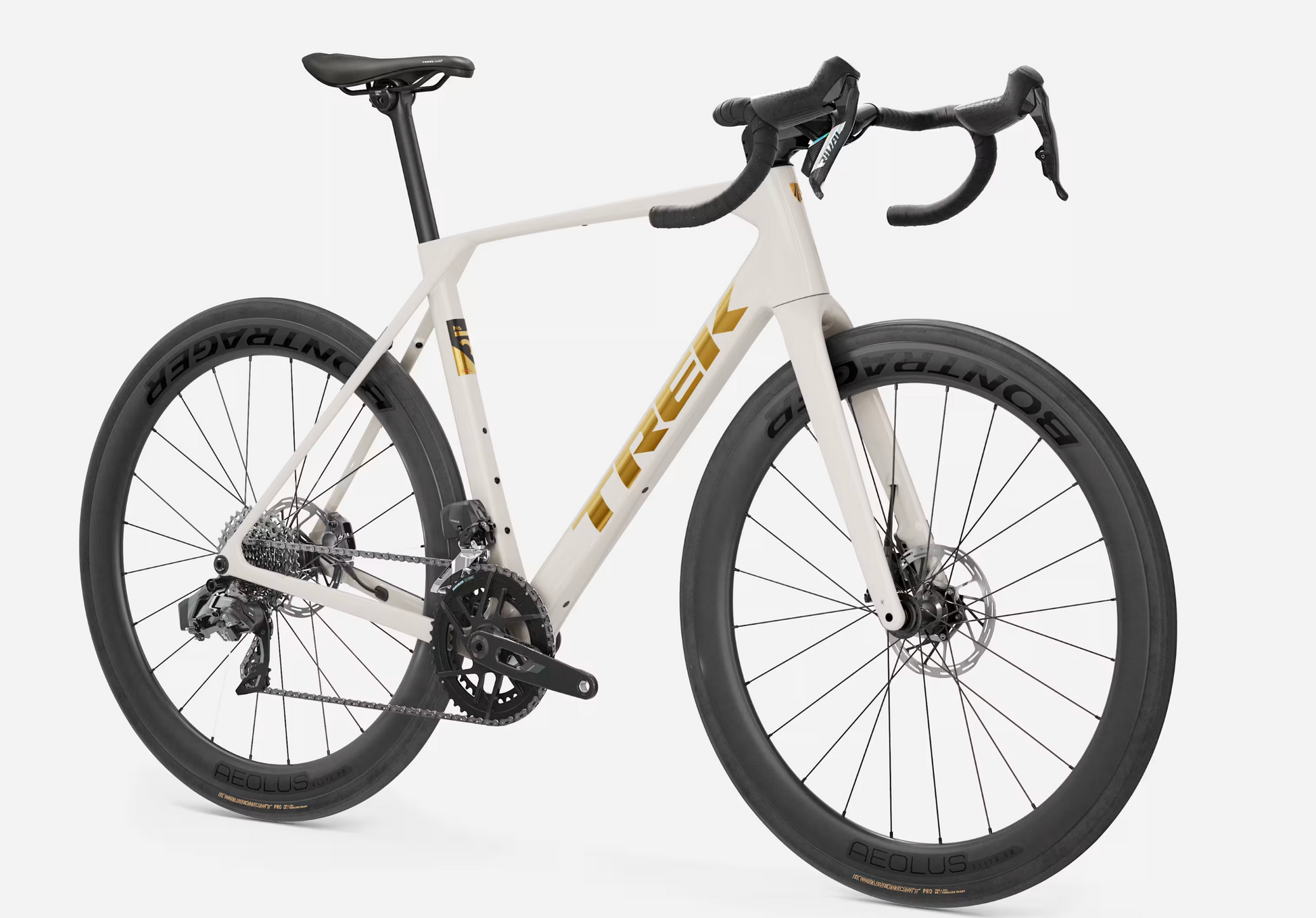

Domane SL 6 AXS is a lightweight carbon endurance bike with high-tech wireless performance.
Its 500 Series OCLV Carbon frame keeps the ride smooth and efficient, with 40mm tire clearance for added comfort and versatility.
A SRAM Rival AXS 2x12 drivetrain delivers crisp, wireless shifting, a sleek riser bar keeps you comfortable without cluttering your front end, and Bontrager Aeolus Elite 50 carbon wheels add speed and stability for long endurance rides.
How tall are you?
To measure your height, stand straight up, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inseam?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inseam measurement. Your inseam is very important to your final bike size so please measure carefully.
Share
Details
Specifications

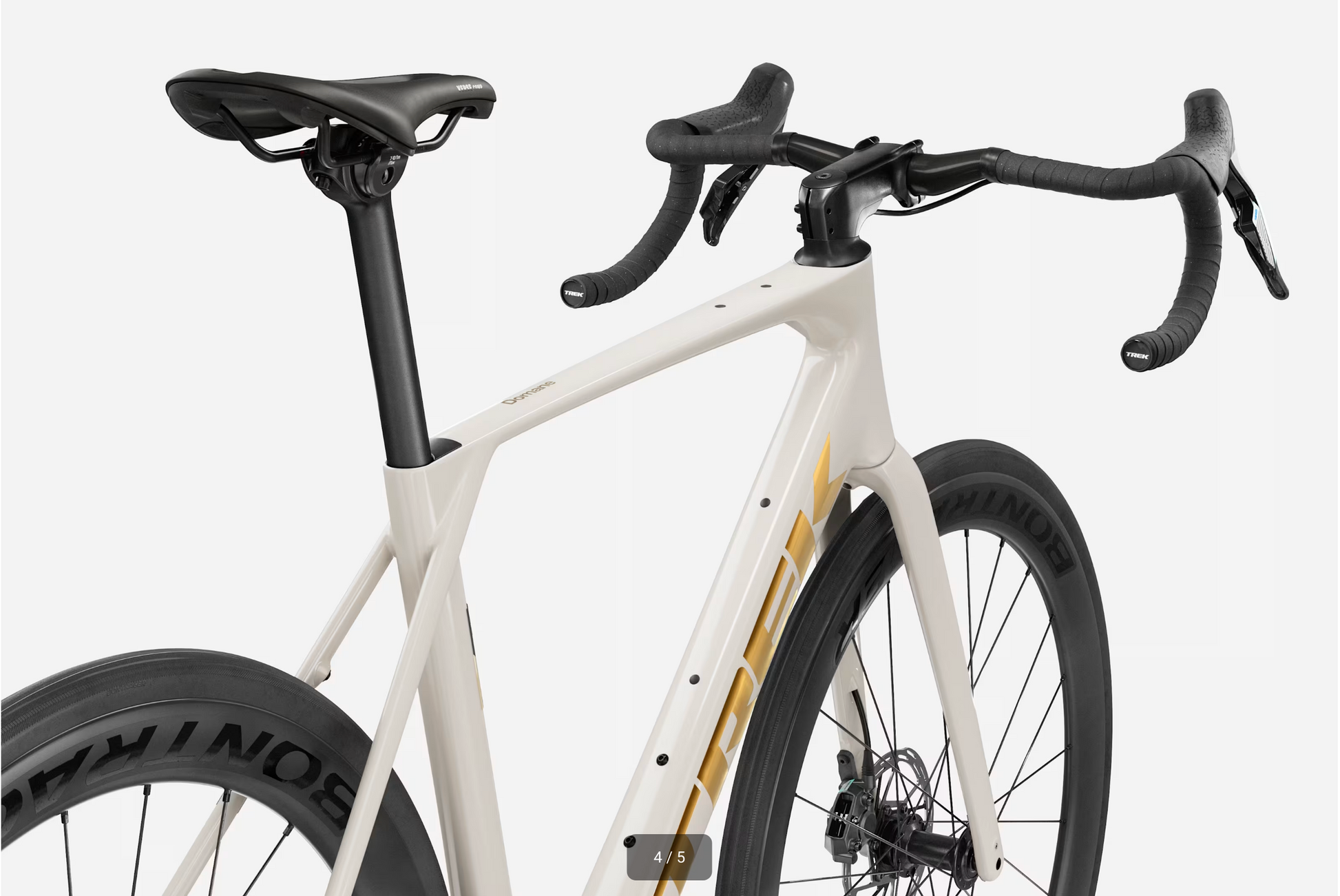

Frame
500 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle
Fork
Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Weight
Weight
ML - 8.64 kg / 19.05 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
E-system
Battery
SRAM AXS battery pack (with charger)

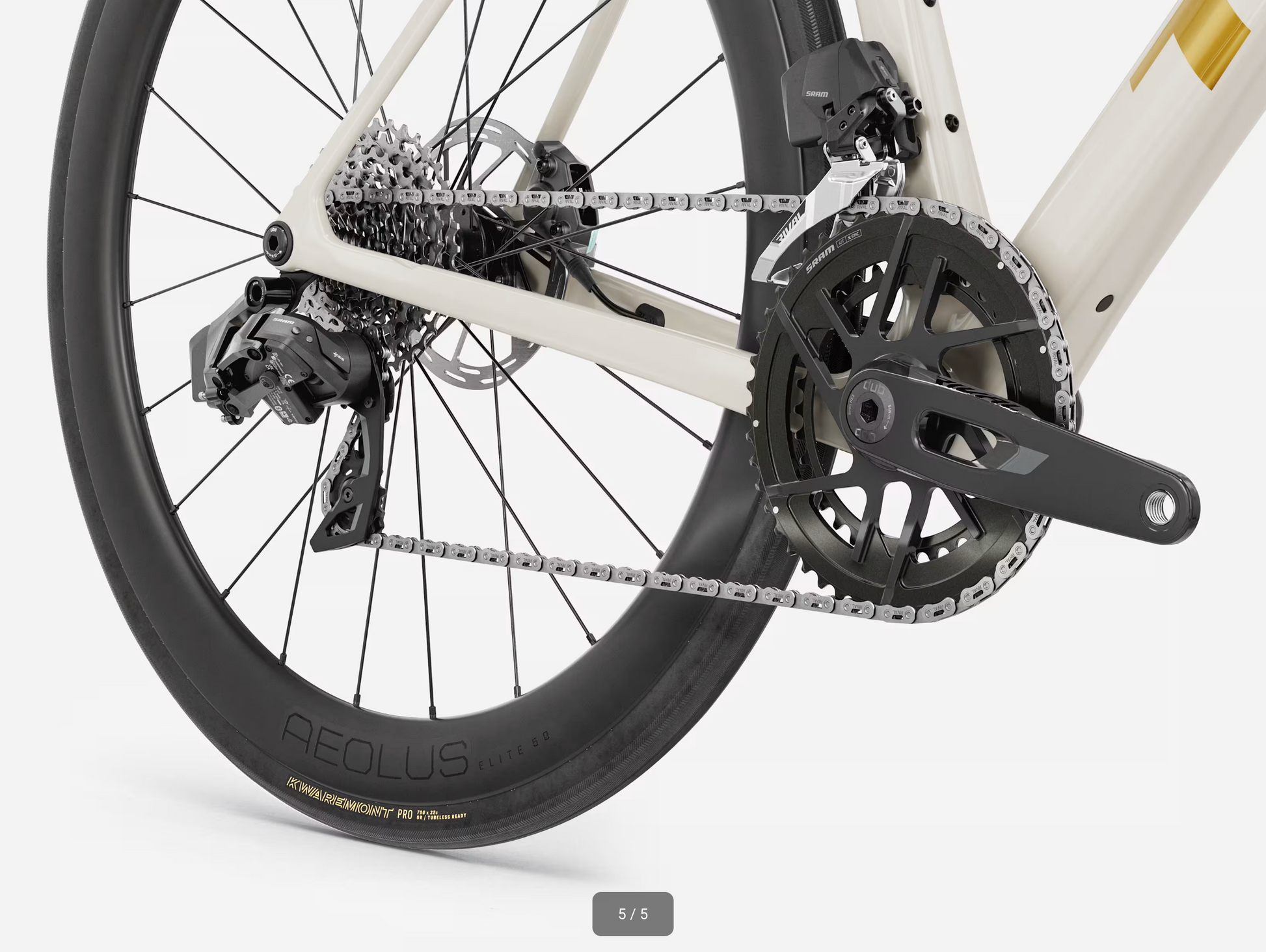

Drivetrain
*Shifter
Size: XS, S, M, ML, L, XL
SRAM Rival AXS E1
Size: XS, S, M, ML, L, XL
SRAM Rival AXS, 12 speed
Front derailleur
SRAM Rival AXS, braze-on
Rear derailleur
SRAM Rival AXS, 36T max cog
*Crank
Size: XS, S
SRAM Rival AXS E1, 48/35, DUB, 160mm length
Size: M, ML
SRAM Rival AXS, 48/35, DUB, 165mm length
Size: L, XL
SRAM Rival AXS, 48/35, DUB, 170mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM XG-1250, 10-36, 12 speed
Chain
SRAM Rival E1, 12/13 speed
Max chainring size
1x: 48T, 2x: 52T
Wheels
Wheel front
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Wheel rear
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50mm rim depth, Sram XDR freehub, 142x12mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tire
Bontrager Kwaremont Pro, Tubeless Ready, GR puncture protection, aramid bead, 120 tpi, 700x35mm
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Max tire size
40mm (as measured, see manual for details)
Components
Saddle
Verse Short Comp, steel rails, 145mm width
Seatpost
Bontrager RSL carbon, 27.2mm, 5mm offset

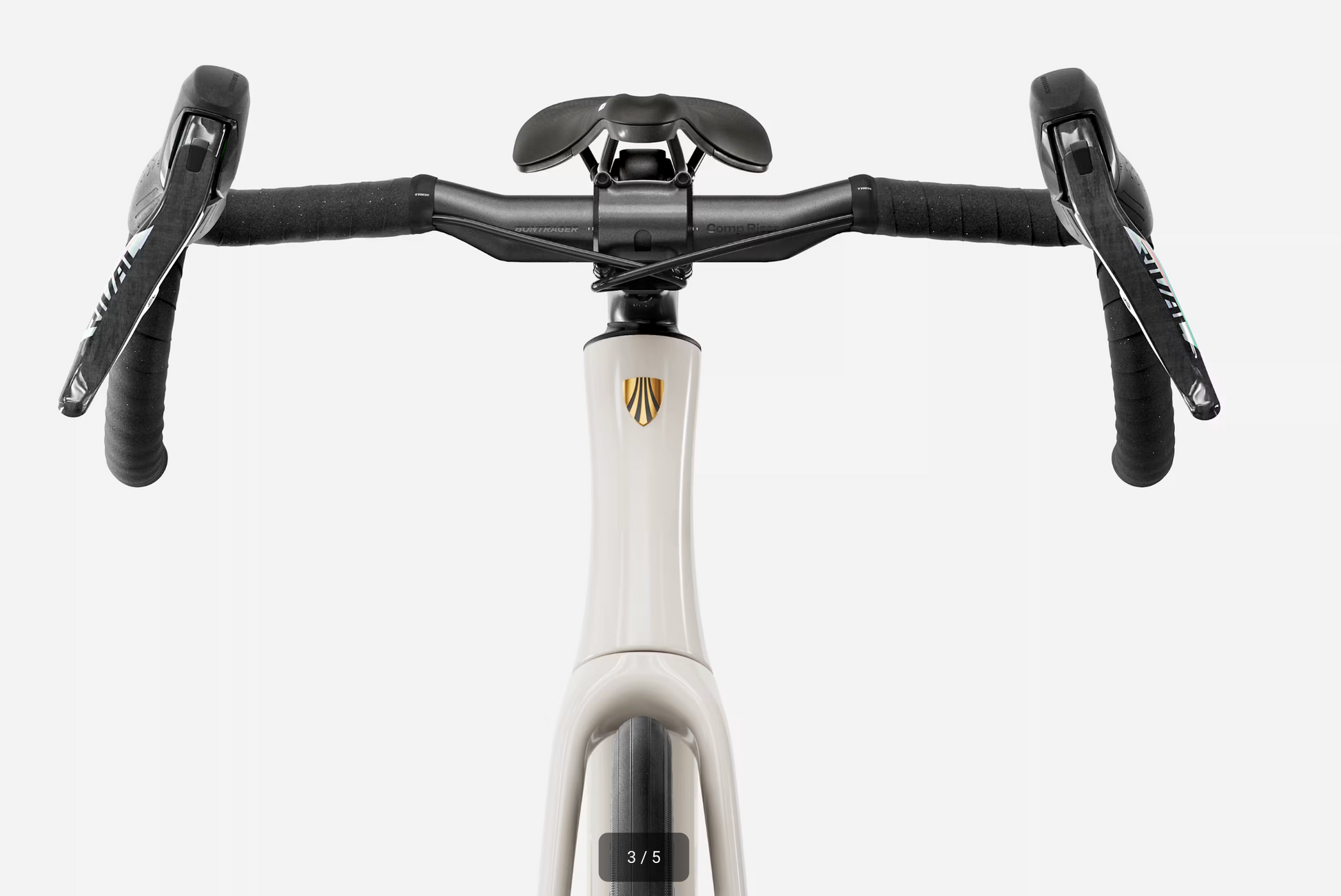

*Handlebar
Size: XS
Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 36cm width
Size: S
Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 38cm width
Size: M, ML
Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 40cm width
Size: L, XL
Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 42cm width
Handlebar tape
Trek gel cork
*Stem
Size: XS
Trek RCS Pro, -7 degree, 80mm length
Size: S
Trek RCS Pro, -7 degree, 90mm length
Size: M
Trek RCS Pro, -7 degree, 100mm length
Size: ML, L
Trek RCS Pro, -7 degree, 110mm length
Size: XL
Trek RCS Pro, -7 degree, 120mm length
Brake rotor
SRAM Paceline, rounded, centerlock, 160mm
Rotor size
Max brake rotor sizes: 180mm front, 160 rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
Discounted Items Are Final Sale
Please visit our Return/Exchange Policy page for more information.
Shipping
This bike is not eligible for shipping

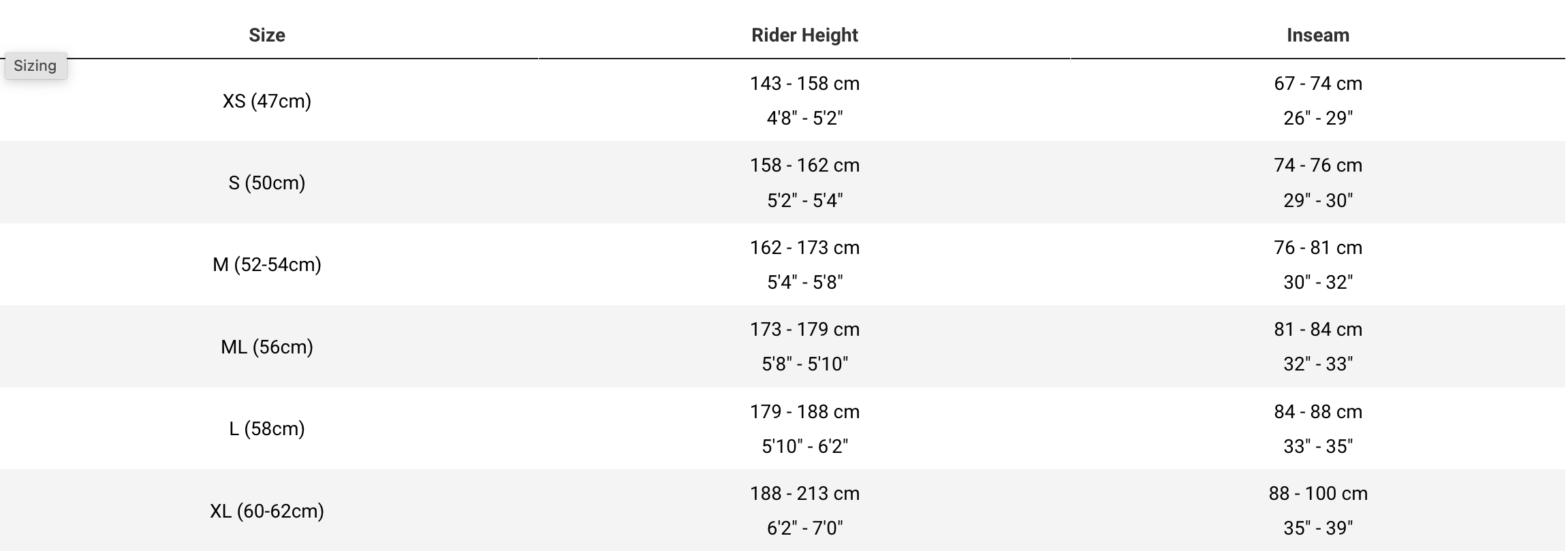

Size Chart

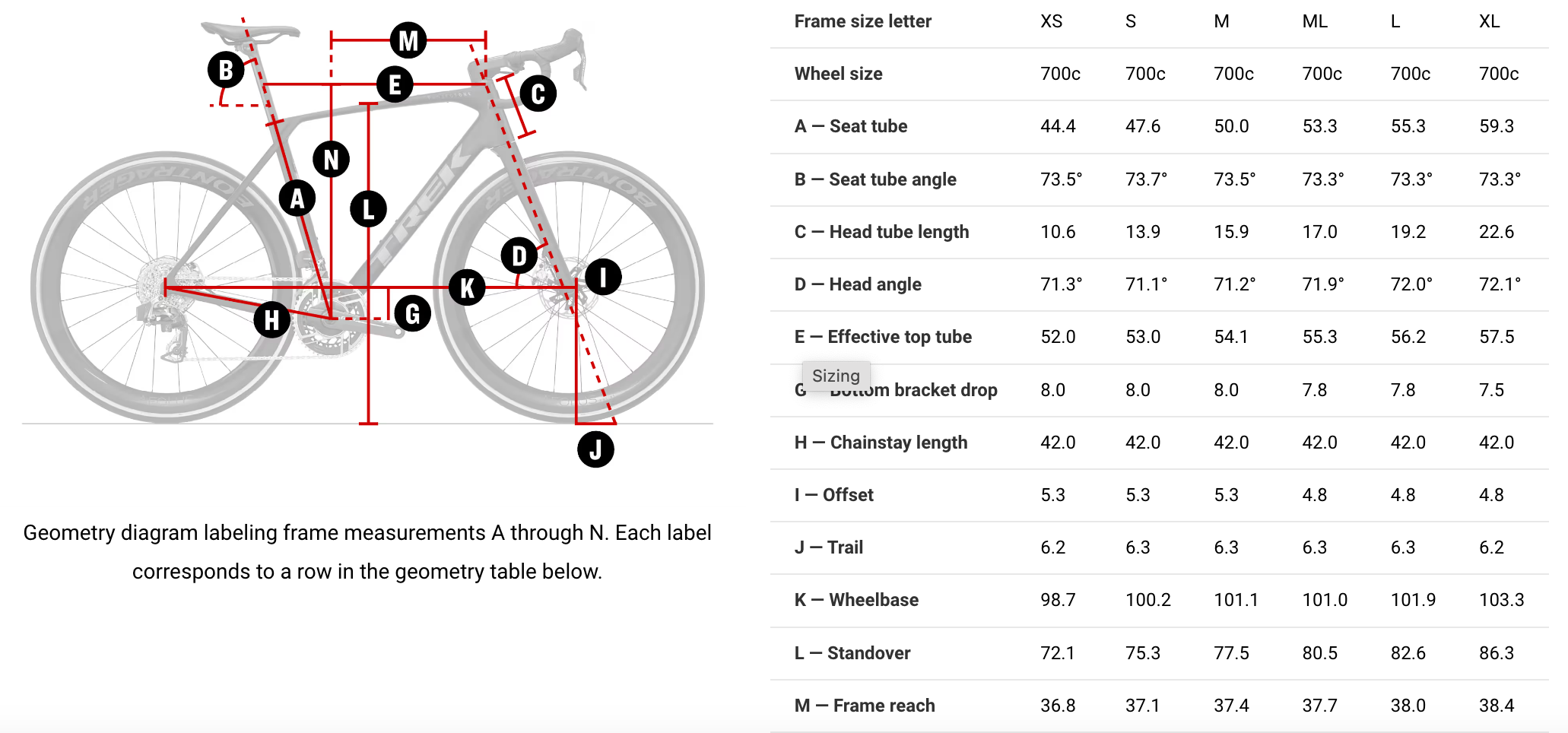

Geometry Chart
