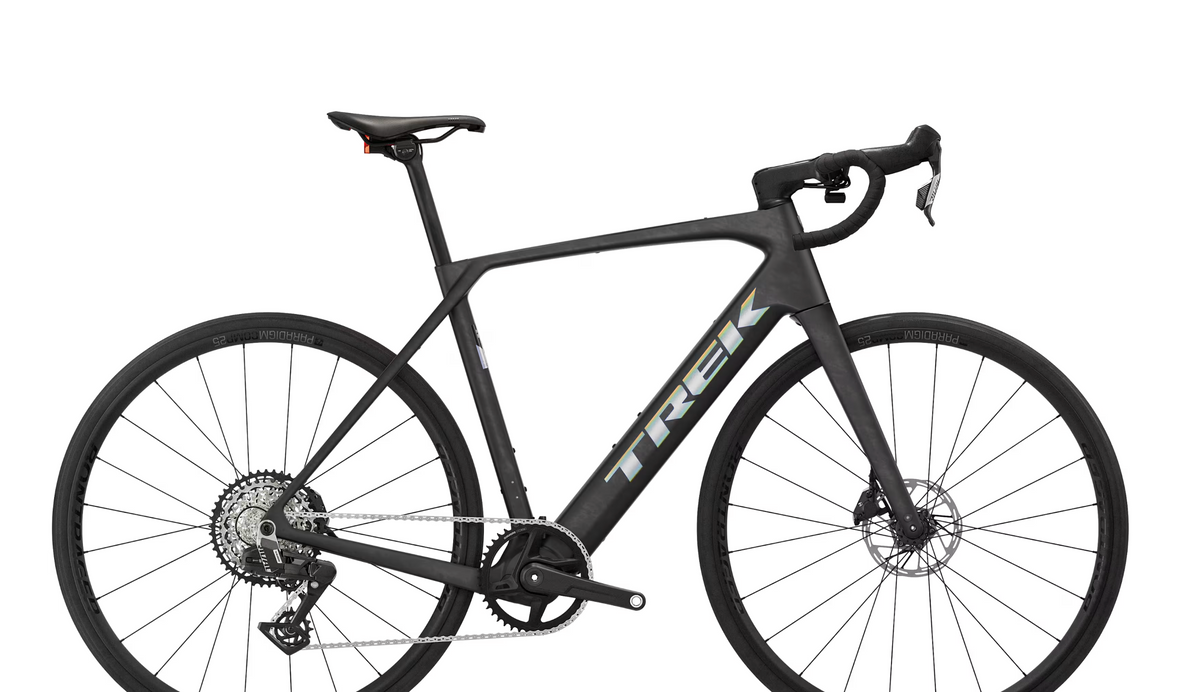

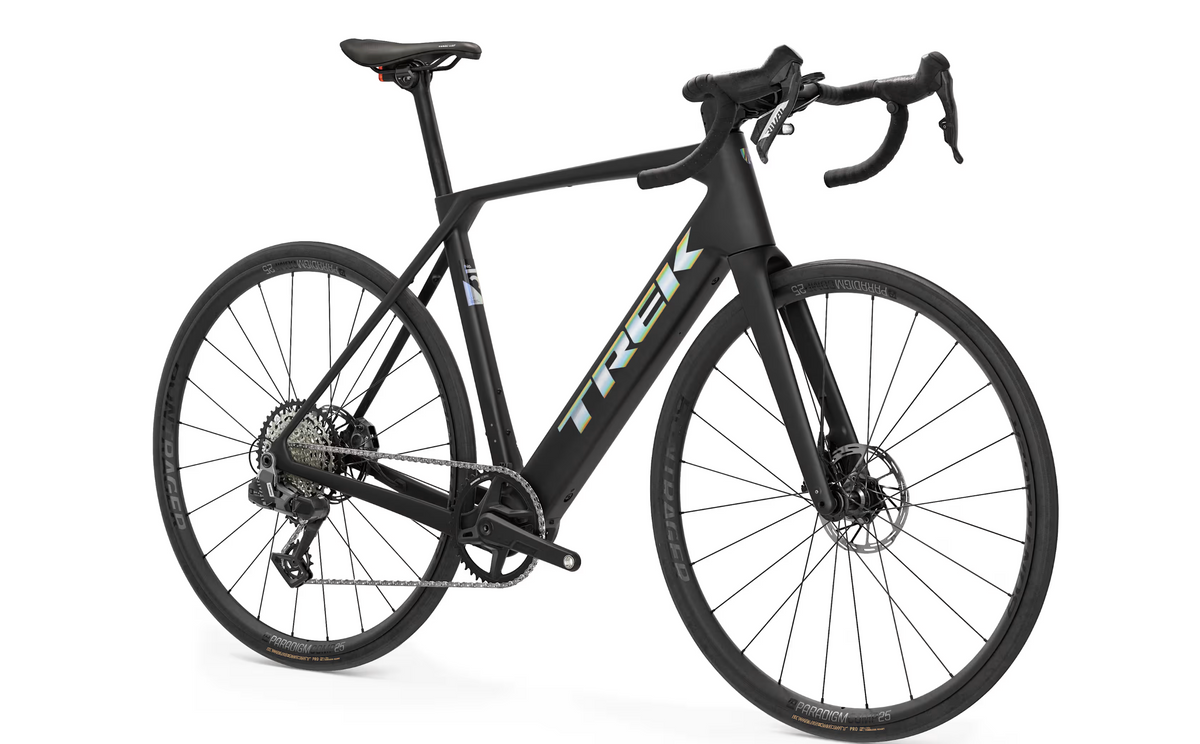

Domane+ SL 6 AXS (Gen 5)

Frame
500 Series OCLV Carbon, TQ drive system, tapered head tube, integrated frame bag mounts, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle
Fork
Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm chamfered thru axle

Weight
Weight
ML - 12.11 kg / 26.7 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system
Battery
TQ 360Wh
Charger
TQ 4A charger
Controller
TQ color LED display with Bluetooth & ANT+ connectivity
Motor
TQ-HPR40, 40 Nm, 200 watt peak power
E-bike Classification
Class 1

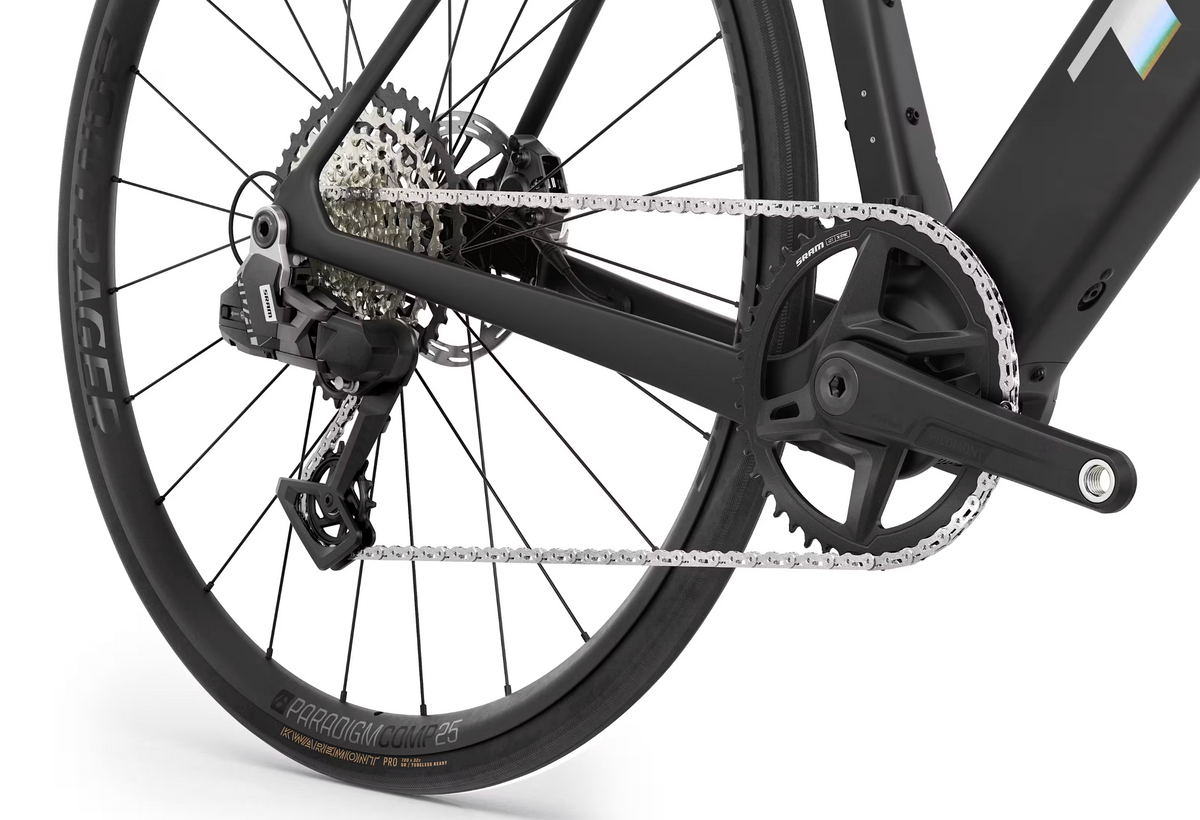

Drivetrain
*Shifter
Size: XS, S, M, ML, L, XL
SRAM Rival AXS E1
Size: XS, S, M, ML, L, XL
SRAM Rival AXS, 12 speed
Rear derailleur
SRAM Rival XPLR AXS, 46T max cog
*Crank arm
Size: XS, S, M, ML
E*thirteen Piedmont Core E*spec, 165mm length
Size: L, XL
E*thirteen Piedmont Core E*spec, 170mm length
Chain ring
SRAM X-SYNC, 44T, alloy
Cassette
Sram Rival XPLR XG-1351, 10-46, 13 speed
Chain
SRAM Rival E1, 12/13 speed
Max chainring size
1x: 48T

Wheels
Wheel front
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rear
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tire
Bontrager Kwaremont Pro, Tubeless Ready, GR puncture protection, aramid bead, 120 tpi, 700x35mm
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tire size
40mm without fenders, 35mm with fenders

Components
Saddle
Verse Short Comp, steel rails, 145mm width
Seatpost
Bontrager RSL carbon, 27.2mm, 5mm offset
*Handlebar
Size: XS
Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 36cm width
Size: S
Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 38cm width
Size: M, ML
Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 40cm width
Size: L, XL
Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 42cm width
*Handlebar tape
Size: XS, S, M, ML, L, XL
Trek EcoTack
Size: XS, S, M, ML, L, XL
Trek gel cork
*Stem
Size: XS
Trek RCS Pro, -7 degree, 80mm length
Size: S
Trek RCS Pro, -7 degree, 90mm length
Size: M
Trek RCS Pro, -7 degree, 100mm length
Size: ML, L
Trek RCS Pro, -7 degree, 110mm length
Size: XL
Trek RCS Pro, -7 degree, 120mm length
Brake rotor
SRAM Paceline, rounded, centerlock, 160mm
Rotor size
Max brake rotor sizes: 160mm front & rear

Accessories
*Light
Size: XS, S, M, ML, L, XL
Trek Flare C, taillight
Size: XS, S, M, ML, L, XL
SUPERNOVA SS MINI HEADLIGHT
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
