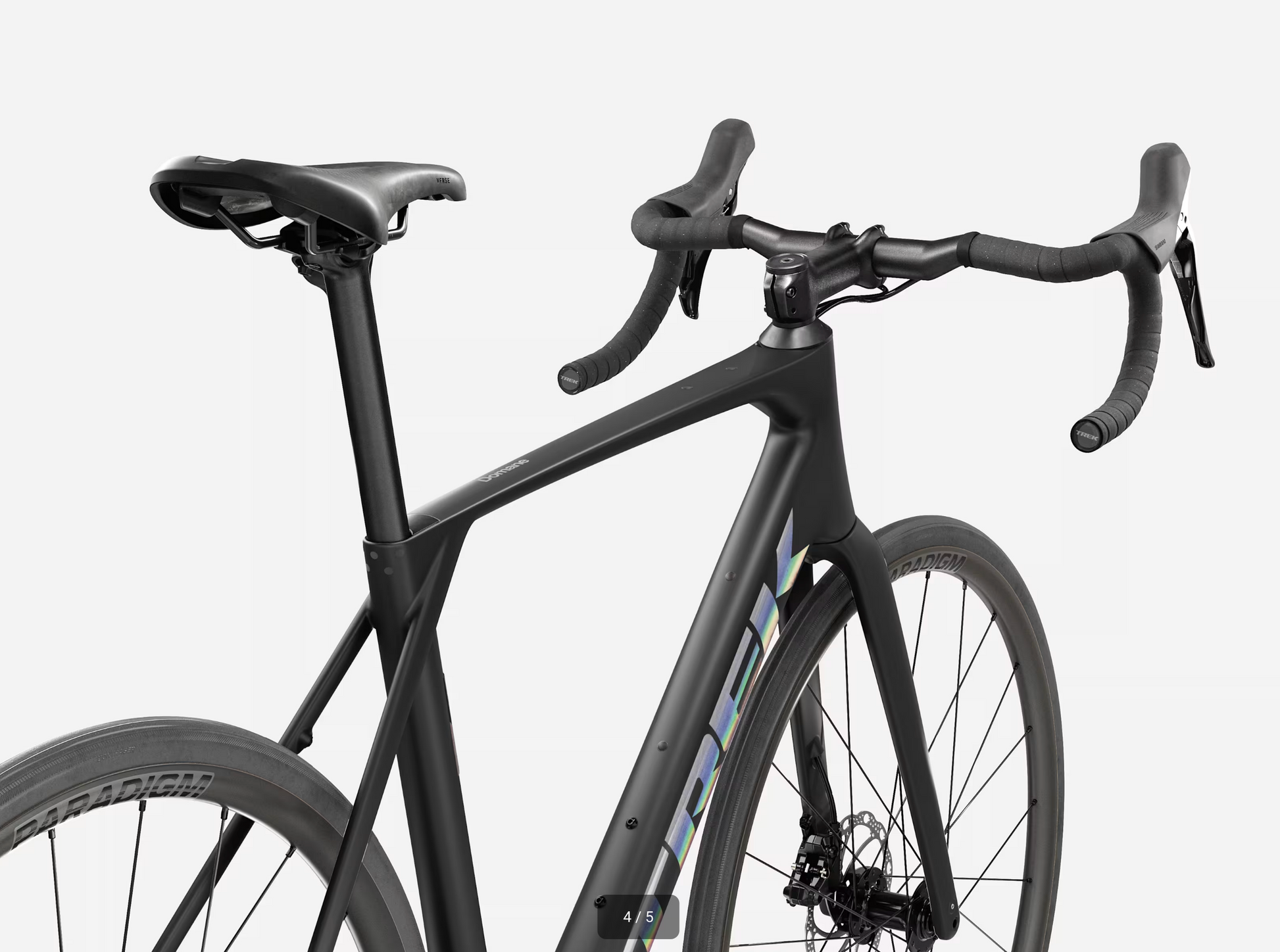

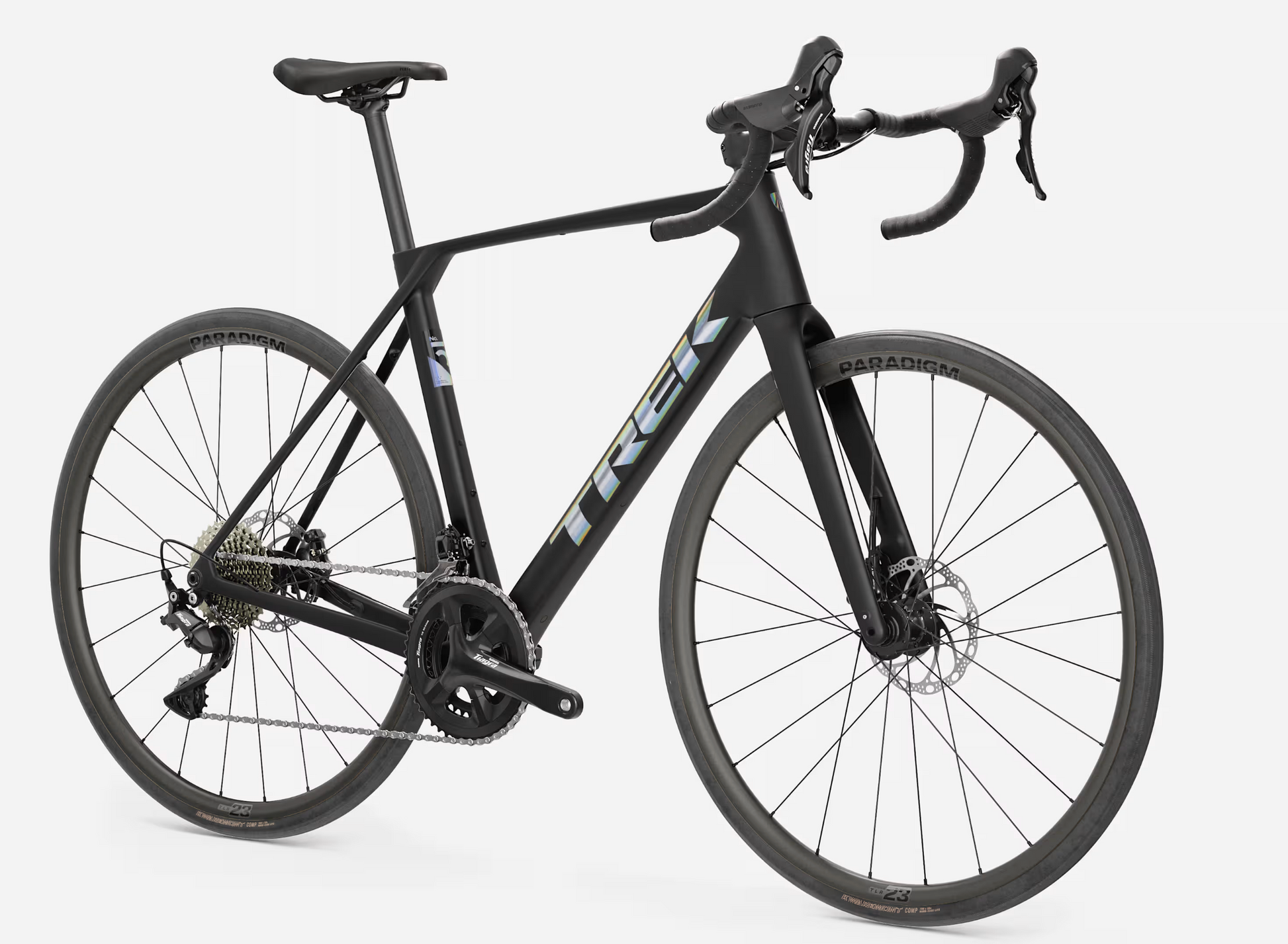

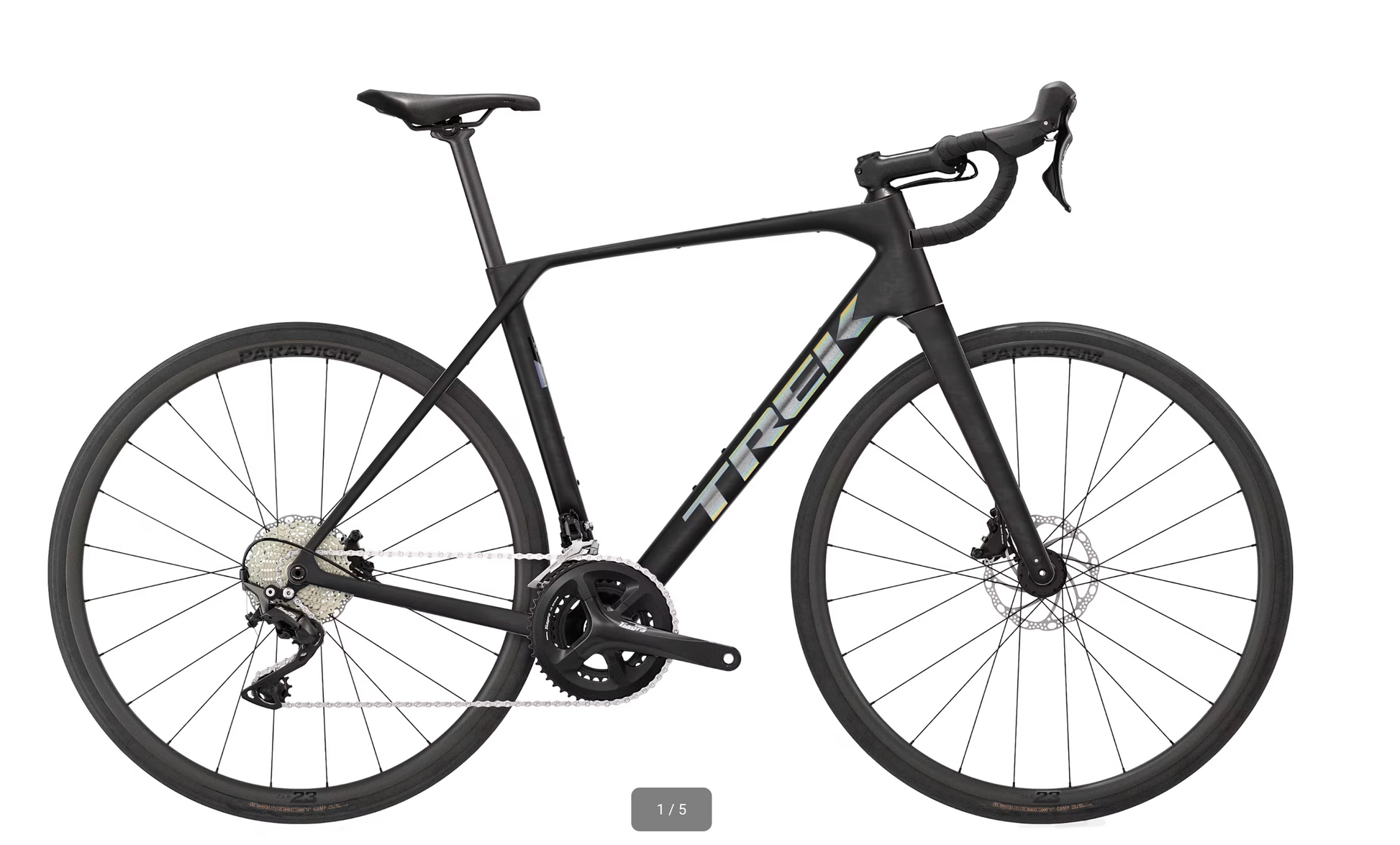

Domane SL 4 Gen 5 2027

Frame
500 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle
Fork
Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle

Weight
Weight
ML - 9.10 kg / 20.07 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

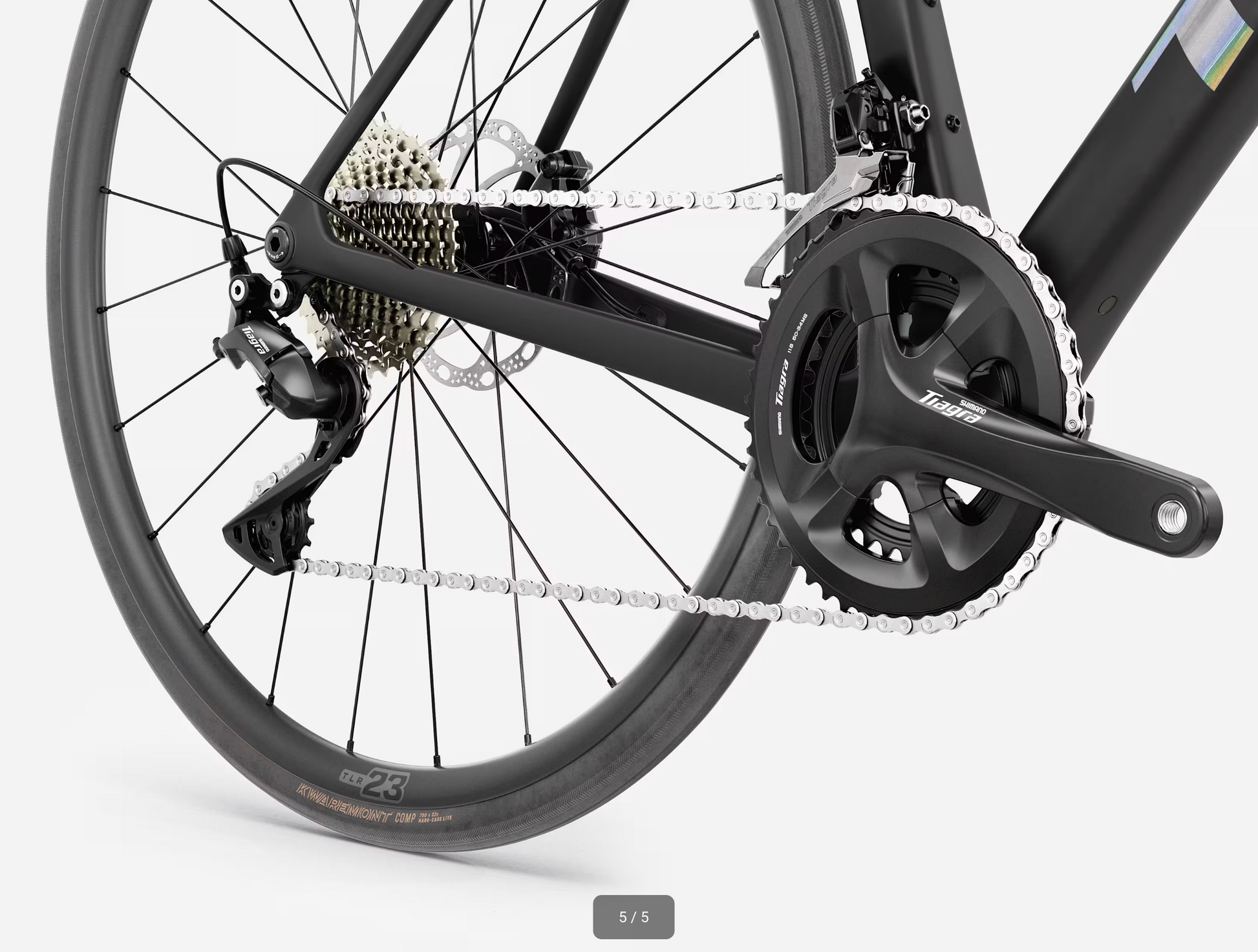

Drivetrain
Shifter
Shimano Tiagra R4020
Front derailleur
Shimano Tiagra R4000, braze-on, down swing
Rear derailleur
Shimano Tiagra R4000
*Crank
Size: XS, S, M, ML
Shimano Tiagra R4000, 50/34, 165mm length
Size: L, XL
Shimano Tiagra R4000, 50/34, 170mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano RS400, 11-36, 11 speed
Chain
Shimano LG500
Max chainring size
See service manual

Wheels
Hub front
Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Hub rear
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Rim
Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
Tire
Bontrager Kwaremont Comp, Hardcase Lite, wire bead, 60 tpi, 700x32mm
Max tire size
40mm (as measured, see manual for details)

Components
Saddle
Verse Short, steel rails, 145mm width
Seatpost
Bontrager carbon, 27.2mm, 8mm offset, 330mm length

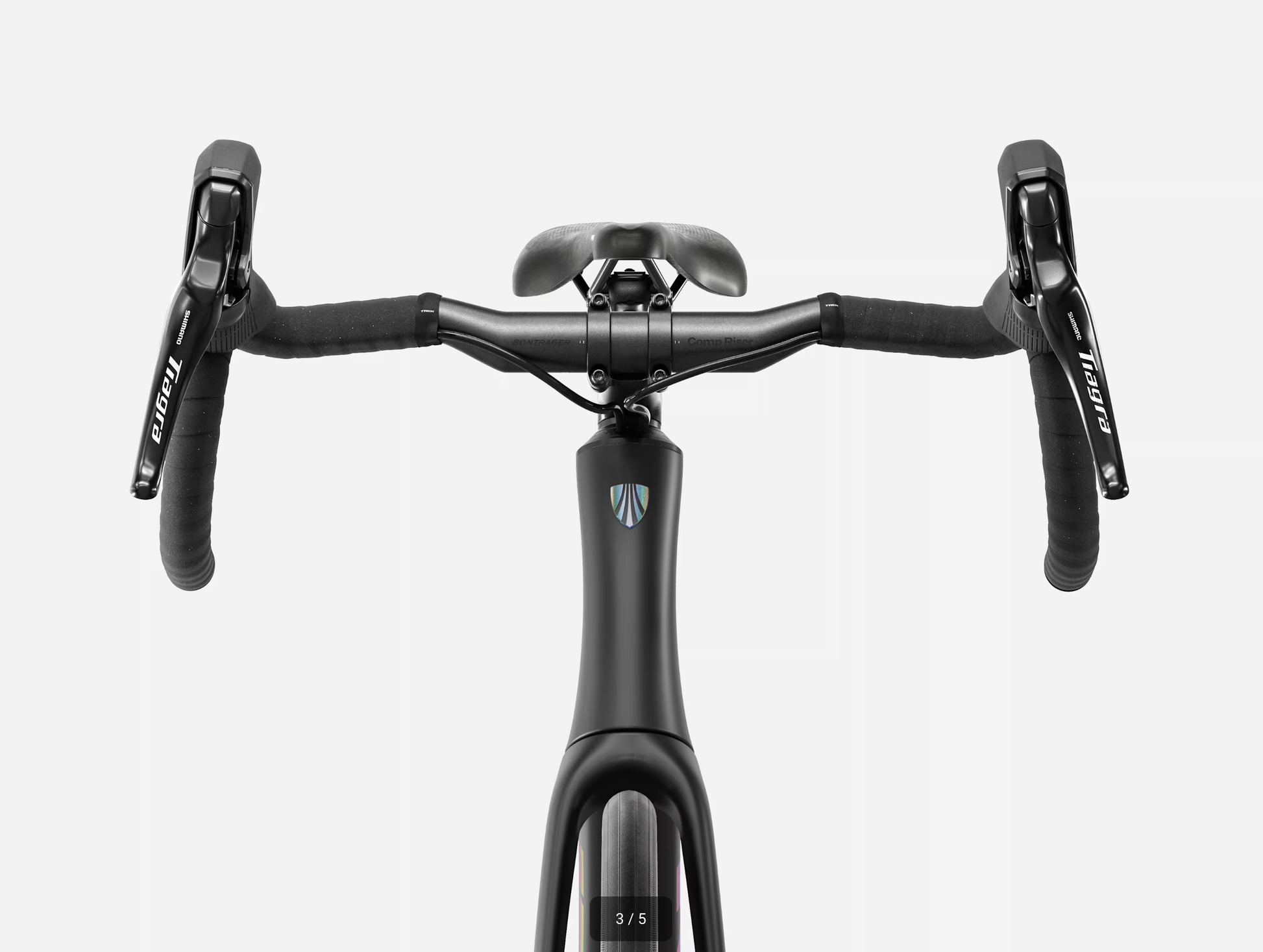

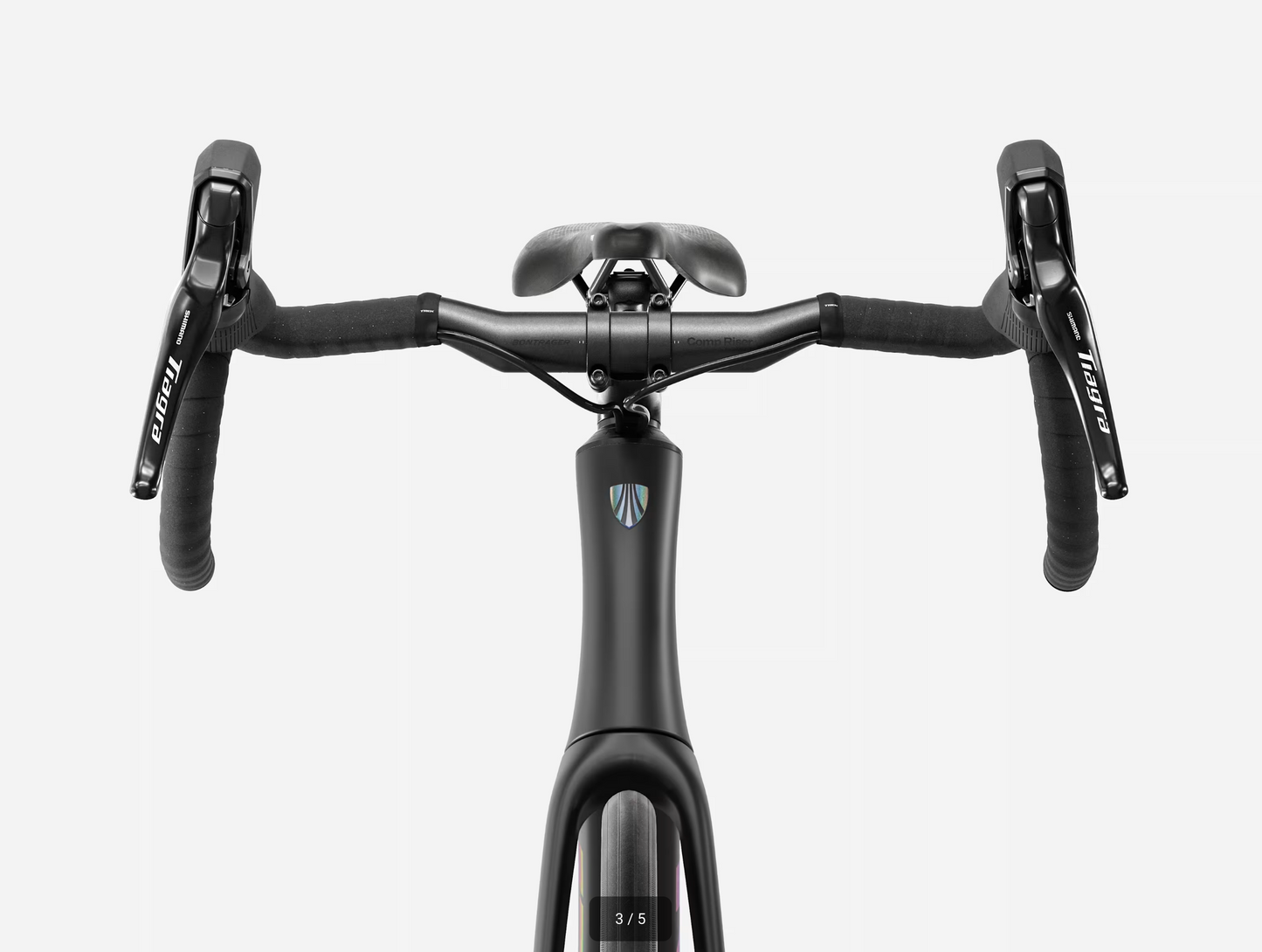

*Handlebar
Size: XS
Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 36cm width
Size: S
Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 38cm width
Size: M, ML
Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 40cm width
Size: L, XL
Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 42cm width
Handlebar tape
Trek gel cork
*Stem
Size: XS
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: S
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: M
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Size: ML, L
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Size: XL
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 120mm length
Brake rotor
Tektro TR160, 6-bolt, 160mm
Rotor size
Max brake rotor sizes: 180mm front, 160 rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
