Domane AL 5 (Gen 4)
Domane AL 5 (Gen 4)
Couldn't load pickup availability
Special Order Bike
Special Order Bike
This bike is not kept in store.
Lead time to pick-up is 10-14 days.

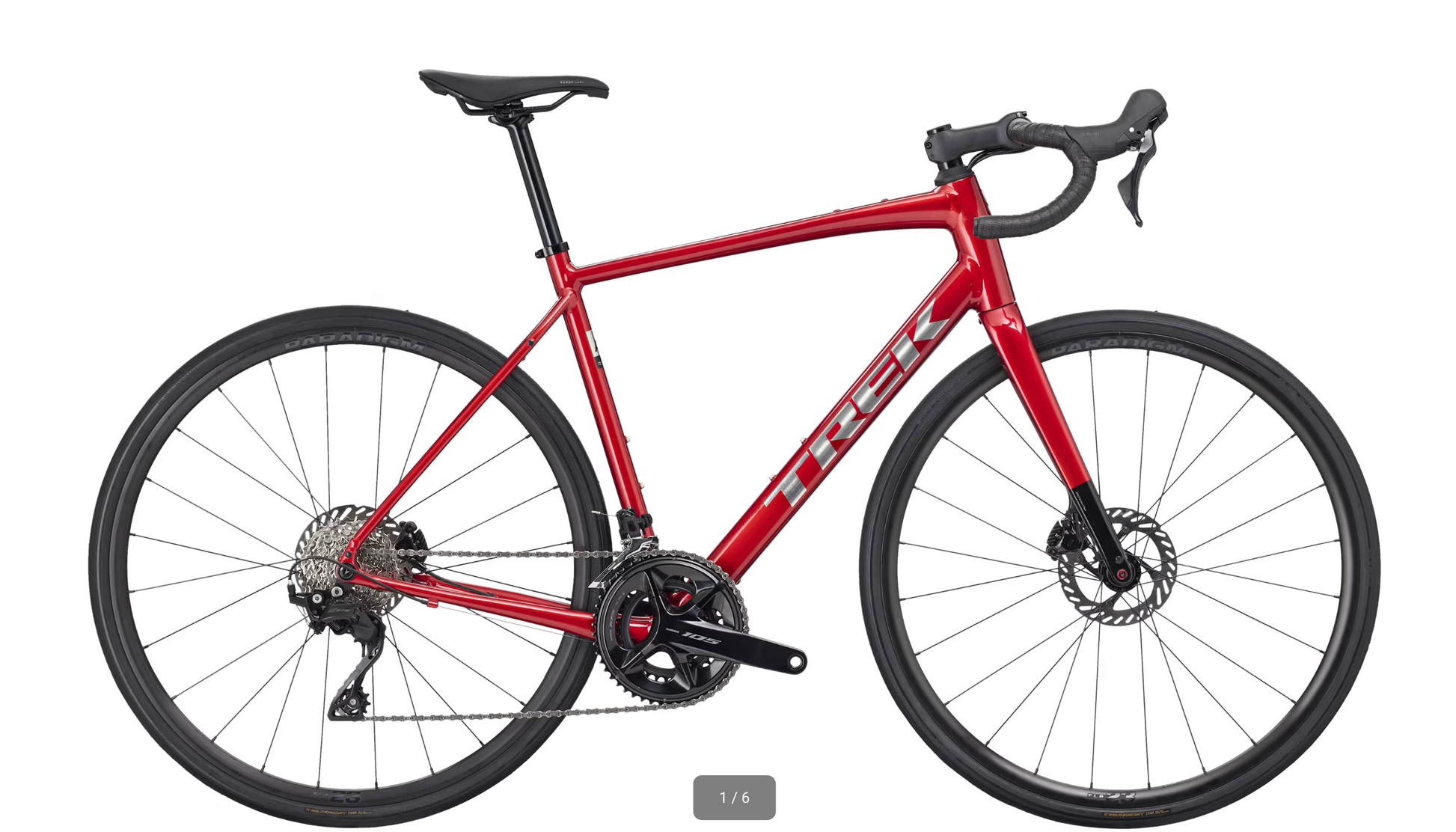

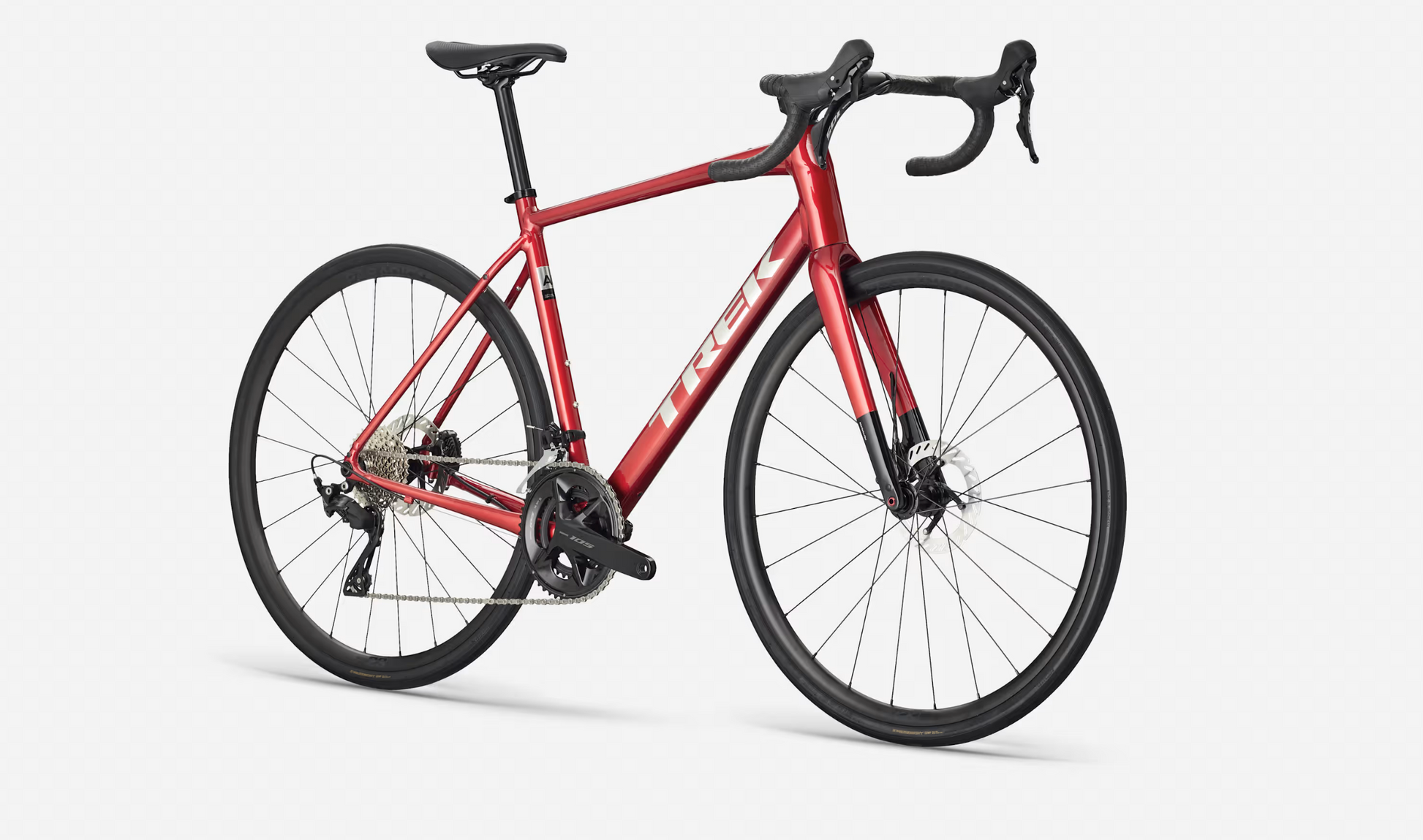

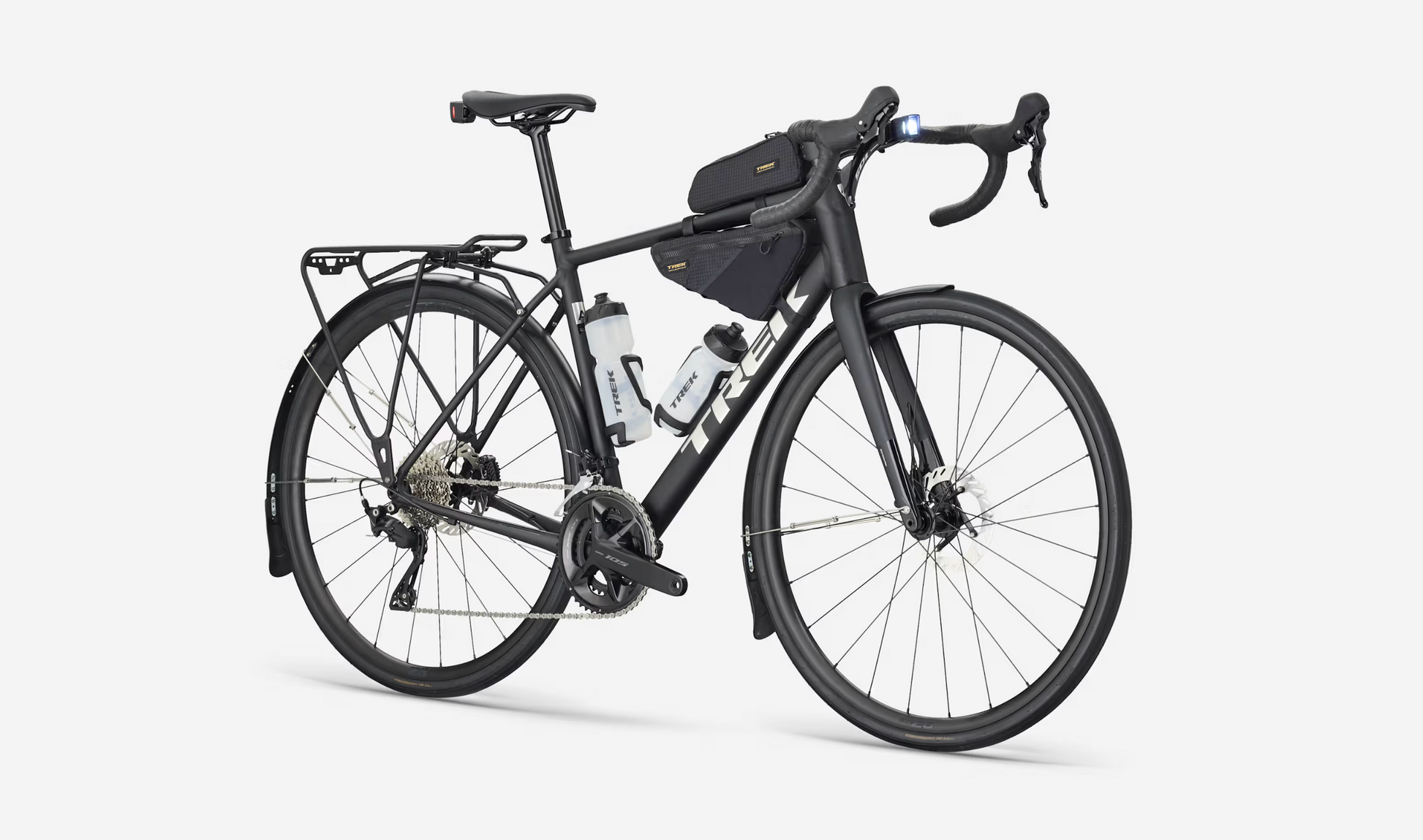

Domane AL 5 is a smooth, capable road bike built for riders who want performance without sacrificing comfort.
Its Alpha Aluminum frame pairs with a 12-speed Shimano 105 drivetrain for precise shifting and a wide gear range.

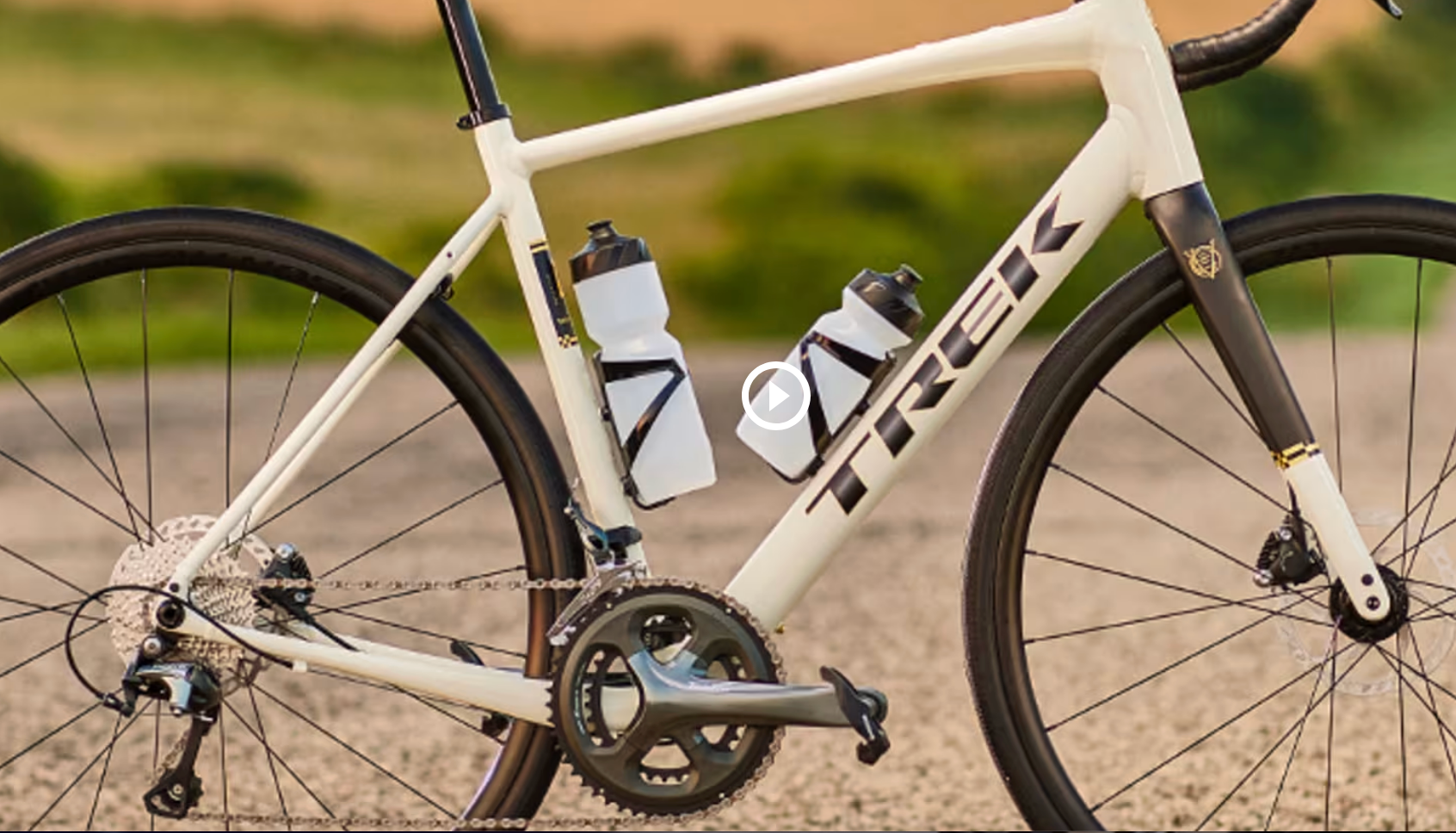

Top tube mounts add versatility for light gravel, gear, or daily commutes.
How tall are you?
To measure your height, stand straight up, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inseam?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inseam measurement. Your inseam is very important to your final bike size so please measure carefully.
Share
Details
Specifications

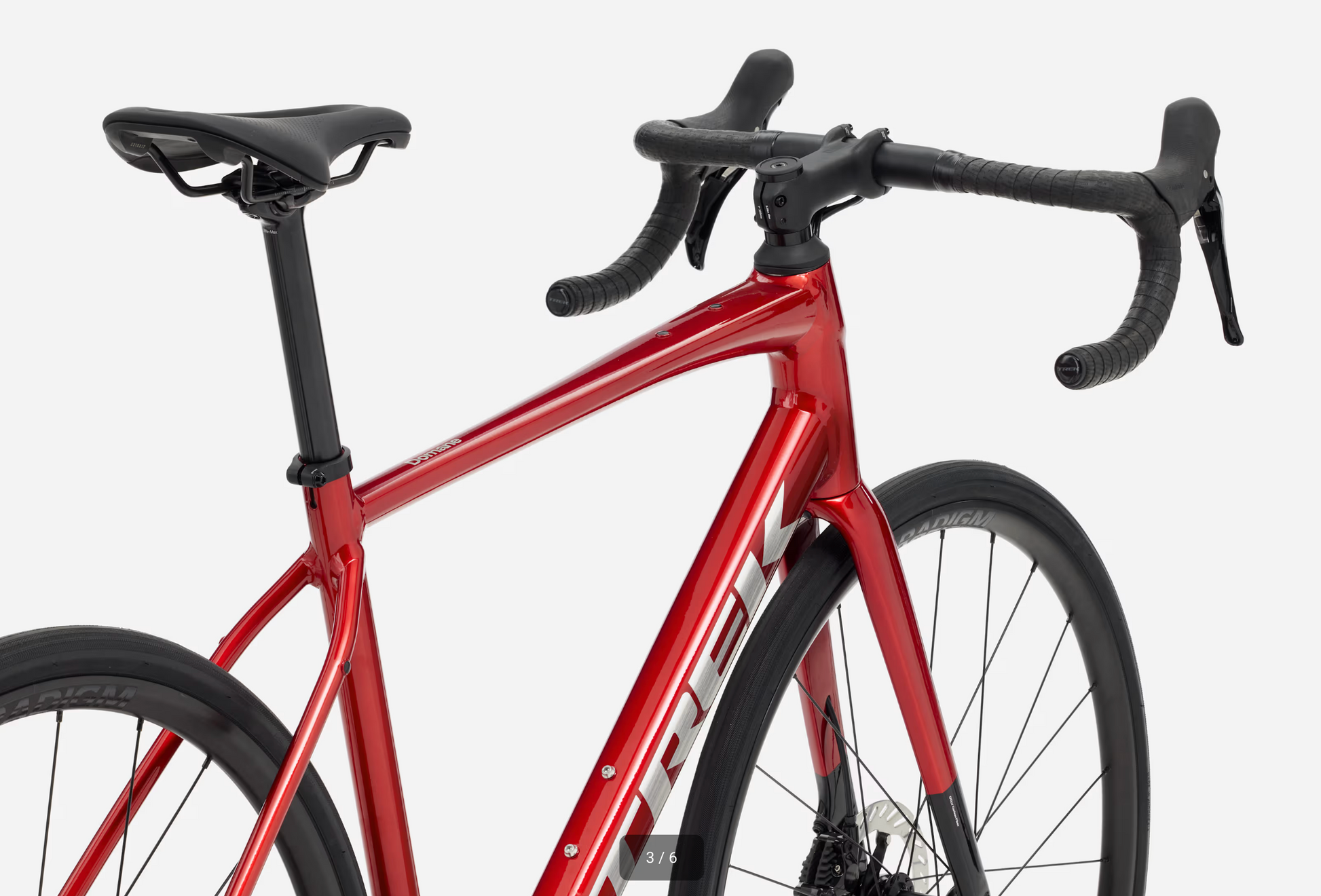

Frame
100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
Fork
Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Weight
Weight
56 - 9.80 kg / 21.61 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

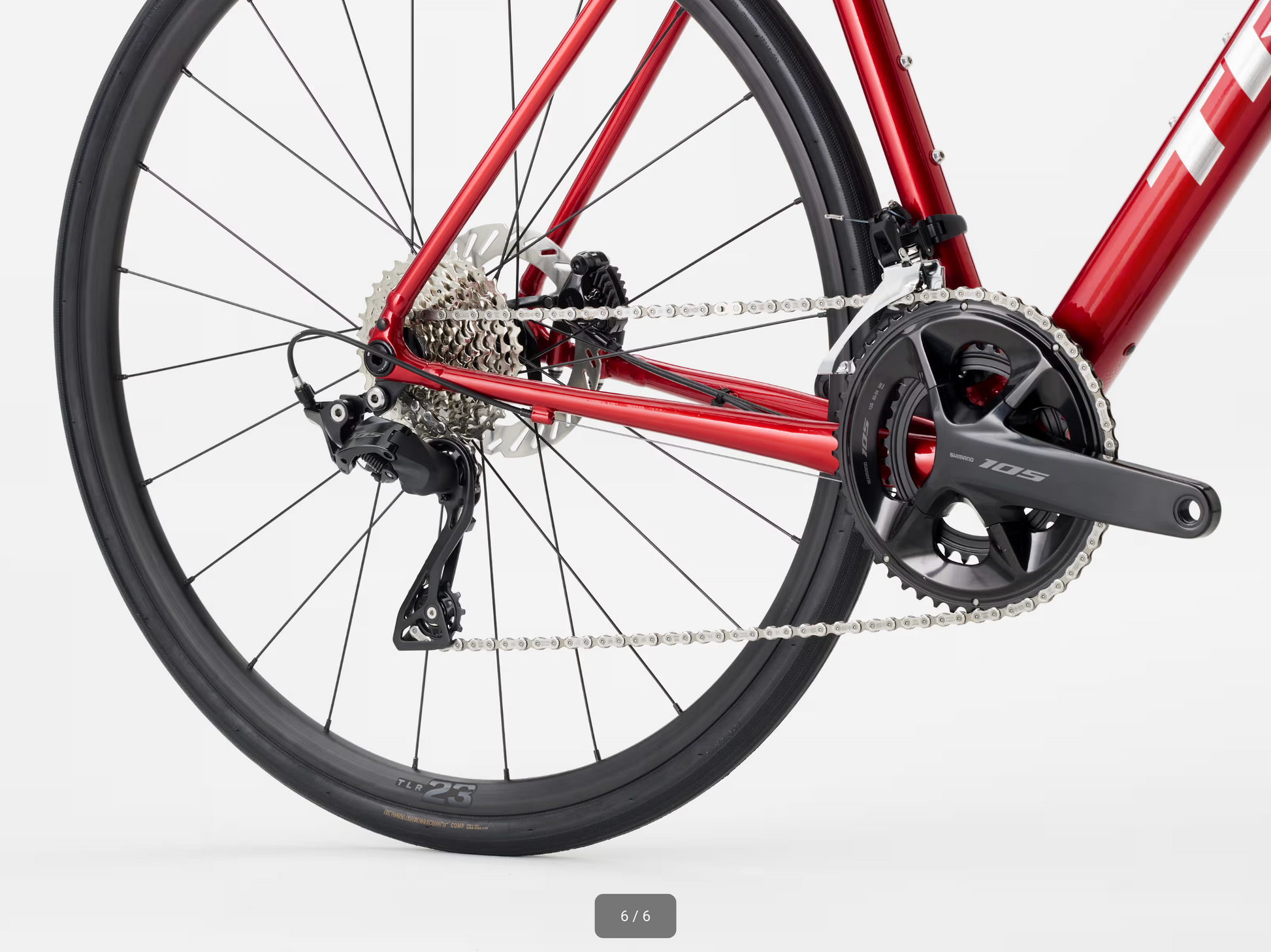

Drivetrain
Shifter
Shimano 105 R7120, 12 speed
Front derailleur
Shimano 105 R7100, 31.8mm clamp, down swing
Rear derailleur
Shimano 105 R7100, 36T max cog
*Crank
Size: 44, 49
Shimano 105 R7100, 50/34, 160mm length
Size: 52, 54, 56
Shimano 105 R7100, 50/34, 165mm length
Size: 58, 61
Shimano 105 R7100, 50/34, 170mm length
Bottom bracket
Shimano RS501 BSA
Cassette
Shimano 105 7101, 11-34, 12 speed
Chain
Shimano SLX M7100, 12 speed
Max chainring size
1x: 50T, 2x: 50/34
Wheels
Hub front
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Hub rear
Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Rim
Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
Tire
Bontrager Kwaremont Comp, Hardcase Lite, wire bead, 60 tpi, 700x32mm
Components
Saddle
Verse Short Comp, steel rails, 145mm width
*Seatpost
Size: 44, 49
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size: 52, 54, 56, 58, 61
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

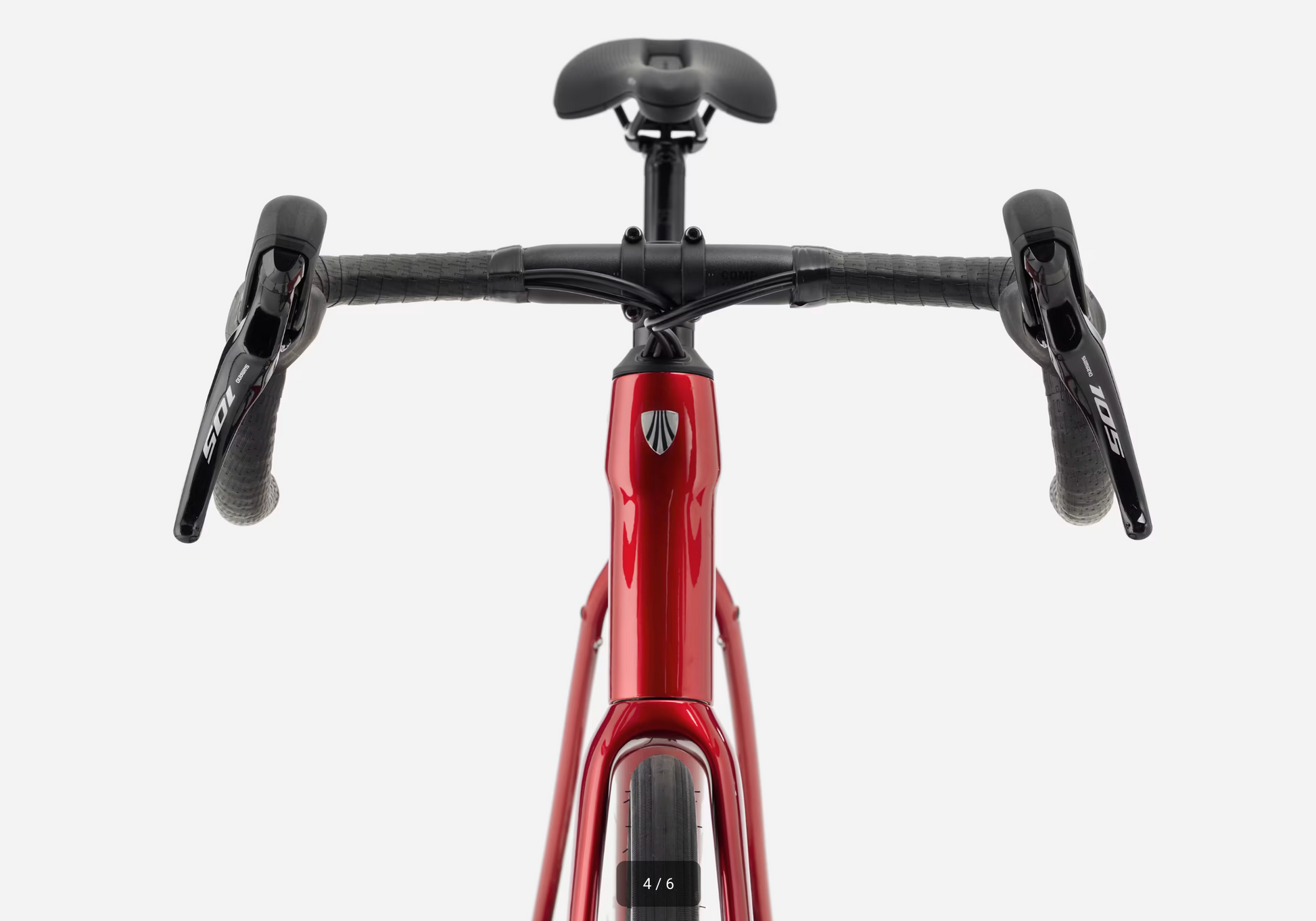

*Handlebar
Size: 44
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
Size: 49, 52
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
Size: 54, 56, 58
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
Size: 61
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
*Handlebar tape
Size: 44, 49, 52, 54, 56, 58
Trek EcoTack
Size: 44, 49, 52, 54, 56, 58, 61
Trek gel cork
*Stem
Size: 44
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: 49
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: 52, 54
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: 56, 58
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Size: 61
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Brake rotor
Shimano CL700, centerlock, 160mm
Rotor size
Max brake rotor sizes: 160mm front & rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
Discounted Items Are Final Sale
Please visit our Return/Exchange Policy page for more information.
Shipping
This bike is not eligible for shipping

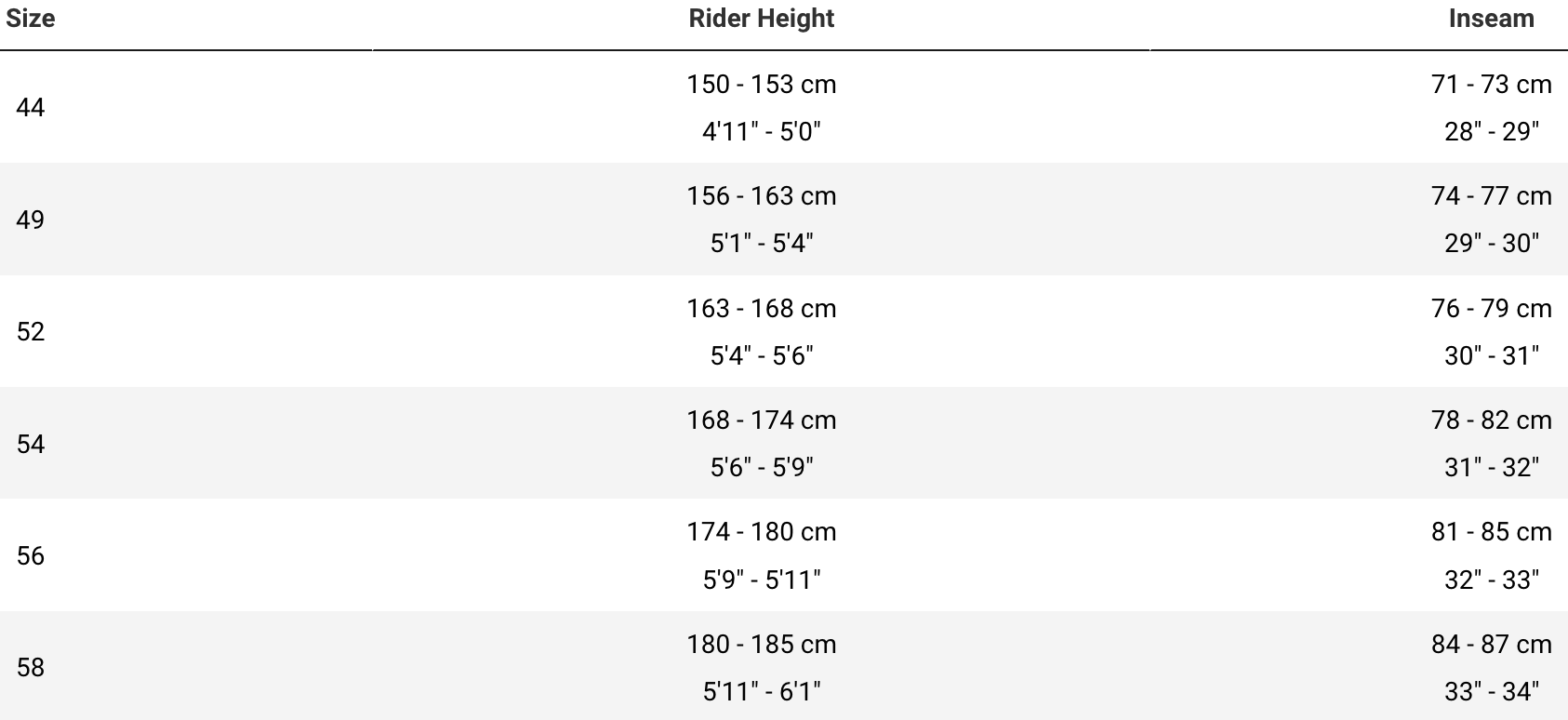

Size Chart

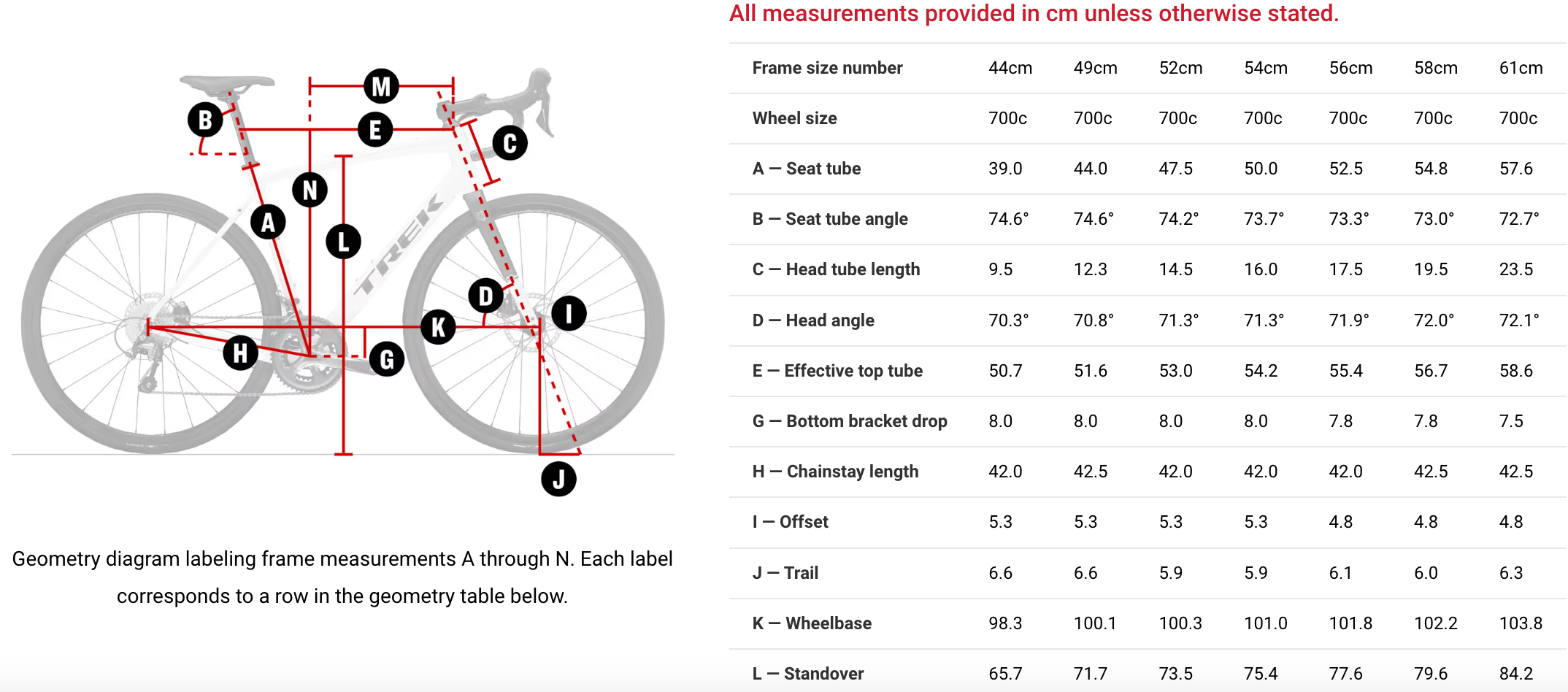

Geometry Chart
