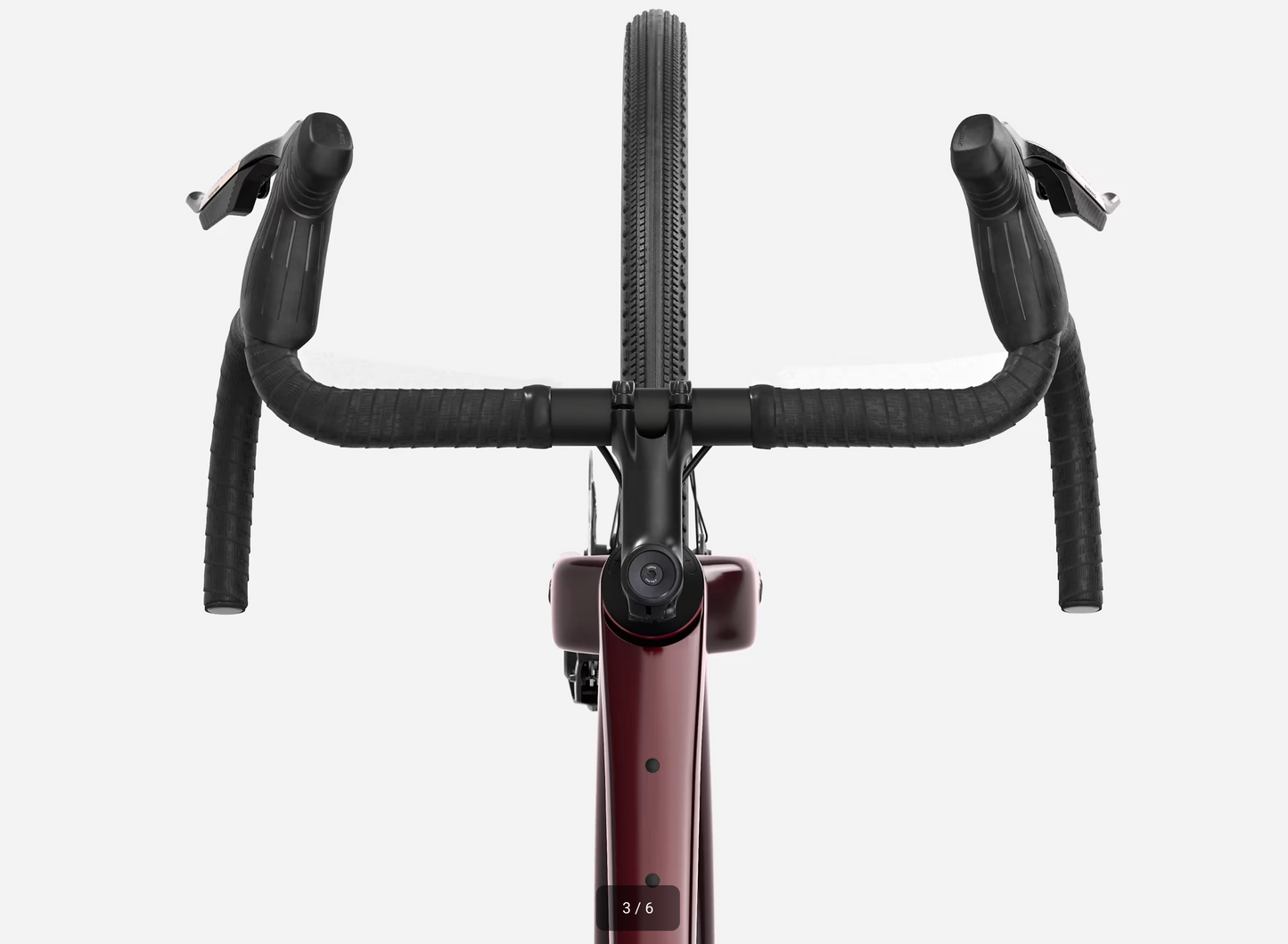

Checkpoint SL 7 AXS Gen 3 2027
Checkpoint SL 7 AXS Gen 3 2027
Couldn't load pickup availability
Special Order Bike
Special Order Bike
This bike is not kept in store.
Lead time to pick-up is 10-14 days.

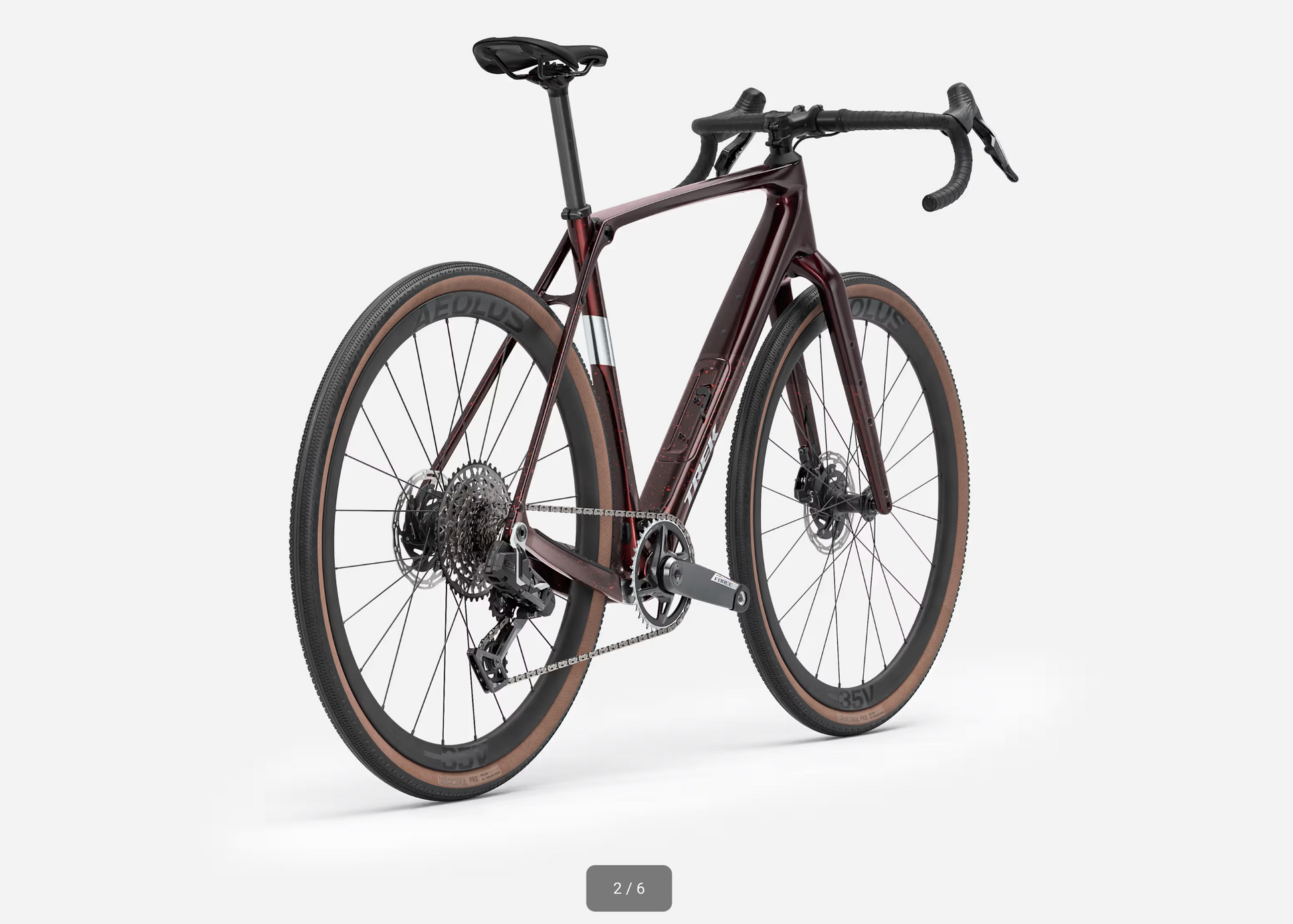

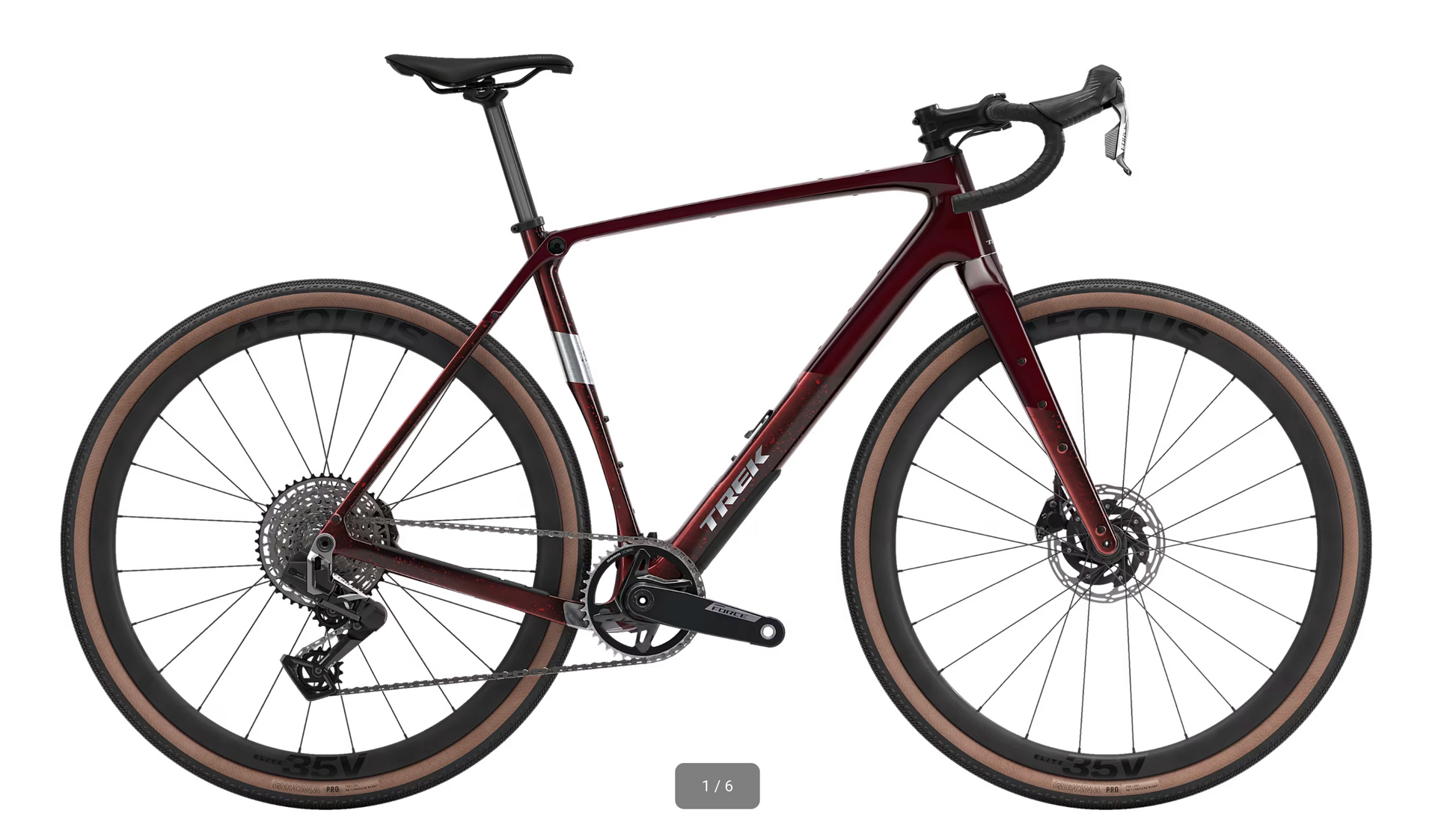

Checkpoint SL 7 AXS Gen 3 is a carbon gravel bike built to explore the beyond.

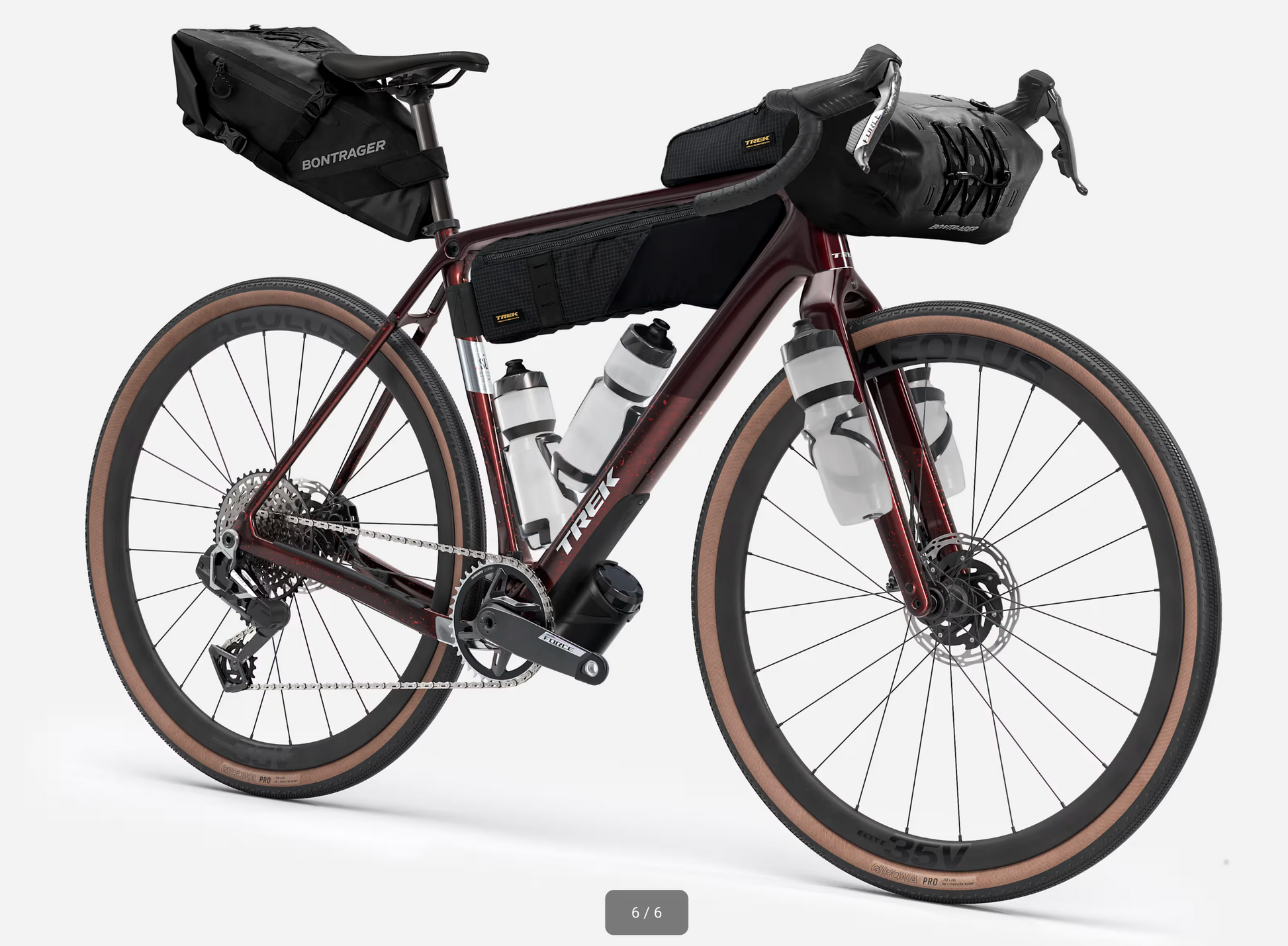

Its lightweight carbon frame is designed with a Gravel Endurance geometry, tons of mounts, and clearance for up to 50mm tires (as measured).
Plus, IsoSpeed comfort tech helps soak up jarring vibrations so you can float over chatter and potholes.
It's decked out with upgrades where you want them most, like carbon wheels and seat post, and a wireless SRAM Force AXS XPLR E1 drivetrain.
How tall are you?
To measure your height, stand straight up, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inseam?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inseam measurement. Your inseam is very important to your final bike size so please measure carefully.
Share
Details
Specifications
Frame
500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle

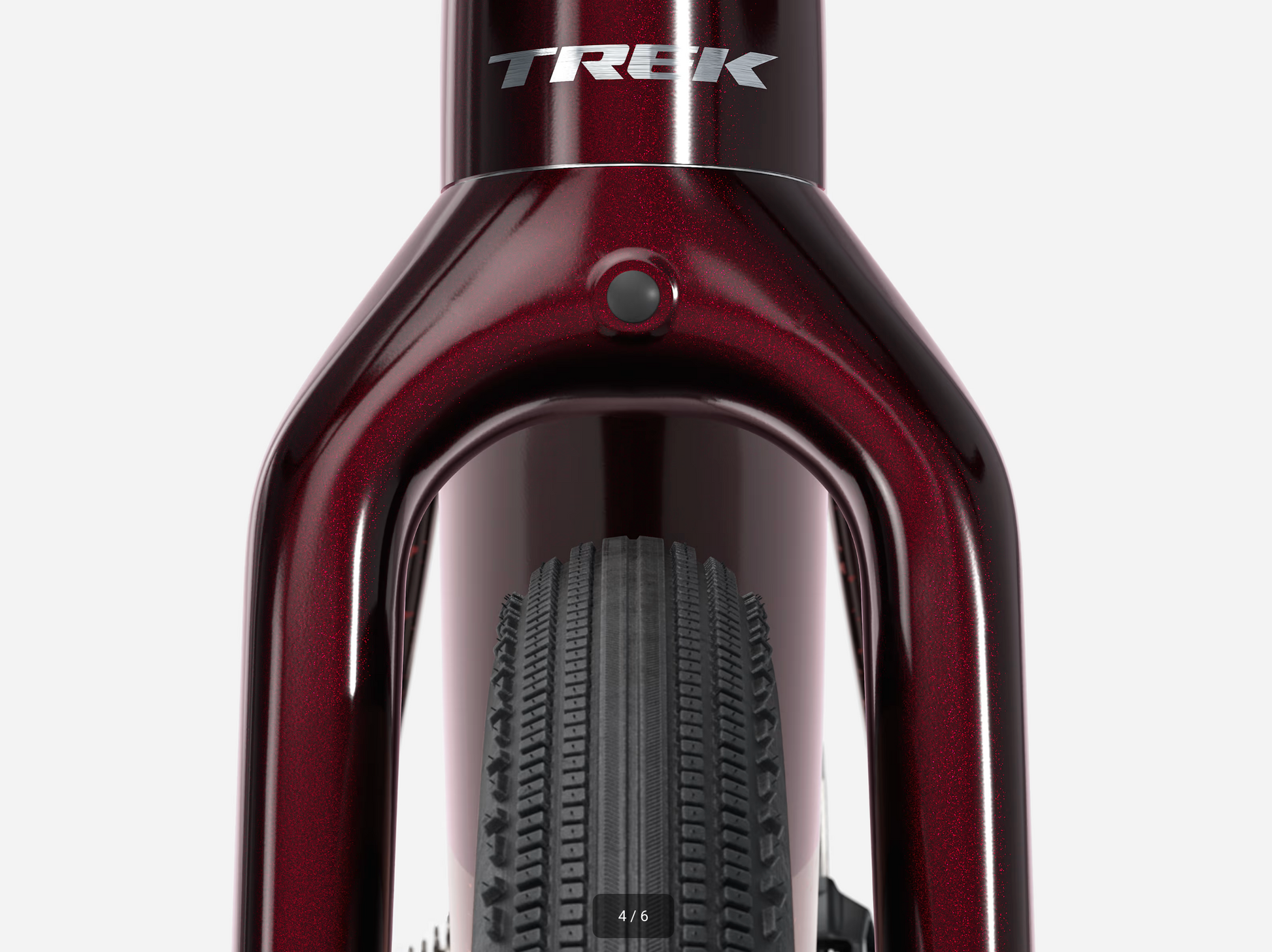

Fork
Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Weight
Weight
ML - 9.33 kg / 20.57 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
E-system
Battery
SRAM AXS battery pack (with charger)

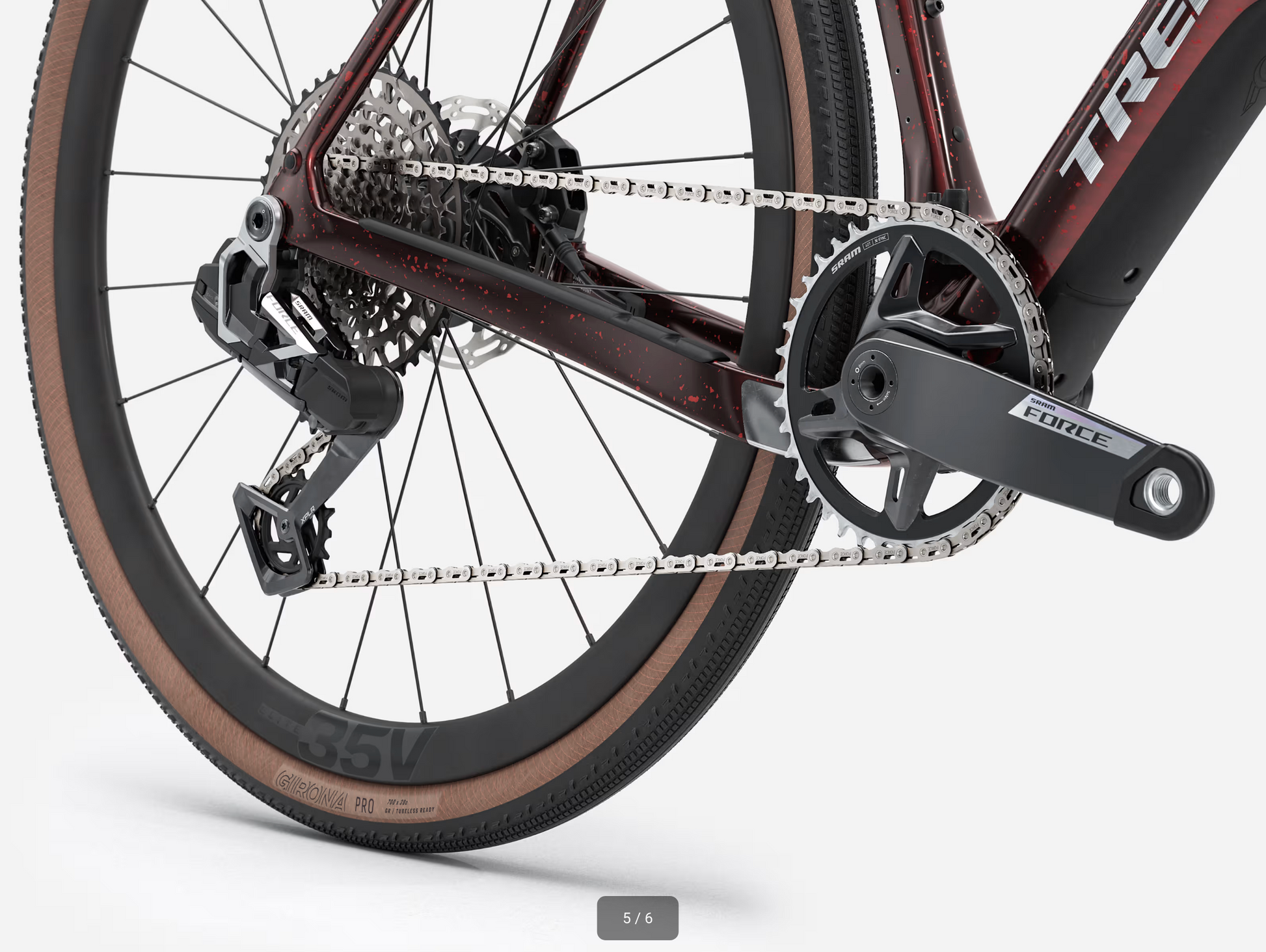

Drivetrain
Shifter
SRAM Force AXS E1
Rear derailleur
SRAM Force XPLR AXS, 46T max cog
*Crank
Size: XS, S
SRAM Force E1 XPLR, 40T, DUB Wide, 160mm length
Size: M, ML
SRAM Force XPLR, 40T, DUB Wide, 165mm length
Size: L, XL
SRAM Force XPLR, 40T, DUB Wide, 170mm length
Bottom bracket
SRAM DUB Wide, T47 threaded, internal bearing
Cassette
SRAM Force XPLR XG-1371, 10-46, 13 speed
Chain
SRAM Force E1, 12/13 speed
Max chainring size
1x:44 2x: 46/30
Wheels
Wheel front
Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle
Wheel rear
Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tire
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tire size
50mm without fenders, 42mm with fenders (as measured, see manual for details)
Components
Saddle
Verse Short Elite, hollow magnesium rails, 145mm width
Seatpost
Bontrager carbon, 27.2mm, 8mm offset, 330mm length

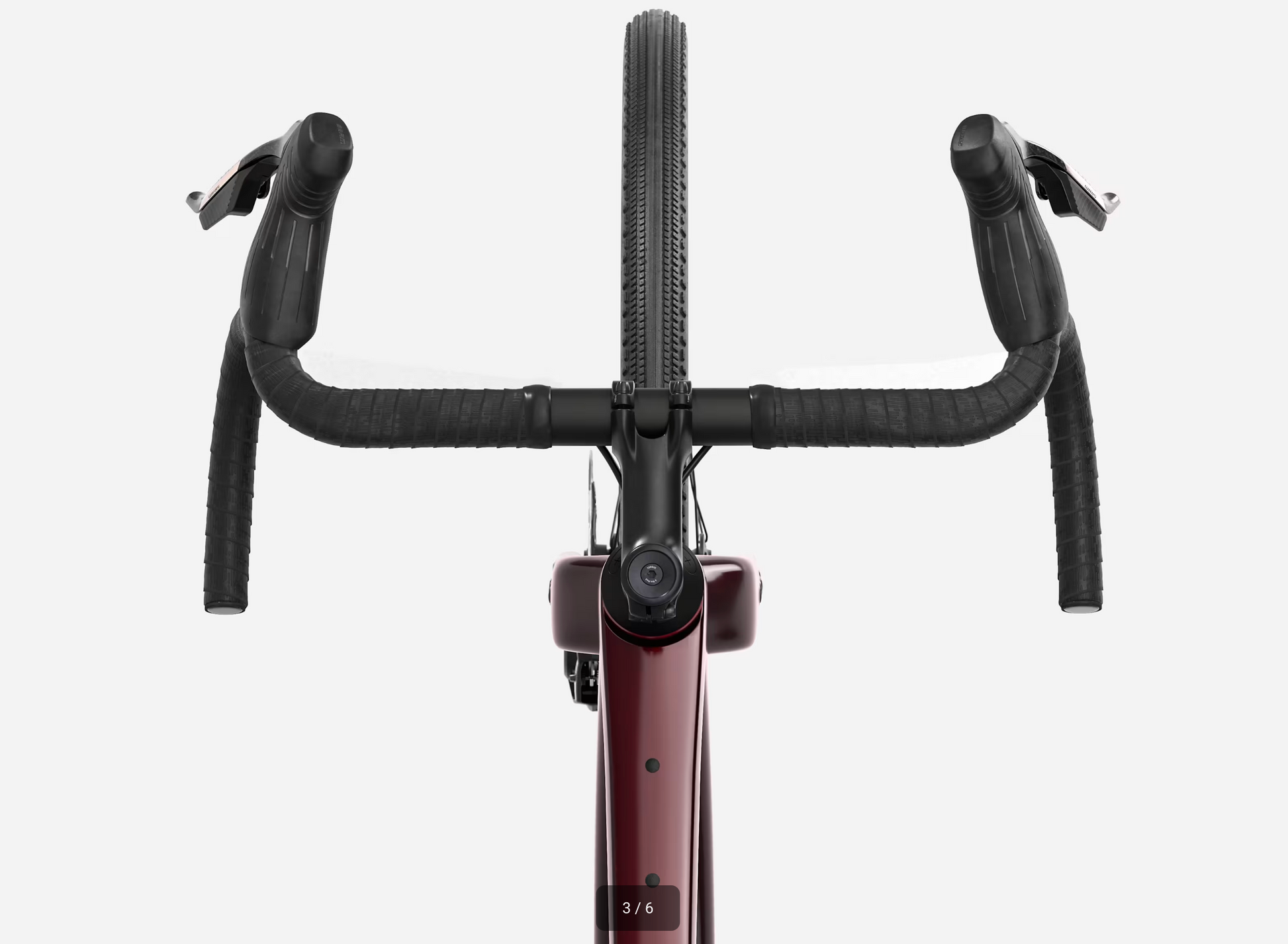

*Handlebar
Size: XS, S
Bontrager Pro Gravel, 40cm width
Size: M, ML
Bontrager Pro Gravel, 42cm width
Size: L
Bontrager Pro Gravel, 44cm width
Size: XL
Bontrager Pro Gravel, 46cm width
Handlebar tape
Bontrager Supertack Perf tape
*Stem
Size: XS
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: S, M
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: ML, L
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: XL
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
Brake
SRAM Force AXS hydraulic disc, flat mount
*Brake rotor
Size: XS, S, M, ML, L, XL
SRAM CenterLine X, centerlock, round edge, 160mm
Size: XS, S, M, ML, L, XL
SRAM Paceline X, rounded, centerlock, 160mm
Rotor size
Max brake rotor sizes: 180mm front & rear
Accessories
Bag
Bontrager BITS Internal Frame Storage Bag
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
