Trek
2027
Checkpoint+ SL 6 AXS
Checkpoint+ SL 6 AXS
Couldn't load pickup availability
Special Order Bike
Special Order Bike
This bike is not kept in store.
Lead time to pick-up is 10-14 days.

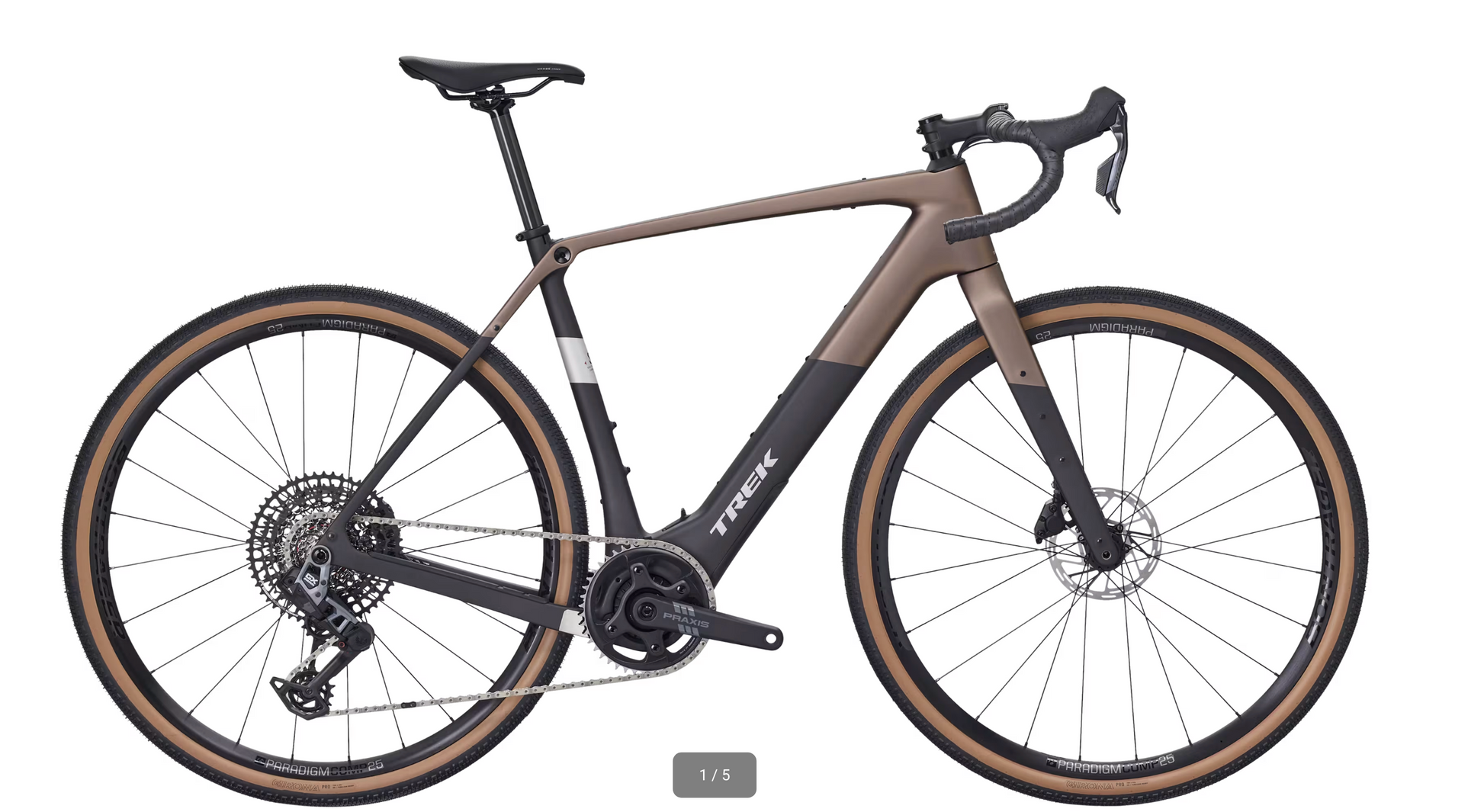

Checkpoint+ SL 6 AXS is an electric gravel bike built for the long haul and then some.
The TQ HPR60 motor gives you a smooth, quiet boost that feels like a steady tailwind on every climb, while a 360Wh battery keeps you rolling as the miles add up.
Its OCLV Carbon frame is ready for adventure, paired with durable alloy wheels and a 12-speed SRAM GX AXS drivetrain that shifts clean, even when the terrain gets rough.
How tall are you?
To measure your height, stand straight up, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inseam?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inseam measurement. Your inseam is very important to your final bike size so please measure carefully.
Share
Details
Specifications
Frame
500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle
Fork
Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
Weight
Weight
ML - 13.76 kg / 30.34 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
E-system
Battery
TQ 360Wh
Charger
TQ 4A charger
Computer
TQ LED display with Bluetooth & ANT+ connectivity
Motor
TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
E-bike Classification
Class 1
Drivetrain
*Shifter
Size: XS, S, M, ML, L, XL
SRAM Rival AXS E1, 13 speed
Size: XS, S, M, ML, L, XL
SRAM Rival AXS E1
Rear derailleur
SRAM GX Eagle AXS, T-Type
*Crank
Size: XS, S
Praxis Alloy, 165mm length
Size: M, ML
Praxis Alloy, 170mm length
Size: L, XL
Praxis Alloy, 172.5mm length
Cassette
SRAM Eagle XS-1275, T-Type, 10-52, 12 speed
Chain
SRAM GX Eagle, T-Type, 12 speed
Max chainring size
1x: 44T
Wheels
Wheel front
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rear
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tire
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tire size
50mm without fenders, 42mm with fenders (as measured, see manual for details)
Components
Saddle
Verse Short Comp, steel rails, 145mm width
Seatpost
Bontrager carbon, 27.2mm, 8mm offset, 330mm length
*Handlebar
Size: XS, S
Bontrager Elite Gravel, alloy, 40cm width
Size: M, ML
Bontrager Elite Gravel, alloy, 42cm width
Size: L
Bontrager Elite Gravel, alloy, 44cm width
Size: XL
Bontrager Elite Gravel, alloy, 46cm width
Handlebar tape
Bontrager Supertack Perf tape
*Stem
Size: XS
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: S, M
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: ML, L
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: XL
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
Brake rotor
SRAM Paceline, rounded, centerlock, 160mm
Rotor size
Max brake rotor sizes: 180mm front & rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
Discounted Items Are Final Sale
Please visit our Return/Exchange Policy page for more information.
Shipping
This bike is not eligible for shipping
Size Chart
Geometry Chart
