Checkpoint SL 5 AXS Gen 3 2027
Checkpoint SL 5 AXS Gen 3 2027
Couldn't load pickup availability
Pick up could take up to 10 days
Pick up could take up to 10 days
Not all our bikes are stored at our retail location so in store pick up for bikes could take up to 10 days.
Please contact the store for more information on estimated pick up ETA.
Don't see what you want?
Don't see what you want?
Other colour and size options might be available for special order.
Contact us for more information.

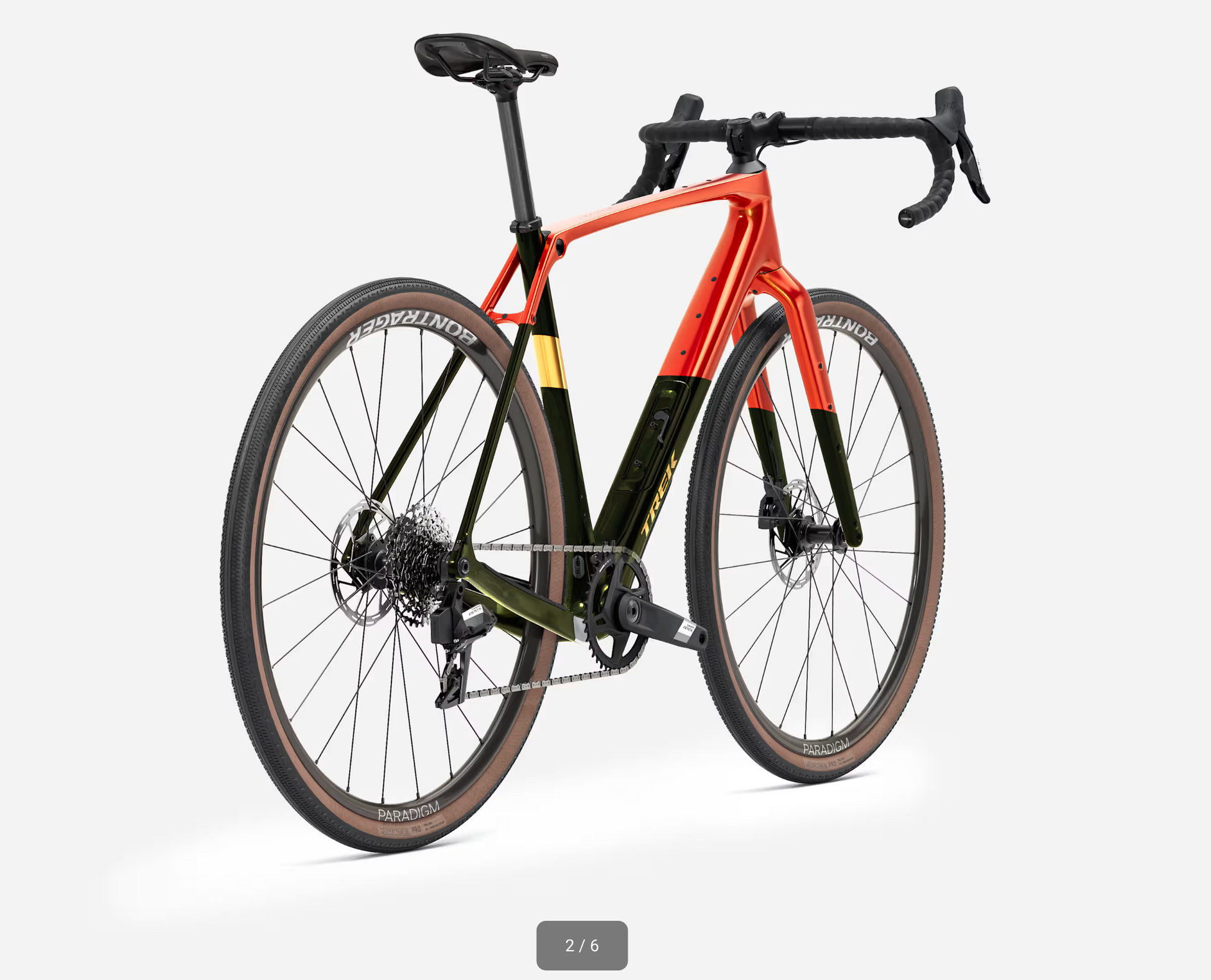

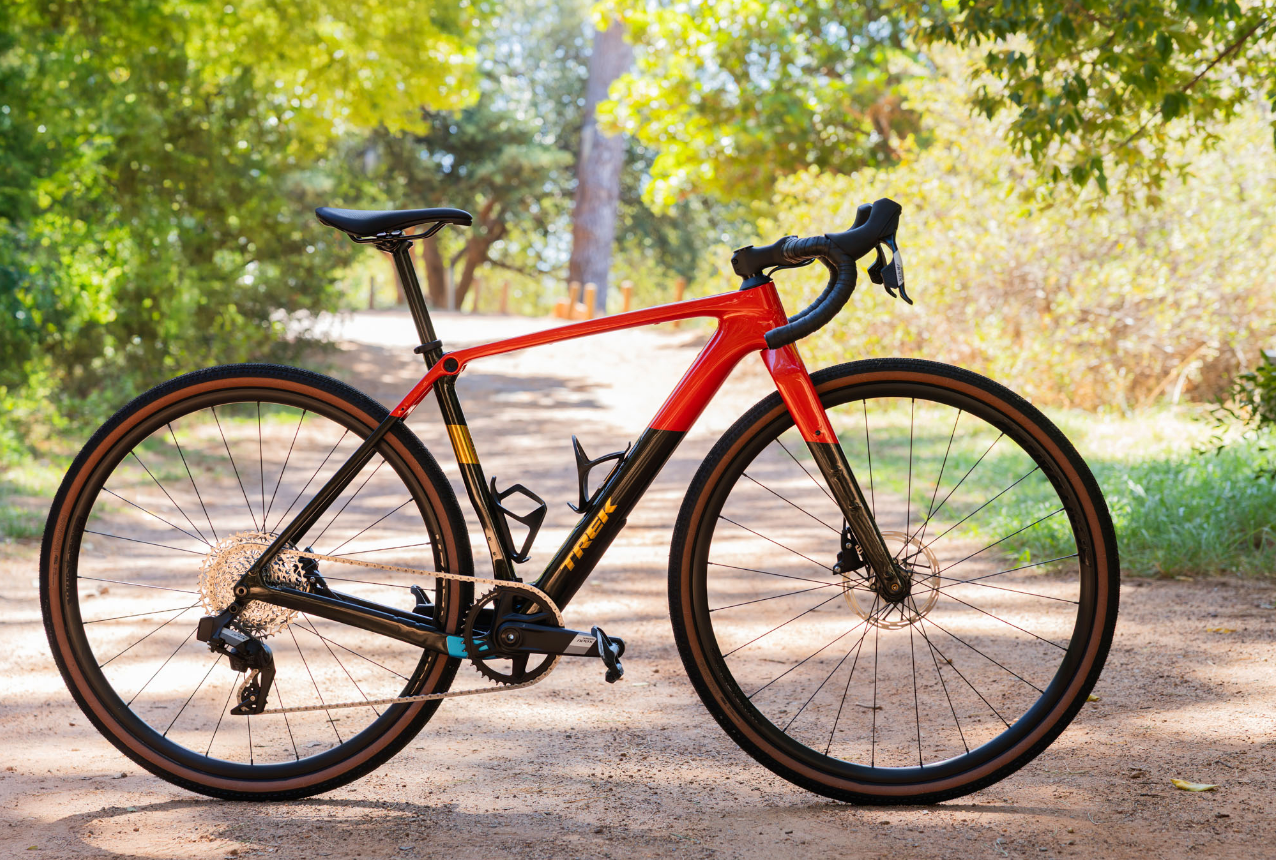

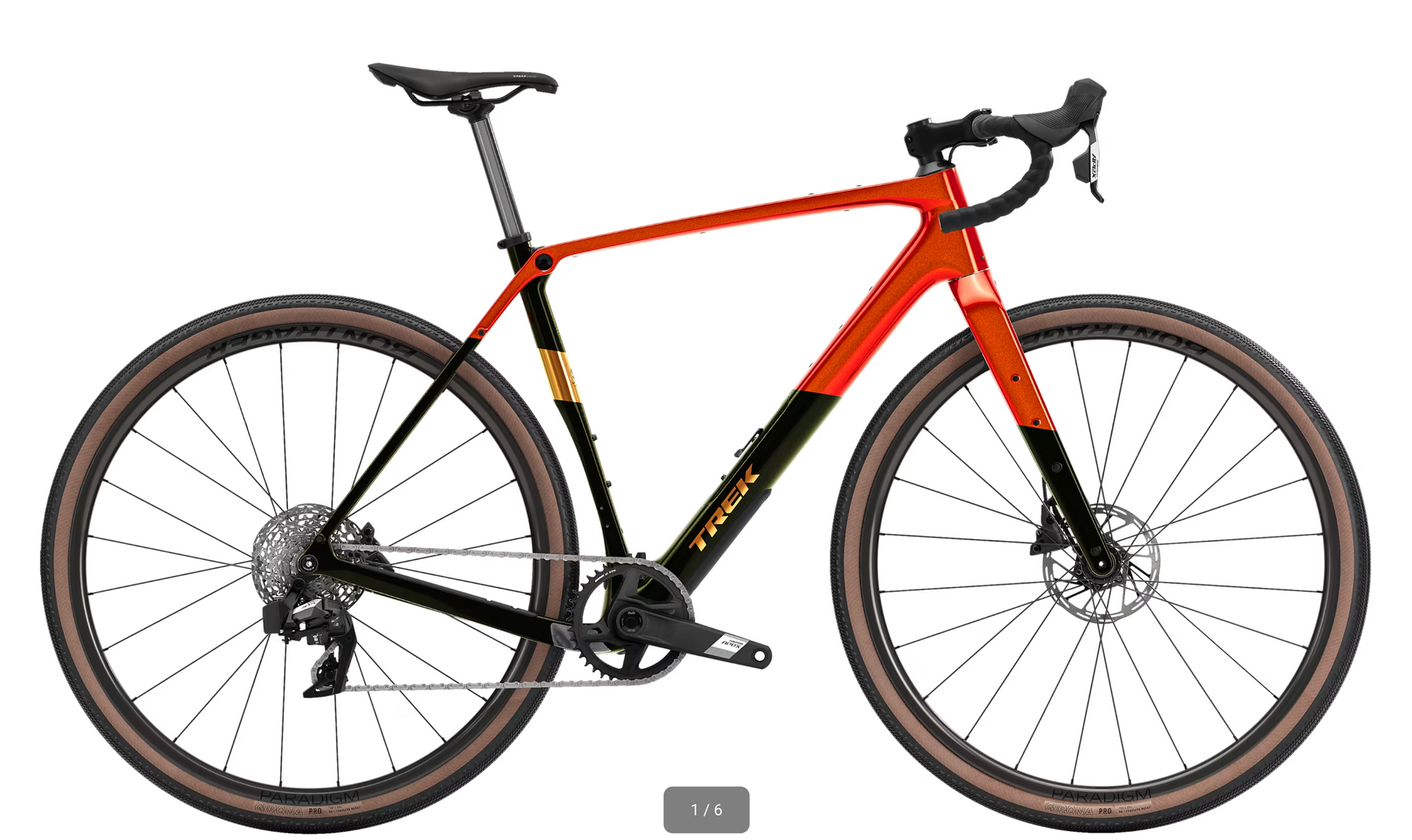

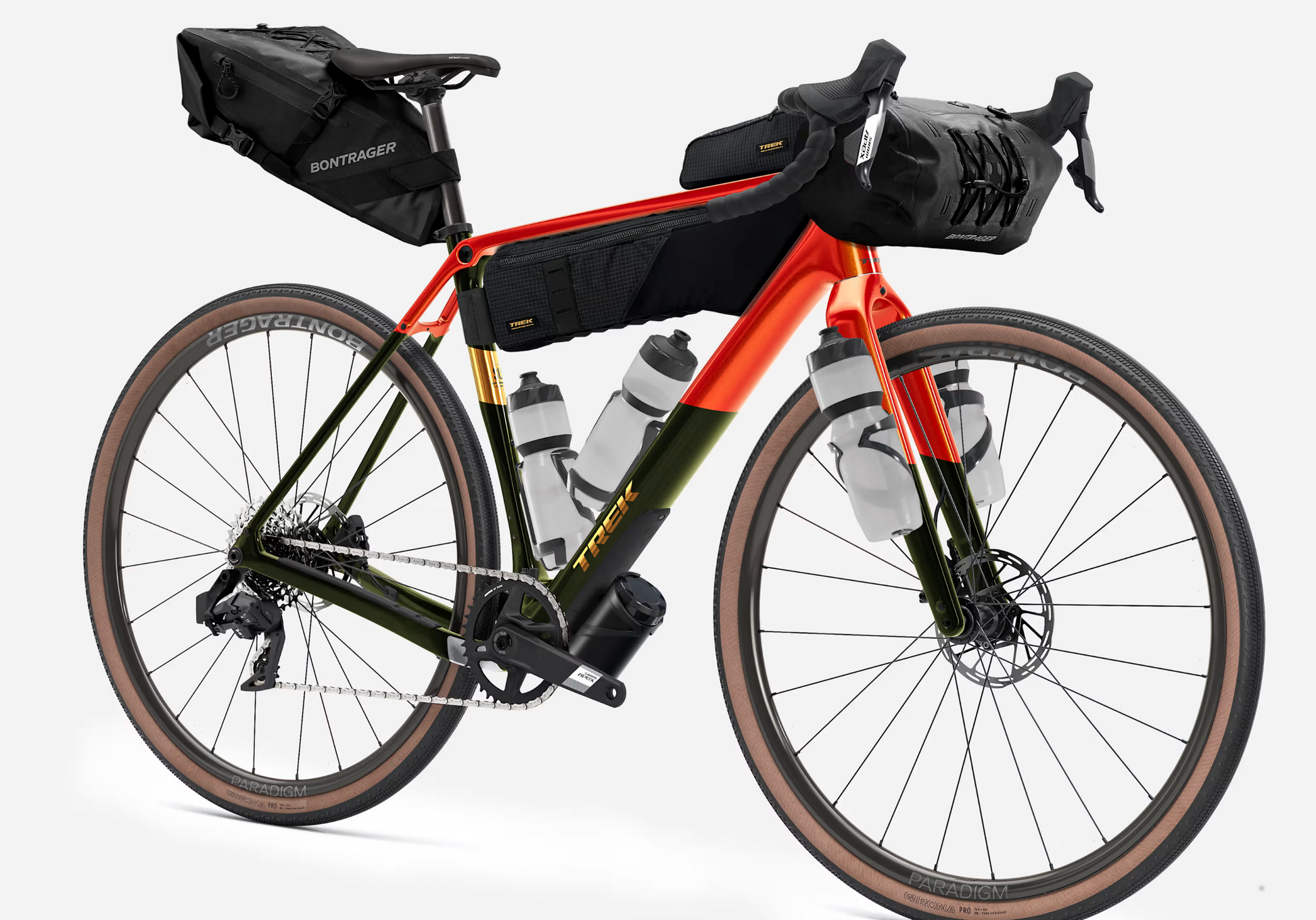

Checkpoint SL 5 AXS Gen 3 is an adventure-ready carbon gravel bike built to chase the horizon.
Its lightweight frame features comfort-focused geometry, clearance for 50mm tires (as measured), and plenty of mounts for bags and gear. IsoSpeed tech helps soak up vibrations from rough roads, so you can float over chatter and potholes.
Plus, it's equipped with a wireless SRAM Apex XPLR AXS drivetrain that offers plenty of gears for exploring the long, dusty road.
Share
Details
Specifications
Frame
500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle
Fork

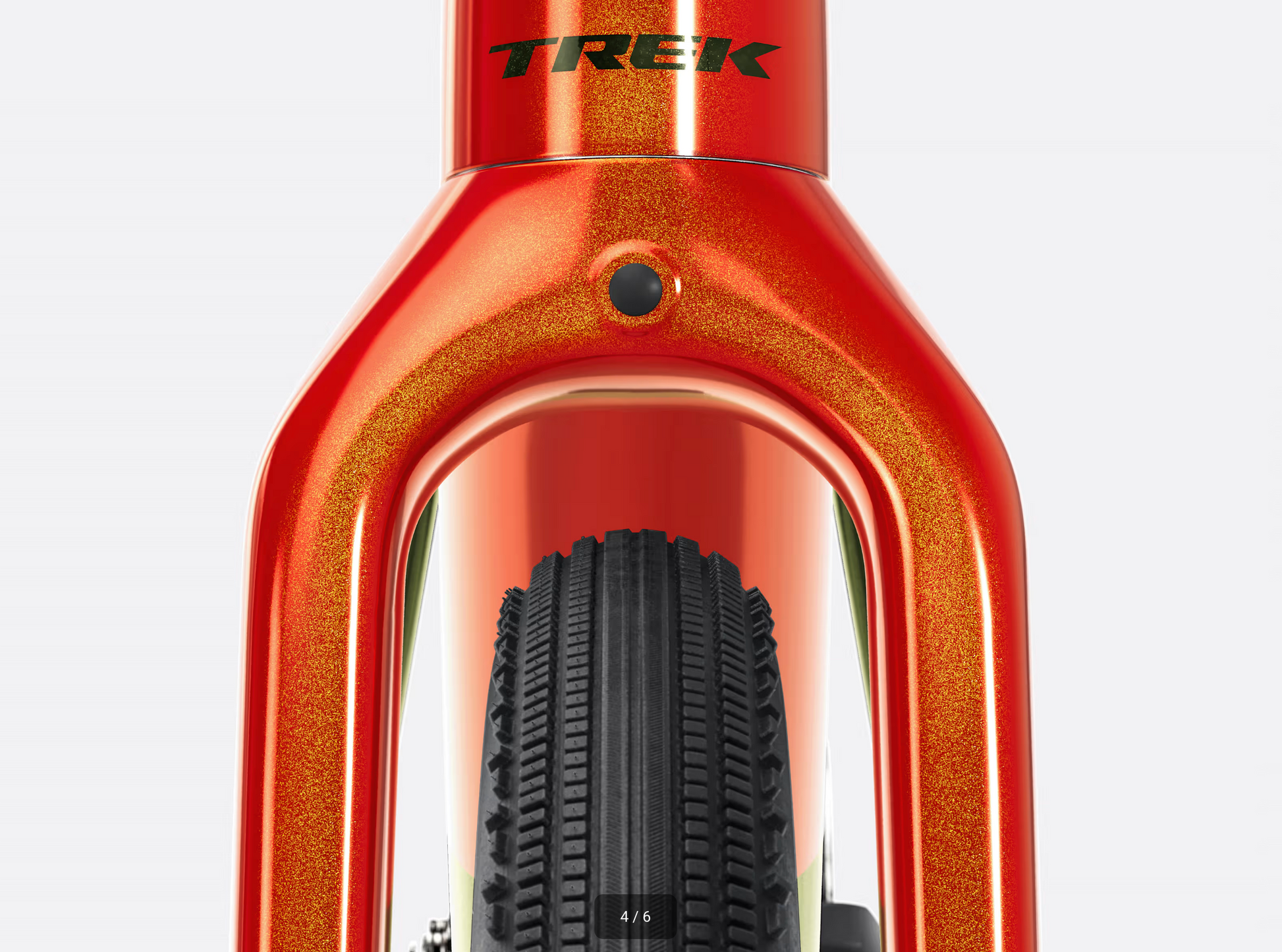

Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
Weight
Weight
ML - 9.50 kg / 20.95 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
E-system
Battery
SRAM AXS battery pack (with charger)

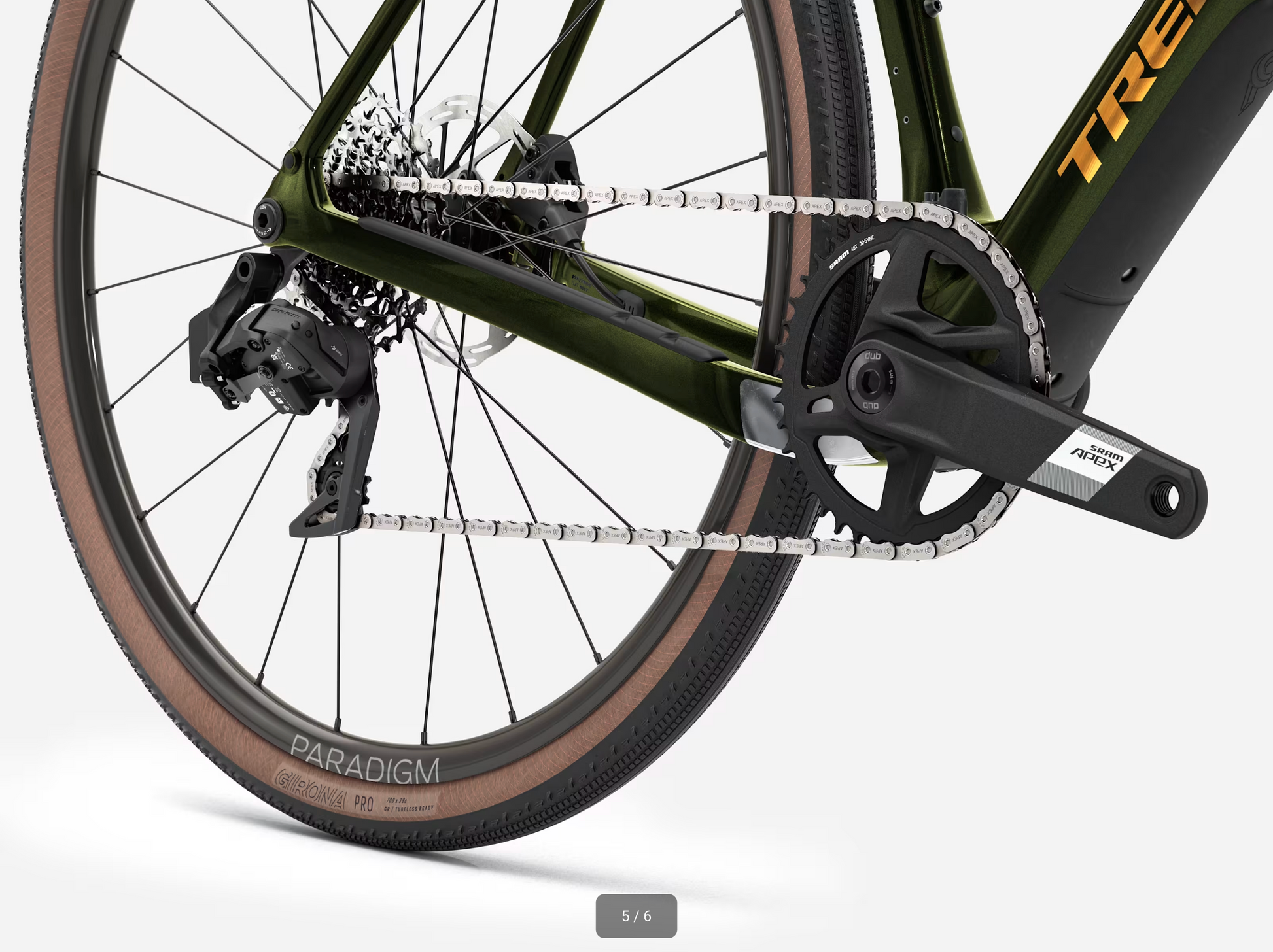

Drivetrain
Shifter
SRAM Apex AXS, 12 speed
Rear derailleur
SRAM Apex XPLR eTap AXS, 44T max cog
*Crank
Size: XS, S
SRAM Apex 1, 40T, DUB Wide, 165mm length
Size: M
SRAM Apex 1, 40T, DUB Wide, 170mm length
Size: ML, L
SRAM Apex 1, 40T, DUB Wide, 172.5mm length
Size: XL
SRAM Apex 1, 40T, DUB Wide, 175mm length
Bottom bracket
SRAM DUB Wide, T47 threaded, internal bearing
Cassette
SRAM XPLR PG-1231, 11-44, 12 speed
Chain
SRAM Apex, 12 speed
Max chainring size
1x:44 2x: 46/30
Wheels
Wheel front
Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples
Wheel rear
Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and nipples
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tire
Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tire size
50mm without fenders, 42mm with fenders (as measured, see manual for details)
Components
*Saddle
Size: XS, S
Verse Short Comp, steel rails, 155mm width
Size: M, ML, L, XL
Verse Short Comp, steel rails, 145mm width
Seatpost
Bontrager carbon, 27.2mm, 8mm offset, 330mm length

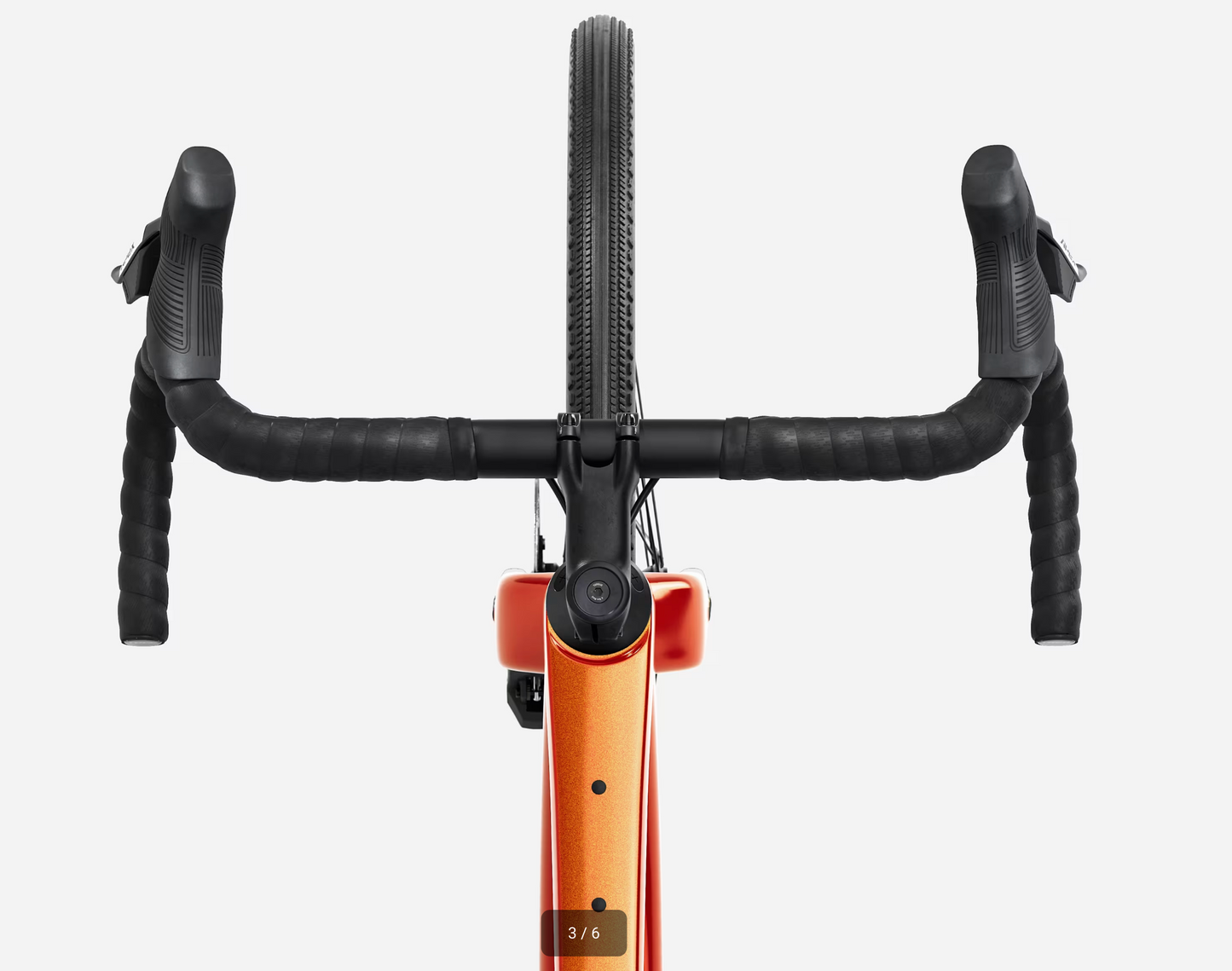

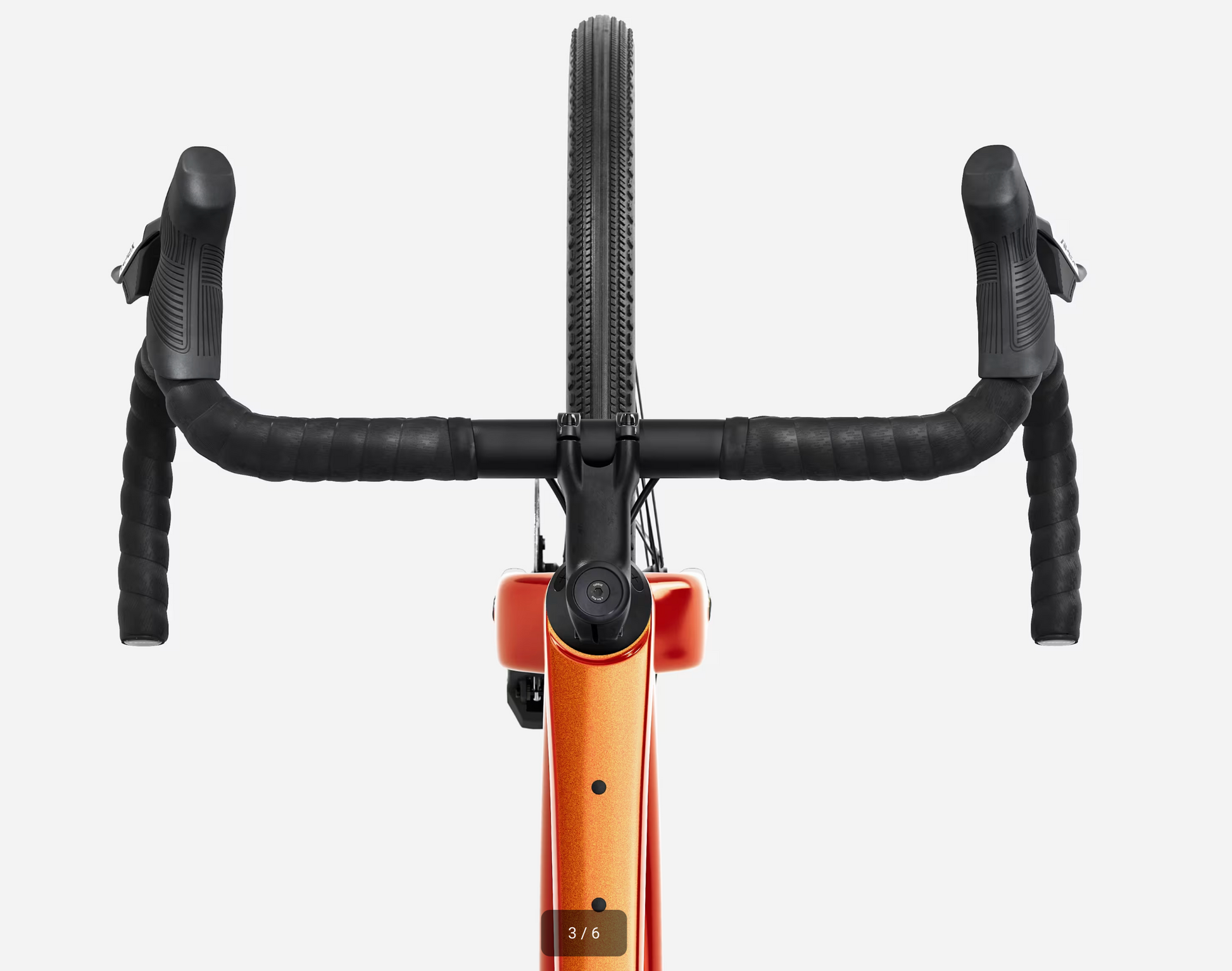

*Handlebar
Size: XS
Bontrager Elite Gravel, alloy, 40cm width
Size: S, M
Bontrager Elite Gravel, alloy, 42cm width
Size: ML, L
Bontrager Elite Gravel, alloy, 44cm width
Size: XL
Bontrager Elite Gravel, alloy, 46cm width
Handlebar tape
Bontrager Supertack Perf tape
*Stem
Size: XS
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: S
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: M, ML
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: L
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: XL
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Brake rotor
SRAM Paceline, rounded, centerlock, 160mm
Rotor size
Max brake rotor sizes: 180mm front & rear
Accessories
Bag
Bontrager BITS Internal Frame Storage Bag
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
Discounted Items Are Final Sale
Please visit our Return/Exchange Policy page for more information.
Shipping
This bike is not eligible for shipping

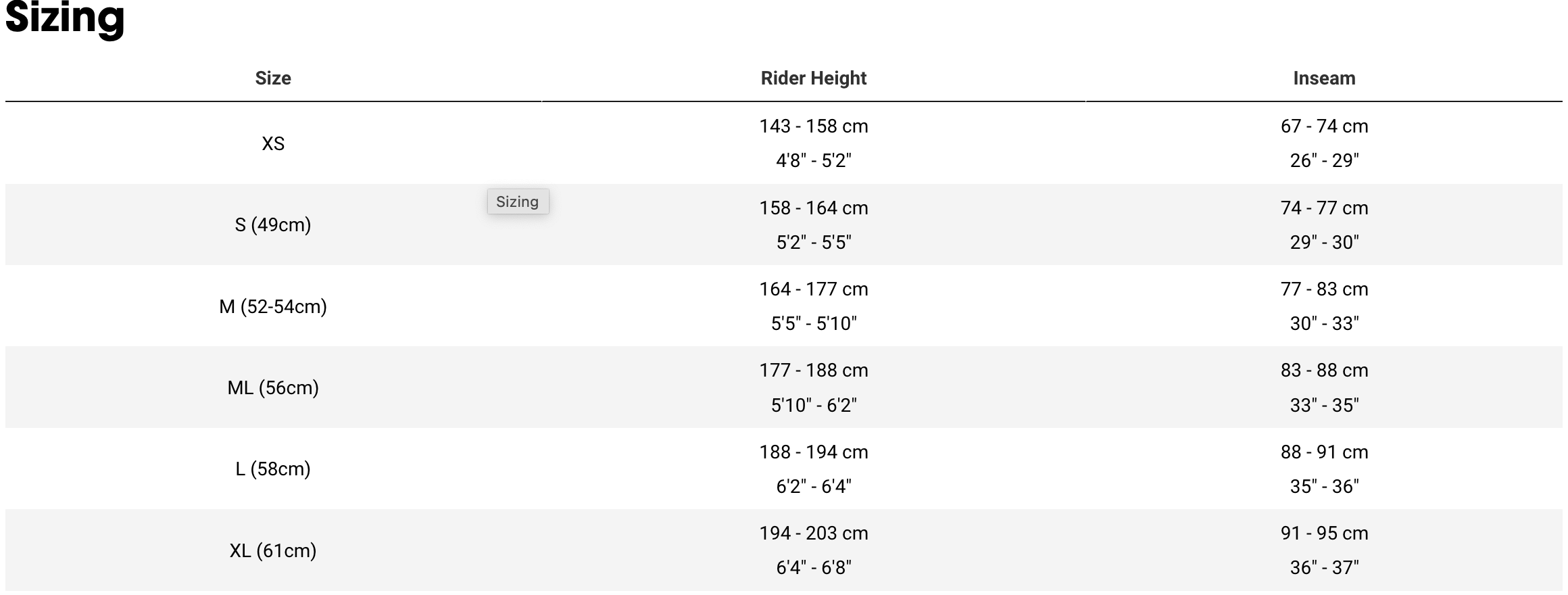

Size Chart

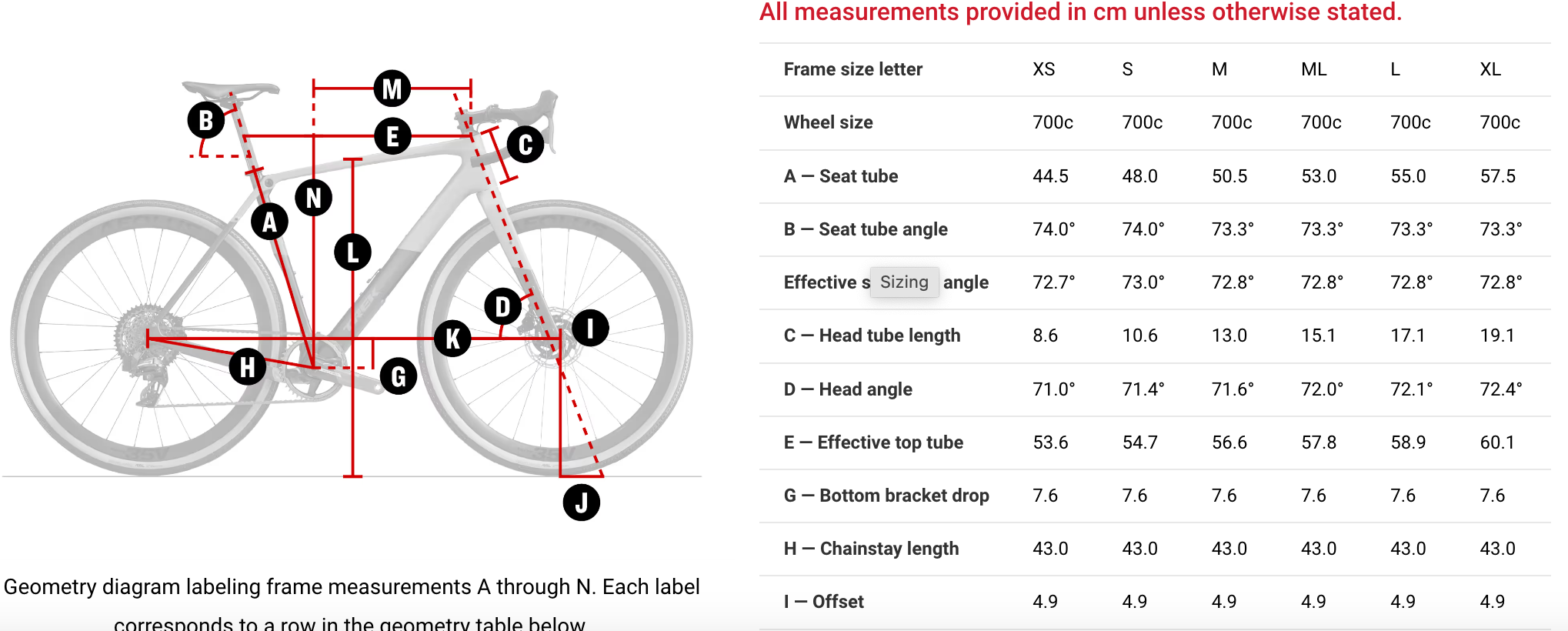

Geometry Chart
