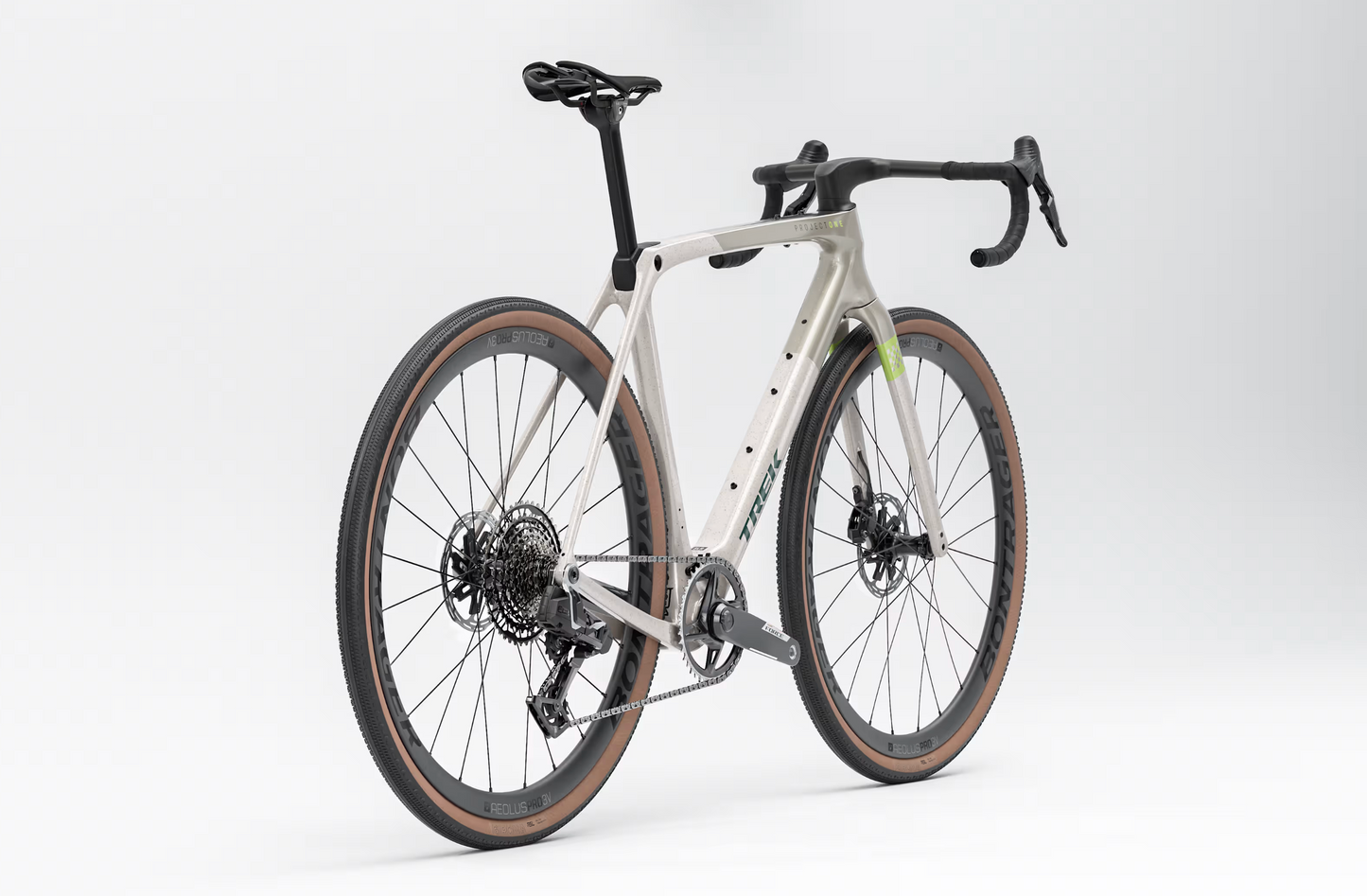

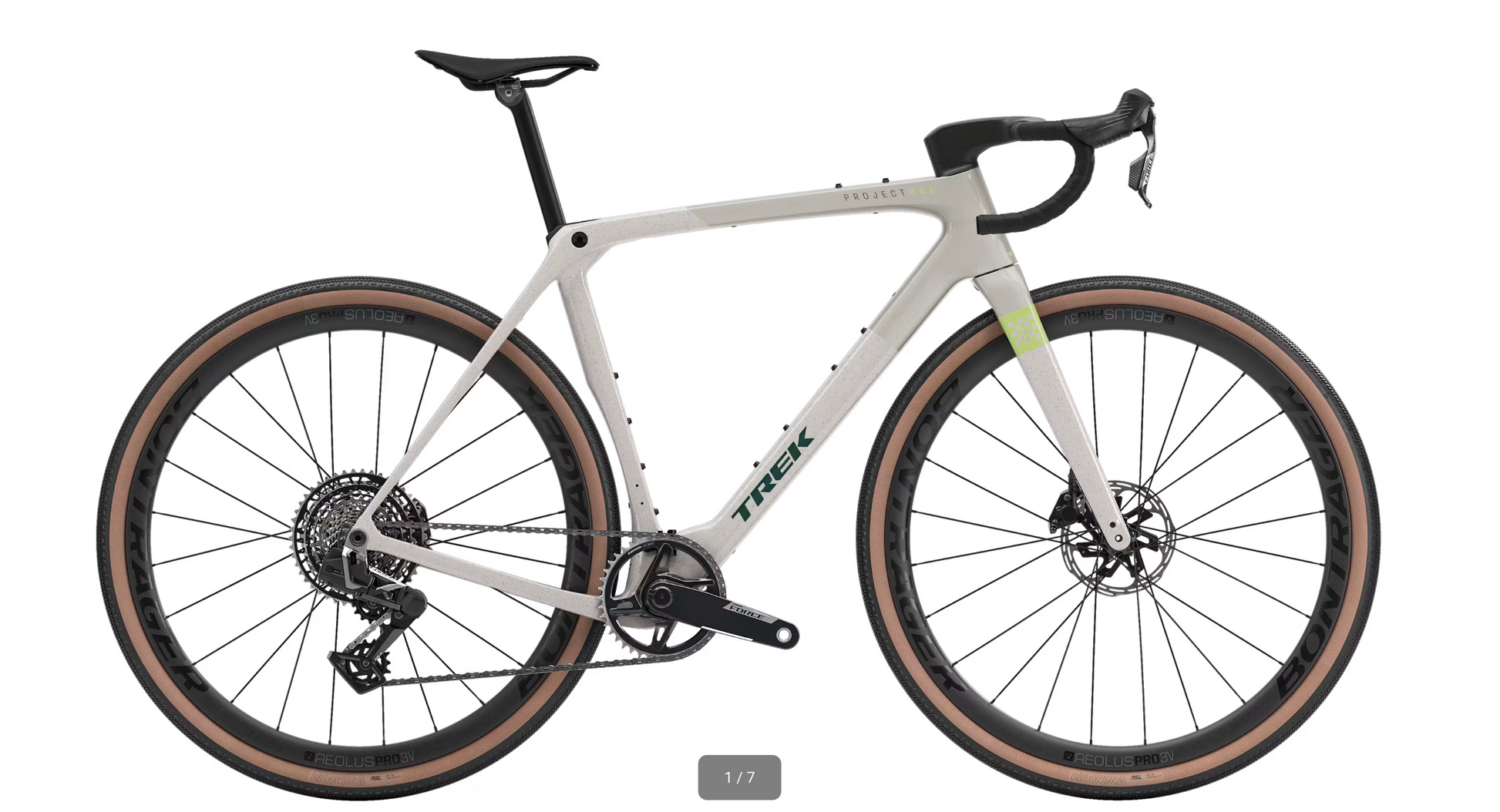

Checkmate SLR 7 AXS 2027
Checkmate SLR 7 AXS 2027
Couldn't load pickup availability
Custom Order Bike
Custom Order Bike
This bike is not kept in store.
Lead time to pick-up is 30-60 days.
We recommend contacting us prior to ordering.

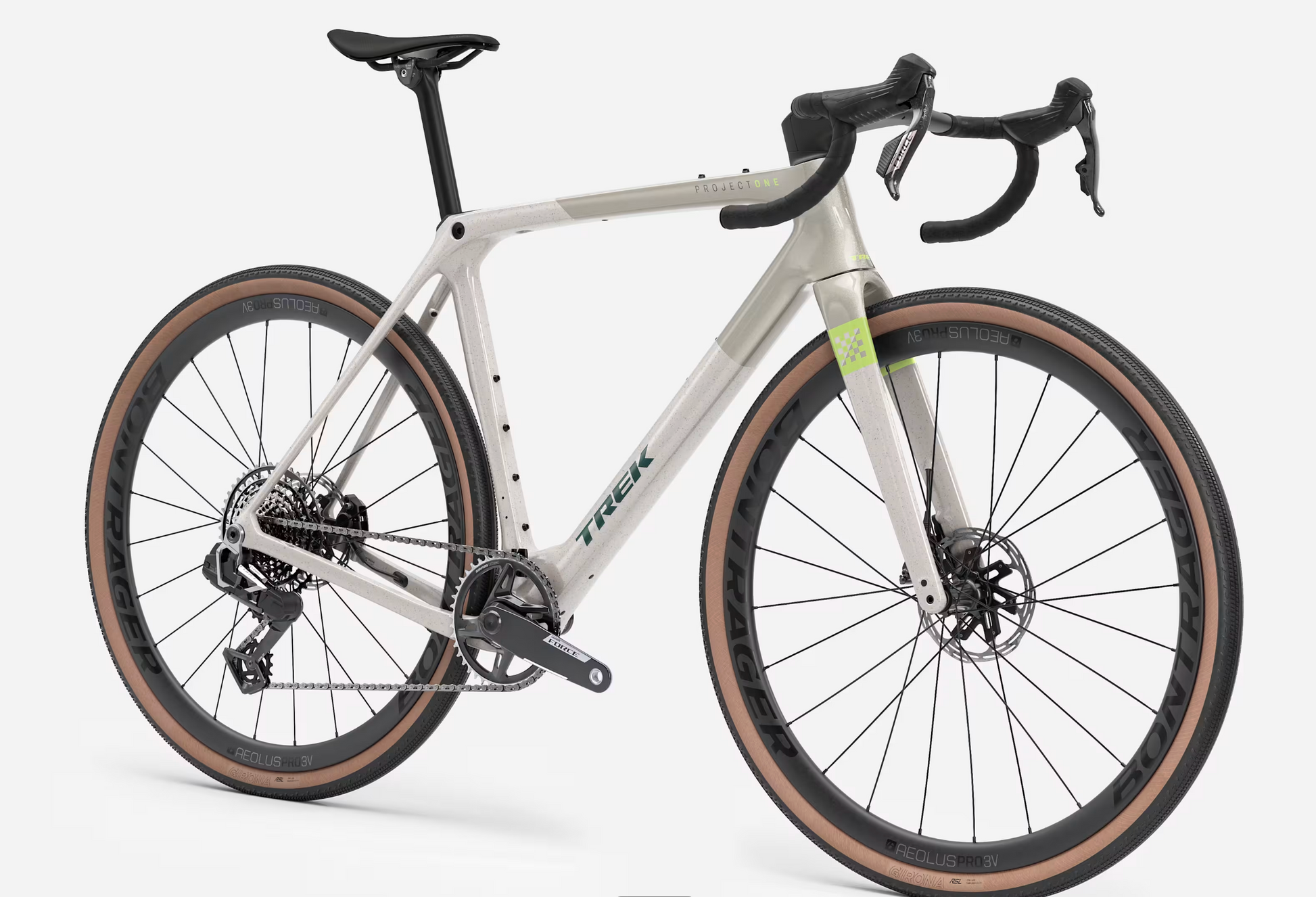

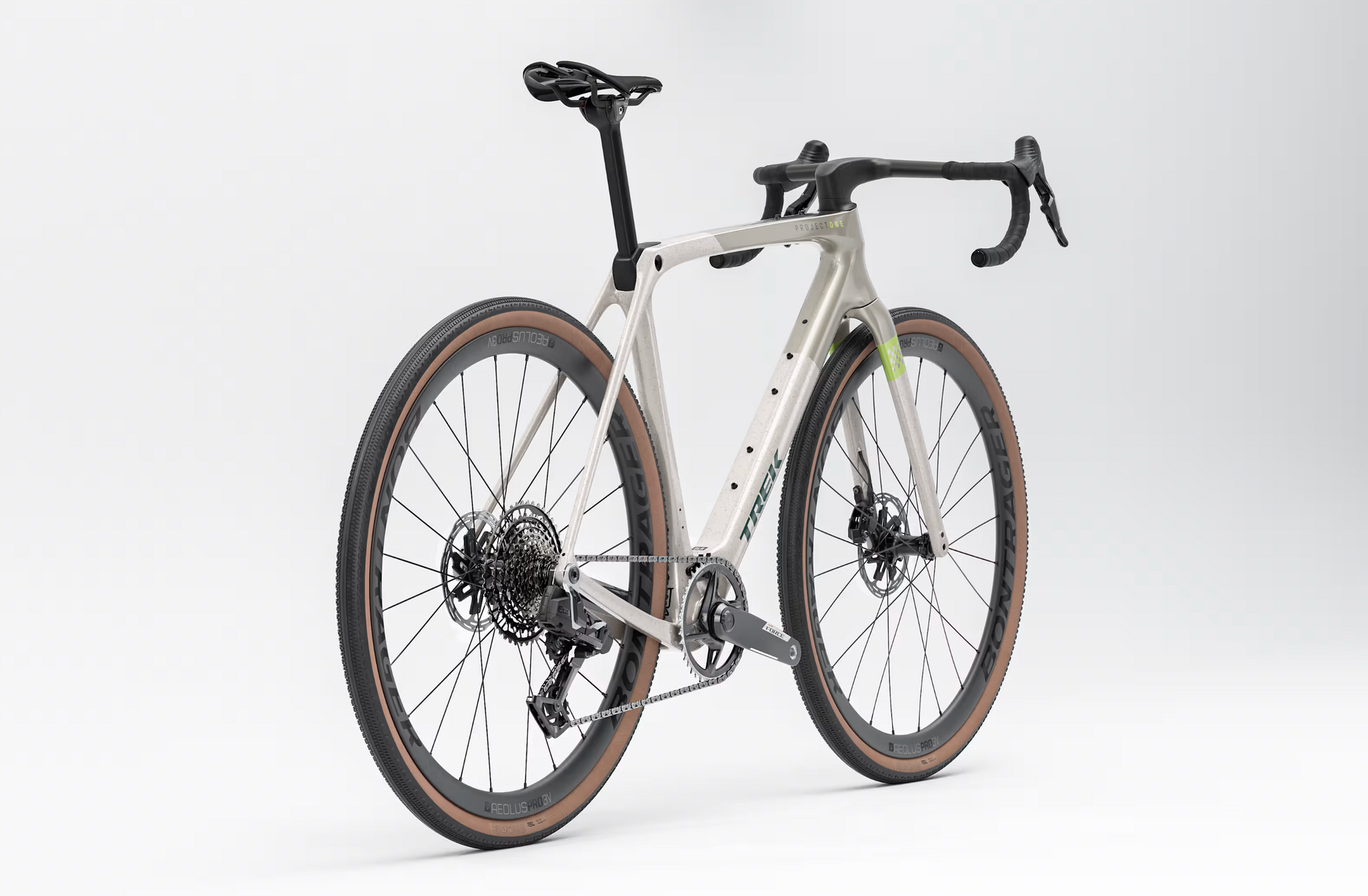

Checkmate SLR 7 AXS is a carbon gravel race bike built to toe the line and kick up dust on the long and rough road.
To deliver ultimate race-day performance, Checkmate combines a lightweight aero design with IsoSpeed and Gravel Race geometry that keeps you poised for the attack without eating up your energy.
It's topped off with a SRAM Force XPLR AXS E1 wireless drivetrain, carbon wheels, and Trek Aero RSL bar/stem for a lightweight build.
How tall are you?
To measure your height, stand straight up, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inseam?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inseam measurement. Your inseam is very important to your final bike size so please measure carefully.
Share
Details
Specifications
Frame

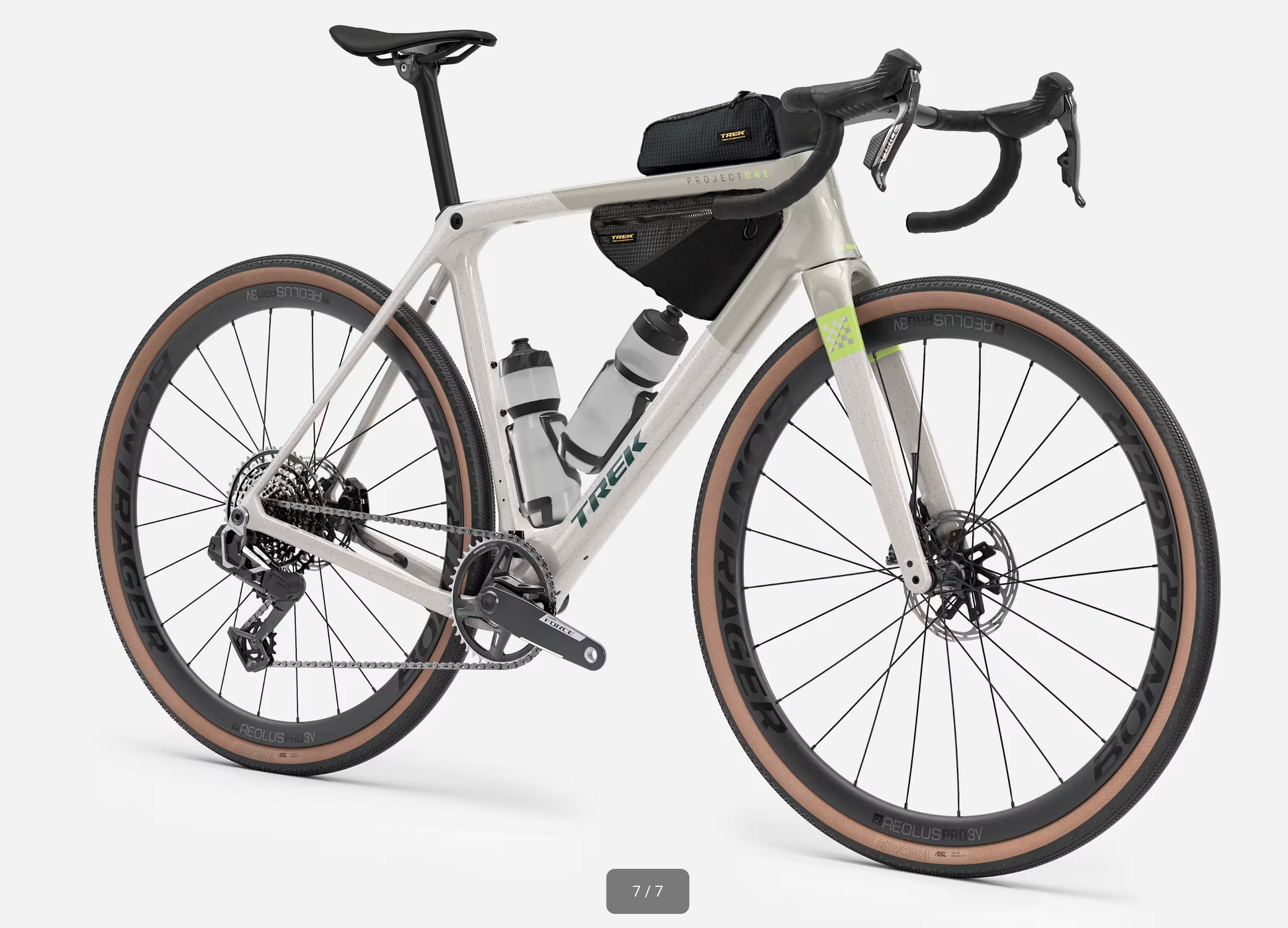

800 Series OCLV Carbon, IsoSpeed, hidden fender mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle

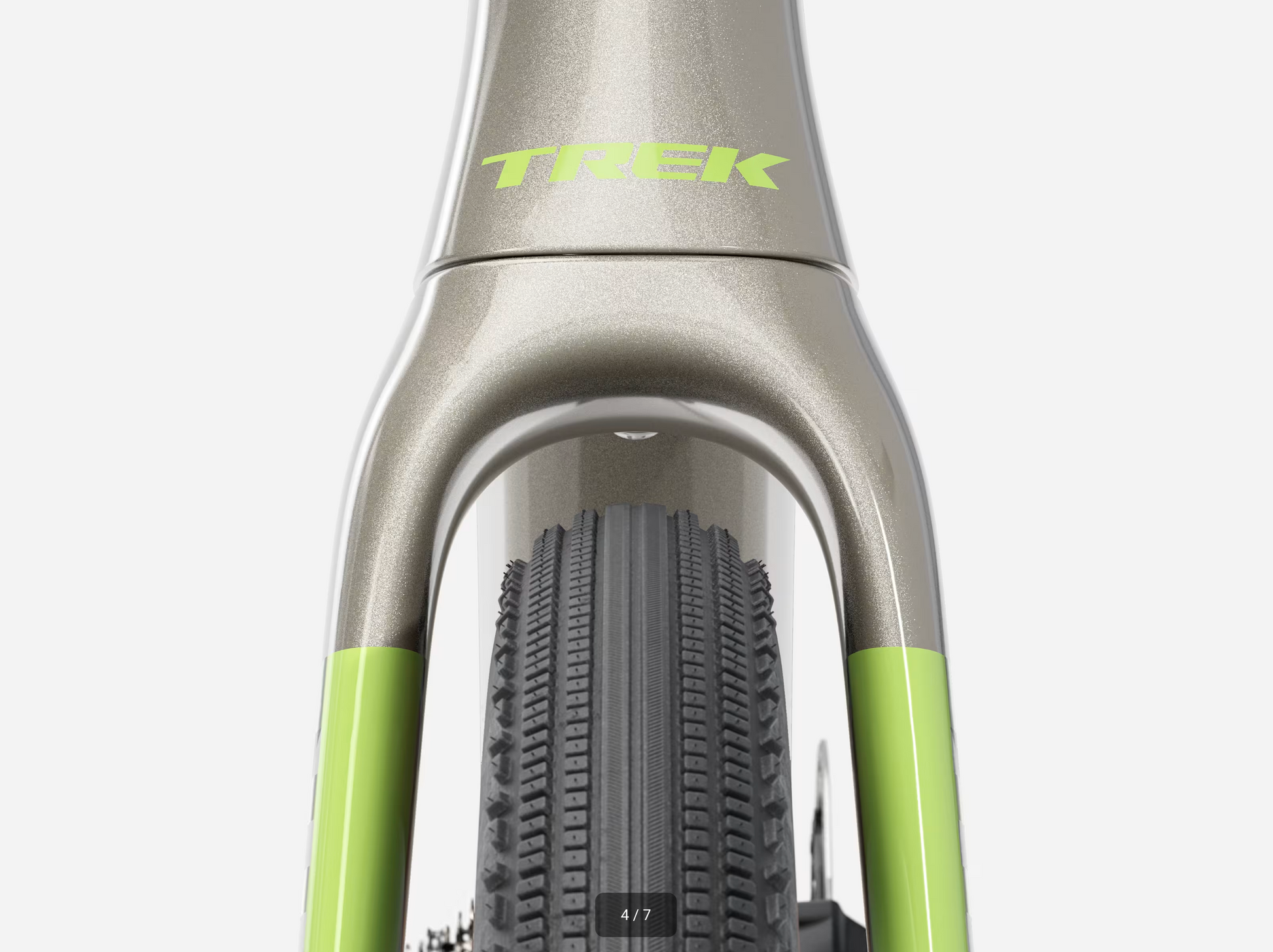

Fork
Checkmate SLR full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc, 12x100mm thru axle
Weight
Weight
ML - 8.47 kg / 18.68 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
E-system
Battery
SRAM AXS battery pack (with charger)

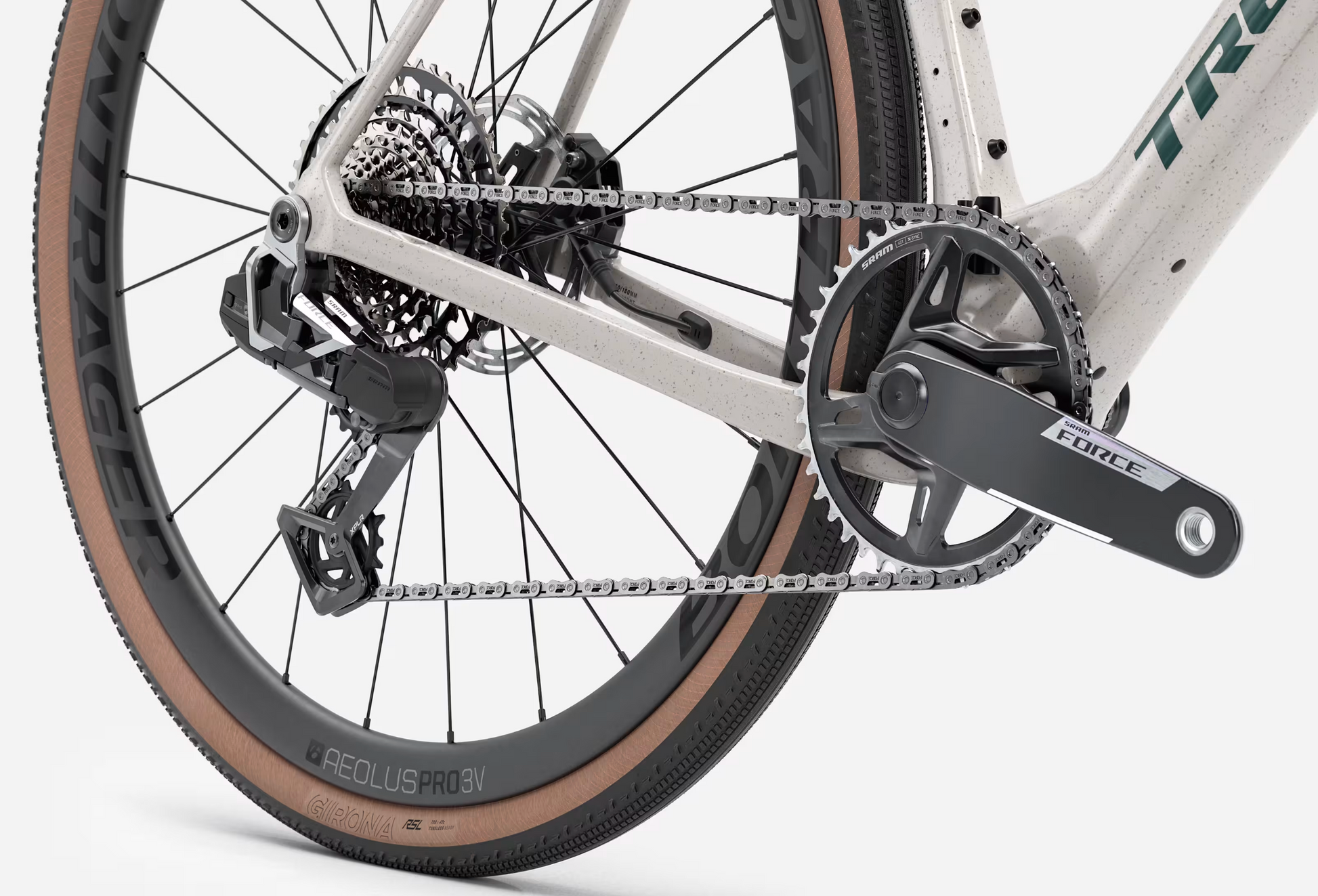

Drivetrain
Shifter
SRAM Force AXS E1
Rear derailleur
SRAM Force XPLR AXS, 46T max cog
*Crank
Size: XS, S
SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 165mm length
Size: M, ML
SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 170mm length
Size: L, XL
SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 172.5mm length
Bottom bracket
SRAM DUB Wide, T47 threaded, internal bearing
Cassette
SRAM Force XPLR XG-1371, 10-46, 13 speed
Chain
SRAM Force E1, 12/13 speed
Max chainring size
See service manual
Wheels
Wheel front
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rear
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, SRAM XD-R driver, 142x12mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tire
Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tire size
45mm without fenders, 38mm with fenders (as measured, see manual for details)
Components
*Saddle
Size: XS, S, M, ML, L, XL
Bontrager Aeolus Pro, carbon rails, 145mm width
Size: XS, S, M, ML, L, XL
Trek Aeolus Pro, carbon fiber rails, AirLoom lattice 145mm width
Seatpost
KVF aero carbon seatpost, 5mm offset, 280mm length

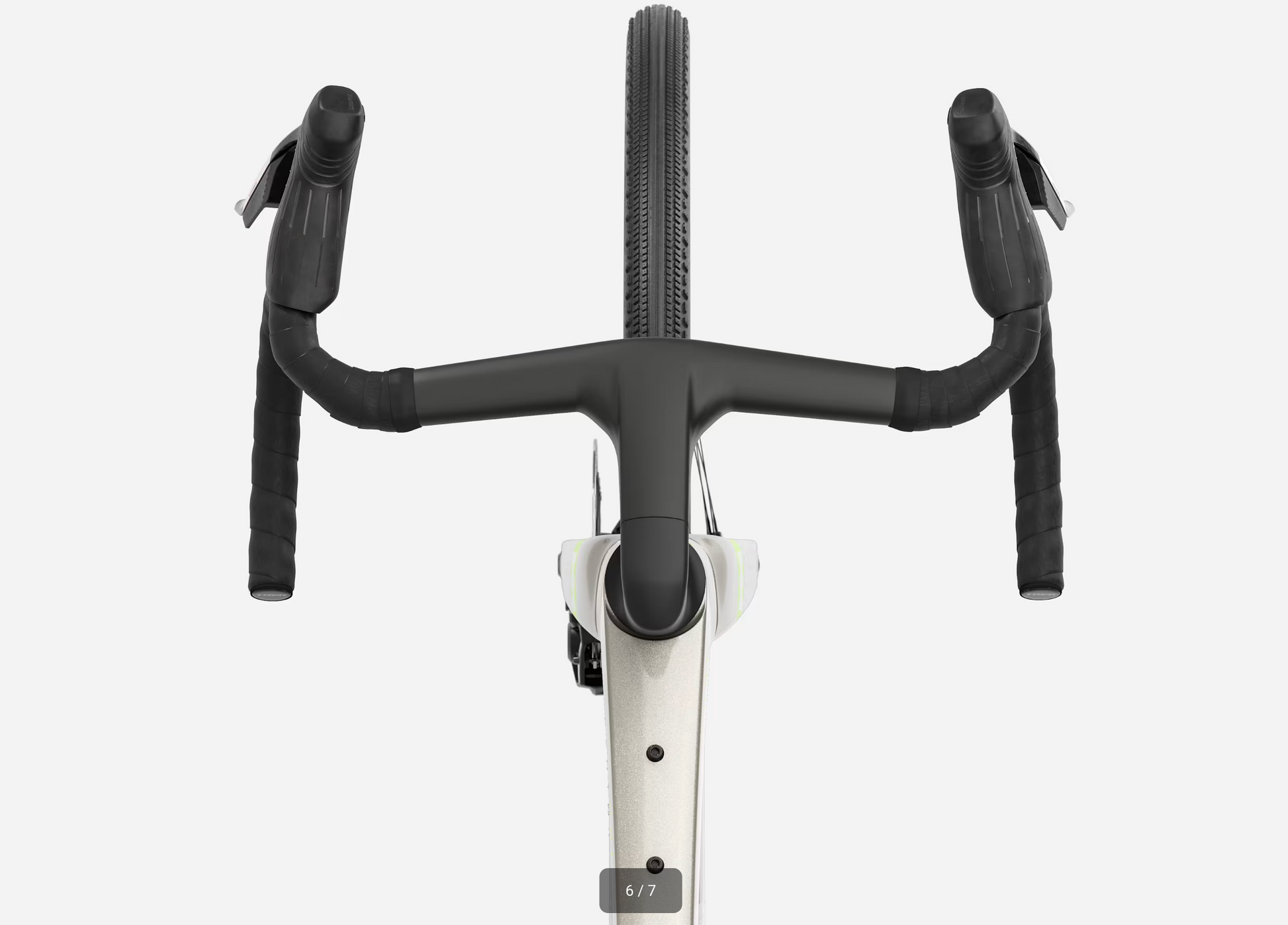

*Handlebar/stem (integrated)
Size: XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 70mm stem length
Size: S
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 80mm stem length
Size: M
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length
Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 100mm stem length
Size: XL
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length
*Handlebar tape
Size: XS, S, M, ML, L, XL
Trek EcoTack
Size: XS, S, M, ML, L, XL
Trek gel cork
*Brake rotor
Size: XS, S, M, ML, L, XL
SRAM Paceline X, rounded, centerlock, 160mm
Size: XS, S, M, ML, L, XL
SRAM CenterLine X, centerlock, round edge, 160mm
Rotor size
Max brake rotor sizes: 180mm front & rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
Discounted Items Are Final Sale
Please visit our Return/Exchange Policy page for more information.
Shipping
This bike is not eligible for shipping

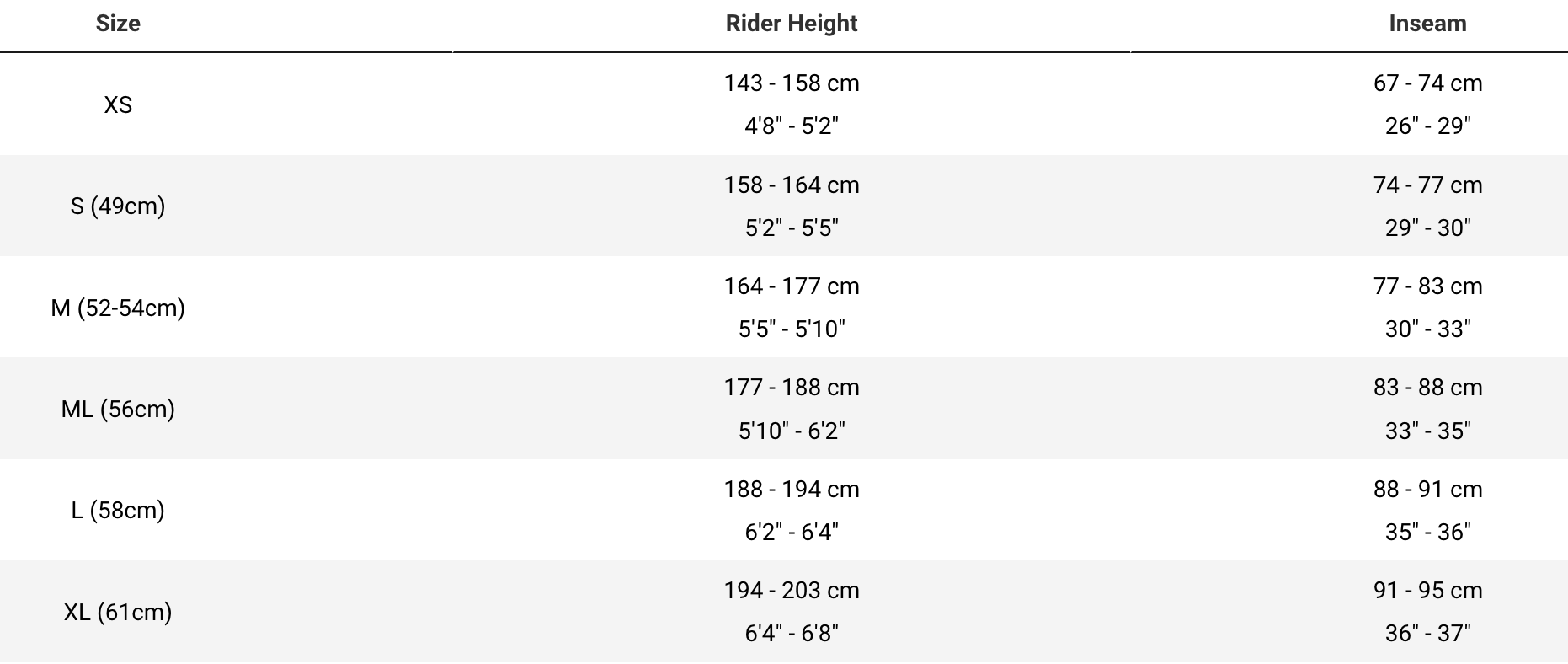

Size Chart

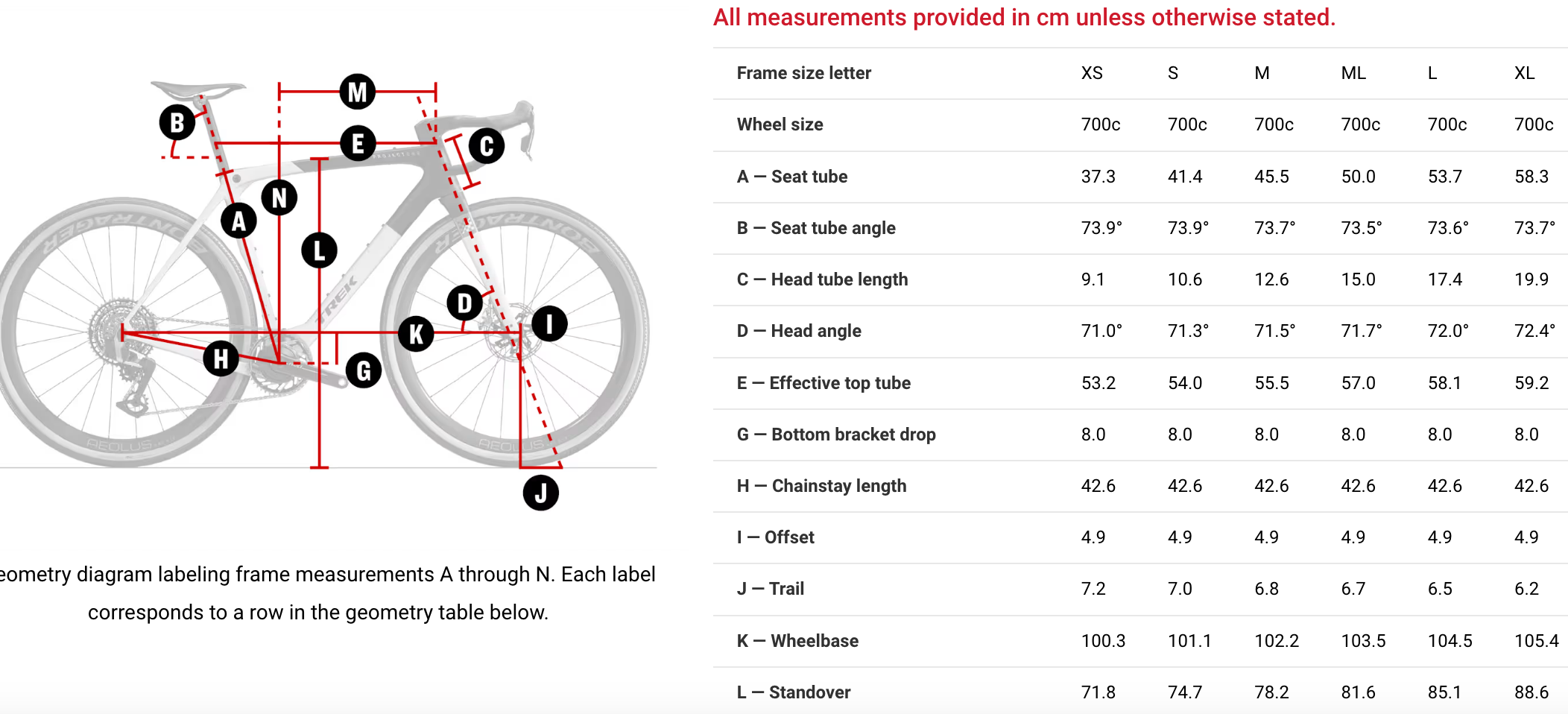

Geometry Chart
