Check-OUT SL 7 AXS

Frame
500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12mm chamfered thru axle, 55mm travel
Fork
RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 60mm travel
Shock
RockShox SIDluxe Ultimate 3P, 170mmx27.5mm

Weight
Weight
ML - 11.28 kg / 24.87 lbs (with TLR sealant, no tubes, excluding rear rack)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system
Battery
SRAM AXS battery pack (with charger)

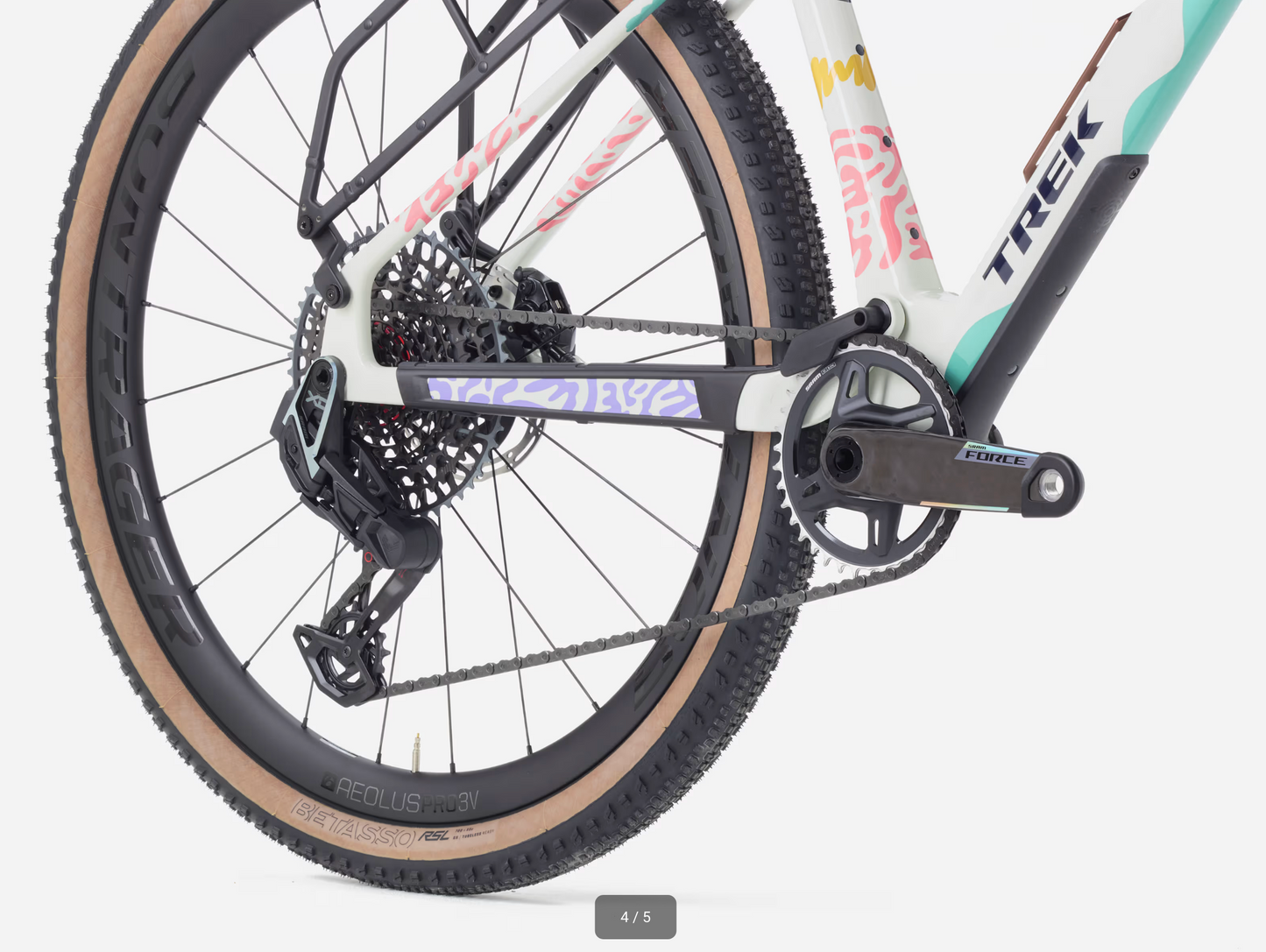

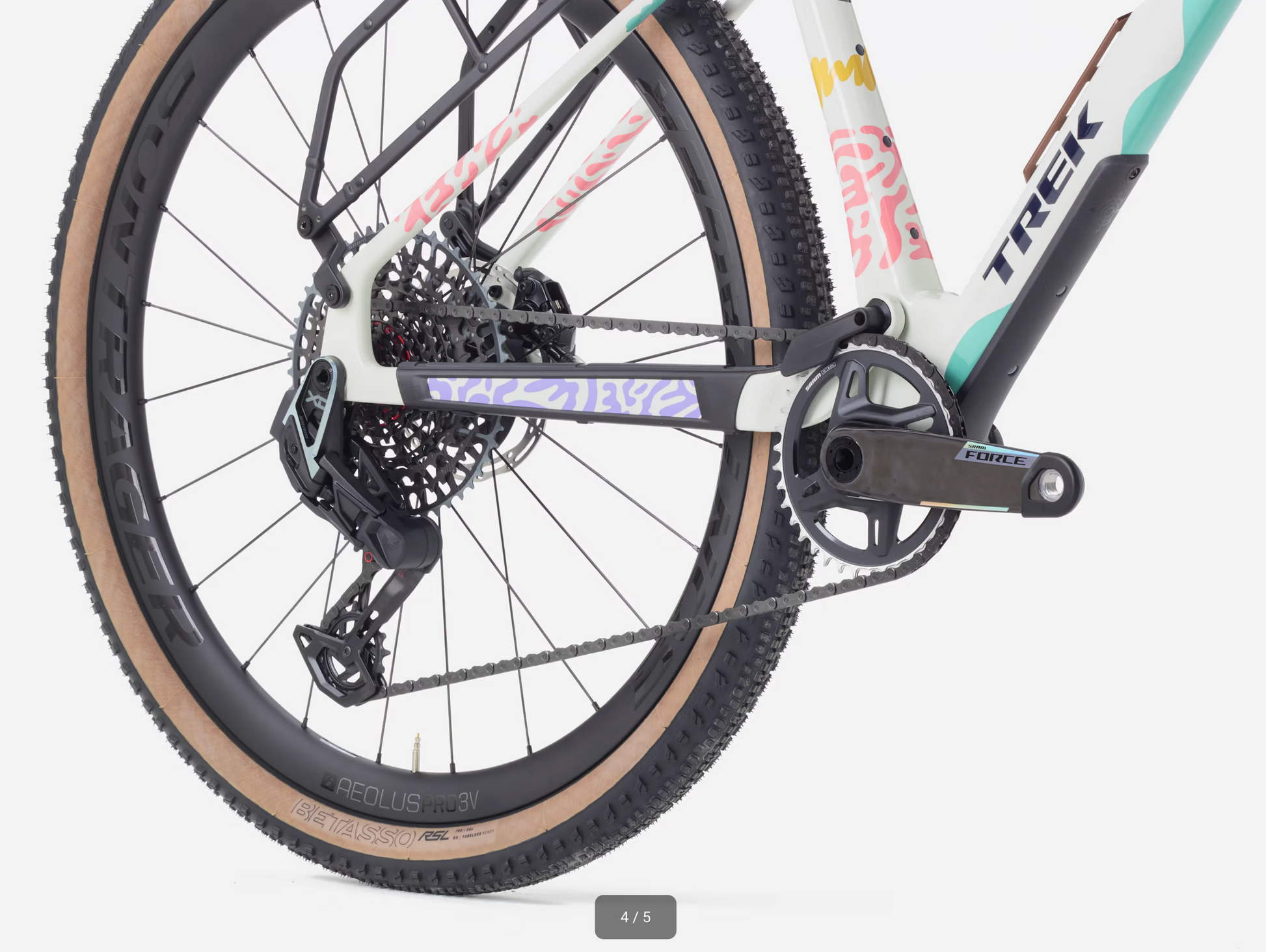

Drivetrain
Shifter
SRAM Force AXS E1
Rear derailleur
SRAM X0 Eagle AXS, T-Type
*Crank
Size: S
Sram Force 1 XPLR E1, 38T, DUB wide, 165mm length
Size: M, ML
Sram Force 1 XPLR E1, 38T, DUB wide, 170mm length
Size: L, XL
Sram Force 1 XPLR E1, 38T, DUB wide, 172.5mm length
Bottom bracket
SRAM DUB Wide, T47 threaded, internal bearing
Cassette
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
Chain
SRAM X0 Eagle, T-Type, 12 speed
Max chainring size
1x: 38T

Wheels
Wheel front
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru axle
Wheel rear
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 142x12mm thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tire
Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x55mm
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tire size
56mm/2.20" (as measured, see manual for details)

Components
Saddle
Verse Short Elite, hollow magnesium rails, 145mm width
Seatpost
RockShox Reverb AXS, 100mm travel, wireless, 31.6mm, 337mm length

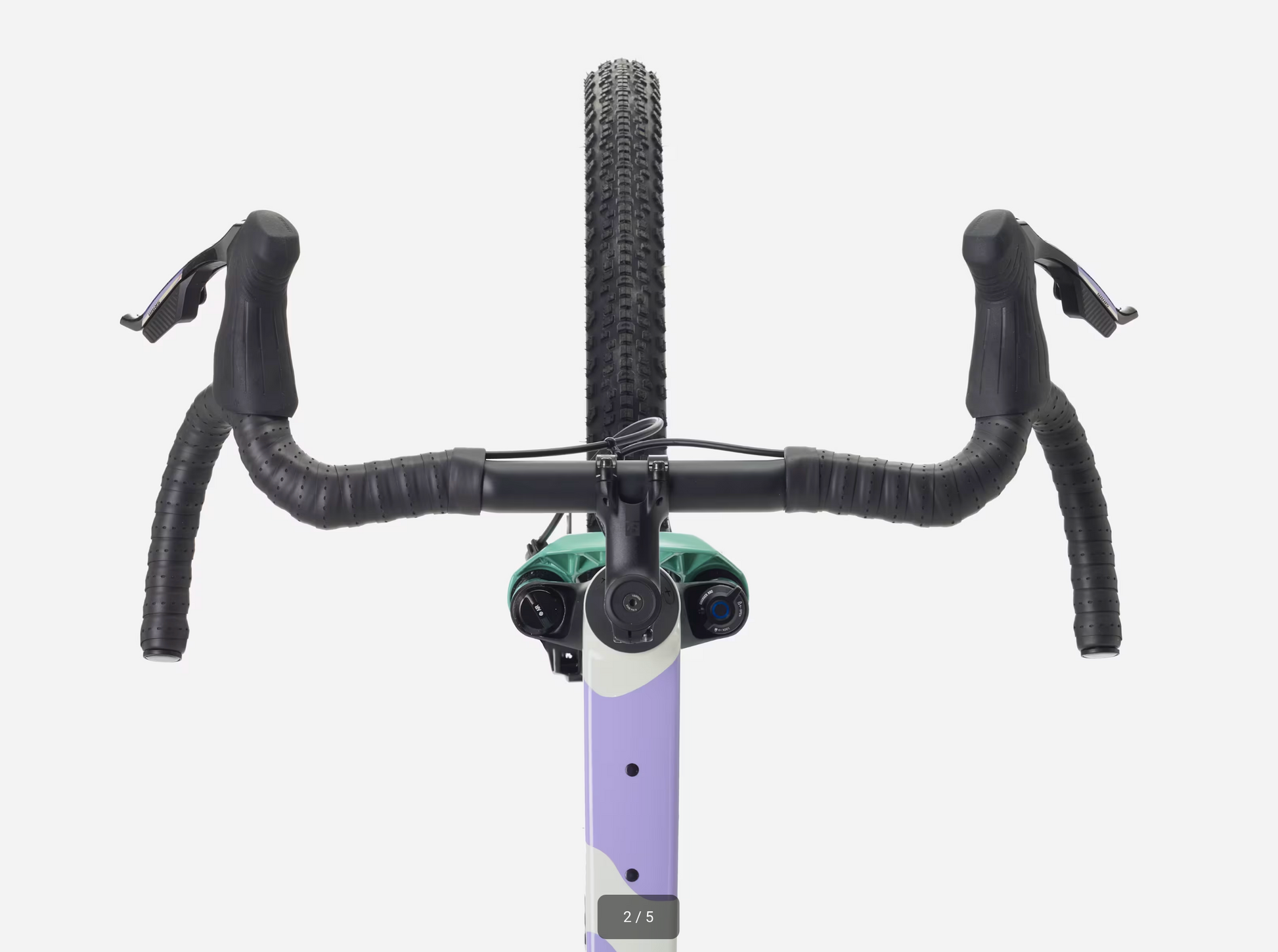

*Handlebar
Size: S
Bontrager GR Checkout, 42cm
Size: M
Bontrager GR Checkout, 44cm
Size: ML, L
Bontrager GR Checkout, 46cm
Size: XL
Bontrager GR Checkout, 48cm
Handlebar tape
Bontrager Supertack Perf tape
*Stem
Size: S, M
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: ML, L
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: XL
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length
Brake rotor
SRAM Paceline X, rounded, centerlock, 160mm
Rotor size
Max brake rotor sizes: 180mm front & rear

Accessories
Cargo rack
Checkout rear rack
Bracket
Trek Adjustable Multi-Mount
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
