Charter+ 4
Charter+ 4
Couldn't load pickup availability
Special Order Bike
Special Order Bike
This bike is not kept in store.
Lead time to pick-up is 10-14 days.

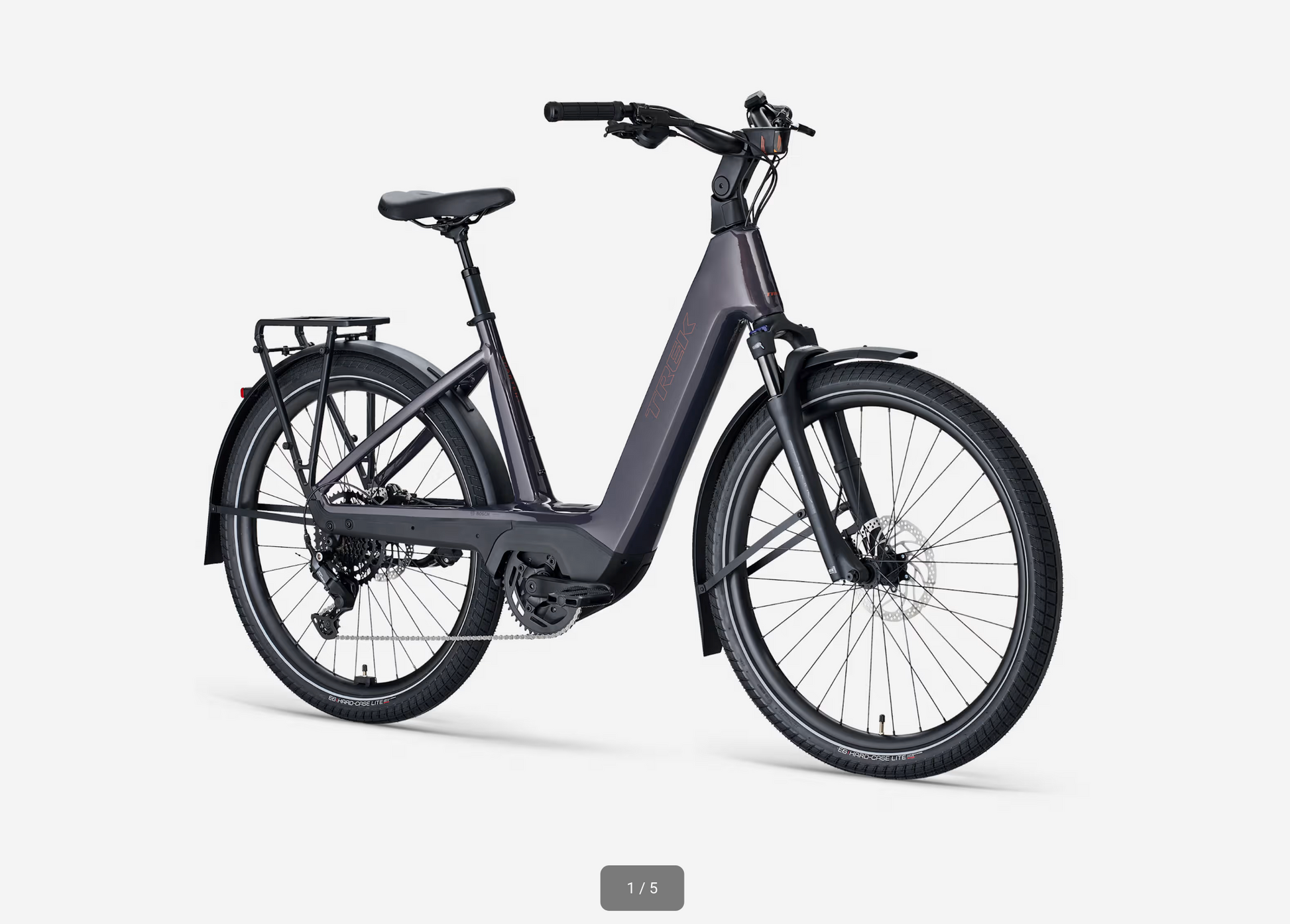

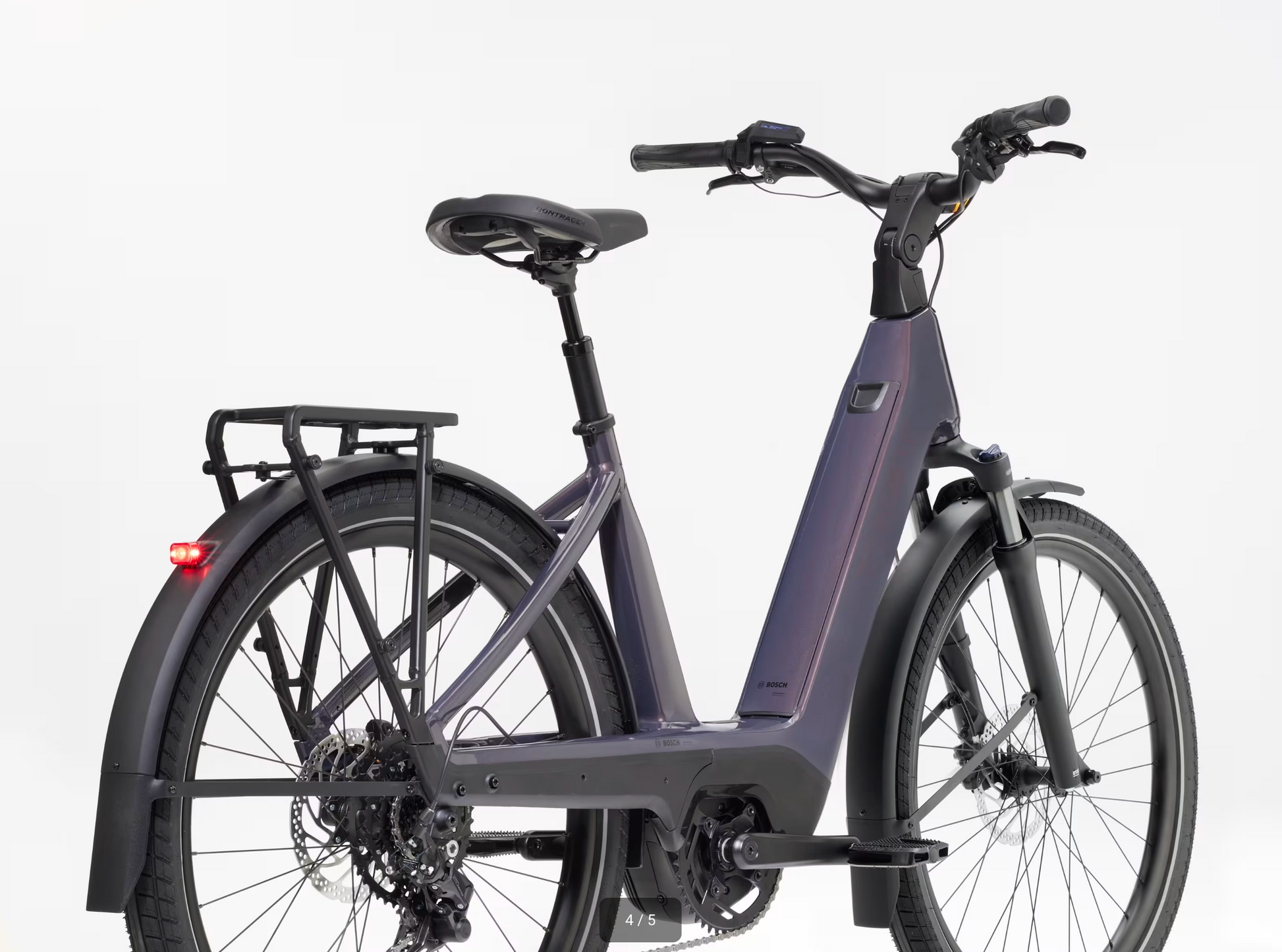

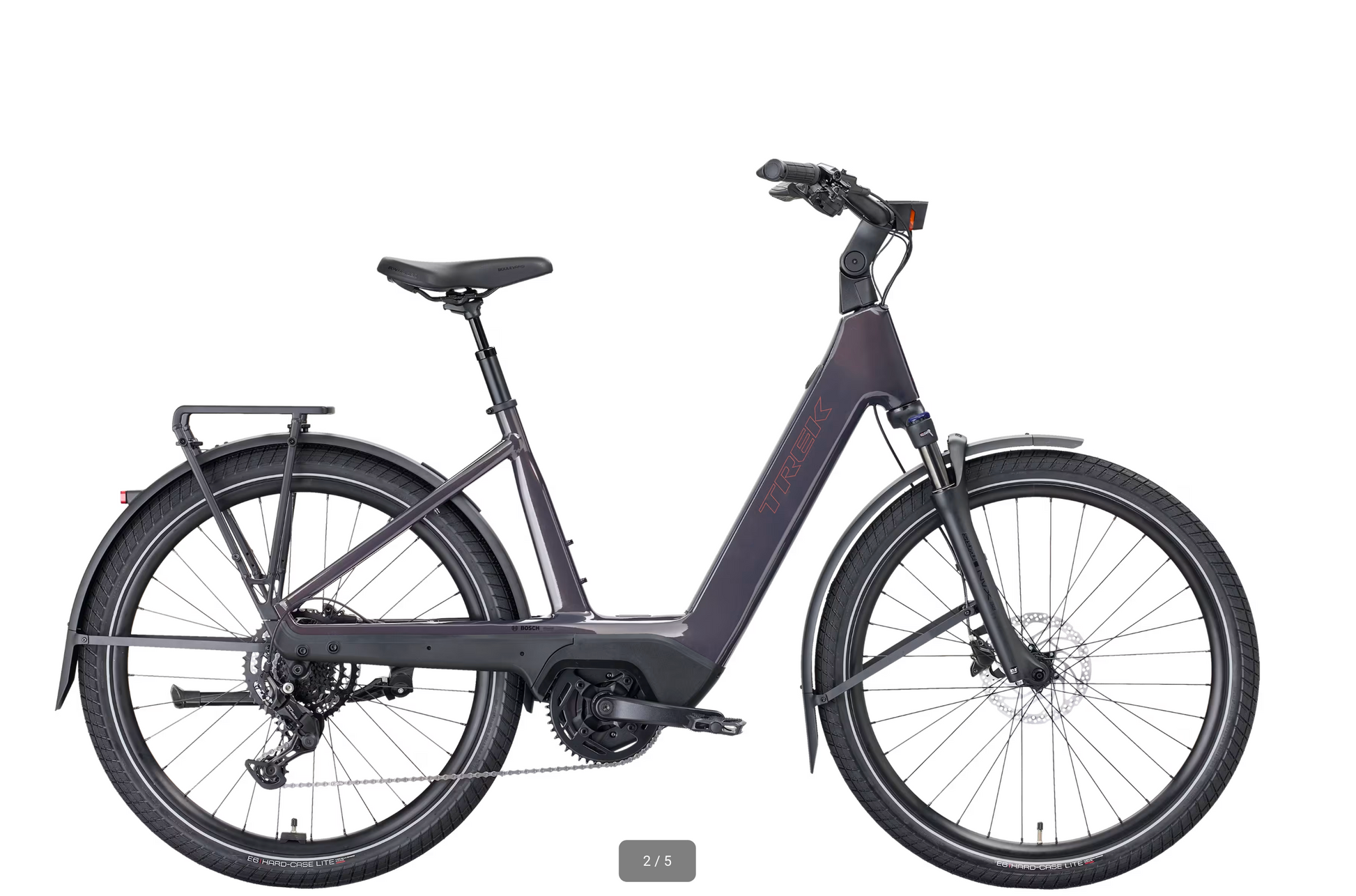

Charter+ 4 Lowstep is a premium city e-bike that delivers comfort, confidence, and convenience on every ride.
The easy-on lowstep frame and adjustable stem let you fine-tune your fit from upright and relaxed to more active and efficient. Road-smoothing front suspension, a Bosch Performance Line motor, and up to 110 km range keep you rolling with ease.
With a top-eject battery, high-beam headlight, and Bosch eBike Flow app security, it’s a true first-class experience.
How tall are you?
To measure your height, stand straight up, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inseam?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inseam measurement. Your inseam is very important to your final bike size so please measure carefully.
Share
Details
Specifications
Frame
Premium Alpha Platinum Aluminum frame, top-load Bosch CompactTube battery, integrated cockpit routing, integrated rack and fenders, adjustable bolt on dropout
Fork
SR Suntour SF25-NVX32, coil spring, preload adjuster, 5mm ThruSkew, 63mm travel
Wheels
Hub front
Formula CL-25, alloy, centerlock, 5x100mm
Skewer front
Trek Thru-Skew
Hub rear
Formula FCL-542S, alloy, centerlock, 11 speed freehub, 142x12mm thru axle
Skewer rear
Bontrager Switch thru axle, removable lever
Rim
Alloy double wall, 32H
Spokes
14g stainless steel, black
Tire
Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5x2.4"
Max tire size
Frame: 27.5x2.40", Fork: See manufacturer
E-system
Battery
Bosch PowerTube 800Wh, smart system
Charger
Bosch standard 2A, 110V, smart system
Computer
Bosch Purion 200
Motor
Bosch Performance Line, 250W, 75Nm, 32km/h
Drivetrain
Shifter
Shimano U4000, 9 speed
Crank
ProWheel alloy, 170mm length
Cassette
Shimano LINKGLIDE LG300, 11-46, 9 speed
Chain
Shimano LG500, 9/10/11 speed
Pedal
Bontrager City pedals
Max chainring size
See service manual
Components
Saddle
Bontrager Boulevard
Seatpost
Alloy, suspension, 31.6 mm, 300 mm length
*Handlebar
Size: S, M
Bontrager alloy, 31.8, comfort sweep, 660mm
Size: L
Bontrager alloy, 31.8mm, 690mm width
Grips
Trek Line Ergonomic Pro, lock-on
Stem

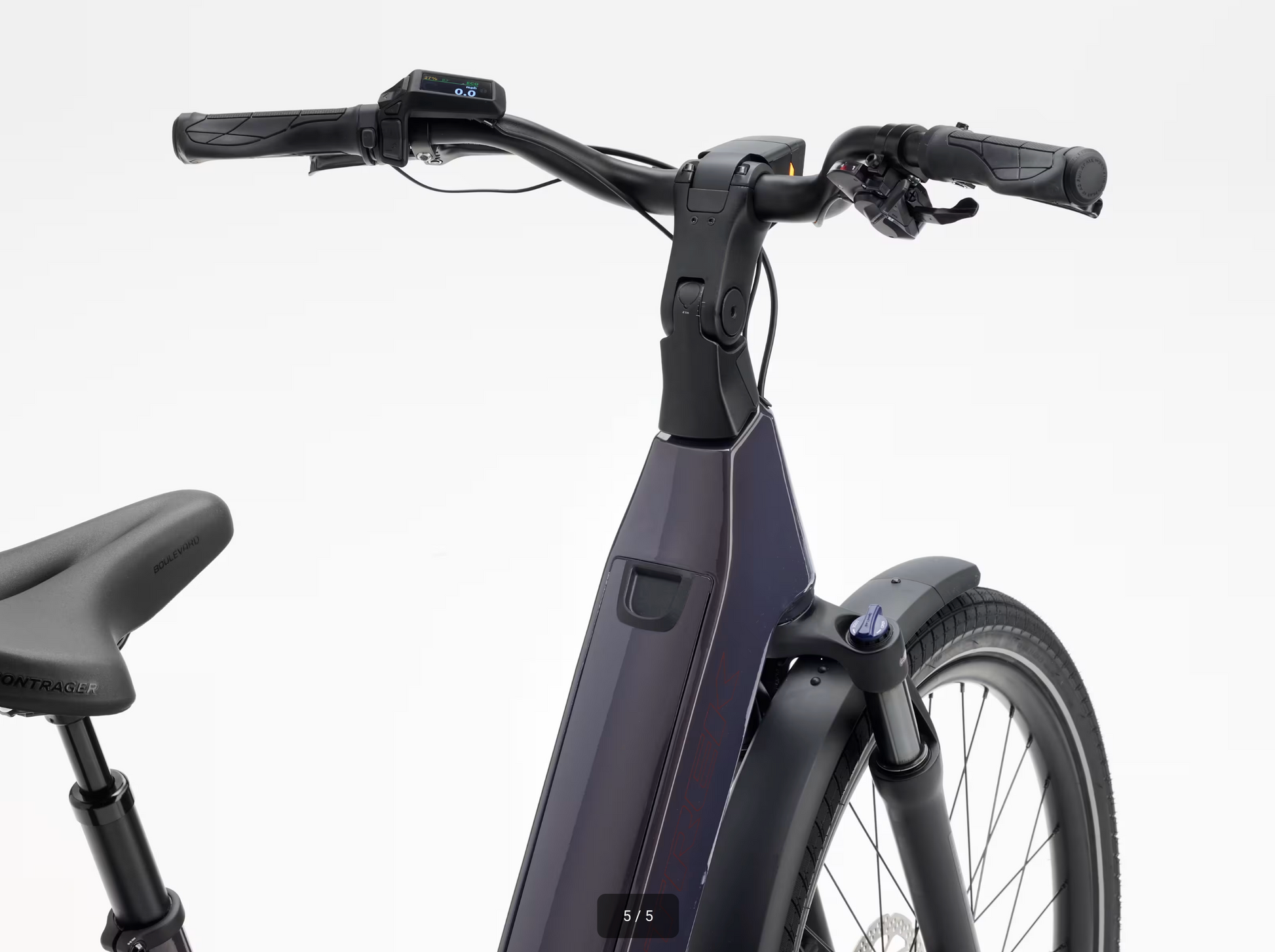

Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 80mm length
Brake
Shimano MT200 hydraulic disc
Brake rotor
Shimano RT30, centerlock, 180mm
Brake Set
Shimano MT200 hydraulic disc
Rotor size
Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer
Accessories
*Light
Size: S, M, L
Trek LED, taillight
Size: S, M, L

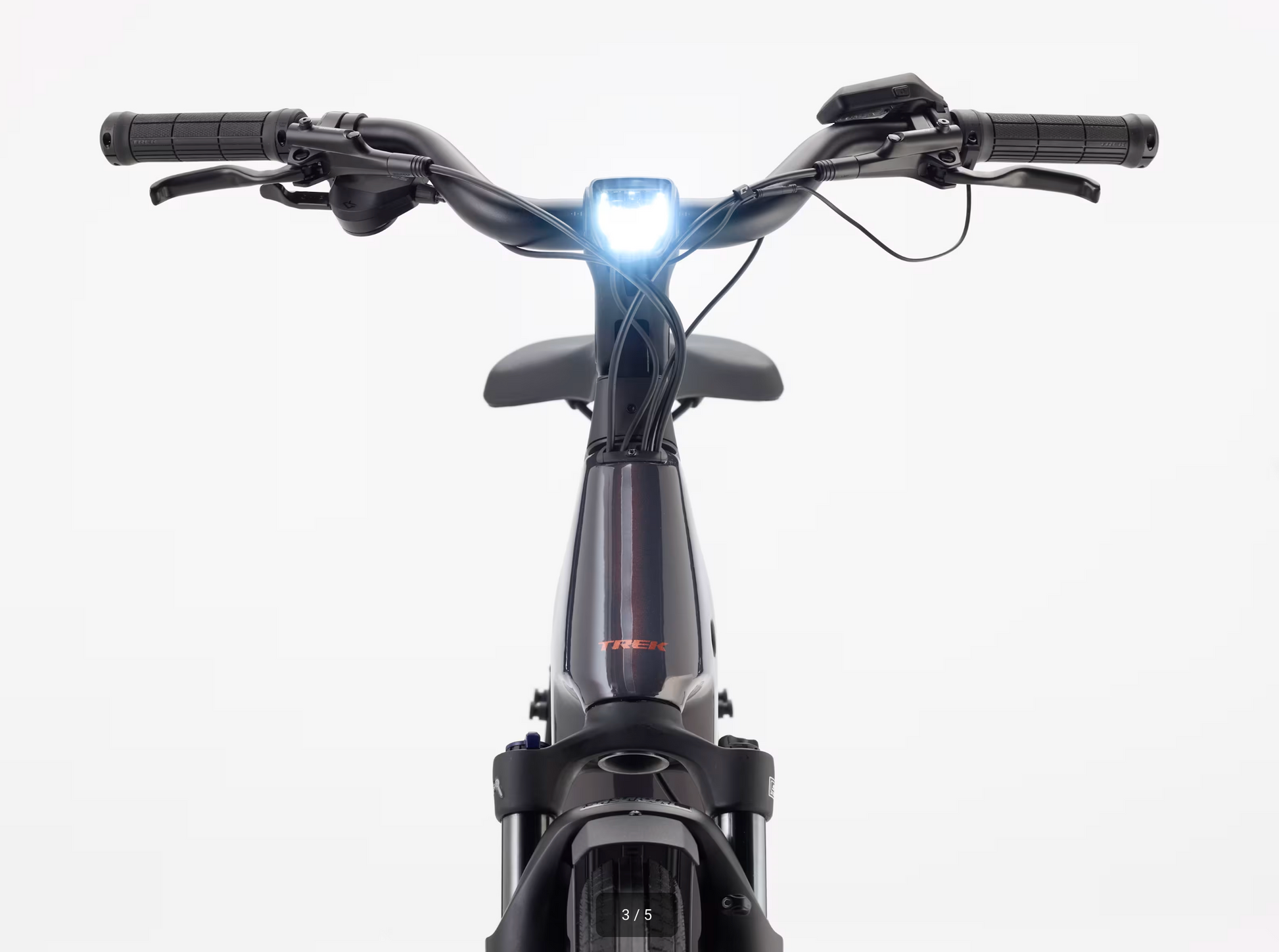

Trek LED, 400 lumen low/800 lumen high, headlight
Kickstand
Adjustable length rear mount alloy kickstand
Fender
Trek Charter alloy fender
Weight
Weight
M - 30.30 kg / 66.81 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
Discounted Items Are Final Sale
Please visit our Return/Exchange Policy page for more information.
Shipping
This bike is not eligible for shipping

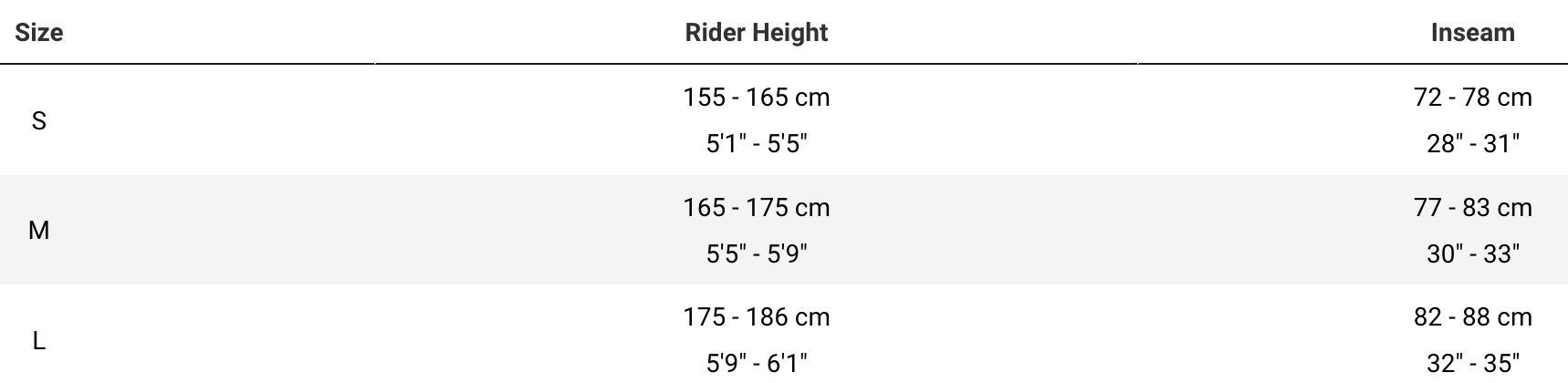

Size Chart

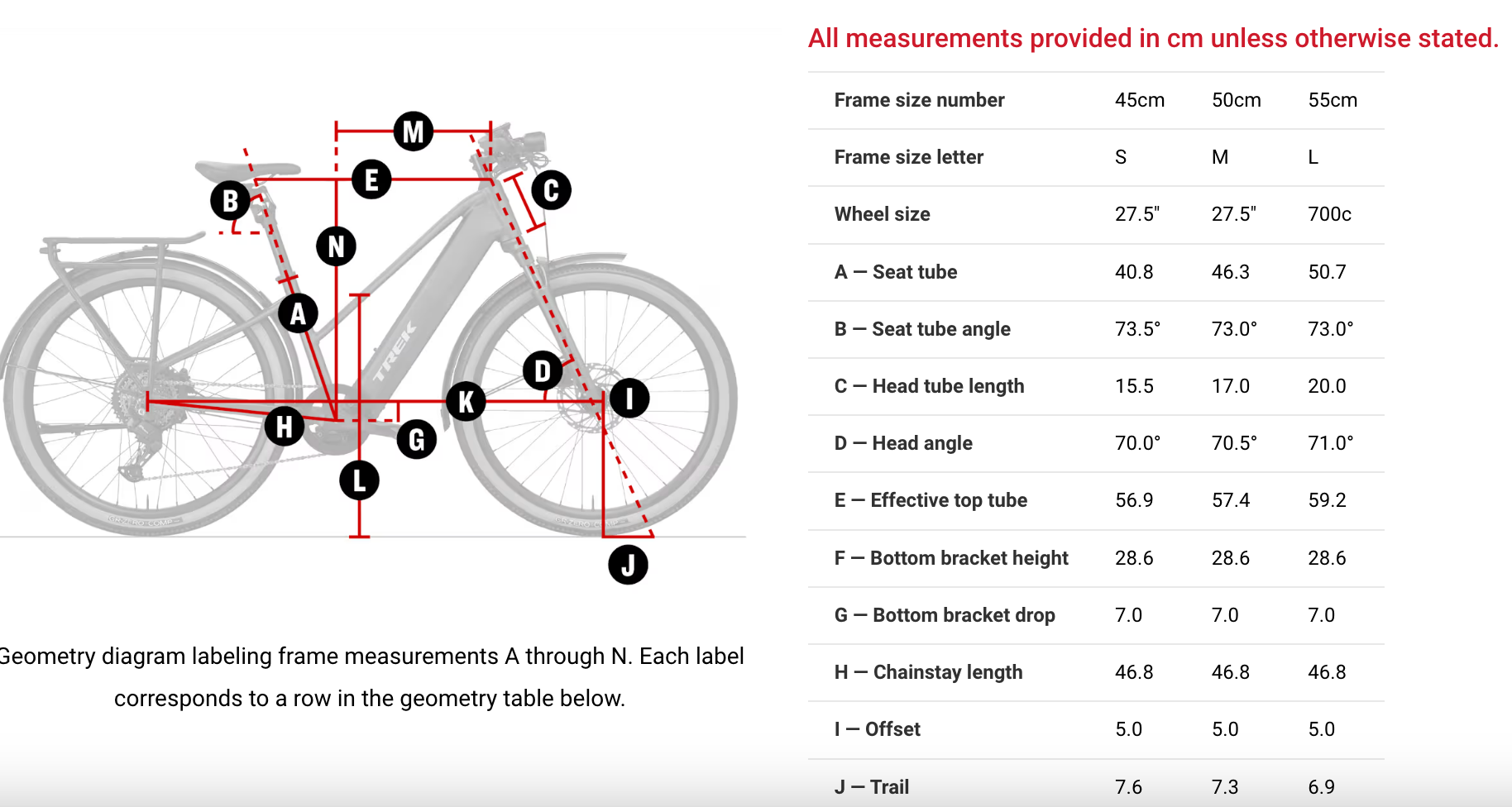

Geometry Chart
